700MHz, Differential-to-3.3V LVPECL
Frequency Synthesizer
8432I-101
Data Sheet
G
ENERAL
D
ESCRIPTION
The 8432I-101 is a general pur pose, dual out-
p u t D i f f e r e n t i a l - t o - 3 . 3 V LV P E C L h i g h f r e q u e n c y
synthesizer
and
a
member
of
the
fa m i l y o f H i g h Pe r fo r m a n c e C l o c k S o l u t i o n s f r o m
IDT. The 8432I-101 has a selectable TEST_CLK or CLK,
nCLK inputs. The TEST_CLK input accepts LVCMOS or
LVTTL input levels and translates them to 3.3V LVPECL
levels. The CLK, nCLK pair can accept most standard dif-
ferential input levels. The VCO operates at a frequency
range of 250MHz to 700MHz. The VCO frequency is pro-
grammed in steps equal to the value of the input differential
or single ended reference frequency. The VCO and output
frequency can be programmed using the serial or parallel
interfaces to the configuration logic. The low phase noise
characteristics of the 8432I-101 makes it an ideal clock source for
Gigabit Ethernet and SONET applications.
F
EATURES
•
Dual differential 3.3V LVPECL outputs
•
Selectable CLK, nCLK or LVCMOS/LVTTL TEST_CLK
•
TEST_CLK can accept the following input levels:
LVCMOS or LVTTL
•
CLK, nCLK pair can accept the following differential
input levels: LVPECL, LVDS, LVHSTL, SSTL, HCSL
•
CLK, nCLK or TEST_CLK maximum input frequency: 40MHz
•
Output frequency range: 25MHz to 700MHz
•
VCO range: 250MHz to 700MHz
•
Accepts any single-ended input signal on CLK input with resis-
tor bias on nCLK input
•
Parallel interface for programming counter and output dividers
•
RMS period jitter: 5ps (maximum)
•
Cycle-to-cycle jitter: 25ps (maximum)
•
3.3V supply voltage
•
-40°C to 85°C ambient operating temperature
•
Available in lead-free (RoHS 6) package
B
LOCK
D
IAGRAM
P
IN
A
SSIGNMENT
VCO_SEL
nP_LOAD
nCLK
M4
M3
M2
M1
M0
32 31 30 29 28 27 26 25
M5
M6
M7
M8
N0
N1
nc
V
EE
1
2
3
4
5
6
7
8
9 10 11 12 13 14 15 16
TEST
V
CC
FOUT1
nFOUT1
V
CCO
FOUT0
nFOUT0
V
EE
24
23
22
CLK
TEST_CLK
CLK_SEL
V
CCA
S_LOAD
S_DATA
S_CLOCK
MR
ICS8432I-101
21
20
19
18
17
32-Lead LQFP
7mm x 7mm x 1.4mm package body
Y Package
Top View
©2016 Integrated Device Technology, Inc
1
Revision C January 8, 2016
8432I-101 Data Sheet
F
UNCTIONAL
D
ESCRIPTION
NOTE: The functional description that follows describes operation
using a 25MHz clock input. Valid PLL loop divider values for different
input frequencies are defined in the Input Frequency Characteristics,
Table 5, NOTE 1.
The 8432I-101 features a fully integrated PLL and therefore
requires no external components for setting the loop band-
width. A differential clock input is used as the input to the 8432I-
101. This input is fed into the phase detector. A 25MHz clock input
provides a 25MHz phase detector reference frequency. The VCO of
the PLL operates over a range of 250MHz to 700MHz. The output
of the M divider is also applied to the phase detector.
The phase detector and the M divider force the VCO output
frequency to be M times the reference frequency by adjust-
ing the VCO control voltage. Note, that for some values of M
(either too high or too low), the PLL will not achieve lock. The
output of the VCO is scaled by a divider prior to being sent
to each of the LVPECL output buffers. The divider provides a
50% output duty cycle.
The programmable features of the 8432I-101 support two
input modes to program the PLL M divider and N output divider.
The two input operational modes are parallel and serial.
Figure1
shows the timing diagram for each mode. In parallel mode, the
nP_LOAD input is initially LOW. The data on inputs M0 through
M8 and N0 and N1 is passed directly to the M divider and
N output divider. On the LOW-to-HIGH transition of the
nP_LOAD input, the data is latched and the M divider remains
loaded until the next LOW transition on nP_LOAD or until a serial
event occurs. As a result, the M and N bits can be hardwired to
set the M divider and N output divider to a specific default state
that will automatically occur during power-up. The TEST output is
LOW when operating in the parallel input mode. The relationship
between the VCO frequency, the input frequency and the M divider
is defined as follows:
fVCO = f
IN
x M
The M value and the required values of M0 through M8 are shown
in Table 3B, Programmable VCO Frequency Function Table. Valid
M values for which the PLL will achieve lock for a 25MHz reference
are defined as 8
≤
M
≤
28. The frequency out is defined as follows:
fOUT = fVCO = f
IN
x M
N
N
Serial operation occurs when nP_LOAD is HIGH and S_LOAD
is LOW. The shift register is loaded by sampling the S_DATA
bits with the rising edge of S_CLOCK. The contents of the shift
register are loaded into the M divider and N output divider when
S_LOAD transitions from LOW-to-HIGH. The M divide and N out-
put divide values are latched on the HIGH-to-LOW transition of
S_LOAD. If S_LOAD is held HIGH, data at the S_DATA input is
passed directly to the M divider and N output divider on each rising
edge of S_CLOCK. The serial mode can be used to program the
M and N bits and test bits T1 and T0. The internal registers T0
and T1 determine the state of the TEST output as follows:
T1
0
0
1
1
T0
0
1
0
1
TEST Output
LOW
S_Data, Shift Register Input
Output of M divider
CMOS Fout
F

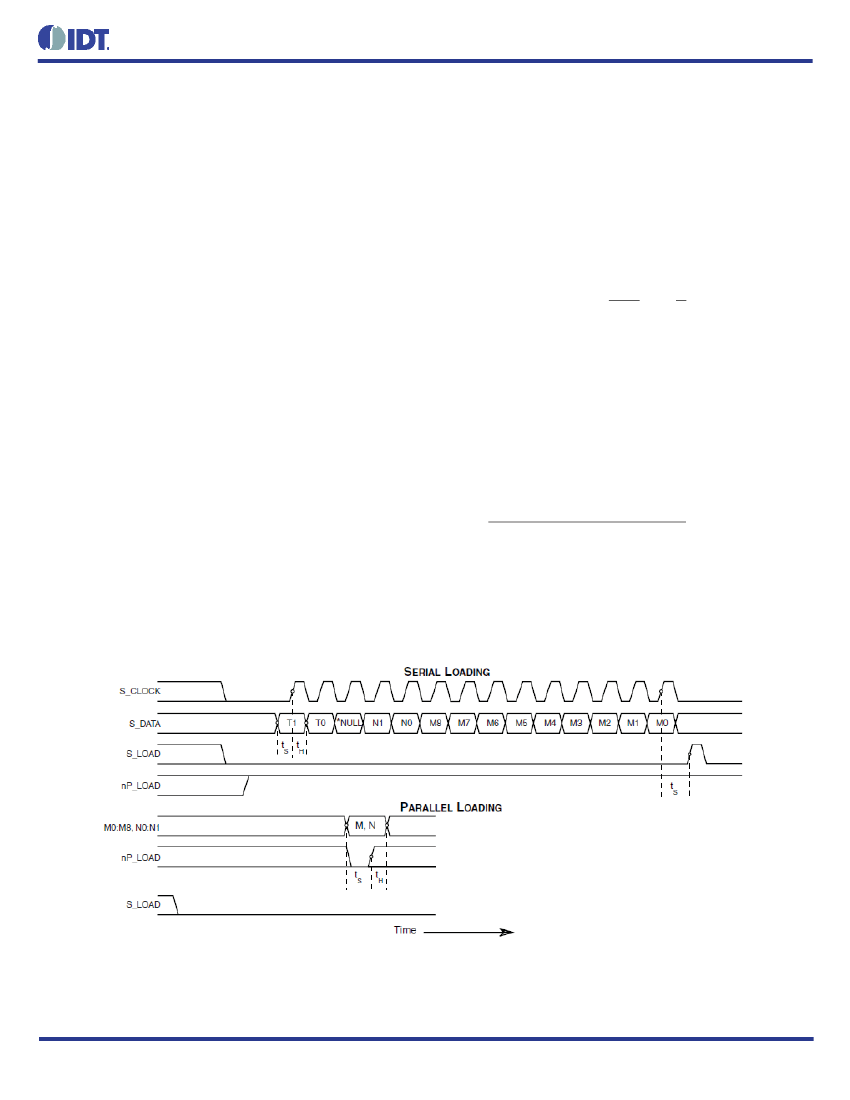

IGURE
1. P
ARALLEL
& S
ERIAL
L
OAD
O
PERATIONS
*NOTE:
The NULL timing slot must be observed.
©2016 Integrated Device Technology, Inc
2
Revision C January 8, 2016
8432I-101 Data Sheet
T
ABLE
1. P
IN
D
ESCRIPTIONS
Number
1
2, 3, 4
28, 29
30, 31, 32
5, 6
7
8, 16
9
10
11, 12
13
14, 15
Name
M5
M6, M7, M8,
M0, M1,
M2, M3, M4
N0, N1
nc
V
EE
TEST
V
CC
FOUT1, nFOUT1
V
CCO
FOUT0, nFOUT0
Input
Input
Input
Unused
Power
Output
Power
Output
Power
Output
Type
Pullup
M divider inputs. Data latched on LOW-to-HIGH transistion
Pulldown of nP_LOAD input. LVCMOS / LVTTL interface levels.
Pulldown
Determines output divider value as defined in Table 3C,
Function Table. LVCMOS / LVTTL interface levels.
No connect.
Negative supply pins.
Test output which is ACTIVE in the serial mode of operation. Output
driven LOW in parallel mode. LVCMOS / LVTTL interface levels.
Core supply pin.
Differential output for the synthesizer. 3.3V LVPECL interface levels.
Output supply pin.
Differential output for the synthesizer. 3.3V LVPECL interface levels.
Active High Master Reset. When logic HIGH, the internal dividers are
reset causing the true outputs FOUTx to go low and the inverted out-
puts nFOUTx to go high. When logic LOW, the internal dividers and
the outputs are enabled. Assertion of MR does not affect loaded
M, N, and T values. LVCMOS / LVTTL interface levels.
Clocks in serial data present at S_DATA input into the shift register on
the rising edge of S_CLOCK. LVCMOS / LVTTL interface levels.
Shift register serial input. Data sampled on the rising edge
of S_CLOCK. LVCMOS / LVTTL interface levels.
Controls transition of data from shift register into the dividers. LVC-
MOS / LVTTL interface levels.
Analog supply pin.
Pullup
Clock select input. Selects between differential clock input or TEST_
CLK input as the PLL reference source. When HIGH,
selects CLK, nCLK inputs. When LOW, selects TEST_CLK input.
LVCMOS / LVTTL interface levels.
Non-inverting differential clock input.
Inverting differential clock input.
Description
17
MR
Input
Pulldown
18
19
20
21
22
23
24
25
26
27
S_CLOCK
S_DATA
S_LOAD
V
CCA
CLK_SEL
TEST_CLK
CLK
nCLK
nP_LOAD
VCO_SEL
Input
Input
Input
Power
Input
Input
Input
Input
Input
Input
Pulldown
Pulldown
Pulldown
Pulldown Test clock input. LVCMOS / LVTTL interface levels.
Pulldown
Pullup
Parallel load input. Determines when data present at M8:M0 is loaded
Pulldown into M divider, and when data present at N1:N0 sets the
N output divider value. LVCMOS / LVTTL interface levels.
Determines whether synthesizer is in PLL or bypass mode. LVCMOS
Pullup
/ LVTTL interface levels.
NOTE:
Pullup
and
Pulldown
refer to internal input resistors. See Table 2, Pin Characterisitics, for typical values.
T
ABLE
2. P
IN
C
HARACTERISTICS
Symbol
C
IN
R
PULLUP
R
PULLDOWN
Parameter
Input Capacitance
Input Pullup Resistor
Input Pulldown Resistor
Test Conditions
Minimum
Typical
4
51
51
Maximum
Units
pF
kΩ
kΩ
©2016 Integrated Device Technology, Inc
3
Revision C January 8, 2016
8432I-101 Data Sheet
T
ABLE
3A. P
ARALLEL AND
S
ERIAL
M
ODE
F
UNCTION
T
ABLE
Inputs
MR
H
L
L
L
L
L
L
L
nP_LOAD
X
L
↑
H
H
H
H
H
M
X
Data
Data
X
X
X
X
X
N
X
Data
Data
X
X
X
X
X
S_LOAD
X
X
L
L
↑
↓
L
H
S_CLOCK
X
X
X
↑
L
L
X
S_DATA
X
X
X
Data
Data
Data
X
Data
Reset. Forces outputs LOW.
Data on M and N inputs passed directly to the
M divider and N output divider. TEST output
forced LOW.
Data is latched into input registers and remains loaded
until next LOW transition or until a serial event occurs.
Serial input mode. Shift register is loaded with data on
S_DATA on each rising edge of S_CLOCK.
Contents of the shift register are passed to the
M divider and N output divider.
M divider and N output divider values are latched.
Parallel or serial inputs do not affect shift registers.
S_DATA passed directly to M divider as it is clocked.
Conditions
NOTE: L = LOW
H = HIGH
X = Don’t care
↑
= Rising edge transition
↓
= Falling edge transition
T
ABLE
3B. P
ROGRAMMABLE
VCO F
REQUENCY
F
UNCTION
T
ABLE
VCO Frequency
(MHz)
200
225
250
275
•
•
650
675
700
M Divide
8
9
10
11
•
•
26
27
28
256
M8
0
0
0
0
•
•
0
0
0
128
M7
0
0
0
0
•
•
0
0
0
64
M6
0
0
0
0
•
•
0
0
0
32
M5
0
0
0
0
•
•
0
0
0
16
M4
0
0
0
0
•
•
1
1
1
8
M3
1
1
1
1
•
•
1
1
1
4
M2
0
0
0
0
•
•
0
0
1
2
M1
0
0
1
1
•
•
1
1
0
1
M0
0
1
0
1
•
•
0
1
0
NOTE 1: These M divide values and the resulting frequencies correspond to differential input or TEST_CLK input frequency of
25MHz.
T
ABLE
3C. P
ROGRAMMABLE
O
UTPUT
D
IVIDER
F
UNCTION
T
ABLE
Inputs
N1
0
0
1
1
N0
0
1
0
1
N Divider Value
1
2
4
8
Output Frequency (MHz)
Minimum
250
125
62.5
31.25
Maximum
700
350
175
87.5
©2016 Integrated Device Technology, Inc
4
Revision C January 8, 2016
8432I-101 Data Sheet
A
BSOLUTE
M
AXIMUM
R
ATINGS
Supply Voltage, V
CC
Inputs, V
I
Outputs, I
O
Continuous Current
Surge Current
Package Thermal Impedance,
θ
JA
Storage Temperature, T
STG
4.6V
-0.5V to V
CC
+ 0.5 V
50mA
100mA
47.9°C/W (0 lfpm)
-65°C to 150°C
N OT E : S t r e s s e s b eyo n d t h o s e l i s t e d u n d e r A b s o l u t e
Maximum Ratings may cause permanent damage to the
device. These ratings are stress specifications only. Functional
operation of product at these conditions or any conditions beyond
those listed in the
DC Characteristics
or
AC Characteristics
is not
implied. Exposure to absolute maximum rating conditions for ex-
tended periods may affect product reliability.
T
ABLE
4A. P
OWER
S
UPPLY
DC C
HARACTERISTICS
,
V
CC
= V
CCA
= V
CCO
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
V
CC
V
CCA
V
CCO
I
EE
I
CCA
Parameter
Core Supply Voltage
Analog Supply Voltage
Output Supply Voltage
Power Supply Current
Analog Supply Current
Test Conditions
Minimum
3.135
3.135
3.135
Typical
3.3
3.3
3.3
Maximum
3.465
3.465
3.465
120
15
Units
V
V
V
mA
mA
T
ABLE
4B. LVCMOS / LVTTL DC C
HARACTERISTICS
,
V
CC
= V
CCA
= V
CCO
= 3.3V±5%, T
A
= -40°C
TO
85°C
Symbol
Parameter
VCO_SEL, CLK_SEL, MR, S_
LOAD, S_DATA, S_CLOCK,
nP_LOAD, M0:M8, N0:N1
TEST_CLK
VCO_SEL, CLK_SEL, MR, S_
LOAD, S_DATA, S_CLOCK,
nP_LOAD, M0:M8, N0:N1
TEST_CLK
M0-M4, M6-M8, N0, N1, MR,
S_CLOCK, TEST_CLK, S_
DATA, S_LOAD, nP_LOAD
M5, CLK_SEL, VCO_SEL
M0-M4, M6-M8, N0, N1, MR,
S_CLOCK, TEST_CLK, S_
DATA, S_LOAD, nP_LOAD
M5, CLK_SEL, VCO_SEL
V
OH
V
OL
Output
High Voltage
Output
Low Voltage
TEST
TEST
Test Conditions
Minimum Typical
2
2
-0.3
-0.3
V
CC
= V
IN
= 3.465V
V
CC
= V
IN
= 3.465V
V
CC
= 3.465V,
V
IN
= 0V
V
CC
= 3.465V,
V
IN
= 0V
V
CC
= 3.135V,
I
OH
= -36mA
V
CC
= 3.135V,
I
OL
= 36mA
-5
Maximum Units
V
CC
+ 0.3
V
CC
+ 0.3
0.8
1.3
150
5
V
V
V
V
µA
µA
µA
V
IH
Input
High Voltage
V
IL
Input
Low Voltage
I
IH
Input
High Current
I
IL
Input
Low Current
-150
2.6
0.5
µA
V
V
©2016 Integrated Device Technology, Inc
5
Revision C January 8, 2016
京公网安备 11010802033920号
EEWORLD
