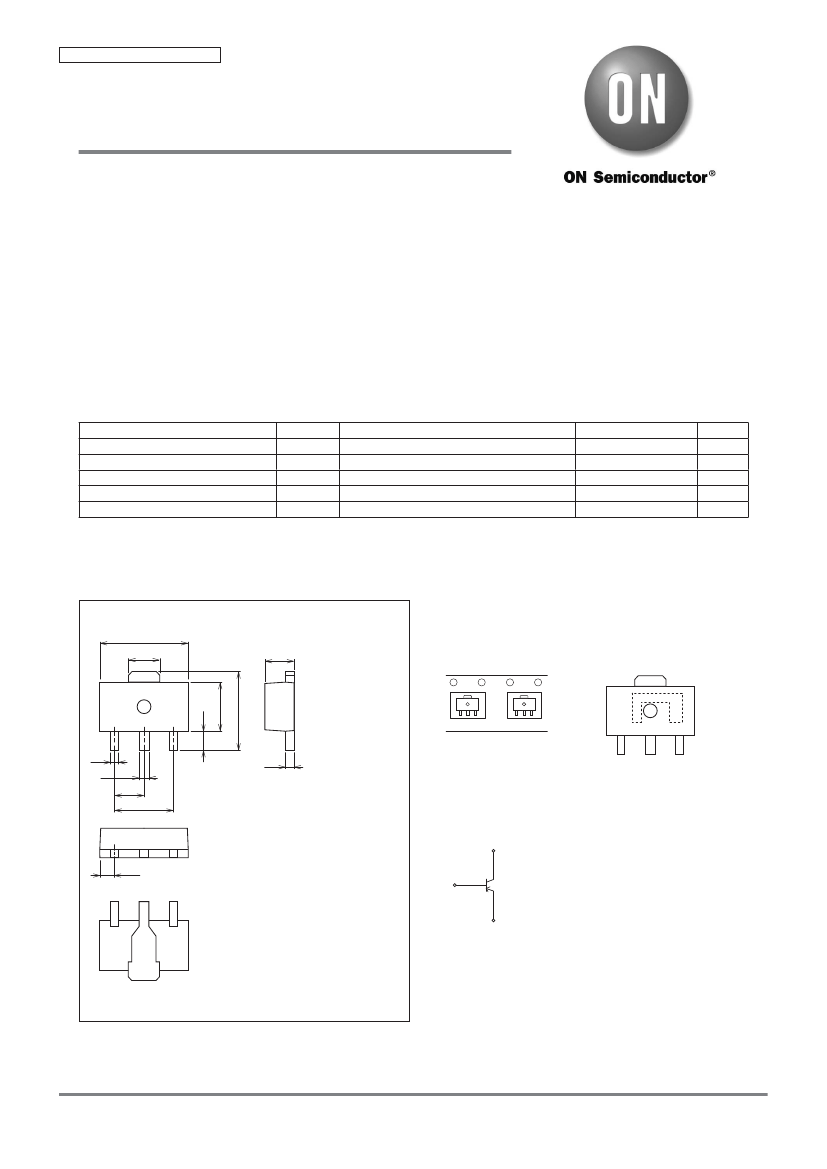

Ordering number : EN7920B
2SA2124
Bipolar Transistor
-30V, -2A, Low VCE(sat), PNP Single PCP
Applicaitons
•
http://onsemi.com
Voltage regulators, relay drivers, lamp drivers, electrical equipment
Features
•
•
Adoption of MBIT processes
Large current capacity
•
•
Low collector-to-emitter saturation voltage
High-speed switching
Specifications
Absolute Maximum Ratings
at Ta=25°C
Parameter
Collector-to-Base Voltage
Collector-to-Emitter Voltage
Emitter-to-Base Voltage
Collector Current
Collector Current (Pulse)
Symbol
VCBO
VCEO
VEBO
IC
ICP
Conditions
Ratings
--30
--30
-
-6
-
-2
-
-5
Unit
V
V
V
A
A
Continued on next page.
Package Dimensions
unit : mm (typ)
7007B-004
Top View
4.5
1.6
1.5
Product & Package Information
• Package
: PCP
• JEITA, JEDEC
: SC-62, SOT-89, TO-243
• Minimum Packing Quantity : 1,000 pcs./reel
2SA2124-TD-E
Packing Type: TD
Marking
1.0
TD
1
0.4
0.5
1.5
3.0
2
3
0.4
Electrical Connection
2
0.75
1
1 : Base
2 : Collector
3 : Emitter
Bottom View
3
PCP
Semiconductor Components Industries, LLC, 2013
September, 2013
O1712 TKIM TC-00002827/80509 TKIM TC-00002048/D2004EA TSIM TB-00000072 No.7920-1/7
AX
LOT No.
2.5
4.0
2SA2124
Continued from preceding page.
Parameter
Base Current
Collector Dissipation
Junction Temperature
Storage Temperature
Symbol
IB
PC
Tj
Tstg
When mounted on ceramic substrate (450mm
×0.8mm)
Tc=25°C
2
Conditions
Ratings
-
-400
1.3
3.5
150
-
-55 to +150
Unit
mA
W
W
°C
°C
Stresses exceeding Maximum Ratings may damage the device. Maximum Ratings are stress ratings only. Functional operation above the Recommended Operating
Conditions is not implied. Extended exposure to stresses above the Recommended Operating Conditions may affect device reliability.
Electrical Characteristics
at Ta=25°C
Parameter
Collector Cutoff Current
Emitter Cutoff Current
DC Current Gain
Gain-Bandwidth Product
Collector-to-Emitter Saturation Voltage
Base-to-Emitter Saturation Voltage
Collector-to-Base Breakdown Voltage
Collector-to-Emitter Breakdown Voltage
Emitter-to-Base Breakdown Voltage
Output Capacitance
Turn-ON Time
Storage Time
Fall Time
Symbol
ICBO
IEBO
hFE1
hFE2
fT
VCE(sat)
VBE(sat)
V(BR)CBO
V(BR)CEO
V(BR)EBO
Cob
ton
tstg
tf
Conditions
VCB=--30V, IE=0A
VEB=--4V, IC=0A
VCE=--2V, IC=--100mA
VCE=--2V, IC=--1.5A
VCE=--10V, IC=--300mA
IC=--1.5A, IB=--75mA
IC=--1.5A, IB=--75mA
IC=--10μA, IE=0A
IC=--1mA, RBE=∞
IE=--10μA, IC=0A
VCB=--10V, f=1MHz
See specified Test Circuit.
--30
-
-30
--6
17
45
200
23
200
65
440
--0.2
--0.95
-
-0.4
--1.2
MHz
V
V
V
V
V
pF
ns
ns
ns
Ratings
min
typ
max
--0.1
--0.1
560
Unit
μA
μA
Switching Time Test Circuit
PW=20μs
D.C.≤1%
INPUT
IB1
IB2
VR
50Ω
RB
IC
OUTPUT
RL
+
470μF
VCC= --12V
+
220μF
VBE=5V
IC=20IB1= --20IB2= --0.5A
Ordering Information
Device
2SA2124-TD-E
Package
PCP
Shipping
1,000pcs./reel
memo
Pb Free
No.7920-2/7

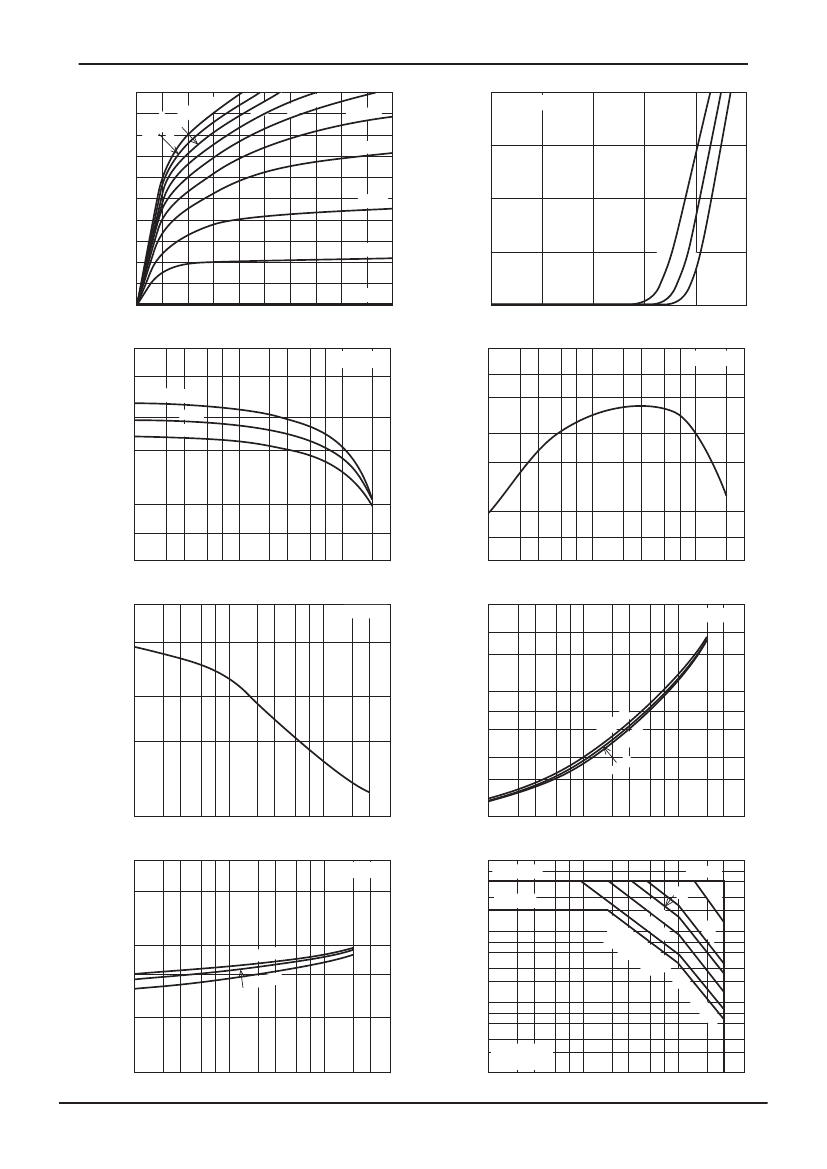

2SA2124
--2.0
IC -- VCE
mA
--3
0m
A
--2.0
IC -- VBE
VCE= --2V
--1.8
0m
--4
A
mA
--20mA
--25
--15mA
Collector Current, IC -- A
--1.4
--1.2
--1.0
--0.8
--0.6
--10mA
Collector Current, IC -- A
--1.6
--3
5
--1.5
--5mA
--1.0
--2mA
--0.4
--0.2
0
0
--0.2
--0.4
--0.6
--0.8
--1.0
--1.2
--1.4
--0.5
IB=0mA
--1.6
--1.8
--2.0
0
0
--0.2
--0.4
--0.6
Ta=
75
°
C
25
°
C
--25
°
C
--0.8
--1.0
IT07249
Collector-to-Emitter Voltage, VCE -- V
7
5
IT07248
1000
Base-to-Emitter Voltage, VBE -- V
hFE -- IC
f T -- IC
VCE= --2V
Gain-Bandwidth Product, f T -- MHz
7
5
VCE= --10V
Ta=75
°
C
DC Current Gain, hFE
3
25
°C
--25
°
C
3
2
2
100
100
7
5
--0.01
7
5
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
Collector Current, IC -- A
7
IT07250
5
3
2
Cob -- VCB
Collector Current, IC -- A
IT07251
VCE(sat) -- IC
f=1MHz
Collector-to-Emitter
Saturation Voltage, VCE(sat) -- V
IC / IB=20
Output Capacitance, Cob -- pF
5
3
--0.1
7
5
3
2
2
=7
Ta
C
5
°
5
°
--2
°
C
25
C
10
--0.1
2
3
5
7 --1.0
2
3
5
7 --10
2
3
5
--0.01
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
Collector-to-Base Voltage, VCB -- V
3
IT07252
--10
7
5
3
VBE(sat) -- IC
Collector Current, IC -- A
IT07253
ASO
IC / IB=20
Base-to-Emitter
Saturation Voltage, VBE(sat) -- V
2
ICP= --5A
IC= --2A
<10μs
1m
10
m
Di
10
s
ssi
0m
p
s
DC
ation
op
Lim
era
ite
tio
d
n
10
s
0
μ
s
Collector Current, IC -- A
2
--1.0
7
5
3
2
--0.1
7
5
3
2
s
0
μ
50
--1.0
Ta= --25
°
C
7
25
°
C
5
75
°
C
S
/B
Li
te
mi
d
3
--0.01
2
3
5
7 --0.1
2
3
5
7 --1.0
2
3
5
--0.01
--0.1
Tc=25
°
C
Single Pulse
2
3
5
7 --1.0
2
3
5
7 --10
2
3
5
Collector Current, IC -- A
IT07254
Collector-to-Emitter Voltage, VCE -- V
IT07255
No.7920-3/7
2SA2124
1.4
1.3
1.2
PC -- Ta
M
ou
4.0
3.5
PC -- Tc
Collector Dissipation, PC -- W
1.0
nt
ed
Collector Dissipation, PC -- W
on
3.0
2.5
2.0
1.5
1.0
0.5
0
ac
er
0.8
am
ic
b
oa
0.6
rd
(4
50
m
0.4
m
2
✕
0.
8m
m
0.2
0
0
20
40
60
80
100
120
)
140
160
0
20
40
60
80
100
120
140
160
Ambient Temperature, Ta --
°
C
IT07256
Case Temperature, Tc --
°
C
IT08355
No.7920-4/7
2SA2124

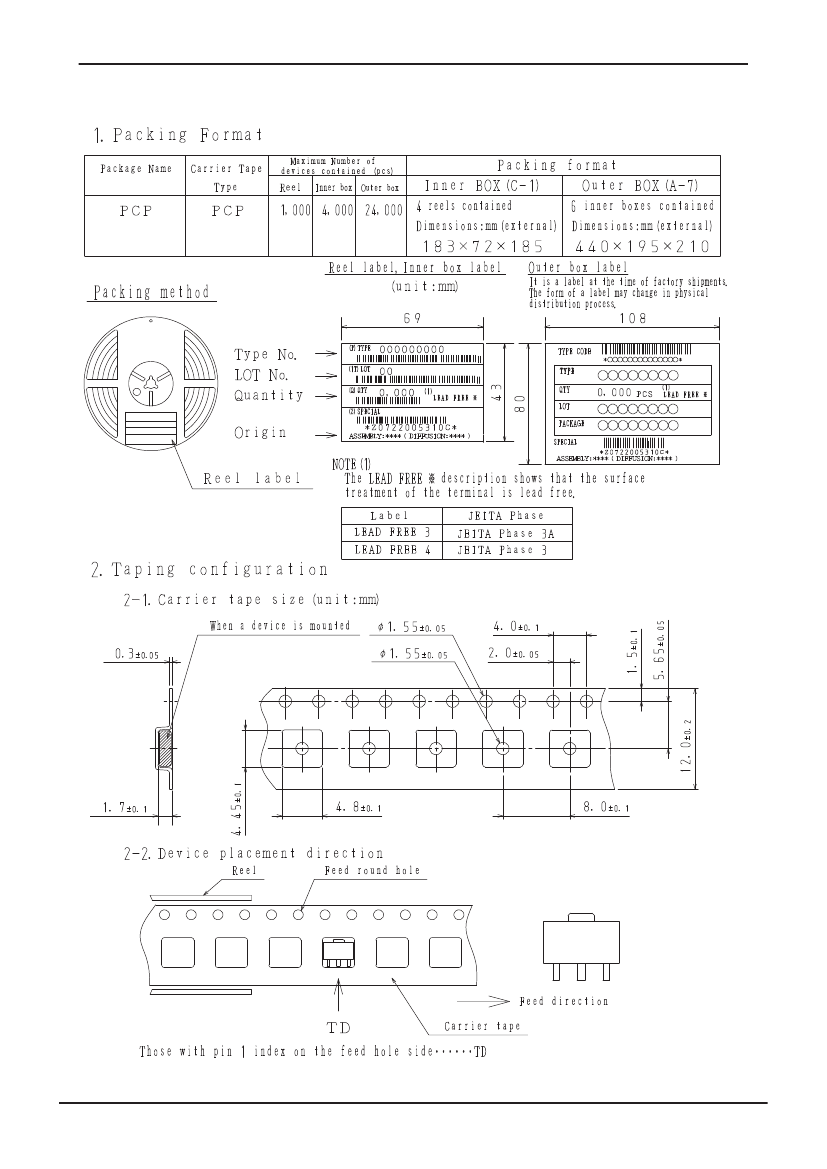

Bag Packing Specification
2SA2124-TD-E
No.7920-5/7
