ZVNL120GTA: DescriptionPower Switch ICs - Power Distribution Smart Low Side 1 Ch 60 V 1.8 W; Categorysemiconductor Discrete semiconductor; File Size524KB，6 Pages; ManufacturerDiodes; Websitehttp://www.diodes.com/

Download Datasheet Parametric View All

ZVNL120GTA Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZVNL120GTA	-	-	View	Buy Now

ZVNL120GTA Overview

Power Switch ICs - Power Distribution Smart Low Side 1 Ch 60 V 1.8 W

ZVNL120GTA Parametric

Parameter Name	Attribute value
Product Category	MOSFET
Manufacturer	Diodes
RoHS	Details
Technology	Si
Mounting Style	SMD/SMT
Package / Case	SOT-223-3
Number of Channels	1 Channel
Transistor Polarity	N-Channel
Vds - Drain-Source Breakdown Voltage	200 V
Id - Continuous Drain Current	320 mA
Rds On - Drain-Source Resistance	10 Ohms
Vgs - Gate-Source Voltage	20 V
Minimum Operating Temperature	- 55 C
Maximum Operating Temperature	+ 150 C
Configuration	Single Dual Drain
Channel Mode	Enhancement
Packaging	Reel
Packaging	Cut Tape
Packaging	MouseReel
Fall Time	12 ns
Height	1.65 mm
Length	6.7 mm
Pd - Power Dissipation	2 W
Rise Time	8 ns
Factory Pack Quantity	1000
Transistor Type	1 N-Channel
Type	FET
Typical Turn-Off Delay Time	20 ns
Typical Turn-On Delay Time	8 ns
Width	3.7 mm
Unit Weight	0.003951 oz

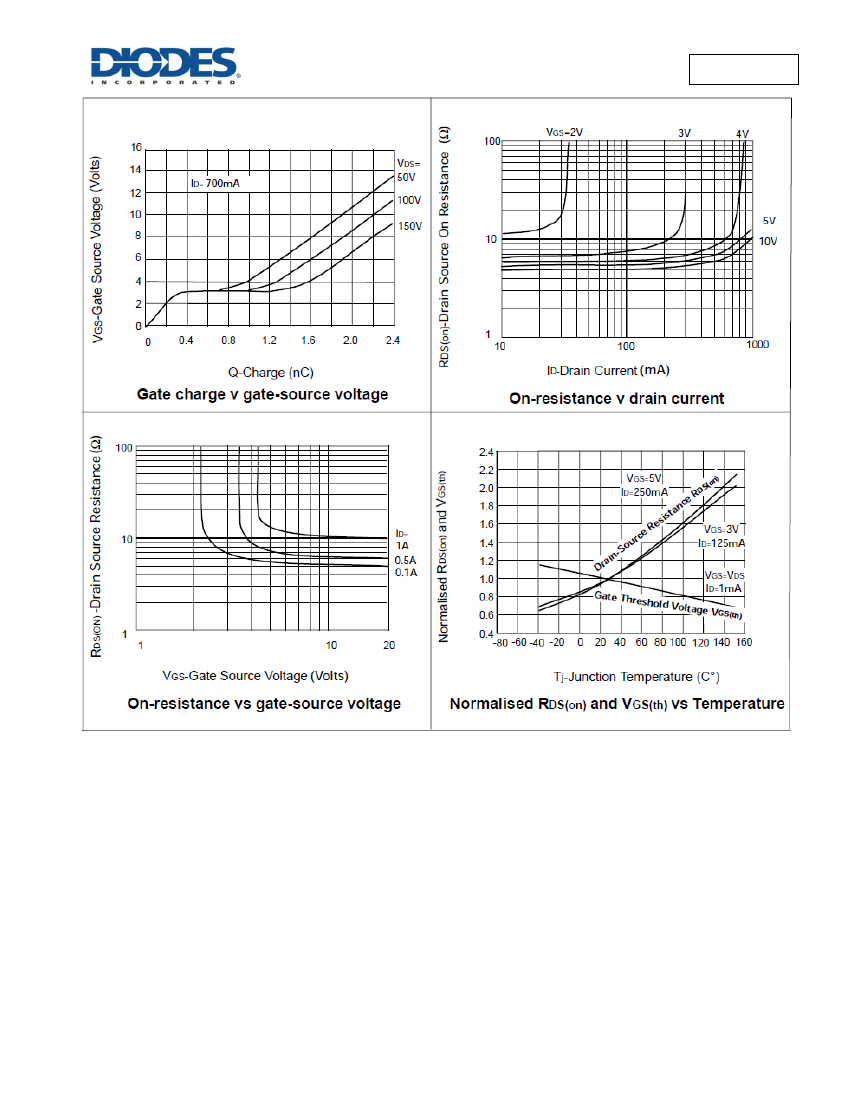

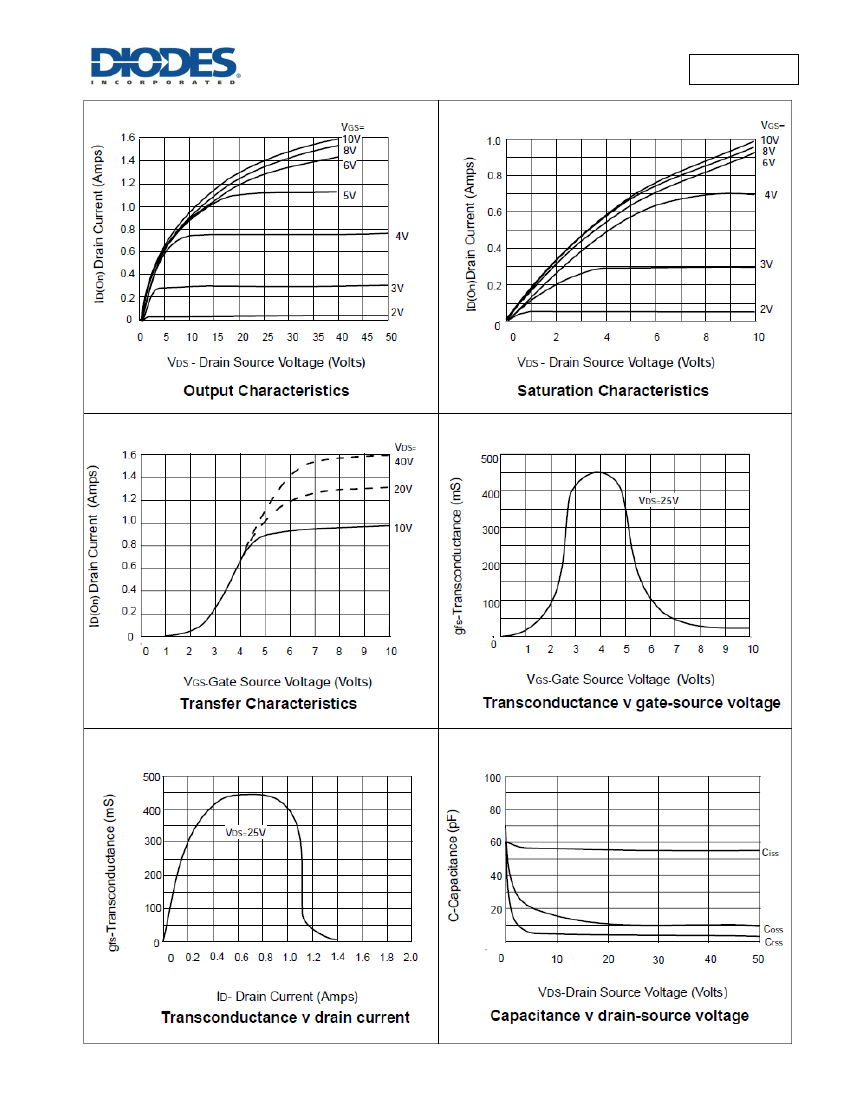

Preview

Download Datasheet

View All

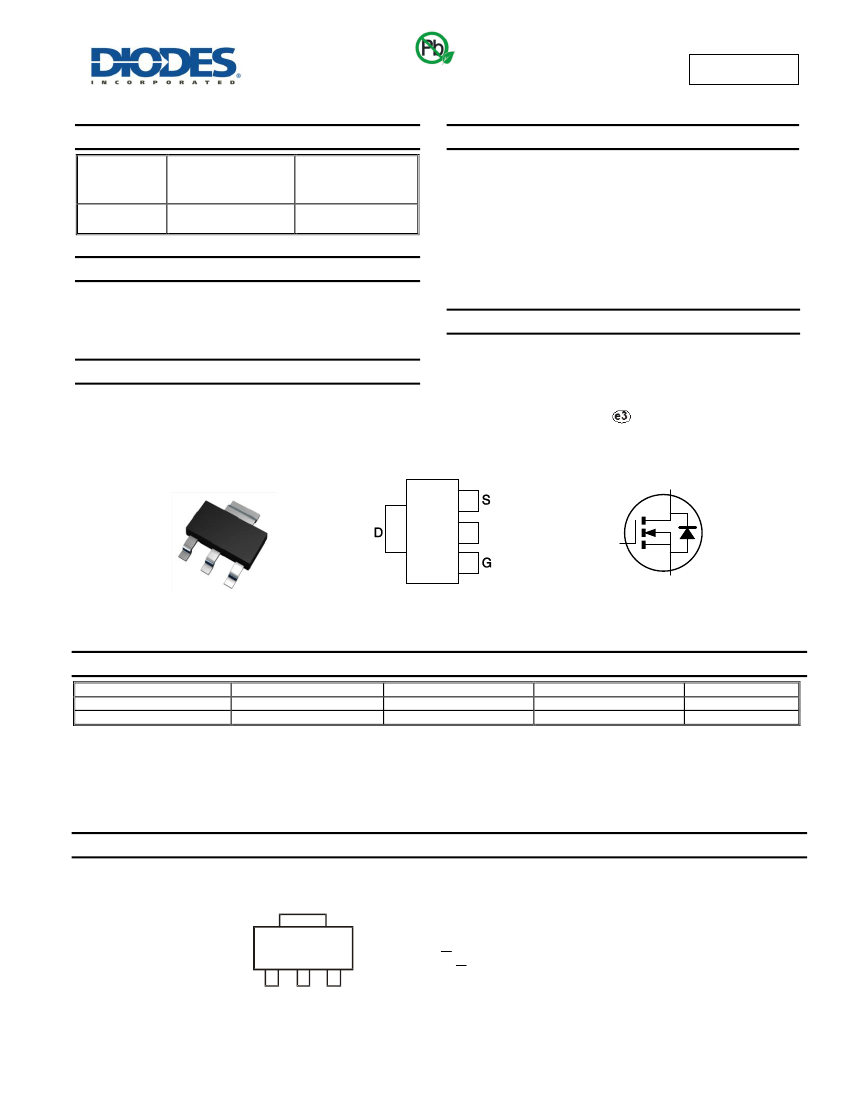

Green

ZVNL120G

200V N-CHANNEL ENHANCEMENT MODE MOSFET

Product Summary

(BR)DSS

DS(ON)

10Ω @ V

= 10V

= +25°

320mA

Features and Benefits



High Voltage

Low On-resistance

Fast Switching Speed

Low Gate Drive

Low Threshold

Lead-Free Finish; RoHS Compliant (Notes 1 & 2)

Halogen and Antimony Free. “Green” Device (Note 3)

Qualified to AEC-Q101 Standards for High Reliability

200V

Description

This new generation trench MOSFET features a unique structure

combining the benefits of low on-resistance and fast switching,

making it ideal for high efficiency power management applications.

Mechanical Data



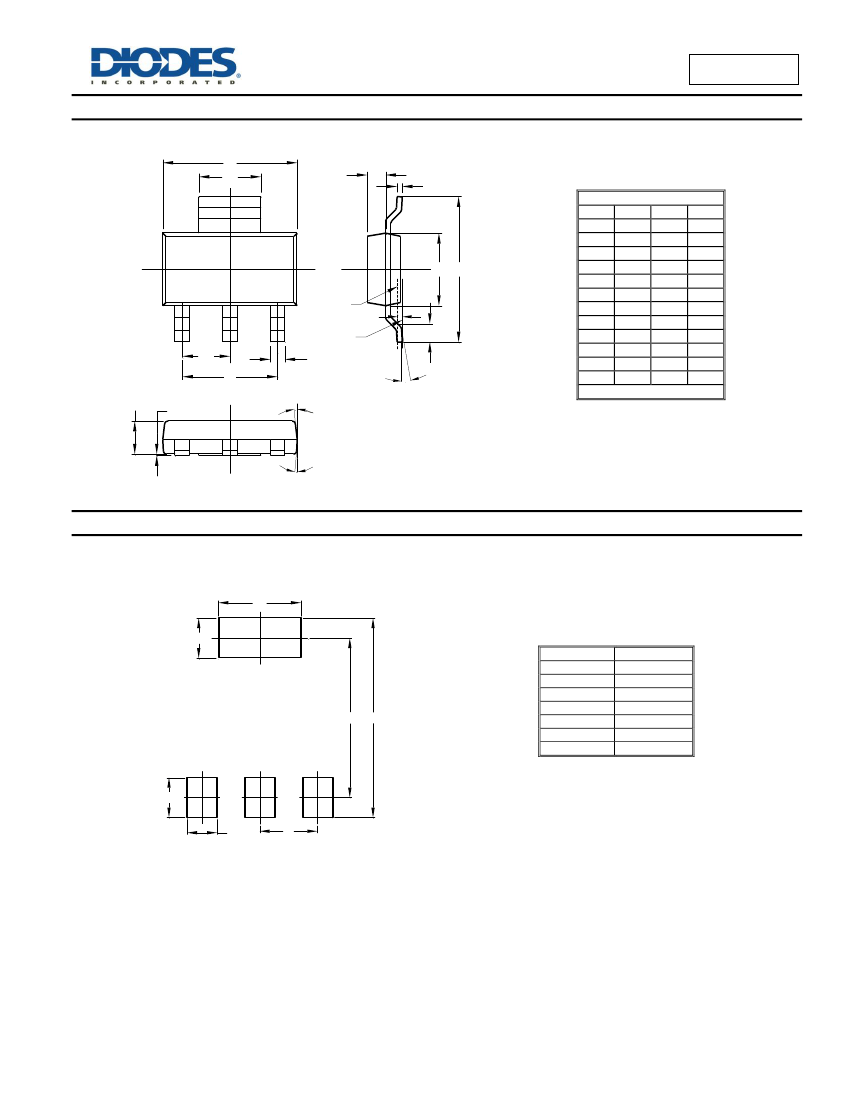

Case: SOT223

Case Material: Molded Plastic, “Green” Molding Compound; UL

Flammability Classification Rating 94V-0

Moisture Sensitivity: Level 1 per J-STD-020

Terminals: Matte Tin Finish

Weight: 0.112 grams (Approximate)

Applications



Off-line Power Supply Start-up Circuitry

SOT223

Top View

Pin Out - Top

View

Equivalent Circuit

Ordering Information

(Note 4)

Part Number

ZVNL120GTA

ZVNL120GTC

Notes:

Marking

ZVNL120

Reel size (inches)

Tape width (mm)

Quantity per reel

1,000

4,000

1. EU Directive 2002/95/EC (RoHS) & 2011/65/EU (RoHS 2) compliant. All applicable RoHS exemptions applied.

2. See http://www.diodes.com/quality/lead_free.html for more information about Diodes Incorporated’s definitions of Halogen- and Antimony-free, "Green"

and Lead-free.

3. Halogen- and Antimony-free "Green” products are defined as those which contain <900ppm bromine, <900ppm chlorine (<1500ppm total Br + Cl) and

<1000ppm antimony compounds.

4. For packaging details, go to our website at http://www.diodes.com/products/packages.html.

Marking Information

SOT223

ZVN

ZVNL

120

4310

ZVNL120 = Product Type Marking Code

YWW = Date Code Marking

Y or Y = Last Digit of Year (ex: 5 = 2015)

WW or WW = Week Code (01~53)

YWW

ZVNL120G

Document number: DS33388 Rev. 3 - 2

1 of 6

www.diodes.com

March 2015
