Ordering number: EN 5650
LC865020B/16B/12B/08B
CMOS LSI
LC865020B/16B/12B/08B
8-Bit Single-Chip Microcontroller
Overview
The LC865020B/16B/12B/08B microcontrollers are 8-bit
single-chip microcontrollers with the following on-chip
functional blocks :
• CPU : Operable at a minimum bus cycle time of 0.5
µs
(microsecond)
• On-chip ROM capacity : Up to 20K bytes
• On-chip RAM capacity : 384 bytes
(LC865020B/16B/12B/08B)
• 16-bit timer/counter (or two 8-bit timers)
• 16-bit timer/PWM (or two 8-bit timers)
• 8-channel
×
8-bit A/D converter
• Two 8-bit synchronous serial-interface circuits
• 13-source 10-vectored interrupt system
All of the functions above are fabricated on a single chip.

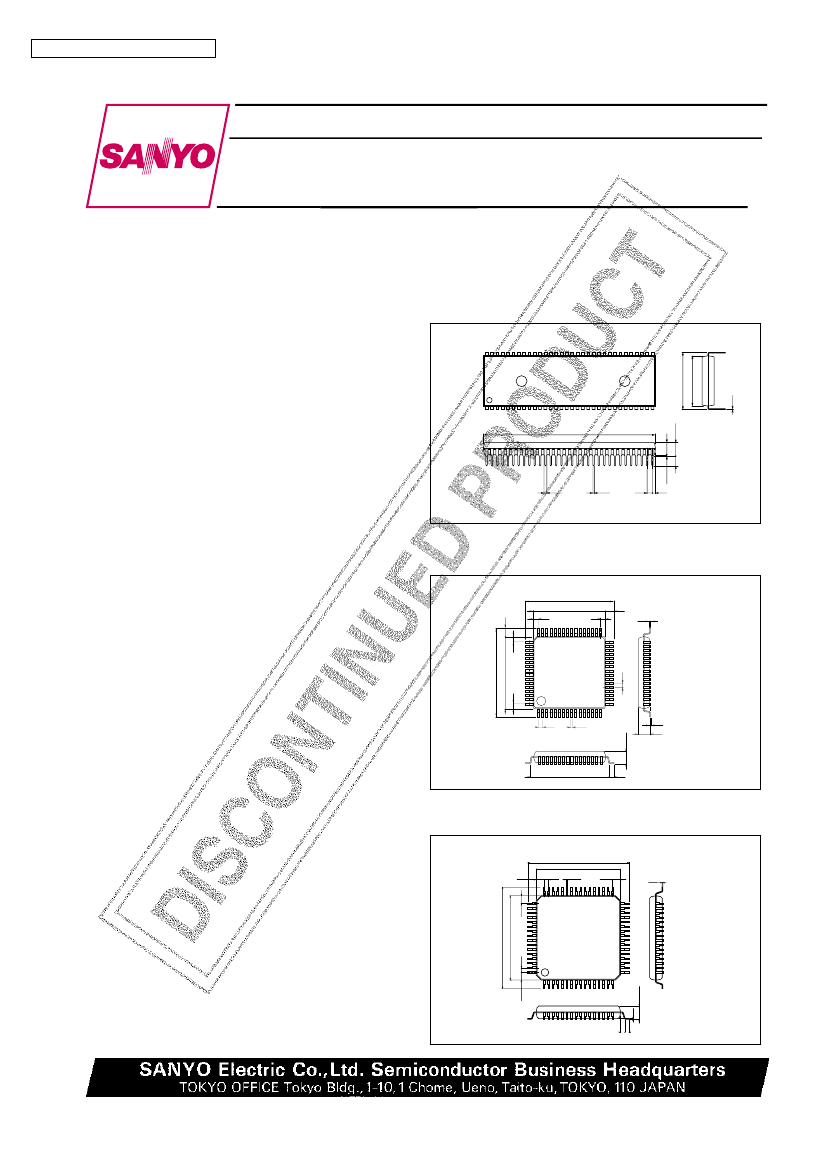

Package Dimensions
unit : mm
3071-DIP64S
[LC865020B/16B/12B/08B]
64
33
19.5
16.8
1
57.2
32
5.0max
4.0
0.95
0.48
1.78
1.01
SANYO : DIP64S
unit : mm
3159-QFP64E
[LC865020B/16B/12B/08B]
17.2
14.0
1.6
1.0
33
32
1.6
1.0
48
49
0.15
3.0max
(1) Read-Only Memory (ROM)
LC865020B
20480
×
8
LC865016B
16384
×
8
LC865012B
12288
×
8
LC865008B
8192
×
8
:
bits
bits
bits
bits
17.2
14.0
1.0
Features
1.0
64
1
17
16
0.8
0.8
0.35
0.1
2.7
15.6
0.8
SANYO : QFP64E
(2) Random Access Memory (RAM) :
LC865020B/16B/12B/08B
384
×
8 bits
unit : mm
3190-SQFP64
[LC865020B/16B/12B/08B]
12.0
10.0
1.25
48
49
0.5
0.18
1.25
33
32
0.15
12.0
10.0
0.5
1.25
64
17
1
16
0.1
1.7max
1.25
0.5
0.5
SANYO : SQFP64
SANYO Electric Co., Ltd. Semiconductor LSI Div. Microcomputer Development Dep.
O3097HA (II)
No. 5650-1/21
0.51min
3.2
0.25
LC865020B/16B/12B/08B
(3) Bus cycle time / Instruction cycle time
The LC865020B/16B/12B/08B microcontrollers are constructed to read ROM twice within one instruction cycle. This results
in 1.7 times better performance within the same instruction cycle compared to our 4-bit microcontrollers (the LC66000 series).
Bus cycle time indicates the speed to read ROM.
Bus cycle time
0.5
µs
2
µs
7.5
µs
183
µs
Cycle time
1
µs
4
µs
15
µs
366
µs
System clock oscillation
Ceramic resonator
Ceramic resonator
RC oscillator
Crystal oscillator
Oscillation frequency
12 MHz
3 MHz
800 kHz
32.768 kHz
Supply voltage
4.5 to 6.0V
2.7 to 6.0V
2.7 to 6.0V
2.7 to 6.0V
(4) Ports
- Input/output ports
: 6 ports (42 pins)
Input/output port programmable in nibble units
: 1 port (8 pins)
(However, when N-channel open-drain output is selected, bit-unit input is possible.)
Input/output port each bit programmable
: 5 ports (34 pins)
Include 15 V withstand N-channel open drain output port
: 3 ports (18 pins)
- Input ports
: 2 ports (13 pins)
(5) A/D converter
- 8-channel
×
8-bit A/D converter
(6) Serial-interface
- Two 8-bit serial-interface circuits
LSB first / MSB first functions switchable
- Internal 8-bit band-rate generator in common with two serial-interface circuits
(7) Timer
- Timer 0
16-bit timer/counter
2-bit prescaler + 8-bit programmable prescaler
Mode 0 : Two 8-bit timers with programmable prescaler
Mode 1 : 8-bit timer with programmable prescaler + 8-bit counter
Mode 2 : 16-bit timer with programmable prescaler
Mode 3 : 16-bit counter
The resolution of Timer is fixed to tCYC. (tCYC : cycle time)
- Timer 1
16-bit timer/PWM
Mode 0 : Two 8-bit timers
Mode 1 : 8-bit timer + 8-bit PWM
Mode 2 : 16-bit timer
Mode 3 : Variable-bit PWM (9 to 16 bits)
In Mode 0 and Mode1, the resolution of Timer and PWM is fixed to tCYC.
In Mode 2 and Mode 3, the resolution of Timer and PWM can be programmed to be tCYC or 1/2 tCYC
- Base timer
Every 500 ms overflow system for clock applications (using 32.768 kHz crystal oscillator for Base timer clock)
Every 976
µs,
3.9 ms, 15.6 ms, 62.5 ms overflow system (using 32.768 kHz crystal oscillator for Base timer clock)
- Base timer clock selectable
32.768 kHz crystal oscillator, system clock, and programmable prescaler output of Timer 0
No. 5650-2/21
LC865020B/16B/12B/08B
(8) Buzzer output
- The buzzer sound frequency is selectable ; 4 kHz, 2 kHz (using 32.768 kHz crystal oscillator for base timer clock)
(9) Remote-controlled receiver circuit (shares P73/INT3/T0IN pin)
- Noise rejection function
- Polarity switching
(10) Watchdog timer
- RC external watchdog timer
- Watchdog timer operation can be selected : Interrupt/reset
(11) Interrupt system
- 13-source 10-vectored interrupts :
1. External interrupt INT0 (including watchdog timer)
2. External interrupt INT1
3. External interrupt INT2, Timer/counter T0L (lower 8 bits)
4. External interrupt INT3, base timer
5. Timer/counter T0H (upper 8-bits)
6. Timer T1L, timer T1H
7. Serial-interface SIO0
8. Serial-interface SIO1
9. A/D converter
10. Port 0
- Built-in interrupt priority control register
Microcontroller supports 3 levels of multiple interrupt; low level, high level, and highest level. For the 11 interrupt requests
from INT2 through Port 0, high/low level interrupt priority can be specified using the priority control register. Also, for
INT0 and INT1, highest/low level interrupt priority can be specified.
(12) Real-time service operation
Synchronizing with the interrupt request signals, the real-time service starts a 4-byte data transfer between which special
function registers within 1-instruction cycle after the request signal occurs, and then completes its operation within
5-instruction cycles. This operation is performed in parallel with CPU operation.
(13) Subroutine stack
- 128 levels (Max.) : The stack is located in RAM.
(14) Multiplication and division
16 bits
×
8 bits (7-instruction cycles)
16 bits / 8 bits (7-instruction cycles)
(15) 3 oscillation circuits
- On-chip RC oscillator circuit for the system clock
- On-chip CF oscillator circuit for the system clock
- On-chip crystal oscillator circuit for the system clock and the time-base clock
XT1 pin can be used as P74.
No. 5650-3/21
LC865020B/16B/12B/08B
(16) Standby function
- HALT mode
HALT mode is used to reduce power dissipation. In this mode, program execution is stopped. This mode can be released by
an interrupt request signal or initial system reset request signal.
- HOLD mode
The HOLD mode is used to stop all oscillators RC (internal), CR and Crystal. This mode can be released by the following
operations
• Set Low level to Reset pin (RES).
• Set predefined level to P70/INT0, P71/INT1 pins (programmable).
• Set Low level to Port 0 pin/pins (programmable).
(17) Factory shipment
• DIP64S , QFP64E , SQFP64 delivery form
(18) Development support tools
Evaluation (EVA) chip :
EPROM version
:
One time ROM version :
Emulator
:
LC866098
LC86E5032
LC86P5032
EVA-86000 + ECB866600 (Evaluation chip board)
+ POD865000 (POD for DIP64S)
+ POD865010 (POD for QFP64E)
No. 5650-4/21
LC865020B/16B/12B/08B

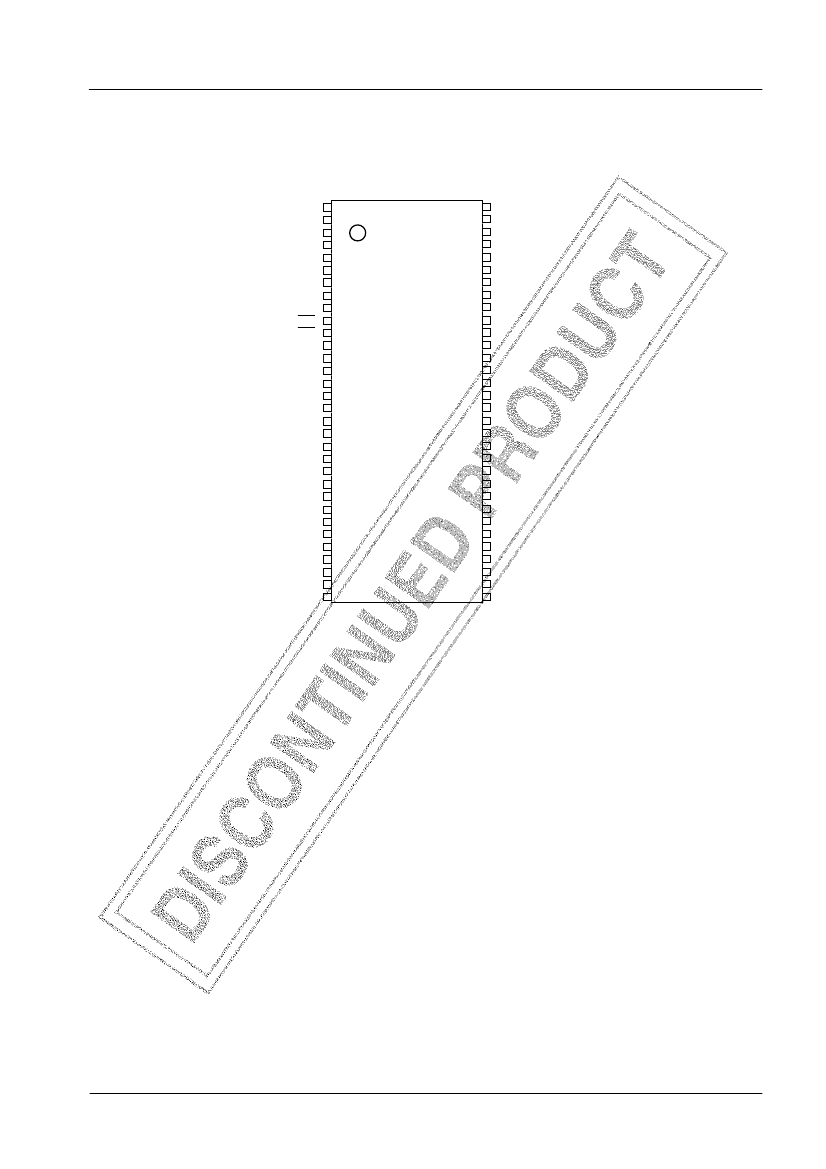

Pin Assignments
DIP64S
P10/SO0
P11/SI0/SB0
P12/SCK0
P13/SO1
P14/SI1/SB1
P15/SCK1
P16/BUZ
P17/PWM
TEST1
RES
XT1/P74
XT2
VSS
V
SS
CF1
CF2
VDD
V
DD
P80/AN0
P81/AN1
P82/AN2
P83/AN3
P84/AN4
P85/AN5
P86/AN6
P87/AN7
P70/INT0
P71/INT1
P72/INT2/T0IN
P73/INT3/T0IN
P30
P31
P32
P33
1
2
3
4
5
6
7
8
9
10
11
12
13
14
15
16
17
18
19
20
21
22
23
24
25
26
27
28
29
30
31
32
64
63
62
61
60
59
58
57
56
55
54
53
52
51
50
49
48
47
46
45
44
43
42
41
40
39
38
37
36
35
34
33
P07
P06
P05
P04
P03
P02
P01
P00
P27
P26
P25
P24
P23
P22
P21
P20
VDDVPP
V
DD
V
PP
VSS
V
SS
P51
P50
P47
P46
P45
P44
P43
P42
P41
P40
P37
P36
P35
P34
Top view
No. 5650-5/21
