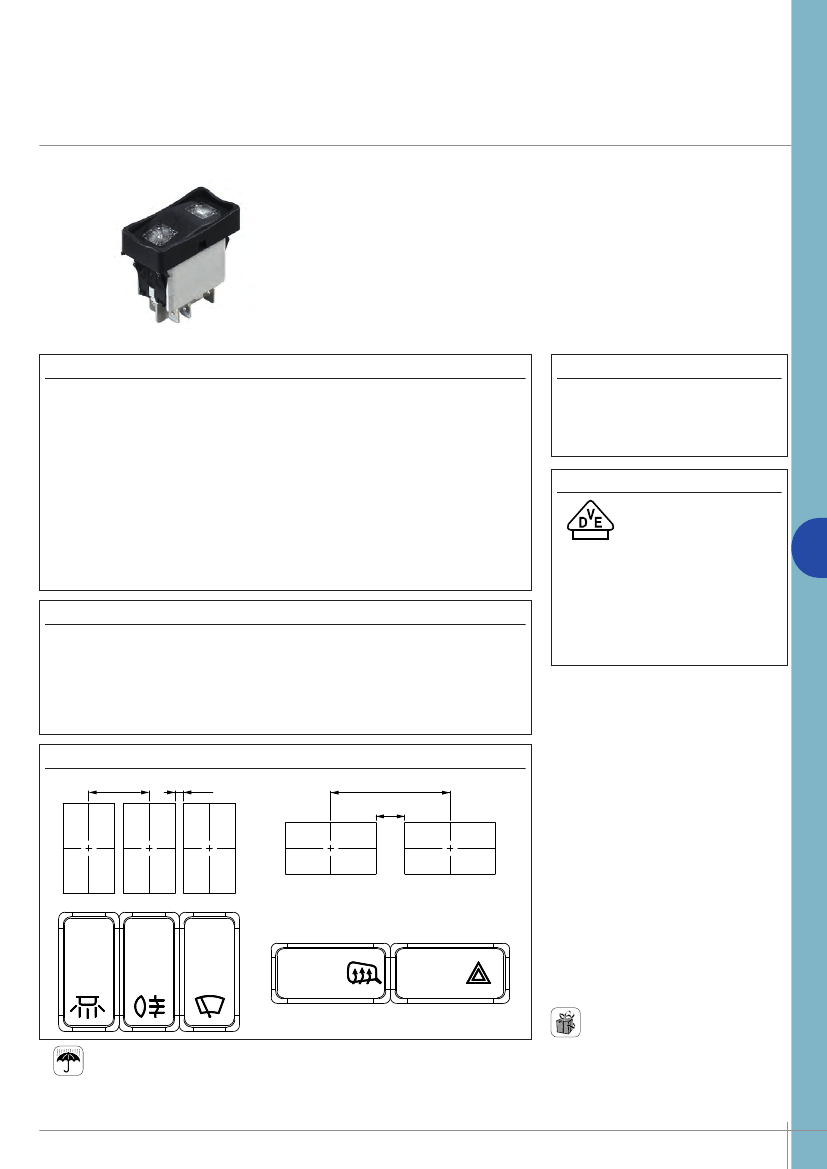

KG series
Power rocker switches
Distinctive features and specifications
UG1410A
K
Protected rocker
K
Illuminated or non-illuminated
K
VDE (EN 61058-1) approved
K
Sealed to IP65
ELECTRICAL SPECIFICATIONS
MATERIALS
• Currrent/voltage rating :
- functions 1 (ON-OFF) and 6 (ON-ON) : 15A 12VDC, 10A 24VDC max.,
10mA 14VDC min.
- functions 4 ( ON ON ON) and 4-1R (ON ON MOM) :
8A 12VDC, 5A 24VDC max.
- other functions : 10A 12VDC, 8A 24VDC max.
• Initial contact resistance : 10 mΩ max. at 1A 2VDC
• Insulation resistance : 1.000 MΩ min. at 500VDC
• Dielectric strength : 2.000 Vrms 50 Hz min. between terminals
• Electrical life : 10.000 cycles min.
• Mechanical life : 2 position models : 100.000 cycles min.
3 position models : 30.000 cycles min.
• Case : thermoplastic UL94-V0
• Terminals : brass, silver plated
• Contacts : silver grain
• Contact roller : brass, nickel plated
AGENCY APPROVAL
12(4)A 250VAC
T85/55°C
EN 61058-1
D
Availability
: double pole models,
functions ON-OFF and ON-ON.
Marking
: to order switches
marked VDE, add “VDE” at the
end of model number.
ENVIRONMENTAL SPECIFICATIONS
• Degree of protection : IP65 according to IEC 60529
• Shock resistance : 100 g according to IEC 512-4, test 6c
• Vibration resistance : 10-500 Hz - 10 g according to IEC 512-4, test 6d
• Salt spray resistance : 96 hours according to IEC 512-6, test 11f
• Operating temperature : 2 position models : -40°C to + 85°C
3 position models : -10°C to + 65°C

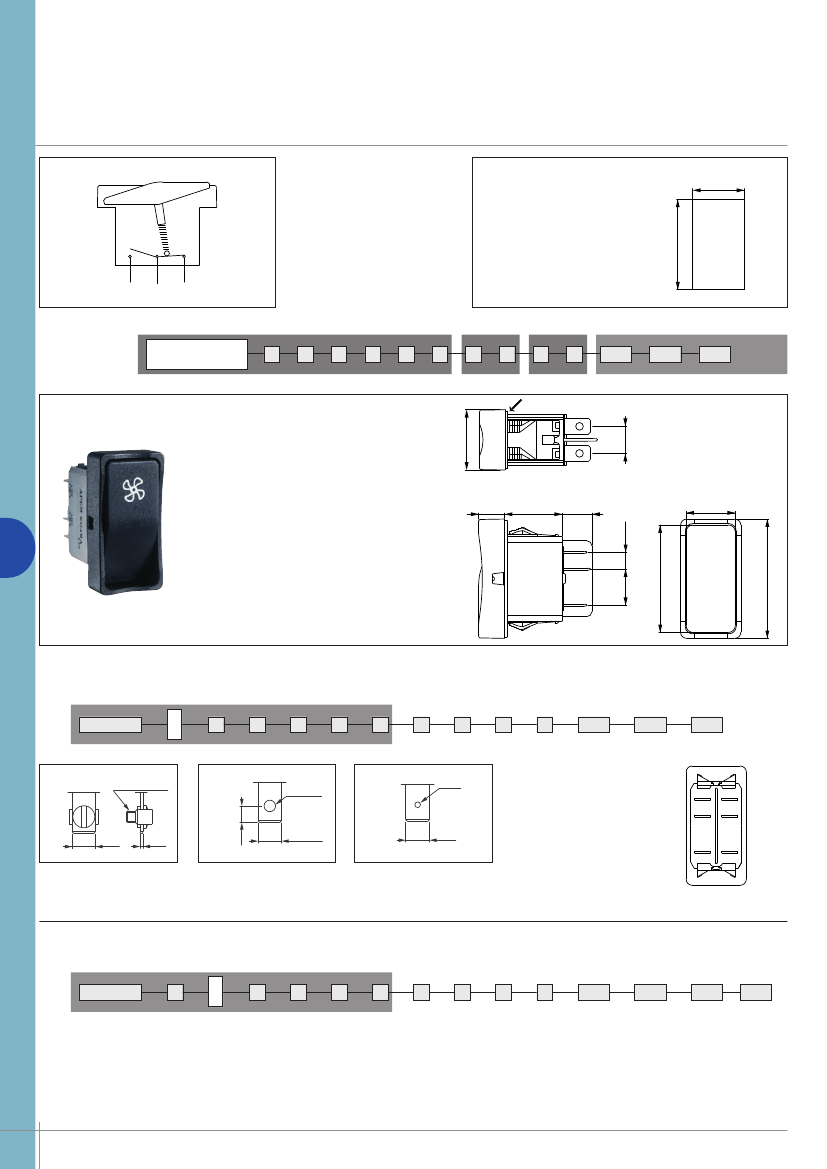

MATRIX MOUNTING
25.00 mini.
(.984 min.)
4.00
(.157)
49.00 mini.
(1.929 min.)
12.20
(.480)
Packaging unit
: 40 pieces
Sealing boots
are available to protect the switches against dust and water. They are presented in section H.
Dimensions
: First dimensions are in mm while inches are shown as bracketed numbers.
The company reserves the right to change specifications without notice.
APEM
www.apem.com
D-61
KG series
Power rocker switches

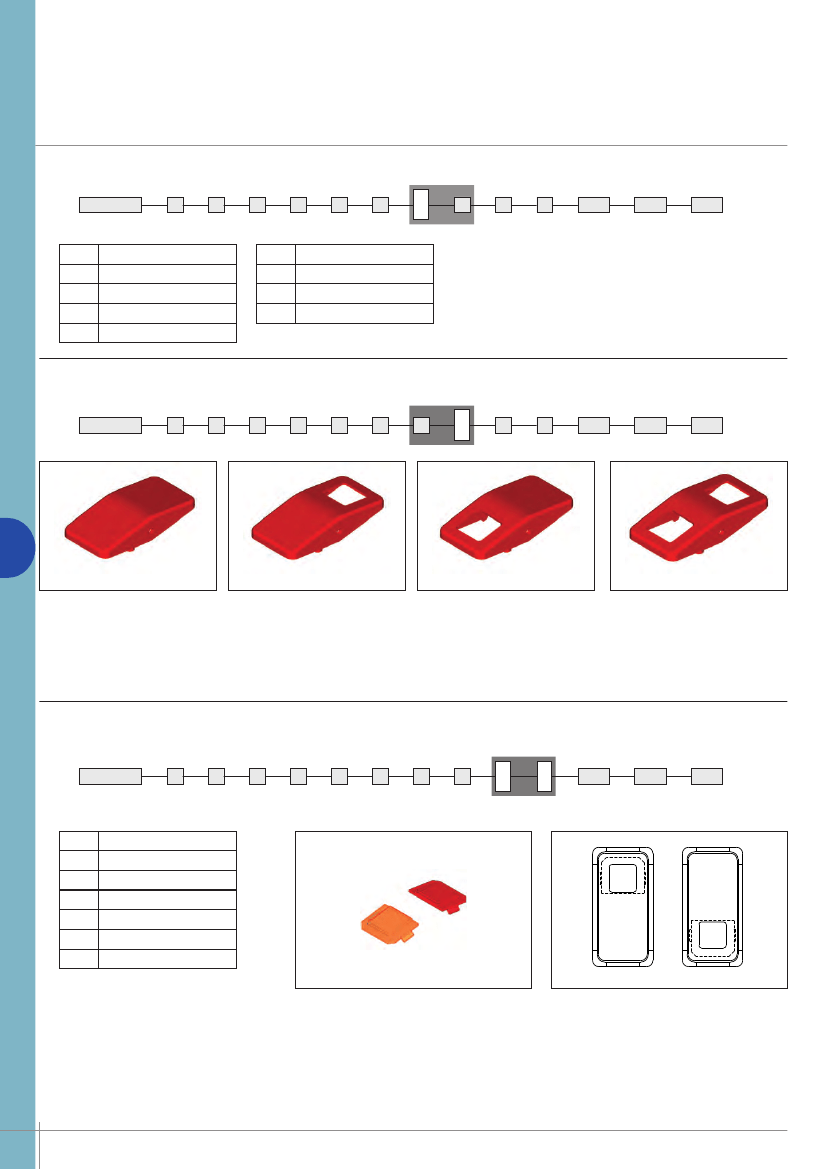

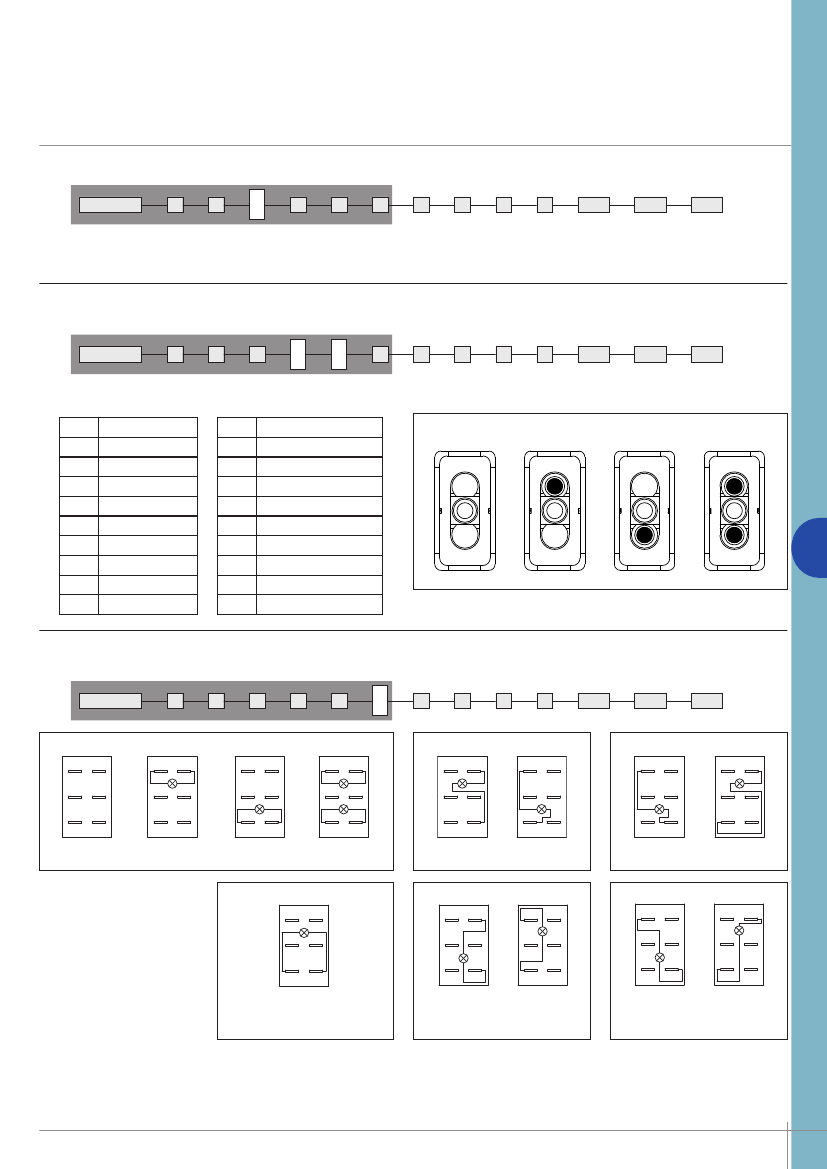

Rocker - Lenses
ROCKER COLOUR
1
1/4
2
3
4
Blue
Dark blue
Black
Green
Grey
5
6
7
9
Yellow
Red
Ivory
Orange
ROCKER SHAPE
D
1
Full rocker
4
Opening on side A
6
Opening on side B
8
Opening on sides A and B
Other rocker shapes on customer specifications : on request.
To order rocker only (without case), begin the order number with code KGR, then follow the order format
from ”rocker colour” until the end of the options.
LENS COLOUR
Side A
Side B
Complete each enlarged box with one of the codes listed below.
X
1
3
6
9
B
T
No lens
Blue *
Green *
Red
Orange
White
Translucent
Side B
4
5
6
Side A
1
2
3
4
5
6
1
2
3
* Blue or green lens recommended with fluorescent lamp.
To order lenses only, begin the order number with the codes :
KGLA for lens A and KGLB for lens B,
then follow the order format from ”lens colour” until the end of the options.
D-64
www.apem.com
APEM
