Series TL
Toggles
Fully Illuminated Toggles
A
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Power Level (silver):
Logic Level (gold):
6A @ 125V AC or 3A @ 250V AC or 6A @ 12V DC for silver
0.4VA maximum @ 28V AC/DC maximum for gold
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 28V)
Note: See Supplement Index for explanation of operating range.
Programmable Illuminated PB
Pushbuttons
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Keylocks
Mechanical Life:
Electrical Life:
Static Capability:
Nominal Operating Force:
Angle of Throw:
10 milliohms maximum for silver; 20 milliohms maximum for gold
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
50,000 operations minimum
25,000 operations minimum for silver; 50,000 operations minimum for gold
Withstands 20 kilovolts ESD minimum
1.9N for .689” (17.5mm) toggle; 2.5N for .433” (11.0mm) toggle
25°
Rotaries
Materials & Finishes
Tactiles
Toggle:
Housing:
Sealing Ring:
Base:
Movable Contactor:
Movable Contacts:
Stationary Contact:
Lamp Contacts:
Power Terminals:
Lamp Terminals:
Polycarbonate
Glass fiber reinforced polyamide
Nitrile butadiene rubber
Diallyl phthalate (UL94V-0)
Phosphor bronze with silver or gold plating
Silver alloy or copper with gold plating
Silver plus copper with silver plating or copper with gold plating
Beryllium copper with silver plating
Copper with silver or gold plating
Brass with silver plating
Slides
Tilt
Environmental Data
Operating Temperature Range:
Humidity:
Vibration:
Shock:
Touch
–10°C through +55°C (+14°F through +131°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 1.75 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Indicators
Installation
Mounting Torque:
Soldering Time & Temperature:
.98Nm (8.67 lb
•
in) maximum
Manual Soldering: See Profile B in Supplement section.
Accessories
Standards & Certifications
Flammability Standards:
UL94V-0 base
Supplement
A118
www.nkk.com
Fully Illuminated Toggles
Series TL
A
Toggles
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
Pushbuttons
Rockers
Distinctive
Characteristics

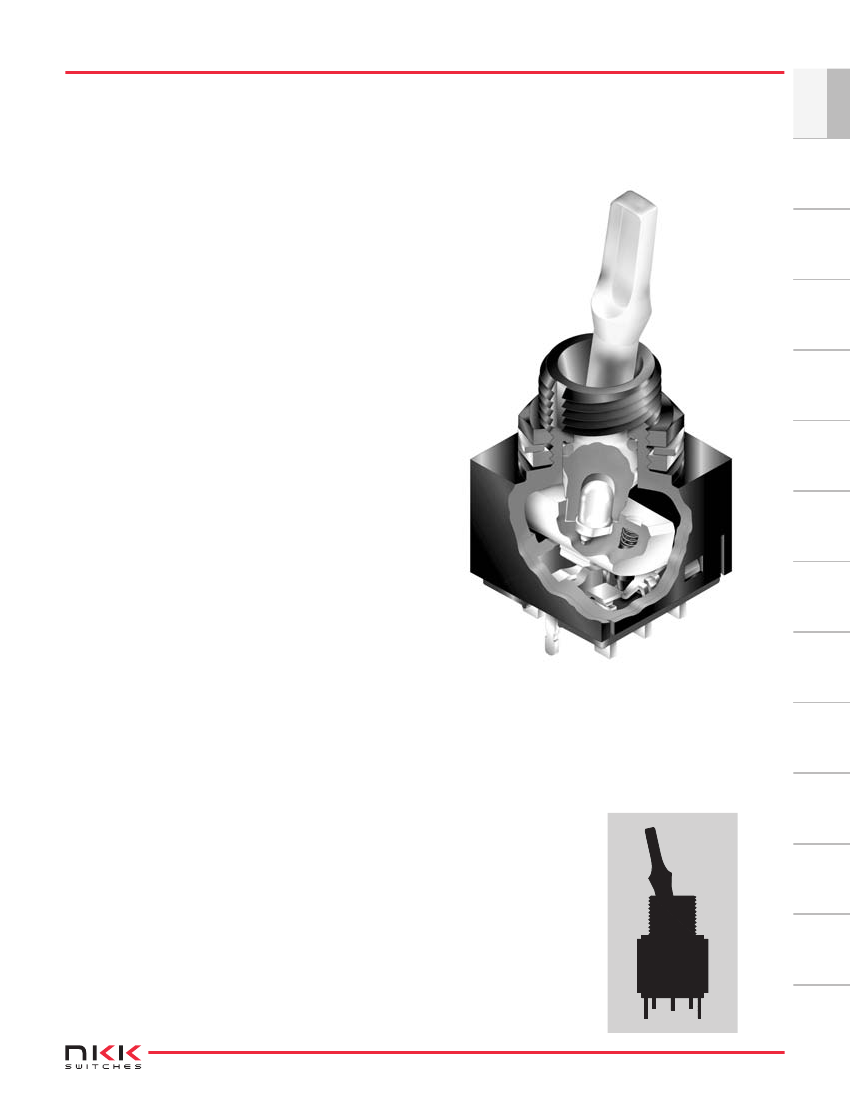

Choice of long or short toggles in translucent colors combine with
bright LEDs available in red, amber, and green, plus super bright
LEDs available in white, green, and blue.
Black face nut enhances front panel appearance.
Antistatic material used for toggle withstands
20 kilovolts electrostatic discharge.
Panel seal, achieved with use of optional
exterior o-ring, conforms to IP65 of IEC60529
Standards.
Interior o-ring protects contacts from oil, dust,
water, and other contaminants.
UL94V-0 flammability rated for base.
High insulating barriers protect against crossover.
Terminals are molded in and epoxy sealed to lock out flux,
dust, and other contaminants.
Actual Size
www.nkk.com
A119
Series TL
Toggles
Fully Illuminated Toggles

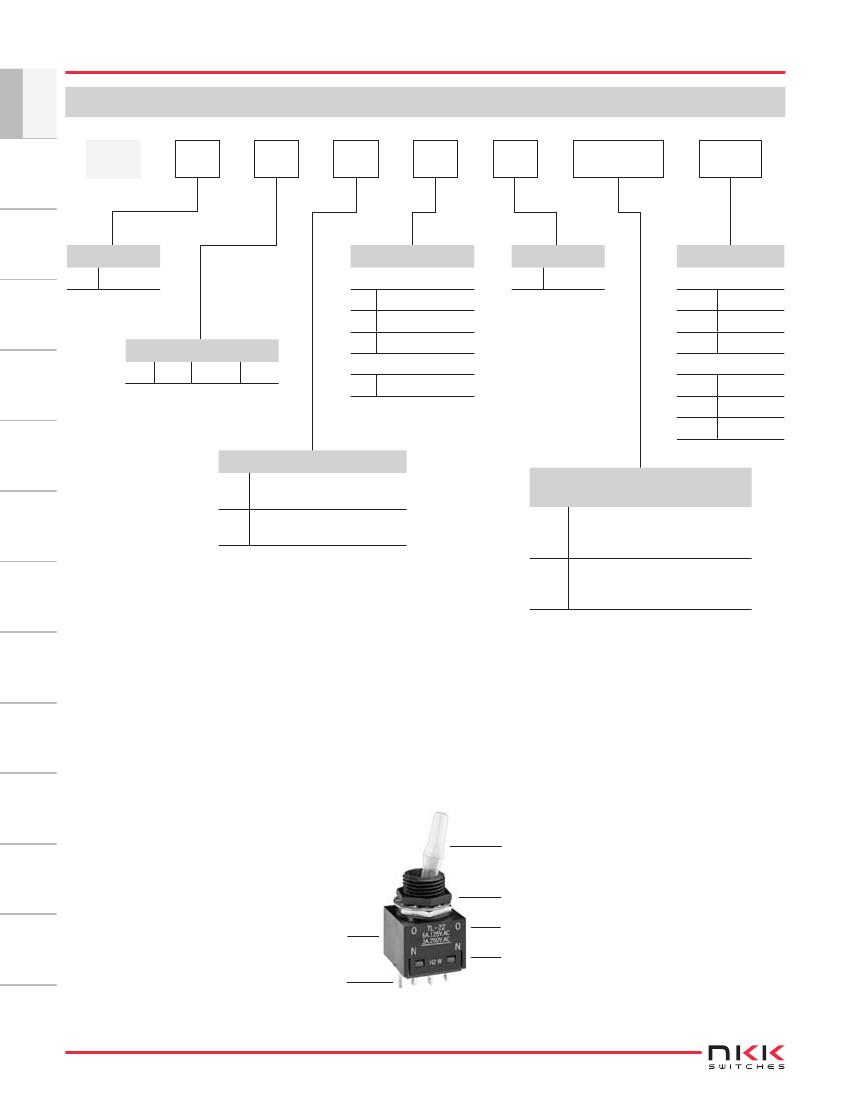

TYPICAL SWITCH ORDERING EXAMPLE
A
Pushbuttons
Rockers
TL
Pole
2
DPDT
2
2
D
N
Toggle Colors
For Bright
A
W01
Housing
6G
LED Colors
Bright
5C
5D
5F
6B
6F
6G
Red
Amber
Green
White
Green
Blue
Programmable Illuminated PB
A
Black
C
D
F
ON
N
Red
Amber
Green
Circuit
2
ON
NONE
For Super Bright
No Color
Super Bright
Keylocks
Toggle Lengths
D
.689” (17.5mm) (combines
with silver contacts only)
.433” (11.0mm) (combines
with gold contacts only)
W01
Terminals, Contacts
& Ratings
Solder Lug Terminals
Silver 6A @ 125V AC
for .689” (17.5mm) Toggle only
Solder Lug Terminals
Gold 0.4VA @ 28V AC/DC
for .433” (11.0mm) Toggle only
Rotaries
S
Tilt
Tactiles
Slides
G01
DESCRIPTION FOR TYPICAL ORDERING EXAMPLE
TL22DNAW016G
Touch
Indicators
.689” (17.5mm) Toggle Length;
No Color (matte finish of clear
material)
Blue, Super Bright LED
DPDT
ON-NONE-ON Circuit
Solder Lug Terminals
Black Housing
Silver Contacts
with 6-amp Rating
Supplement
Accessories
A120
www.nkk.com
Fully Illuminated Toggles
POLE & CIRCUIT
Toggle Position
Down
Pole
Model
Keyway
Series TL
A
Throw & Power/Lamp Schematics
Notes: Terminal numbers are not actually on
switch. Lamp circuit is isolated and
requires an external power source.
DPDT
1a
1
(COM)
1b
2a
2
2b
(+)
(-)
Connected Terminals
Up
Down
Keyway
DP
TL22
ON
NONE
ON
1-1b 2-2b
OPEN
1-1a 2-2a
D
.689”
(17.5mm)
(17.5)
.689
S
.433”
(11.0mm)
(11.0)
.433
Colors Available for Bright LED
Combines with
Silver Contacts only
Material:
Polycarbonate
Combines with
Gold Contacts only
Material:
Polycarbonate
C
Red
D
Amber
F
Green
Color Available for Super Bright LED
N
No Color (Appearance is matte
finish of clear material)
HOUSING
A
Black
The housing consists of the one-piece bushing/case of
glass fiber reinforced polyamide in black color only.
The diallyl phthalate material used for the base is UL
flammability rated 94V-0; housing material is not.
CONTACT MATERIALS, RATINGS, & TERMINALS
W
G
Silver Contacts Power Level
6A @ 125V AC & 3A @ 250V AC
& 6A @ 12V DC
Gold Contacts Logic Level
0.4VA maximum @ 28V AC/DC
See Supplement Index for complete
explanation of operating range.
(5.4)
.213
Exopy Seal
(1.17)
.046
(5.0)
.197
Turret LED
Thk = (0.6)
.024
Solder Lug
Thk = (0.8) Typ
.031
LED CODES & SPECIFICATIONS
Electrical specifications are determined at a basic temperature of 25°C. Lamp circuit is independent of switch operation.
If the source voltage is greater than rated voltage, a ballast resistor is required.
The ballast resistor calculation and more lamp detail are shown in Supplement section.
Super Bright LEDs are
Electrostatic Sensitive
LED Factory Assembled
Not Available Separately
Maximum Forward Current
Typical Forward Current
Forward Voltage
Maximum Reverse Voltage
Current Reduction Rate Above 25°C
Ambient Temperature Range
ELECTROSTATIC
SENSITIVE DEVICES
ATTENTION
Colored Toggles
Clear Toggles
Color
I
FM
I
F
V
F
V
RM
∆I
F
C
Red
D
Amber
F
Green
B
White
F
Green
G
Blue
20mA
2.0V
4V
20mA
2.1V
4V
–10°C ~ +55°C
www.nkk.com
20mA
2.27V
4V
20mA
3.6V
5V
20mA
3.3V
7V
–10°C ~ +55°C
20mA
3.3V
7V
0.32mA/°C 0.32mA/°C 0.50mA/°C 0.50mA/°C 0.40mA/°C 0.40mA/°C
A121
Supplement
Accessories
30mA
30mA
50mA
30mA
30mA
30mA
Indicators
5
Bright
6
Super Bright
Touch
Tilt
Tactiles
(2.0)
.079
(3.0) (3.5)
.118 .138
(2.0) Typ
.079
(1.1) Typ
.043
Slides
01
Terminals
Solder Lug
Rotaries
Keylocks
Programmable Illuminated PB
TOGGLE LENGTHS & COLORS
Pushbuttons
Rockers
Center
Center
Up
Toggles
Series TL
Toggles
Fully Illuminated Toggles

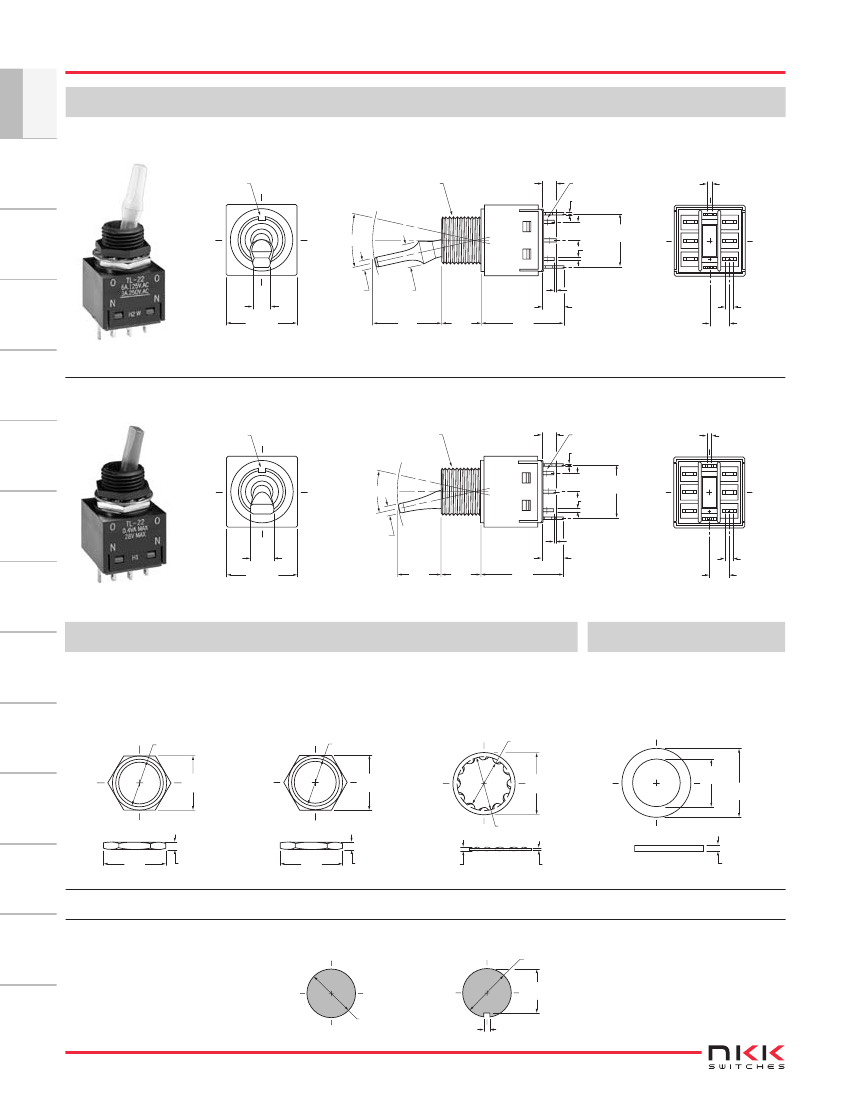

TYPICAL SWITCH DIMENSIONS
A
17.5mm Toggle
Rockers
Keyway
M12 P1
(3.5)
.138
(1.1) x (2.0) Typ
.043 x .079
(0.6) Typ
.024
(4.7) Typ
(13.5)
.185
.531
(0.8) Typ
.031
(1.17) Typ
.046
2b
L( )I
I
v
1a
1b
Pushbuttons
25°
I
L( )v
2a
Programmable Illuminated PB
(4.5)
.177
(18.0) Sq
.709
(2.5)
.098
(6.0) Dia
.236
(17.5)
.689
(10.0)
.394
(21.0)
.827
(5.4)
.213
(0.5) Typ
.020
(2.0) Typ
.079
(5.0) Typ
.197
TL22DNAW016G
11.0mm Toggle
Keyway
M12 P1
(3.5)
.138
(1.1) x (2.0) Typ
.043 x .079
(0.6) Typ
.024
(4.7) Typ (13.5)
.185
.531
(0.8) Typ
.031
2a
Keylocks
(1.17) Typ
.046
2b
L( )I
I
v
1a
1b
25°
Rotaries
I
L( )v
(2.5)
.098
(6.0)
.236
(18.0) Sq
.709
(21.0)
.827
(5.4)
.213
(0.5) Typ
.020
(11.0)
.433
(10.0)
.394
Slides
(2.0) Typ
.079
(5.0) Typ
.197
TL22SCAG015C
STANDARD HARDWARE
Tactiles
OPTIONAL HARDWARE
AT508 Lockwasher
Not to use with Panel Seal
Steel with Chromate/Zinc
(12.1)
.476
(12.1) Dia
.476
(17.5) Dia
.689
AT527MA Black Hex Nut
Use as Face Nut
Chrome/Steel
M12 P1
AT527M Hex Nut
Use as Backup Nut
Nickel/Steel
M12 P1
AT401P O-ring
Use for Panel Seal
Nitrile butadiene rubber
Tilt
(14.0)
.551
(14.0)
.551
(15.8) Dia
.622
Touch
(13.8) Dia
.543
(16.0)
.630
(2.0)
.079
(16.0)
.630
(2.0)
.079
(1.0)
.039
(0.5)
.020
(1.5)
.059
Indicators
Hardware details in Accessories & Hardware section.
Accessories
Panel Cutouts
(12.5) Dia
.492
Supplement
Maximum Panel Thickness
with Standard Hardware
.157” (4.0mm)
(11.5)
.453
(12.5) Dia
.492
(1.5)
.060
Maximum Panel Thickness
with Standard Hardware
& AT401P O-ring
.236” (6.0mm)
A122
www.nkk.com
