8947-0-15-15-10-27-10-0 datasheet, PDF

Datasheet> All Categories > The connector> terminals> 8947-0-15-15-10-27-10-0

8947-0-15-15-10-27-10-0: DescriptionPower to the Board Radsert 3.6mm 70amp knurl PF; CategoryThe connector terminals; File Size571KB，1 Pages; ManufacturerMill-Max; Websitehttps://www.mill-max.com; Environmental Compliance

Download Datasheet Parametric Compare View All

8947-0-15-15-10-27-10-0 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	8947-0-15-15-10-27-10-0	-	-	View	Buy Now

8947-0-15-15-10-27-10-0 Overview

Power to the Board Radsert 3.6mm 70amp knurl PF

8947-0-15-15-10-27-10-0 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	Mill-Max
package instruction	ROHS COMPLIANT
Reach Compliance Code	compliant
ECCN code	EAR99
Is Samacsys	N
Manufacturer's serial number	8947
terminal gender	FEMALE
Terminal and terminal strip types	PCB TERMINAL
Base Number Matches	1

Preview

Download Datasheet

View All

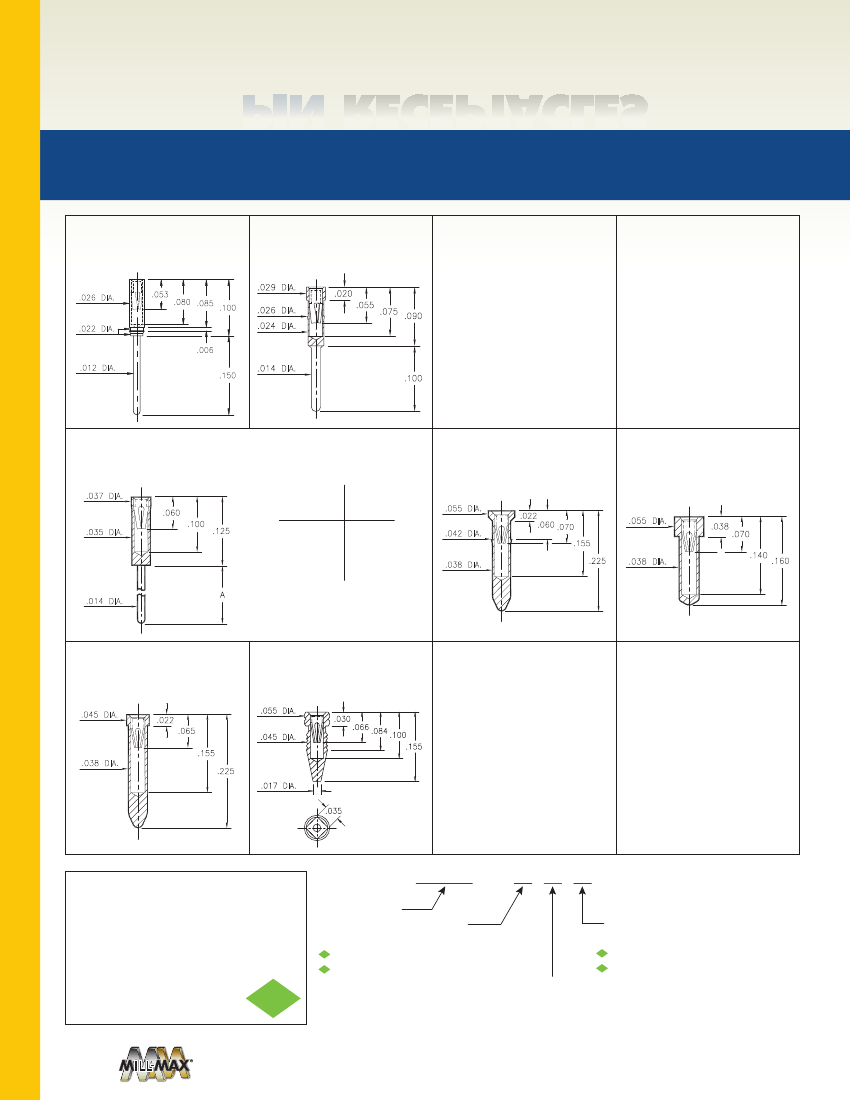

RECEPTACLES

FOR .008” - .013” DIAMETER PINS (#04 CONTACT)

AND .012” - .017” DIAMETER PINS (#10 CONTACT)

(SEE SPECIFIC CONTACT RANGE ON PAGE 250)

8210

.026 DIA.

8210-0-15-15-04-27-04-0

Press-fit in .024/.027 stepped hole

.053

0439

.029 DIA.

0439-0-15-15-04-27-04-0

Press-fit in .025 mounting hole

.020

.055

.075

.090

.080 .085

.100

.026 DIA.

.024 DIA.

.022 DIA.

.006

.012 DIA.

.150

.014 DIA.

.100

X464-X-15-XX-10-XX-04-0

Solder mount in .016 min. mounting hole

.037 DIA.

.060

.035 DIA.

.100

.125

X464

9225

Basic Part

Number

Length

.055 DIA.

.042 DIA.

9225-0-15-XX-10-XX-10-0

Press-fit in .039 mounting hole

0529

0529-0-15-XX-10-XX-10-0

.040 min. mounting hole

.022

0464-0

0464-1

6464-0

.125

.250

.275

.060 .070

.155

.055 DIA.

.038

.070

.140

.160

.038 DIA.

.225

.038 DIA.

.014 DIA.

8947

.045 DIA.

8947-0-15-XX-10-XX-10-0

Solder mount in .040 min. mounting hole

.022

.065

.155

.038 DIA.

.225

4993

.055 DIA.

.045 DIA.

4993-0-15-15-10-27-10-0

Compliant press-fit in .041 - .043 Dia.

mounting hole

.030

.066

.084

.100

.155

.017 DIA.

.035

PAGE 156 | PIN RECEPTACLES

SPECIFICATIONS:

Shell Material:

Brass Alloy 360, 1/2 Hard

Contact Material:

Beryllium Copper Alloy 172, HT

Dimensions: Inches

Tolerances On:

Lengths:

± .005

2011/65/EU

ORDER CODE: XXXX - X - XX - XX -

- XX - XX - 0

BASIC PART #

SPECIFY SHELL FINISH:

200

μ”

TIN/LEAD OVER NICKEL

200

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

SPECIFY CONTACT FINISH:

100

μ”

TIN/LEAD OVER NICKEL

100

μ”

TIN OVER NICKEL (RoHS)

μ”

GOLD OVER NICKEL (RoHS)

Diameters: ± .002

Angles:

±2°

RoHS - 2

SELECT CONTACT:

#04 or #10

CONTACT (DATA ON PAGE 250)

(CONTACTS #04 & #10 NOT INTERCHANGEABLE)

Mill-Max Mfg. Corp. • 190 Pine Hollow Road, P.O. Box 300, Oyster Bay, NY 11771 • 516-922-6000 • Fax: 516-922-9253 • www.mill-max.com
