B2-5001A1 datasheet, PDF - EEWORLD Datasheet

EEWORLDEEWORLD

Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> B2-5001A1

Preview

B2-5001A1: DescriptionBasic / Snap Action Switches with 6" leads; CategoryTopical application Mechanical and electrical/engineering/automation; File Size528KB，3 Pages; ManufacturerOTTO; Websitehttp://www.ottoexcellence.com

Download Datasheet Parametric Compare View All

B2-5001A1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B2-5001A1	-	-	View	Buy Now

B2-5001A1 Overview

Basic / Snap Action Switches with 6" leads

B2-5001A1 Parametric

Parameter Name	Attribute value
Product Category	Basic / Snap Action Switches
Manufacturer	OTTO
RoHS	Details
Type	Miniature
Contact Form	SPST
Switch Function	OFF - (ON)
Actuator	Lever
Current Rating	7 A
Voltage Rating AC	115 V, 250 V
Voltage Rating DC	28 VDC
Operating Force	0.5 N
Termination Style	Solder Pin
Mounting	Through Hole
Illuminated	Non-Illuminated
Factory Pack Quantity	1

Preview

Download Datasheet

View All

B2 -5

BASIC

SWITCHES

B2 BASICS WITH INTEGRAL LEVERS

CHOICE OF STRAIGHT, FORMED OR ROLLER LEVERS

B2-500571

B2-500411

B2-500211

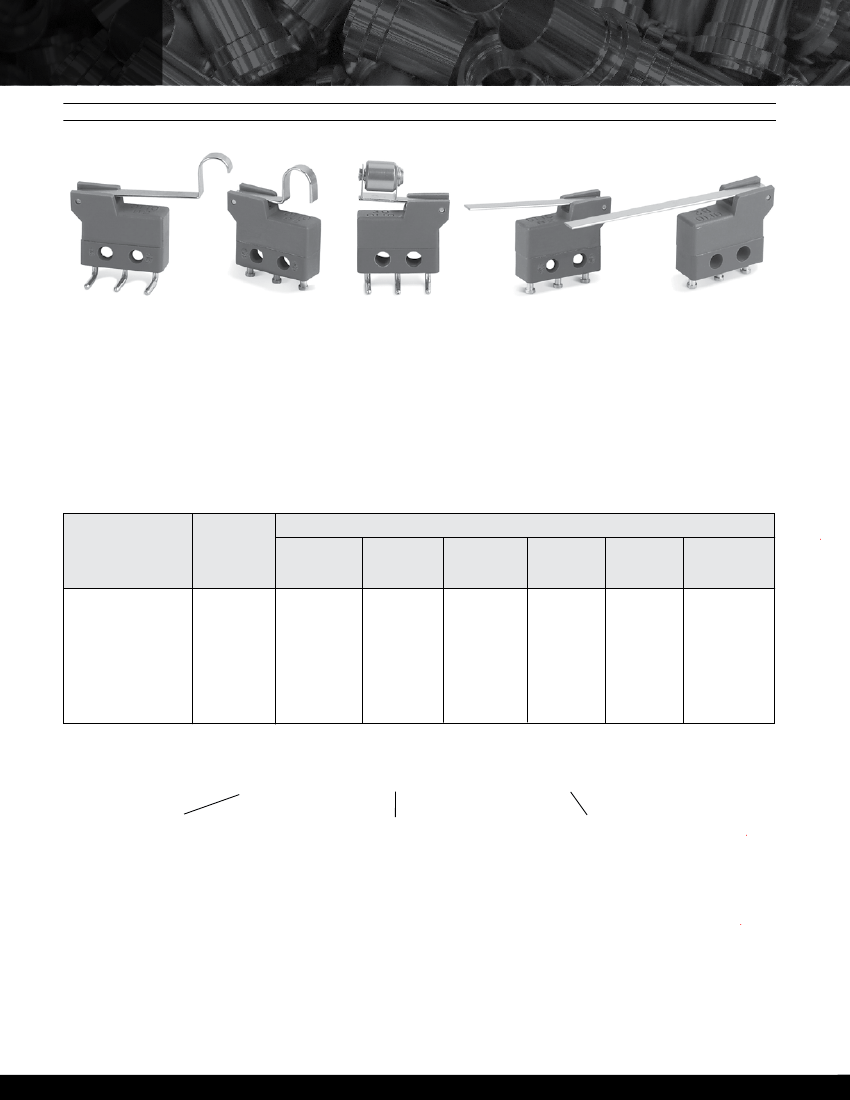

Shown are examples of available lever styles.

B2-501691

B2-500333

B2-5 Integral Lever Basic Switches

B2-5 series basic switches feature integral actuating levers. The

lever is built-in so that the switch and actuator are one assembly.

Making the lever actuator an integral part of the basic switch

case makes sense and saves money, too. Better precision, no

auxiliary parts for you to assemble, and more variety add up to

a cost saving proposition.

STANDARD OPERATIONAL CHARACTERISTICS

Lever

Style

Short Lever

Medium Lever

Long Lever

Short Formed Lever

Long Formed Lever

Lever Style with Hole

Short "V" Lever

Roller Sleeve Sideways

Roller Lever in Line

Catalog

Number

B2-500111

B2-500211

B2-500311

B2-500411

B2-500511

B2-500611

B2-501211

B2-501611

B2-501911

Operating

Force

(max ounces)

1.76

1.10

0.71

2.10

1.10

3.00

2.29

Release

Force

(min ounces)

0.32

0.18

0.11

0.39

0.18

0.57

0.43

Pretravel

(max inches)

0.065

0.115

0.185

0.050

0.105

0.115

0.042

0.065

0.070

Overtravel

(min inches)

0.014

0.025

0.046

0.010

0.022

0.025

0.010

0.008

Move’t

Differ’l

(max inches)

0.020

0.035

0.060

0.015

0.035

0.010

0.020

Operating

Point

(inches)

0.332 +/- 0.045

0.325 +/- 0.075

0.305 +/- 0.115

0.545 +/- 0.036

0.559 +/- 0.065

0.325 +/- 0.075

0.411 +/- 0.011

0.581 +/- 0.045

0.581 +/- 0.050

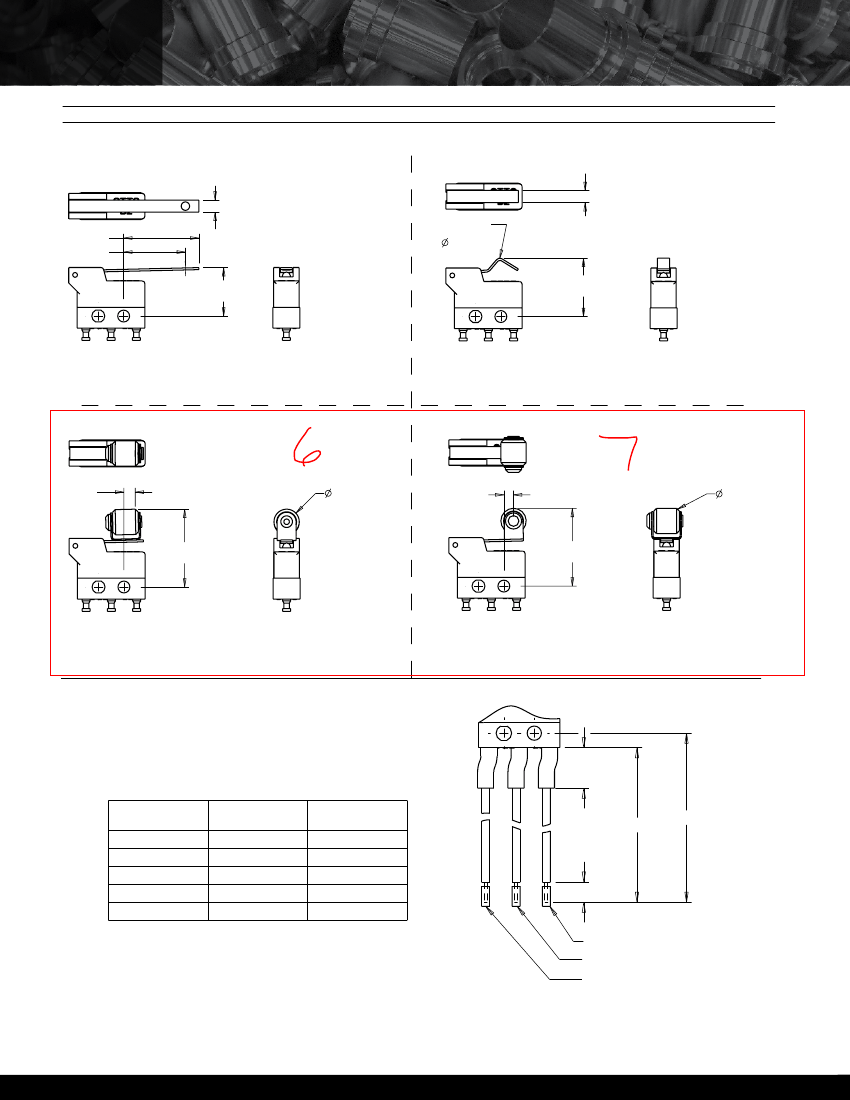

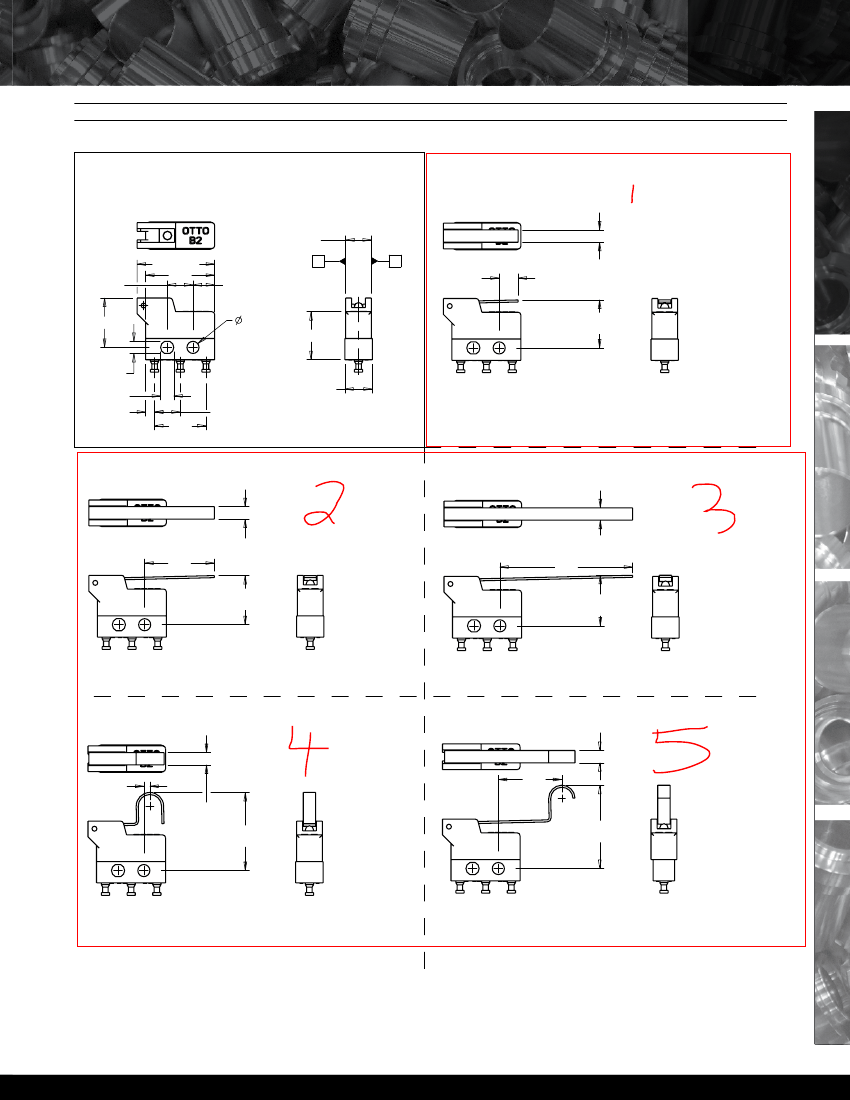

B2-5

Lever Style*

001.

002.

003.

004.

005.

006.

012.

016.

XXX

B2-5 PART NUMBER CODE

X

Terminal Style or Wire Length

X

Contact Material

Short Straight

Medium Straight

Long Straight

Short Formed

Long Formed

With Hole

Short "V"

Roller Sleeve

Sideways

019.

Roller Lever in Line

1.

2.

3.

4.

5.

6.

7.

Single Solder Turret

Double Solder Turret

Quick Connect

PC Pin 0.150” lg.

PC Pin 0.270” lg.

PC Pin 0.090” lg.

Right Angle PC Pin

9.

Right Angle**

A.

With Wires 06.0” lg.

B.

With Wires 12.0” lg.

C.

With Wires 18.0” lg.

D.

With Wires 24.0” lg.

E.

With Wires 30.0” lg.

1.

Silver/Gold - High Current

3.

Silver/Gold - Low Current

* For additional lever options, contact factory.

** Opposite of 7

7

OTTO Full Line Catalog

Specifications Subject To Change Without Notice
