ZB5AH1 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> ZB5AH1

ZB5AH1: DescriptionPushbutton Switches EXTND PUSH ON/PUSH OFF NON-ILLUM WHT; CategoryTopical application Mechanical and electrical/engineering/automation; File Size51KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

ZB5AH1 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZB5AH1	-	-	View	Buy Now

ZB5AH1 Overview

Pushbutton Switches EXTND PUSH ON/PUSH OFF NON-ILLUM WHT

ZB5AH1 Parametric

Parameter Name	Attribute value
Product Category	Pushbutton Switches
Manufacturer	SCHNEIDER ELECTRIC
Product	Standard Switches
Switch Function	ON - OFF
Mounting Style	Panel
Actuator	Round
Cap Color	White
Color	White
Illumination	None
Material	Nylon
Factory Pack Quantity	1
Width	22 mm

Preview

Download Datasheet

View All

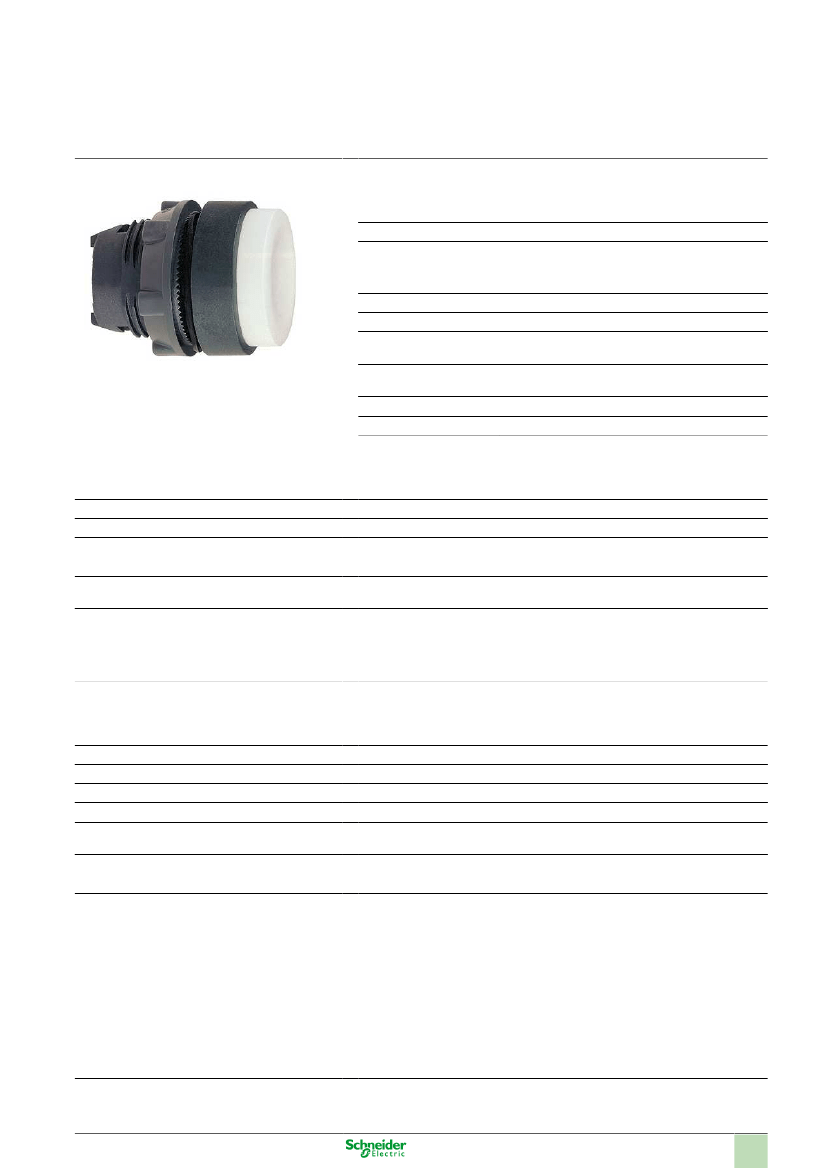

Product data sheet

Characteristics

ZB5AH1

white projecting pushbutton head Ø22 push-

push unmarked

Product availability: Non-Stock - Not normally stocked in distribution facility

Main

Commercial Status

Range of product

Product or component

type

Device short name

Bezel material

Mounting diameter

Sale per indivisible

quantity

Shape of signaling unit

head

Type of operator

Operator profile

Commercialised

Harmony XB5

Head for non-illuminated pushbutton

ZB5

Plastic

0.87 in (22 mm)

Round

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.

Push-push

White projecting unmarked

Complementary

CAD overall width

CAD overall height

CAD overall depth

Product weight

Mechanical durability

Station name

Electrical composition code

1.14 in (29 mm)

1.3 in (33 mm)

0.04 lb(US) (0.018 kg)

500000 cycles

XALK 2...5 cut-outs

XALD 1...5 cut-outs

C9 for <= 3 contacts using single blocks in front mounting

SR1 for <= 3 contacts using single blocks in rear mounting

SF1 for <= 3 contacts using single blocks in front mounting

C15 for 1 contacts using single blocks in front mounting

C11 for <= 3 contacts using single blocks in front mounting

Environment

Protective treatment

Ambient air temperature for storage

Ambient air temperature for operation

Class of protection against electric shock

IP degree of protection

NEMA degree of protection

Resistance to high pressure washer

IK degree of protection

Standards

-40...158 °F (-40...70 °C)

-13...158 °F (-25...70 °C)

Class II conforming to IEC 60536

IP66 conforming to IEC 60529

NEMA 4X

NEMA 13

1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m

IK03 conforming to IEC 50102

EN/IEC 60947-1

EN/IEC 60947-5-1

EN/IEC 60947-5-4

JIS C 4520

UL 508

CSA C22.2 No 14

CSA

DNV

LROS (Lloyds register of shipping)

RINA

UL listed

Product certifications

Feb 28, 2016
