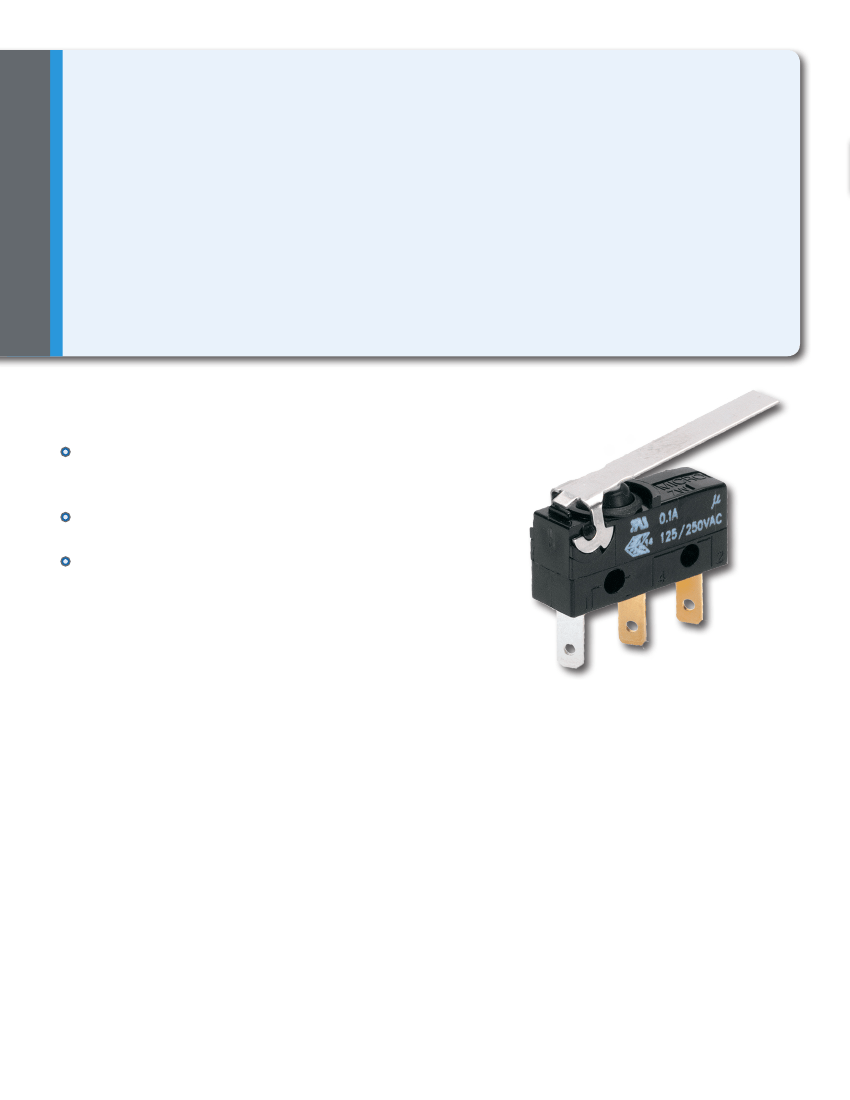

fit in many applications where other sensors or switches are too large.
IP67 sealing: pre-wired switches
WELL SUITED FOR POWER-DUTY AND LOGIC-LEVEL LOADS
SPDT, SPNC, or SPNO switch options are available and designed to meet various
circuit requirements. ZW Series can control
power-duty switching
with silver
contacts or
logic-level
computer-based circuits with gold-plated contacts.
PERFORMS IN WET, DIRTY, AND DUSTY ENVIRONMENTS
Catalog listings with integral lead wires are sealed to IP67
for use in
environments where exposure to liquid ingress or particulate contaminant
could occur.
DESIGN FLEXIBILITY
Switches are built with
an integral sealed pin plunger.
Various styles of levers
expand the versatility of the ZW Series switch in the application. In addition,
the ZW Series features a
variety of terminations
to promote flexibility for the
electrical connectivity.
Potential Applications
LAWN TRACTORS
Reverse alarm for lawn tractors
Indicates seat use on lawn tractors
WATERCRAFT
Found on handle-bar controls for personal watercraft (wave runners)
SECURITY SYSTEMS
Acts as an interlock for security system panel
SNOWMOBILES
Found on handle-bar controls for snowmobiles
sensing.honeywell.com
3
ZW Series
PRODUCT NOMENCLATURE
ZW
Switch Type
50
Current
Rating
F
Operating Force
4
(at pin plunger)
150 g max.
203 g max.
15
Terminal
Type
A
(Levers Mounted Internally)
D
Construction
1
Circuitry
—
Special
Designator
3
A special designator
is used to indicate
a non-standard feature,
such as a special
actuator, wire color,
wire length, connector,
etc. This code
consists of up to three
alphanumeric
characters.
Actuator Type
3
Pin plunger
ZW
Series
0.1A 125/250 Vac
10
(Gold-plated
E
Sealed
contacts)
Subminiature
6A: 125/250 Vac
50
(Silver contacts)
ONLY
F
Basic
Switch
15
20
70
90
91
92
99
Solder
PCB, straight
Long solder
2,8 mm x 0,5 mm
[0.11 in x 0.02 in]
Cable, bottom
exit
(500 mm)
(UL10007 Dia 1.0)
4,5
A
B
C
D
E
F
H
J
S
D
W
IP00
Dust tight
IP67
Water tight
1
3
4
SPDT
SPNO
2
SPNC
2
Short straight
lever (17,4 mm)
Standard straight
lever (19,4 mm)
Long straight
lever (25,5 mm)
Simulated roller
lever (18,7 mm;
R 3,4 mm)
Roller lever
(17,2 mm;
Ø 4,8 mm)
Small simulated
roller lever
(18,6 mm; R1,3 mm)
Long straight
lever (55,9 mm)
SPECIAL
Lever
2
Cable, side exit
(Opposite plunger)
(500 mm) (UL1007 Dia)
4,5
Cable, side exit
(Plunger end)
(500 mm) (UL1007 Dia)
4,5
SPECIAL
3
NOTES:
1
Not all combinations of model code are available. Please contact your Honeywell provider/representative for assistance.
2
Termination style “99” and/or Actuator Type “S” designates a special and therefore requires a special designator letter at the end of the listing
3
Lever length is measured as follows: Straight lever - from center line of the pivot to the end of the lever; Roller and simulated roller lever - from the center line of the pivot to the center of
the roller diameter. See page 8 for more details.
4
Standard wire length is 500 mm [19.68 in] long. Other lengths are available upon request. Lead wire with end stripped 3,0 mm [0.118 in] and pre-tinned.
COM: black; NC: gray; NO: blue
5
Standard lead wire is UL1007 20 AWG cable. Other lead wire types, such as UL1015, UL1430, UL1061, and AVSS are available upon request.
