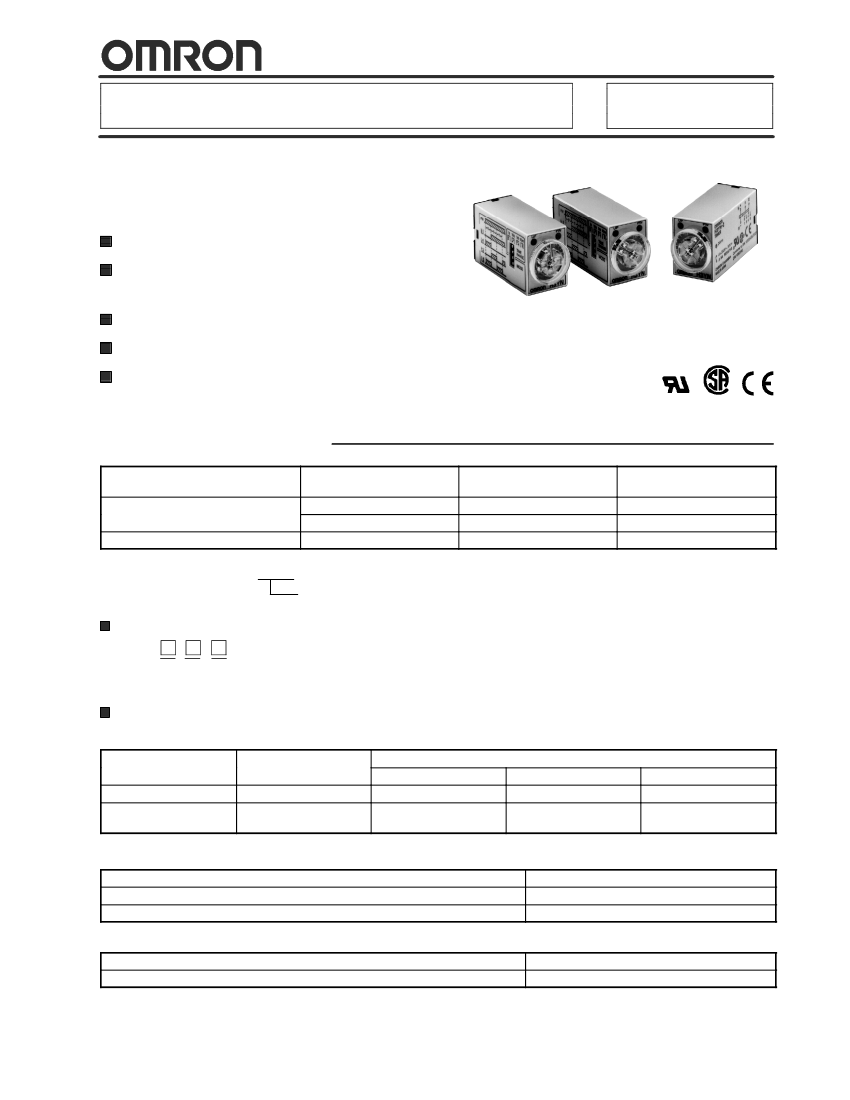

R
Solid-State Timer
Miniature Timer with Multiple Time
Ranges and Multiple Operating
Modes
Minimize Inventory
Standard multiple operating modes and
multiple time ranges
4PDT or DPDT control output
LED power-ON and time-UP indicators
Sockets, hold-down clips and mounting
accessories may be ordered separately
H3YN
Ordering Information
Supply voltage
24, 100 to 120, 200 to 230 VAC;
,
,
;
12, 2
12 24, 48, 100 to 110, 125 VDC
8
110 12
24 VDC
Note:
Time-limit contact
DPDT
4PDT
4PDT (Twin contact)
Specify both the model number and supply voltage when ordering.
Example: H3YN-2 24 VAC
Supply voltage
Short-time range model
(0.1 s to 10 min)
H3YN-2
H3YN-4
H3YN-4-Z
Long-time range model
(0.1 min to 10 h)
H3YN-21
H3YN-41
H3YN-41-Z
MODEL NUMBER LEGEND:
1. Output
H3YN -
-
2: DPDT
1 2 3
4: 4PDT
ACCESSORIES (ORDER SEPARATELY)
Connecting Socket
Applicable Timer
H3YN-2/-21
H3YN-4/-41
H3YN-4-Z/-41-Z
Track-mounting/front-
g/
connecting socket
i
k
PYF08A-E, PYF08A-N
PYF14A-E, PYF14A-N
2. Time Range
None: Short-time range (0.1 s to 10 min)
1: Long-time range (0.1 min to 10 hrs)
3. Contact Type
None: Single contact
Z: Twin contact
Back-connecting socket
Solder terminal
PY08
PY14
Wire-wrap terminal
PY08QN(2)
PY14QN(2)
PCB terminal
PY08-02
PY14-02
Hold-Down Clips
Applicable socket
PYF08A-E, PYF08A-N, PYF14A-E, PYF14A-N
PY08, PY08QN(2), PY08-02, PY14, PY14QN(2), PY14-02
Part number
Y92H-3
Y92H-4
Panel Adapter
Applicable timer
H3YN-2/21. H3YN-4/41, H3YN-4-Z/41-Z
Part number
Y92F-78
1
H3YN
H3YN
Specifications
RATINGS
Item
Time ranges
Supply voltage
Operating mode
Operating voltage
Power consumption
H3YN-2/-4/-4-Z
0.1 s to 10 min (1 s, 10 s, 1 min, or 10 min
max. selectable)
H3YN-21/-41/-41-Z
0.1 min to 10 h (1 min, 10 min, 1 h, or 10 h
max. selectable)
24, 100 to 120, 200 to 230 VAC; 12, 24, 48, 100 to 110, 125 VDC (see note 1)
ON-delay, interval,repeat cycle with ON-start or OFF-start (selectable with DIP switch)
85% to 110% of rated supply voltage (12 VDC: 90% to 110% of rated supply voltage)
(see note 2)
24 VAC:
100 to 120 VAC:
200 to 230 VAC:
12 VDC:
24 VDC:
48 VDC:
100 to 110 VDC:
125 VDC:
Relay ON: 1.1 VA (at 24 VAC, 60 Hz)
Relay OFF: 0.2 VA (at 24 VAC, 60 Hz)
Relay ON: 14 VA (at 120 VAC, 60 Hz)
Relay OFF: 0.6 VA (at 120 VAC, 60 Hz)
Relay ON: 1.5 VA (at 230 VAC, 60 Hz)
Relay OFF: 0.9 VA (at 230 VAC, 60, Hz)
Relay ON: 0.9 W (at 12 VDC)
Relay OFF: 0.07 W (at 12 VDC)
Relay ON: 0.9 W (at 24 VDC)
Relay OFF: 0.7 W (at 24 VDC)
Relay ON: 1.0 W (at 48 VDC)
Relay OFF: 0.2 W ( at 48 VDC)
Relay ON: 1.3 W (at 110 VDC)
Relay OFF: 0.3 W (at 110 VDC)
Relay ON: 1.3 W (at 125 VDC)
Relay OFF: 0.3 W (at 125 VDC)
Control outputs
Note:
DPDT:
4PDT:
5 A at 250 VAC, resistive load (cosφ = 1)
3 A at 250 VAC, resistive load (cosφ = 1)
1. Single-phase, full-wave-rectified power supplies can be used.
2. When using the H3YN in any place where the ambient temperature is more than 50°C, supply 90% to 110% of the rated sup-
ply voltages (supply 95% to 110% with 12 VDC type).
CHARACTERISTICS
Item
Repeat accuracy
Setting error
Resetting time
Insulation resistance
Dielectric strength
H3YN-2/-21
±10%±50
ms FS max.
Min. power-opening time: 0.1 s max. (including halfway reset)
100 MΩ min. (at 500 VDC)
2,000 VAC, 50/60 Hz for 1 min (between current-carrying terminals and exposed
non-current-carrying metal parts)
2,000 VAC, 50/60 Hz for 1 min (between operating circuit and control output)
1,000 VAC, 50/60 Hz for 1 min (between non-continuous contacts)
2,000 VAC, 50/60 Hz for 1 min
(between contacts of different poles)
Vibration
Shock
Ambient temperature
p
Ambient humidity
Service life
Mechanical durability
Malfunction durability
Mechanical durability
Malfunction durability
Operating
Storage
Operating
Mechanical
Electrical
10 to 55 Hz, 0.75-mm single amplitude
10 to 55 Hz, 0.5-mm single amplitude
1,000 m/s
2
(approx. 100G)
100 m/s
2
(approx. 10G)
-
-10°C to 50°C (14°F to 122°F) with no icing
-
-25°C to 65°C (-
-13°F to 149°F) with no icing
35% to 85% RH
10,000,000 operations min. (under no load at 1,800 operations/h)
DPDT:
500,000 operations min. (5 A at 250 VAC, resistive load at 1,800 operations/h)
4PDT:
200,000 operations min. (H3YN-4-Z/-41-Z: 100,000 operations min.)
(3 A at 250 VAC, resistive load at 1,800 operations/h)
Approx. 50 g
UL/CSA/CE (EMC) (LV)
2,000 VAC, 50/60 Hz for 1 min
(between contacts of different poles)
H3YN-4/-41
±1%
FS max. (1 s range:
±1%±10
ms max.)
Weight
Approvals
2
H3YN
H3YN
Engineering Data

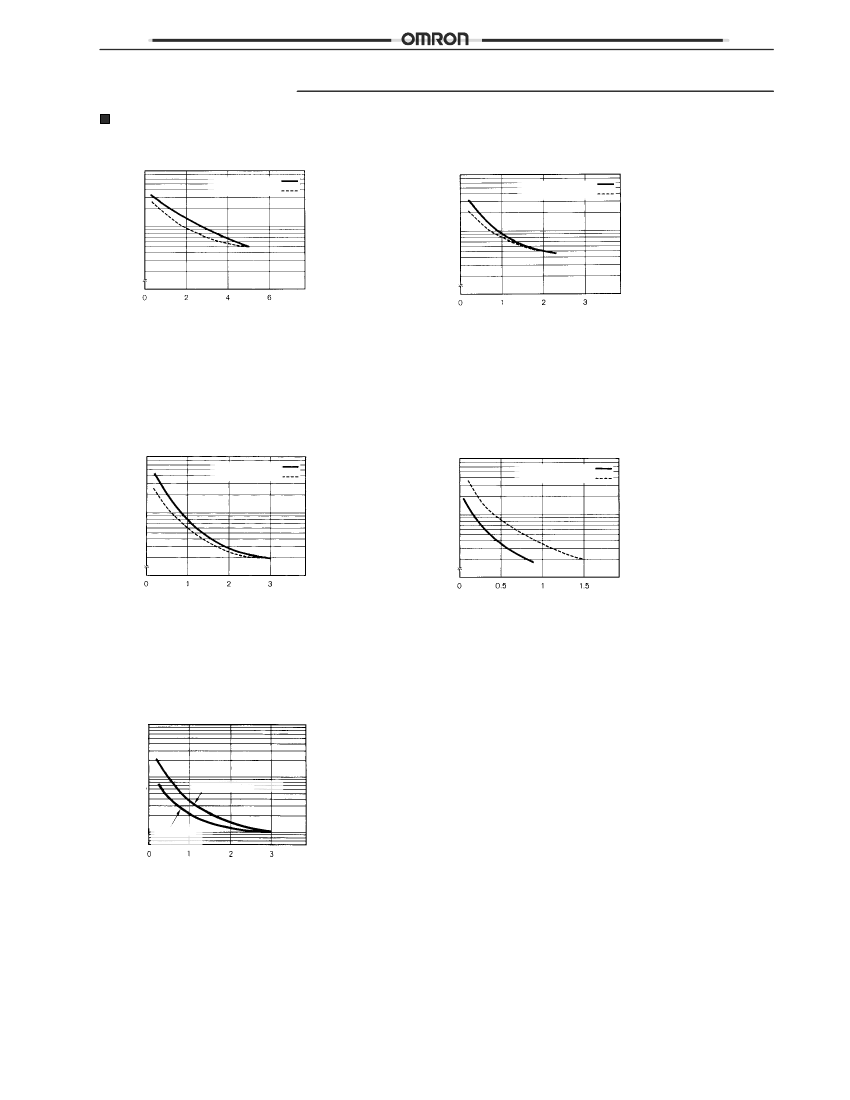

ELECTRICAL SERVICE LIFE
Electrical Life Expectancy (Reference Value)
H3YN-2/-21
Switching operations (x 10
3
)
5,000
250 VAC, cosφ = 1
24 VDC, cosφ = 1
Switching operations (x 10
3
)
5,000
250 VAC, cosφ = 0.4
24 VDC, L/R = 7 ms
1,000
500
200
1,000
500
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.6 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 1 mA at 5 VDC (P reference value).
H3YN-4/-41
Switching operations (x 10
3
)
5,000
250 VAC, cosφ = 1
24 VDC, cosφ = 1
Switching operations (x 10
3
)
5,000
250 VAC, cosφ = 0.4
24 VDC, L/R = 7 ms
1,000
500
200
1,000
500
200
Load current (A)
Load current (A)
Reference: A maximum current of 0.5 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 1 mA at 1 VDC (P reference value).
H3YN-4-Z/-41-Z
Switching operations (x 10
3
)
5,000
1,000
500
220 VAC, resistive load
100 24 VDC,
resistive
60 load
Load current (A)
Reference: A maximum current of 0.5 A can be switched at 125 VDC (cosφ = 1).
Maximum current of 0.2 A can be switched if L/R is 7 ms. In both cases,
a life of 100,000 operations can be expected.
The minimum applicable load is 0.1 mA at 1 VDC (P reference value).
3

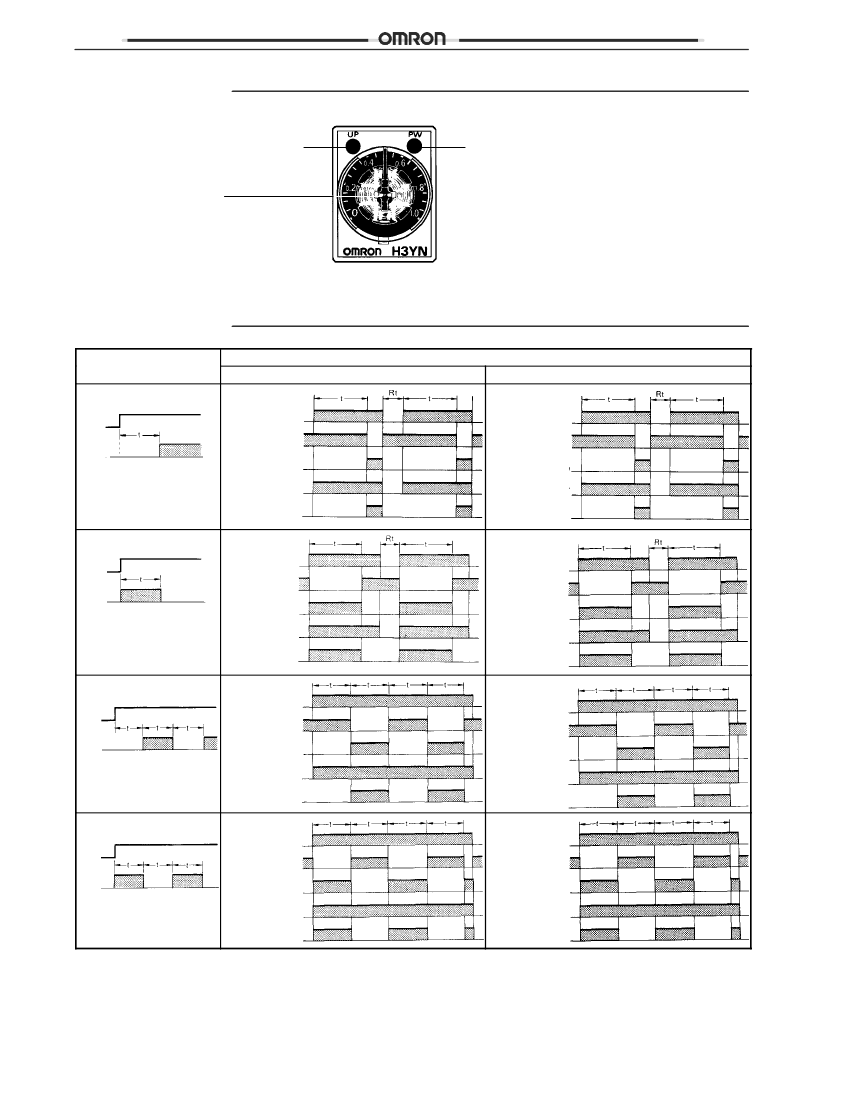

LED Zone
