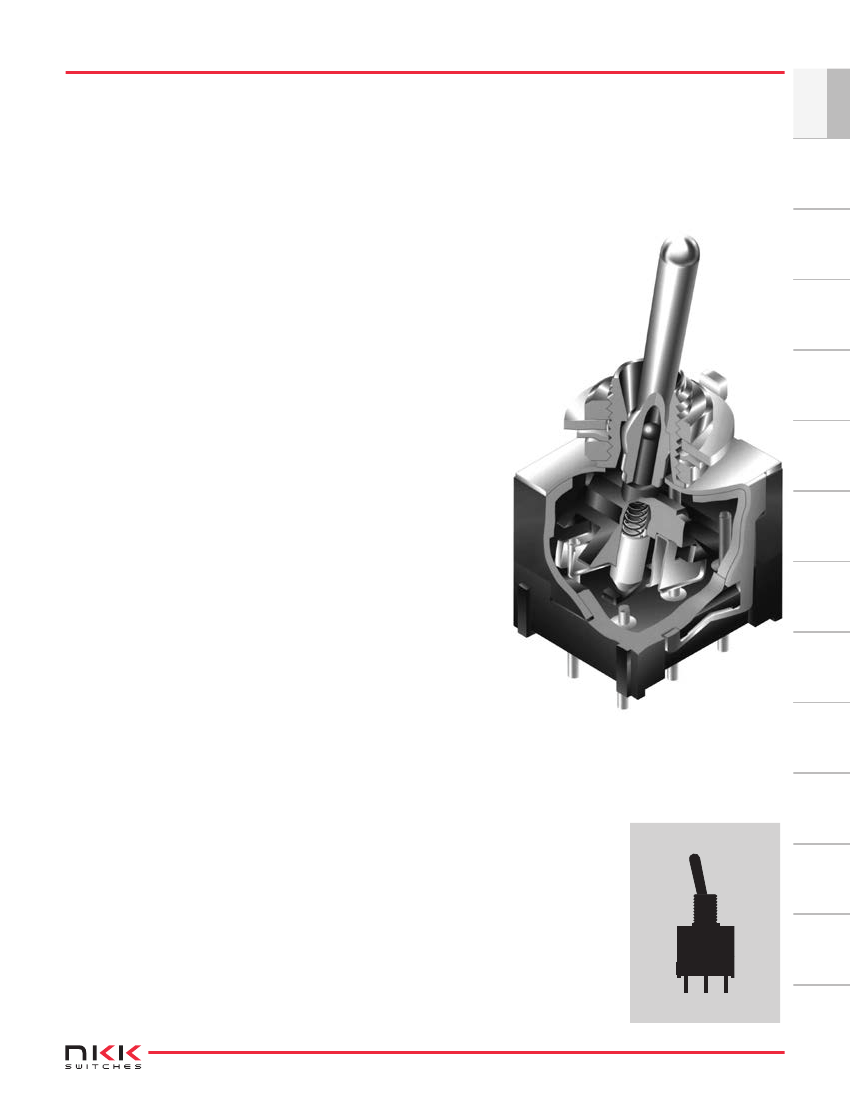

D22023H Overview

Toggle Switches PCB Mount Miniature Toggles

D22023H Parametric

Parameter NameAttribute value
Product CategoryToggle Switches
ManufacturerNKK
RoHSDetails

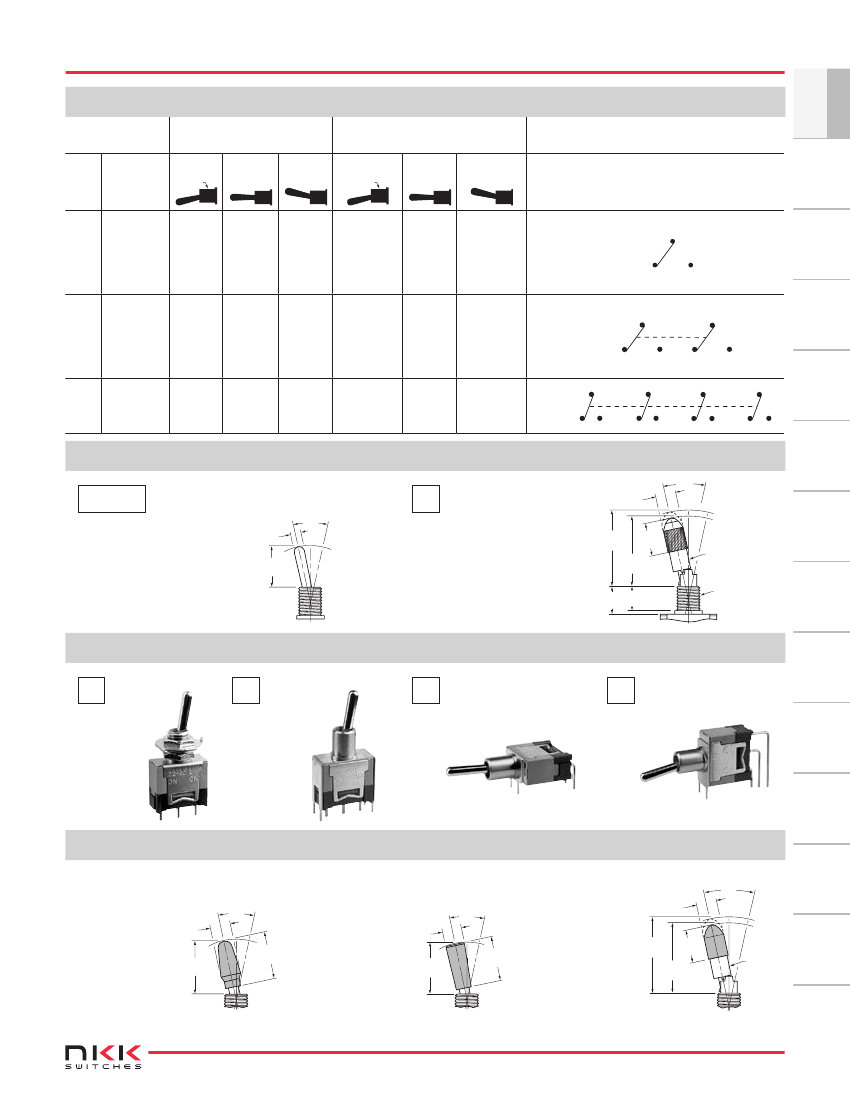

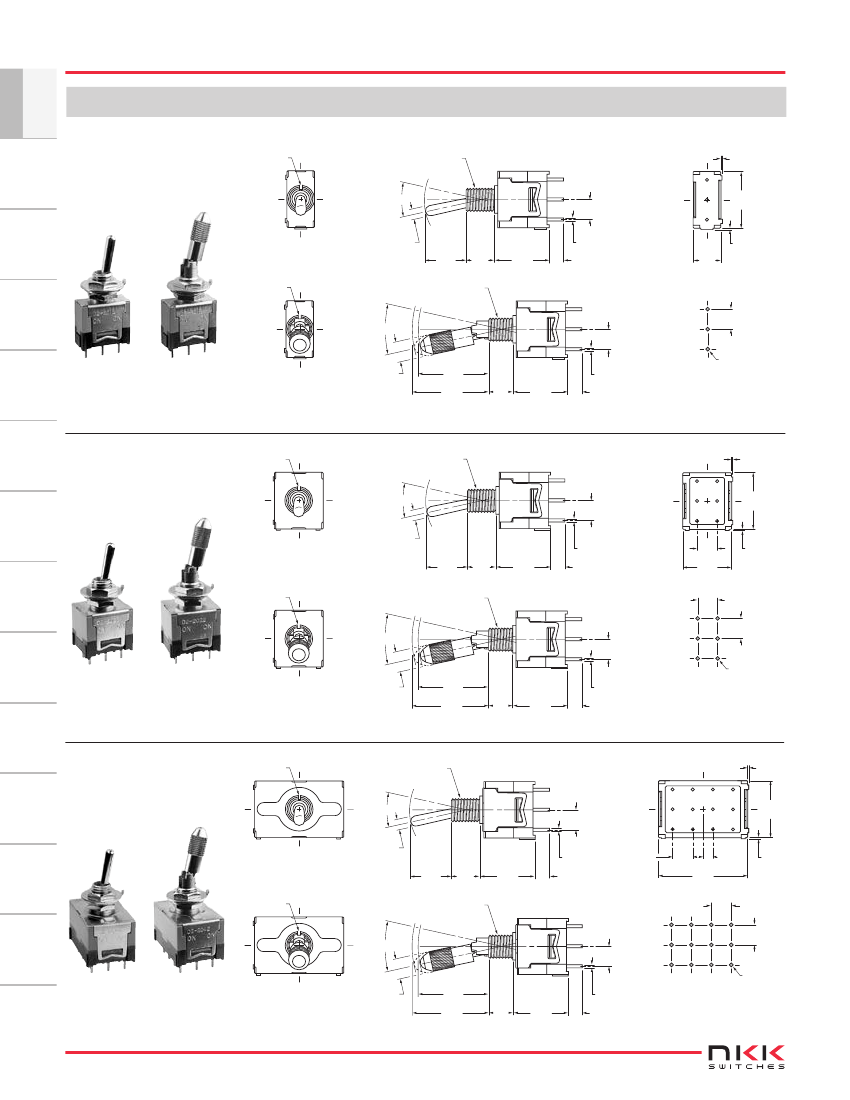

Series D2
Toggles
PCB Mount Miniature Toggles
A
Rockers
General
Specifications
Electrical Capacity (Resistive Load)
Logic Level:
0.4VA maximum @ 48V AC/DC maximum
(Applicable Range 0.1mA ~ 0.1A @ 20mV ~ 48V)
Note: Find additional explanation of operating range in Supplement section.
Pushbuttons
Programmable Illuminated PB
Other Ratings
Contact Resistance:
Insulation Resistance:
Dielectric Strength:
Mechanical Life:
Electrical Life:
Contact Timing:
Angle of Throw:
50 milliohms maximum
1,000 megohms minimum @ 500V DC
1,000V AC minimum between contacts for 1 minute minimum;
1,500V AC minimum between contacts & case for 1 minute minimum
100,000 operations minimum for bat lever models
50,000 operations minimum for locking lever models
50,000 operations minimum
Nonshorting (break-before-make)
24°
Keylocks
Materials & Finishes
Slides
Toggle/Lever:
Bushing:
Support Bracket:
Housing:
Base:
Movable Contacts:
Stationary Contacts:
Terminals:
Brass with chrome plating
Brass with nickel plating
Straight PC: phosphor bronze with tin plating; right angle & vertical: brass with tin plating
Polybutylene terephthalate (PBT) (UL94V-0)
1- and 2-pole GFR polyamide (UL94V-0); 4-pole liquid crystal polymer (LCP) (UL94V-0)
Phosphor bronze with gold plating
Brass with gold plating
Brass with gold plating
Rotaries
Environmental Data
Tactiles
Operating Temp Range:
Humidity:
Vibration:
Shock:
–10°C through +70°C (+14°F through +158°F)
90 ~ 95% humidity for 240 hours @ 40°C (104°F)
10 ~ 55Hz with peak-to-peak amplitude of 1.5mm traversing the frequency range & returning
in 1 minute; 3 right angled directions for 2 hours
50G (490m/s
2
) acceleration (tested in 6 right angled directions, with 5 shocks in each direction)
Tilt
PCB Processing
Soldering:
Cleaning:
Wave Soldering recommended. See Profile A in Supplement section.
Manual Soldering: 1- & 2-pole: 3 seconds maximum @ 350°C maximum;
4-pole: 4 seconds maximum @ 410°C maximum
Hand clean locally using alcohol based solution.
See Cleaning specifications in Supplement section.
Indicators
Touch
Standards & Certifications
Flammability Standards:
Supplement
Accessories
UL94V-0 rated housing & base
The D2 Series toggles have not been tested for UL recognition or CSA certification.
These switches are designed for use in a low-current, logic level circuit.
When used as intended in a logic level circuit, the results do not produce hazardous energy.
A24
www.nkkswitches.com
3/8/17
