BFCN-ED13661/7

Description
Band Pass Filter, 7700MHz, CASE FV1206-4
CategoryAnalog mixed-signal IC    filter
File Size35KB,1 Pages
ManufacturerMini-Circuits
Websitehttps://www.minicircuits.com
Download Datasheet Parametric View All

BFCN-ED13661/7 Overview

Band Pass Filter, 7700MHz, CASE FV1206-4

BFCN-ED13661/7 Parametric

Parameter NameAttribute value
MakerMini-Circuits
Reach Compliance Codeunknown
average input power2 W
Center frequency or cutoff frequency (fo/fc)7700 MHz
filter typeBAND PASS FILTER
input resistance50 OHM
Maximum insertion loss3.5 dB
Manufacturer's serial numberBFCN
Installation typeSURFACE MOUNT
Maximum operating temperature100 °C
Minimum operating temperature-55 °C
Output impedance50 OHM Ω
voltage standing wave ratio1.4
Base Number Matches1
Engineering Development Model
Bandpass Filter
SMT
Important Note
This model has been designed, built and tested in our engineering
department. Performance data represents model capability.
At present it is a non-catalog model. On request, we can supply a
final specification sheet, part number and price/delivery information.
Please click "Back", and then click "Contact Us" for Applications support.

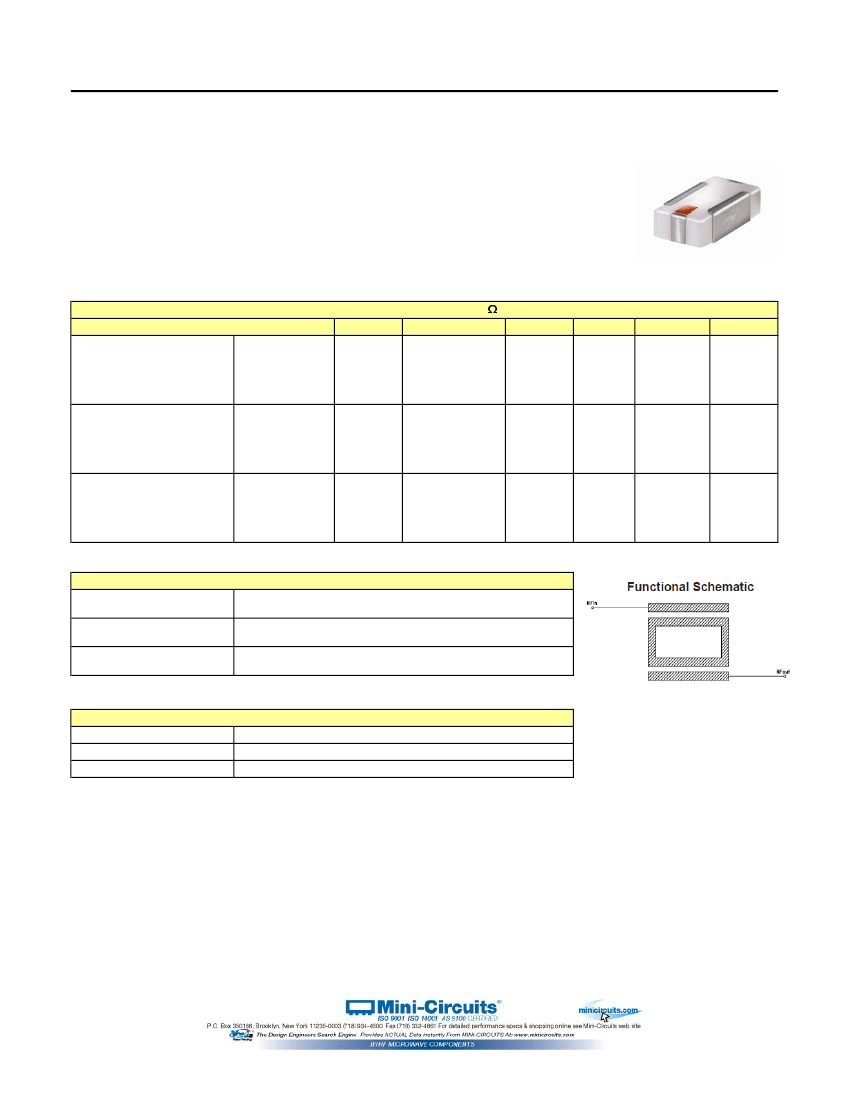

BFCN-ED13661/7
CASE STYLE : FV1206-4
@ +25°C
Min.
Typ.
7700
Max.
Units
MHz
3.5
dB
:1
dB
dB
:1
dB
dB
:1
Parameters
Center Frequency
Pass Band
Insertion Loss
VSWR
Insertion Loss
Stop Band, Lower
VSWR
Insertion Loss
Stop Band, Upper
VSWR
F#
Frequency (MHz)
F1-F2
F1-F2
DC-F5
F5-F3
DC-F3
F4-F6
F6-F7
F4-F7
7500-7900
7500-7900
DC-6500
6500-6800
DC-6800
9000-9600
9600-14000
9000-14000
15
15
MAXIMUM RATINGS
Operating Temperature
Storage Temperature
RF Power Input*
*Passband rating, derate linearly to 0.5W at 100°C ambient
-55°C to 100°C
-55°C to 100°C
2W max. @ 25°C
PIN CONNECTIONS
RF IN
RF OUT
GROUND
1
3
2,4
ELECTRICAL SPECIFICATIONS 50
1.8
1.4
20
25
30
20
20
30
REV. X1
BFCN-ED13661/7
8/6/2009
Page 1 of 1
