KSC Series
Sealed Tact Switch for SMT
Features/Benefits
•
Positive tactile feeling
•
J or G terminations
•
Various heights
•
IP67
Typical Applications
•
Automotive
•
Cellular phones
•
Industrial electronics
•
Network infrastructure and IT
•
Elevator
Electrical
MAXIMUM POWER:
MAXIMUM VOLTAGE:
MINIMUM VOLTAGE:
MAXIMUM CURRENT:
MINIMUM CURRENT:
Silver
1 VA
32 VDC
20 mV
50 mA
1 mA*
Gold
0.2 VA
32 VDC
20 mV
10 mA
0.1 mA
Specification
FUNCTION: Momentary action
CONTACT ARRANGEMENT: 1 make contact = SPST, N.O.
TERMINALS: J bend & Gullwing type for SMT
SEALING: IP67 except KSC5 (IP50)
Tactile Switches
Liability Limitation
This datasheet does not provide enough information for
applications that require a certain level of quality or safety
such as automotive, medical systems, or safety equipement.
Please contact customer service for the contractual
specification package.
DIELECTRIC STRENGTH (50 Hz, 1 min.):
≥
250 Vrms
CONTACT RESISTANCE: ≤ 100mΩ
INSULATION RESISTANCE (100 V):
≥
10M Ω
BOUNCE TIME: ≤ 1 ms
* Ultra low current with 10 µA - 1 VDC version are available upon request for
KSC2 and KSC4
Environmental
OPERATING TEMPERATURE:
STORAGE TEMPERATURE:
Silver
-40˚C to 85˚C
-55˚C to 85˚C
Gold
-40˚C to 125˚C
-55˚C to 125˚C
Packaging
Tape and Reel (see series for quantity information)
NOTE:
Specifications listed above are for switches with standard options.
Process
SOLDERING: Depending on the application, this component is
suited to the following methods:
– Terminals being silver or gold plated over a nickel barrier, the
use of slightly activated flux is suitable.
– Soldering on double wave machine for vertical versions:
soldering time ≤ 5 sec.
– Cleaning according to typical washing processes.
– Infrared Reflow Soldering in accordance with IEC 61760-1.

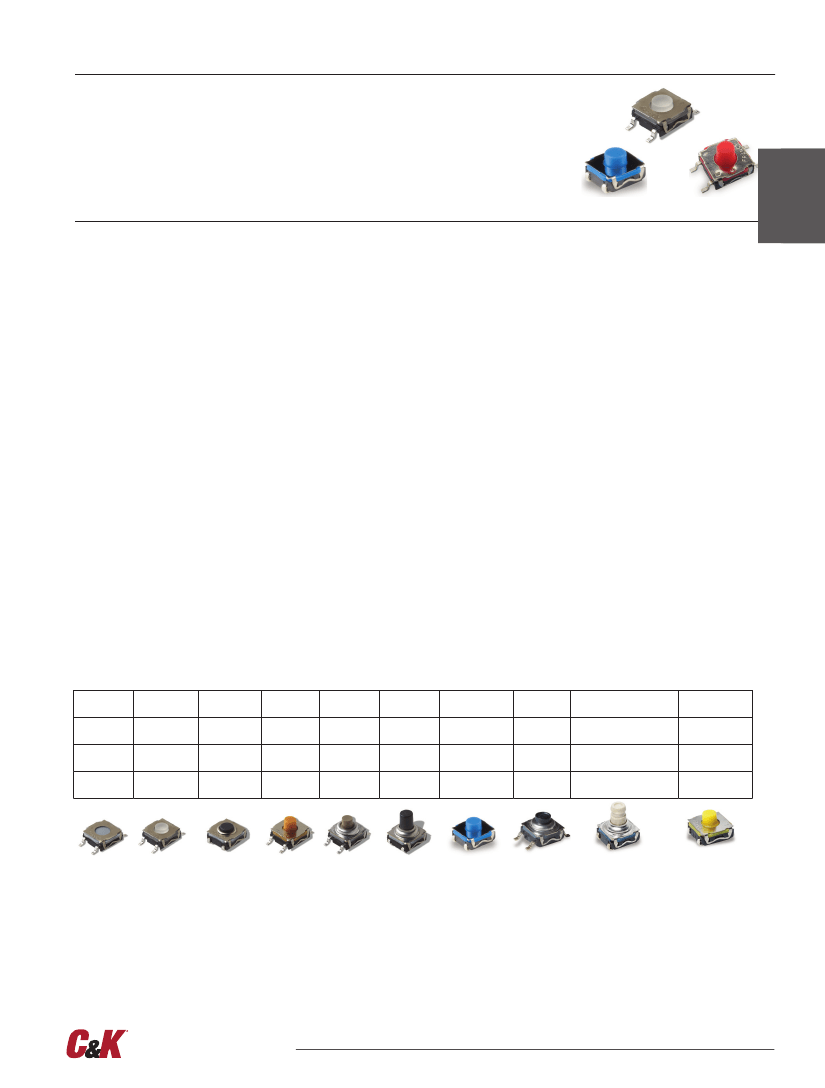

KSC Product Range
KSC1
Without
actuator
H = 2.5 mm
IP67
KSC2
Soft
actuator
H = 3.5 mm
IP67
KSC3
Hard
actuator
KSC4
Soft
actuator
KSC5
Hard
actuator
KSC6
Hard
actuator
KSC7
Soft
actuator
H = 4.3 mm
IP67
KSC8
Hard
actuator
H = 4.9 mm
IP67
KSC9
Hard
actuator
H = 7.7 mm
compatible with button
IP67
KSC10
Soft
actuator
H = 4.9 mm
IP67
H = 3.5 mm H = 5.2 mm H = 5.6 mm H = 7.7 mm
IP67
IP67
IP50
IP67
Note: KSC Series is subject to variants. Please contact customer service for other options.
Dimensions are shown: mm
Specifications and dimensions subject to change
B–49
www.ckswitches.com
KSC Series
Sealed Tact Switch for SMT

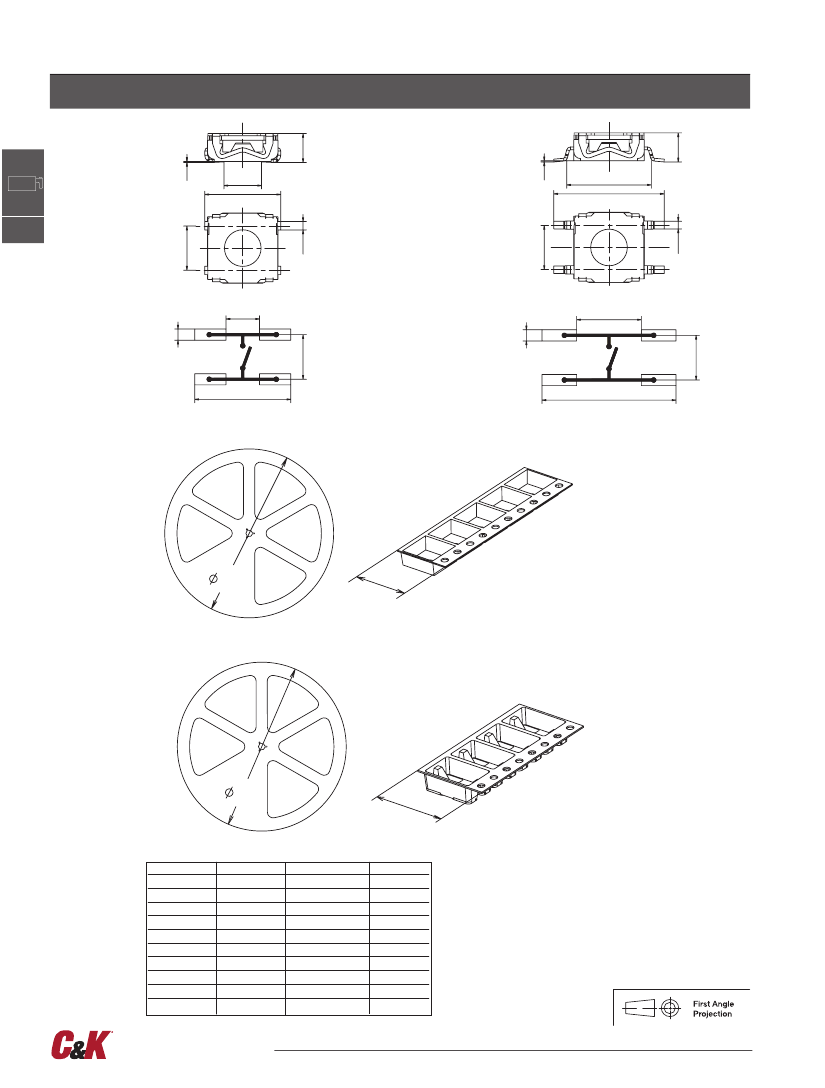

J
G
2,9 max
+0,2
0,1 0
3,3 mini
6,8
0,7±0,05
+0,2
0,1 0
( 7,6 )
10
Tactile Switches
PAD LAYOUT
3 maxi
1
1
PAD LAYOUT
5,8 maxi
4
0,7±0,05
B
4
4
8,6 mini
12 mini
12 MM
330
12
mm
16 MM
330
16
mm
12 mm
KSC1J
KSC2J
KSC3J
Pieces
2,000
2,000
2,000
16 mm
KSC1G
KSC2G
KSC3G
KSC4J & G
KSC5J & G
KSC6J & G
KSC7J & G
KSC8J & G
KSC9J & G
KSC10J & G
Pieces
2,000
2,000
2,000
1,000
1,000
750
1,000
1,000
750
1,000
Dimensions are shown: mm
Specifications and dimensions subject to change
B–50
www.ckswitches.com
4
2,9 max
J BEND
GULLWING
KSC1 Series
Sealed Tact Switch for SMT
KSC1 without actuator 2,5 mm high
4˚ max
smooth surface
1,5 min
2,9 max
,2
R0
ø
2
+0,2
0,1 0
Type
KSC121
KSC141
KSC151
Operating
force FA
(Newtons)
1.8 ± 0.65
3 ± 0.75
5.5 ± 1.4
Operating
life
(operations)
200,000
200,000
100,000
Travel
(mm)
0.3 ± 0.15
0.3 ± 0.15
0.35 ± 0.15
Tactile Switches
+0,3
6,2 0
Packaging
Switches delivered on continuous tape & reels of 2,000 pieces
Dimensions according to EIA RS-481/ IEC 60286-3 standard
External diameter 330 ± 2 mm
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
However, please note that all the combinations of these options are not feasible.
For any part number different from those listed above, please consult your local representative.
K
S
C
1
Operating Force
2
1.8 N * (180 grams)
4
3 N * (300 grams)
5
5.5 N (550 grams)
* See mechanical chart above
to confirm specifications
Contact Material
1
Silver
3
Gold
Termination
J
J bend
G
Gullwing
LFS
Lead free compatible, silver plated
LFG
Lead free compatible, gold plated
+0,3
6,2 0
Dimensions are shown: mm
Specifications and dimensions subject to change
1 mar 17
B–51
www.ckswitches.com
KSC2 Series
Sealed Tact Switch for SMT
KSC2 soft actuator 3,5 mm high
ø
2,9
+0,2 2,9 max
0,1 0
B
Tactile Switches
Type
Operating
force FA
(Newtons)
1.6 ± 0.6
2 ± 0.5
2 ± 0.5
3.5 ± 0.9
5.55 ± 1.45
3.55 ± 0.9
6.2 ± 1.55
Operating
life
(operations)
5,000,000
500,000
1,000,000
300,000
300,000
300,000
100,000
Travel
(mm)
0.3 ± 0.2
0.35 + 0.3/- 0.1
0.35 ± 0.15
0.5 ± 0.2
0.5 ± 0.2
0.5 ± 0.2
0.6 ± 0.2
KSC201
KSC221
KSC222
KSC241
KSC251
KSC241 SPD
KSC251 SPD
+0,3
6,2 0
Packaging
Switches delivered on continuous tape & reels of 2,000 pieces
Dimensions according to EIA RS-481/ IEC 60286-3 standard
External diameter 330 ± 2 mm
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
However, please note that all the combinations of these options are not feasible.
For any part number different from those listed above, please consult your local representative.
K
S
C
2
Operating Force
0
1.6 N (160 grams)
2
2 N (200 grams)
4
3.5 N (350 grams)
5
5.5 N (550 grams)
See mechanical chart above
to confirm specifications
Contact Material
1
Silver
2
Silver long life
3
Gold
4
Gold long life
Termination
J
J bend
G
Gullwing
NONE
Standard version
SPD
Special delta version
+0,3
6,2 0
LFS
Lead free compatible, silver plated
LFG
Lead free compatible, gold plated
Dimensions are shown: mm
Specifications and dimensions subject to change
1 mar 17
B–52
www.ckswitches.com
3,5
KSC3 Series
Sealed Tact Switch for SMT
KSC3 hard actuator 3,5 mm high
ø
2,8
+0,2 2,9 max
0,1 0
Type
KSC321
KSC341
KSC351
Operating
force FA
(Newtons)
2 ± 0.4
3 ± 0.75
5±1
Operating
life
(operations)
300,000
300,000
100,000
Travel
(mm)
0.2 + 0.3/- 0
0.2 + 0.3/- 0
0.25 + 0.3/- 0
3,47
Tactile Switches
+0,3
6,2 0
Packaging
Switches delivered on continuous tape & reels of 2,000 pieces
Dimensions according to EIA RS-481/ IEC 60286-3 standard
External diameter 330 ± 2 mm
How To Order
Our easy build-a-switch concept allows you to mix and match options to create the switch you need. To order, select
desired option from each category and place it in the appropriate box.
However, please note that all the combinations of these options are not feasible.
For any part number different from those listed above, please consult your local representative.
K
S
C
3
Operating Force
2
2 N (200 grams)
4
3 N (300 grams)
5
5 N (500 grams)
See mechanical chart above
to confirm specifications
Contact Material
1
Silver
3
Gold
Termination
J
J bend
G
Gullwing
LFS
Lead free compatible, silver plated
LFG
Lead free compatible, gold plated
+0,3
6,2 0
Dimensions are shown: mm
Specifications and dimensions subject to change
1 mar 17
B–53
www.ckswitches.com
