Datasheet

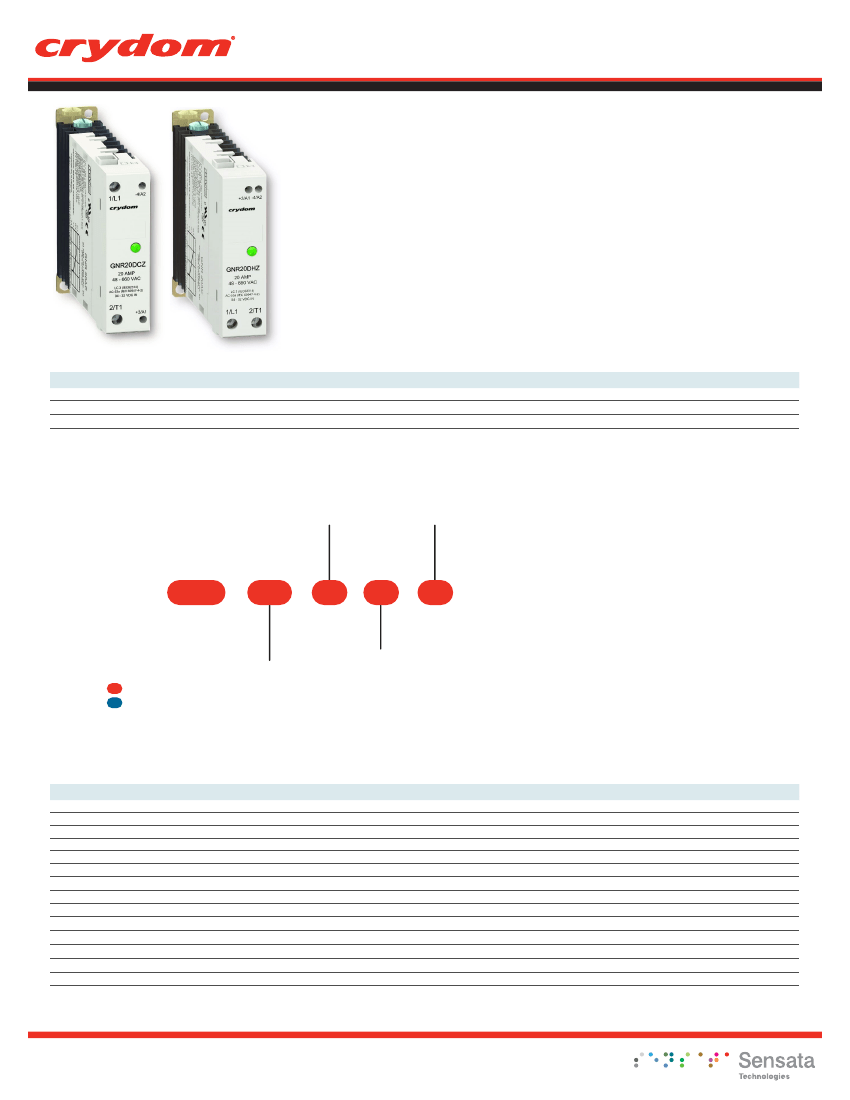

GNR 22.5mm Series
•
Current ratings of 10, 20 and 30 amps
•
Output voltage ratings: 24-280 and 48-600 VAC
•
Direct Bond Copper (DBC) Substrate
•
LED input status indicator
•
UL 508 Endurance Rating for Enhanced Reliability
•
UL/CSA/TUV Approved, CE Compliant
•
Built-in overvoltage protection
•
DIN Rail or Panel Mount
•
Zero voltage or Instantaneous turn-on output
DIN Rail Mount
PRODUCT SELECTION
Control Voltage
4-32 VDC
90-140 VAC
180-280 VAC
10A
GNR10DHZ
GNR10BHZ
GNR10AHZ
20A
GNR20DHZ
GNR20BHZ
GNR20AHZ
30A
GNR30DHZ
GNR30BHZ
GNR30AHZ
AVAILABLE OPTIONS
Operating Voltage
A:
180-260 VAC
B:
90-140 VAC
D:
4-32 VDC
Switching Type
R:
Instantaneous Turn-on
(for DC control only)
Z:
Zero voltage Turn-on
Series
GNR
10
A
H
Z
Rated Load Current
10:
10 Amps
20:
20 Amps
30:
30 Amps
Required for valid part number
For options only and not required for valid part number
Terminal Layout
C:
Contactor configuration
H:
Relay configuration
OUTPUT SPECIFICATIONS
(1)
Description
Operating Voltage (47-440Hz) [Vrms]
Transient Overvoltage [Vpk, t=1 min.]
Maximum Off-State Leakage Current @ Rated Voltage [mArms]
Static Off-State dv/dt ( V/µsec, Ta=25°C)
(2)
Maximum Load Current [Arms]
Minimum Load Current [Arms]
Maximum Surge Current (50/60 Hz, 1 cycle) [Apk]
1 Second Surge Current (Apk Ta=25°C) 50/60 Hz
Forward Voltage Drop (Vpk @ max, Ta=25°C)
Maximum I² t for Fusing (50/60Hz, 1/2 cycle ) [A² sec]
HP Ratings at 120V / FLC [Arms]
HP Ratings at 240V / FLC [Arms]
Min/Max stranded wire
Min/Max solid wire
GNR10
24-280
600
0.1
500
10
100
190/200
65
1.5
182/166
-
-
16/8 AWG
16/10 AWG
GNR20
48-600
1100
0.1
500
20
100
286/300
85
1.35
410/374
1.2/9.8
1/8
16/8 AWG
16/10 AWG
GNR30
48-600
1100
0.1
500
30
100
716/750
150
1.35
2562/2334
3/4 / 13.8
2/12
16/8 AWG
16/10 AWG
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
INPUT SPECIFICATIONS
(1)
Description
Control Voltage Range
(3)
Minimum Turn-On Voltage
Must Turn-Off Voltage
Minimum Input Current (for on-state)
Maximum Input Current
Input Resistance
Maximum Turn-Off Time [msec]
Maximum Turn-On Time [msec]
(4)
Min/Max stranded/solid wire
DIN Rail Mount
GNRxxDx
4.0-32 VDC
4.0 VDC
1.0 VDC
6 mA
10 mA
Current Regulated
1/2 Cycle
1/2 Cycle
24/16 AWG
GNRxxBx
90-140 Vrms
90 Vrms
10 Vrms
5 mArms
23 mArms
Current Regulated
20
30
24/16 AWG
GNRxxAx
180-280 Vrms
180 Vrms
10 Vrms
6 mA
2 mA
Current Regulated
20
30
24/16 AWG
GENERAL SPECIFICATIONS
(1)
Ambient Operating Temperature Range
(3)
Ambient Storage Temperature Range
Dielectric Strength, Input to Output (50/60Hz)
Dielectric Strength, Input/Output to Ground (50/60Hz)
Maximum Capacitance, Input/Output
Housing Material
Input Status Indicator
Weight (typical)
Description
Parameters
-20 to 80°C
-40 to 100 °C
4000 Vrms
2500 Vrms
8 pF
UL 94V0 (self extinguishing)
Green LED
7.94 oz (225g)
GENERAL NOTES
(1)
All parameters at 25°C unless otherwise specified.
(2)
Off-State dv/dt test method per EIA/NARM standard RS-443, paragraph 13.11.1
(3)
For
180-280 VAC Control. Maximum Ambient operating temperatures is 60°C.
(4)
Turn-on time for Instantaneous version (R suffix) is 0.1 msec (for DC control only).
(5)
TUV Certification according to EN 60950-1/A1:2010
For additional information or specific questions, contact Crydom Technical Support.
Tolerances: ±0.02 in / 0.5 mm
All dimensions are in: inches [millimeters]

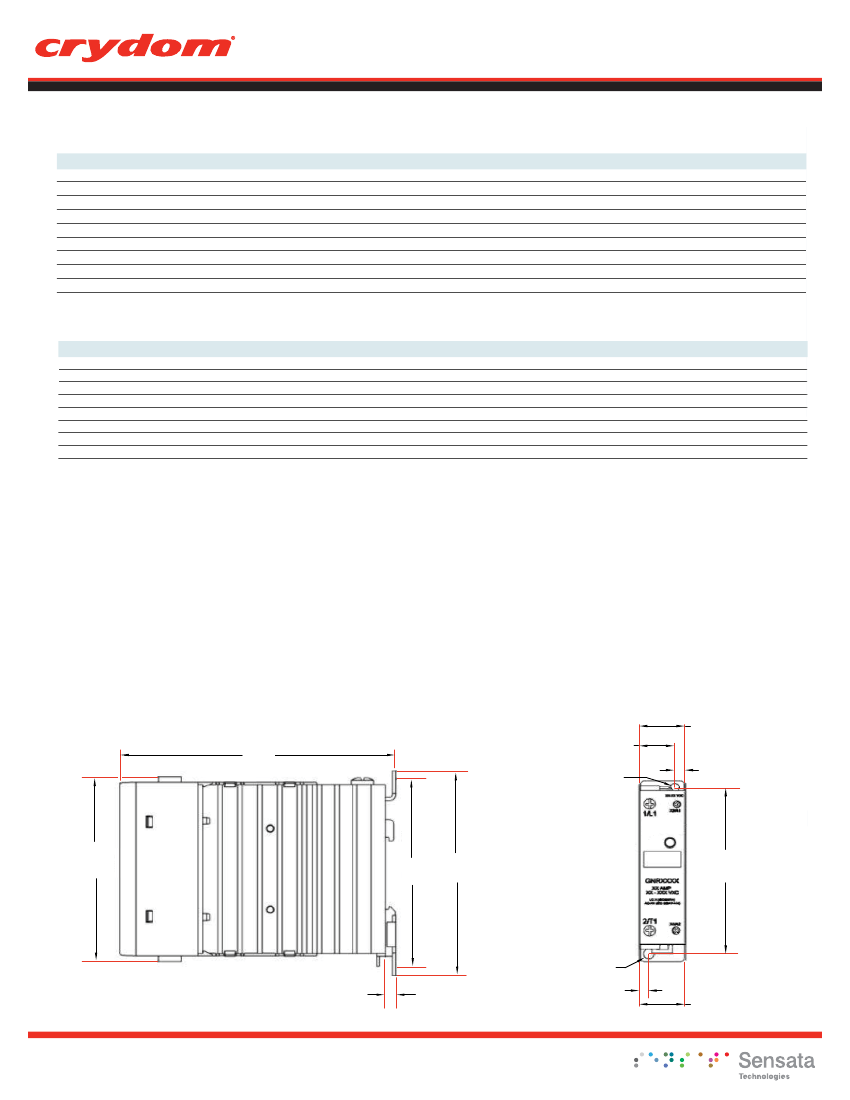

MECHANICAL SPECIFICATIONS
(1)
Contactor Configuration
4.75
[120.8]
0.68
[17.3]
0.18
[4.5] DIA.
0.87
[22.5]
0.21
[5.3]
3.47
[88.2]
3.54
[89.8]
3.85
[97.8]
3.54
[89.8]
0.21
[5.3] DIA.
0.18
[4.6]
0.19
[4.8]
0.70
[17.8]
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
Relay Configuration
4.75
[120.8]
DIN Rail Mount
0.68
[17.3]
0.18
[4.5] DIA.
0.87
[22.5]
0.21
[5.3]
3.47
[88.2]
3.54
[89.8]
3.85
[97.8]
3.54
[89.8]
0.21
[5.3] DIA.
0.18
[4.6]
0.19
[4.8]
0.70
[17.8]

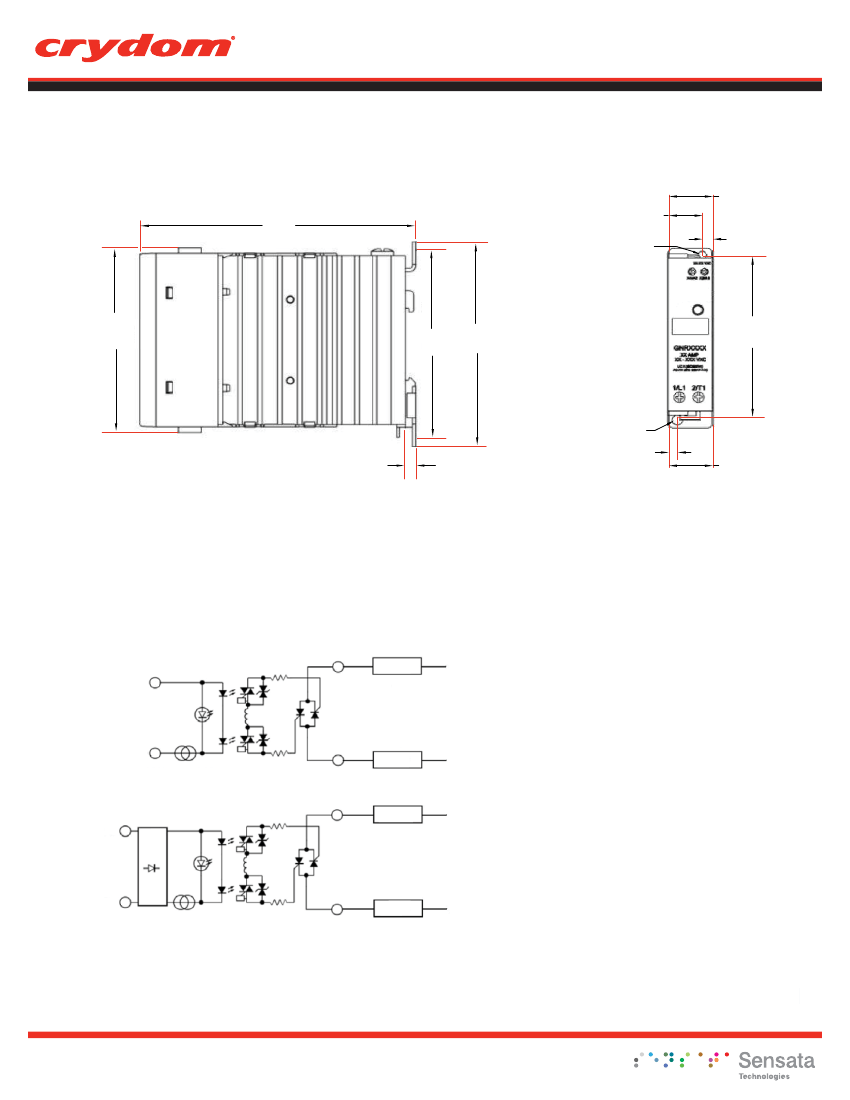

WIRING DIAGRAM
DC Input Equivalent Circuit
L1
DC
+
LOAD
A
AC
A1
Load can be wired in Position A or B
B
A2
T1
DC
-
LOAD
AC
AC Input Equivalent Circuit
AC
A1
L1
LOAD
A
AC
+
Load can be wired in Position A or B
AC
A2
-
B
T1
LOAD
AC
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet

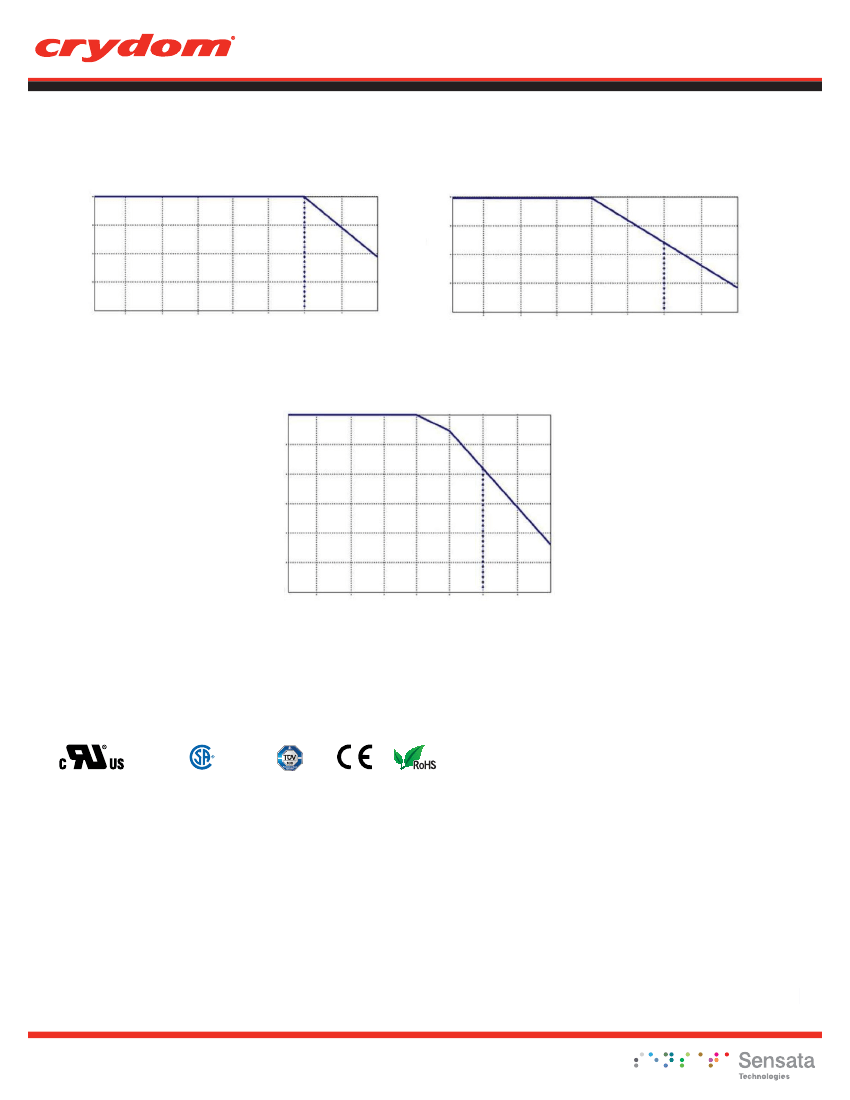

THERMAL DERATE INFORMATION
GNR10xxx
10
Load Current (Amps)
7.5
5
2.5
0
Load Current (Amps)
20
15
10
5
0
DIN Rail Mount
GNR20xxx
0
10
20
30
40
50
60
70
80
0
10
20
30
40
50
60
70
80
Ambient Temperature (ºC)
Ambient Temperature (ºC)
*GNR10A Series rated to 60°C max ambient
*GNR20A Series rated to 60°C max ambient
GNR30xxx
30
25
Load Current (Amps)
20
15
10
5
0
0
10
20
30
40
50
60
70
80
Ambient Temperature (ºC)
*GNR30A Series rated to 60°C max ambient
AGENCY APPROVALS
Designed in accordance with the requirements of IEC 62314
E79183
LR 38595
(5)
EMC Compatibility
Designed in accordance with the requirements of IEC 62314
IEC 62314
IEC 60068-2-6 35mm/10-55Hz
IEC 60068-2-27 15G / 11ms
IEC 61000-4-2 Level 3 Electrostatic Discharge
IEC 61000-4-3 Level 3 Radiated Electromagnetic Noise
IEC 61000-4-4 Level 3 Immunity to Electrically Fast Transients
IEC 61000-4-5 Level 3 Immunity to Electrical Surges
IEC 61000-4-6 Level 3 Conducted Electromagnetic Noise
CISPR 11 Class A Conducted and Radiated Noise for Industrial Environments
Rev. 082316
Do not forget to visit us at:
www.crydom.com
Copyright © 2016 Crydom Inc. Specifications subject to change without notice.
Datasheet
