70-ODC15: DescriptionStandard Circular Connector STD CABLE CLAMP 23; CategoryTopical application Mechanical and electrical/engineering/automation; File Size68KB，2 Pages; ManufacturerGrayhill; Websitehttp://www.grayhill.com

Download Datasheet Parametric Compare View All

70-ODC15 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	70-ODC15	-	-	View	Buy Now

70-ODC15 Overview

Standard Circular Connector STD CABLE CLAMP 23

70-ODC15 Parametric

Parameter Name	Attribute value
Product Category	I/O Modules
Manufacturer	Grayhill
RoHS	Details
Product	DC Output Modules
Input Voltage	15 V
Input Current	9 mA
Output Voltage	60 V
Case Color	Red
Termination Style	Solder Pin
Isolation	4 kV
Packaging	Bulk
Factory Pack Quantity	100

Preview

Download Datasheet

View All

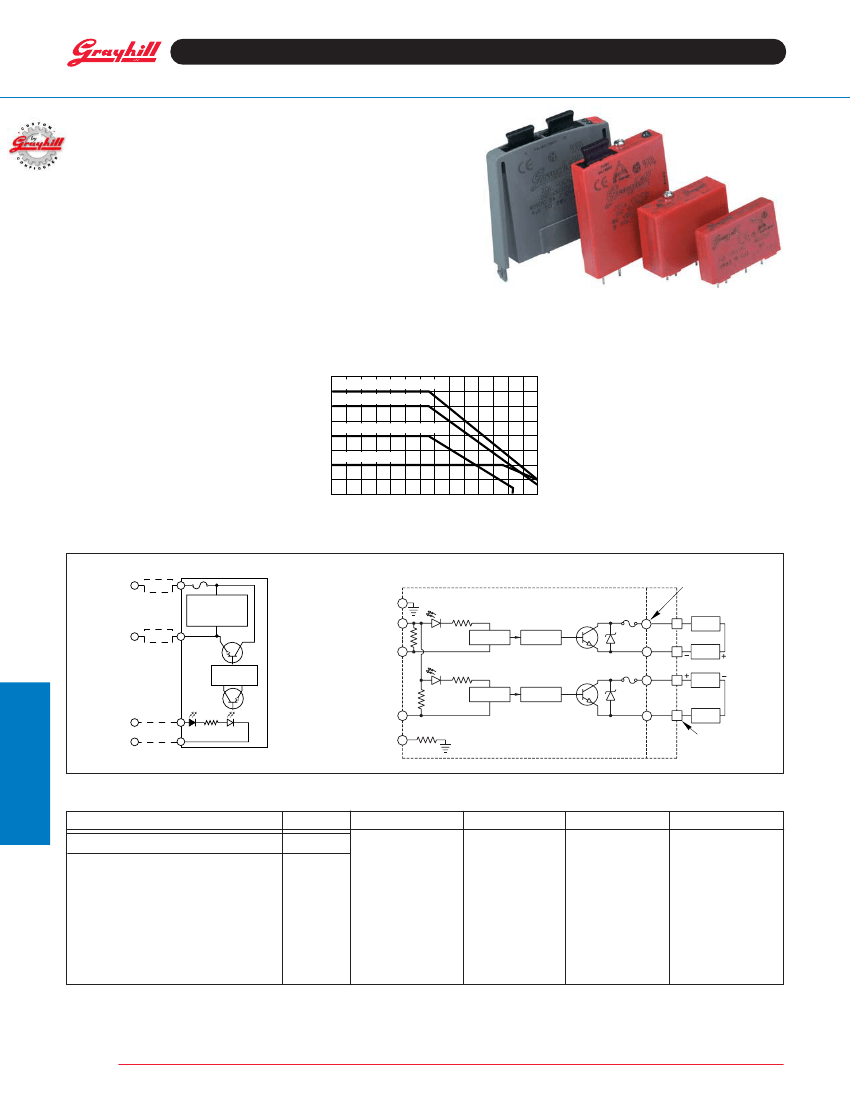

DC Output Modules

FEATURES

• Transient Protection: Meets the

requirements of IEEE 472, "Surge

Withstanding Capability Test"

• SPST, Normally Open

• UL, CSA, CE, TÜV Certified

• Optical Isolation

• OpenLine

®

and G5 Modules

Provide Replaceable 5x20mm

Glass Fuses

• Built-in Status LED

• Lifetime Warranty

70L-ODC

70G-ODC

70-ODC

70M-ODC

DIMENSIONS

For complete dimensional drawings, see pages

L-4 or L-5.

LOAD CURRENT (AMPS)

4

3

2

1

STANDARD, G5 PACKAGES

MINIATURE PACKAGE

FUSES

G5 Fuses are 5 Amp Littelfuse part number

217005 or equivalent. OpenLine

®

fuses are

3.15 Amp Littelfuse part number 2173.15.

Fuse kits available, see page L-104.

OPENLINE PACKAGE/CH

Maximum Current Versus

Ambient Temperature

The chart indicates continuous current to limit

the junction temperatures to 115°C. Information

is based on steady state heat transfer in a 2

cubic foot sealed enclosure.

200 VDC STYLE

-40˚

-20˚

0

20˚

40˚

60˚

80˚

AMBIENT TEMPERATURE (˚C)

100˚

CIRCUITRY

Standard, Mini, G5

+

VDC

LOAD

1

Figure 1

OpenLine

®

TYPICAL WIRING FOR MODULE 0

VOLTAGE

SPIKE

PROTECTION

LOAD

2

I/O MODULE

PIN #

+

–

GND 5

Vcc 6

A

CH. A

CONTROL 7

CHANNEL A

OPTICAL

ISOLATION

DRIVER

CIRCUIT

1

2

1

2

LOAD

–

DC

SUPPLY

DRIVER

CIRCUIT

+

B

OPTICAL

ISOLATION

DRIVER

CIRCUIT

3

DC

SUPPLY

+

DC CONTROL

Rx

3

4

CH. B

8

CONTROL

2.15K

MODULE ID 9

CHANNEL B

–

4

BASE

OR

RACK

4

LOAD

I/O Modules

1

2

3

4

–

TERMINAL

BLOCK #

Fuse and status LED in G5 and OpenLine modules only.

SPECIFICATIONS: By Package Style

Package Style

Specifications

Load Current Range

1

Surge Current for 1 Sec.

Maximum Reverse Logic Voltage

Isolation Voltage

2

Vibration

3

Mechanical Shock

4

Storage Temp. Range

Operating Temp. Range

Warranty

Units

A

Vdc

Vrms

0.02-3.5

5

-5

4000

MIL-STD-202

-40 to 125

-40 to 100

Lifetime

0.02-3.0

5

-5

4000

MIL-STD-202

-40 to 125

-40 to 100

Lifetime

0.02-3.5

5

-5

4000

MIL-STD-202

-40 to 125

-40 to 100

Lifetime

0.02-2.0/CH

5

-5

2500

IEC68-2-6

IEC68-2-27

-40 to 100

-40 to 85

Lifetime

Std (70-)

Mini (70M-)

G5 (70G-)

OL (70L-)

°C

See Figure 1 for derating.

Field to logic and channel-to-channel if Grayhill racks are used.

MIL-STD-202, Method 204, 20 G, 10-2000 Hz or IEC68-2-6, 0.15 mm/sec

2

, 10-150 Hz.

MIL-STD-202, Method 213, Condition F, 1500 G or IEC68-2-27, 11 mS, 15g.

I/O

8

Grayhill, Inc. • 561 Hillgrove Avenue • LaGrange, Illinois

60525-5997 • USA • Phone: 708-354-1040 • Fax: 708-354-2820 • www.grayhill.com

70-ODC15 Related Products

	70-ODC15	70G-ODC24	70L-ODC	70M-ODC5	70-ODC15B	70G-ODC24R	70M-ODC24	70M-ODC5B	70-ODC24
Description	Standard Circular Connector STD CABLE CLAMP 23	Buffers u0026 Line Drivers SGL Pwr Supply Quad Buffer GATE	I/O Modules I/O Module, OpenLine, digital output DC, 4.5-28Vdc logic, 3-60Vdc fast	Pin u0026 Socket Connectors 4 CIRCUIT RECEPTACLE	I/O Modules I/O Module, Standard, digital output DC, 15Vdc logic, 3-60Vdc low leakage	I/O Modules	Cable Mounting u0026 Accessories .45" - .705" CABLE PG HUB BLACK	I/O Modules I/O Module Mini digital output DC	I/O Modules I/O Module 24Vdc Std digital input DC
Product Category	I/O Modules	I/O Modules	I/O Modules	I/O Modules	I/O Modules	I/O Modules	I/O Modules	I/O Modules	I/O Modules
Manufacturer	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill	Grayhill
RoHS	Details	Details	Details	Details	Details	Details	Details	-	Detailswsdvzdbb
Factory Pack Quantity	100	1	1	500	1	10	1	150	100
Product	DC Output Modules	-	-	DC Output Modules	-	DC Output Modules	-	DC Output Modules	DC Output Modules
Input Voltage	15 V	-	-	5 V	-	24 V	-	5 V	24 V
Input Current	9 mA	-	-	14 mA	-	9 mA	-	14 mA	9 mA
Output Voltage	60 V	-	-	60 V	-	60 V	-	60 V	60 V
Case Color	Red	-	-	Red	-	Red	-	Red	Red
Termination Style	Solder Pin	-	-	Solder Pin	-	Solder Pin	-	Solder Pin	Solder Pin
Isolation	4 kV	-	-	4 kV	-	4 kV	-	4 kV	4 kV
