57 square - 225 mNm continuous with Hall effect sensors 45 W nominal at 24 V and 2000 rpm Part number 80140504
High power motors (up to 95 W continuous at 24 VDC)
Suitable for voltages between 6 and 75 VDC
Ideal for applications where the control electronics have to be off centre due to the high ambient temperature
Temperature probe built into the motor
Part numbers
Type
80140504
45 W nominal at 24 V and 2000 rpm
Type
801405
References
With BDE30 connections
Specifications
General characteristics
Max. speed (rpm)
Torque peak in (mNm)
Maximum continuous torque (mNm)
Motor constant (mNm/W
1/2
)
Electrical time constant (ms)
Mechanical time constant (ms)
Energy losses at peak torque (W)
Torque/speed factor - zero impedance (mNm/ (rad/s) )
Rotor inertia (gcm
2
)
Thermal resistance (°C/W)
Max. coil temperature ( C)
Integrated temperature sensor
Number of phases
Number of poles
Ambient operating temperature (°C)
Dielectric strength at 500 V DC (MΩ)
Service life (h)
Output ball bearing
Weight (g)
Length (mm)
Protection index
o
10000
500*
225**
57
2,2
1,5
77
3,2
50
5,7
120
Yes***
3 (delta config)
4
-40 →70
1000
20000
Yes
900
73
IP54
Comments
Standard winding
Phase-to-phase resistance (Ω)
Voltage at peak torque (V)
Current at peak torque (A)
Torque constant (mNm/A)
Back EMF constant (V/ (rad/s) )
Back EMF constant (V/Krpm)
Inductance (mH)
1,72 ±12,5 %
11,5
6,7
74,5 ±10 %
0,0745
7,8 ±10 %
3,8 ±30 %
Dimensions (mm)
801405
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
80140504 : with BDE30 connections
www.crouzet.com
N
o
Legend
4 holes M5 over Ø 40 mm - depth of thread : 4.5 mm - depth of hole 6.6 mm
D : Ø6 - 0.010 - 0.020 mm
L : 73.2 mm max.
Dimensions (mm)
Holding brake - 80140518
Holding brake : At power switch off - 0.5 Nm - 7 W - 24 V ± 10 % Weight : 250 g - AWG26 leads - 400 mm
Curves
Power/Power supply
N
o
Legend
Nominal power
Supply voltage
Speeds (rpm)
Connections

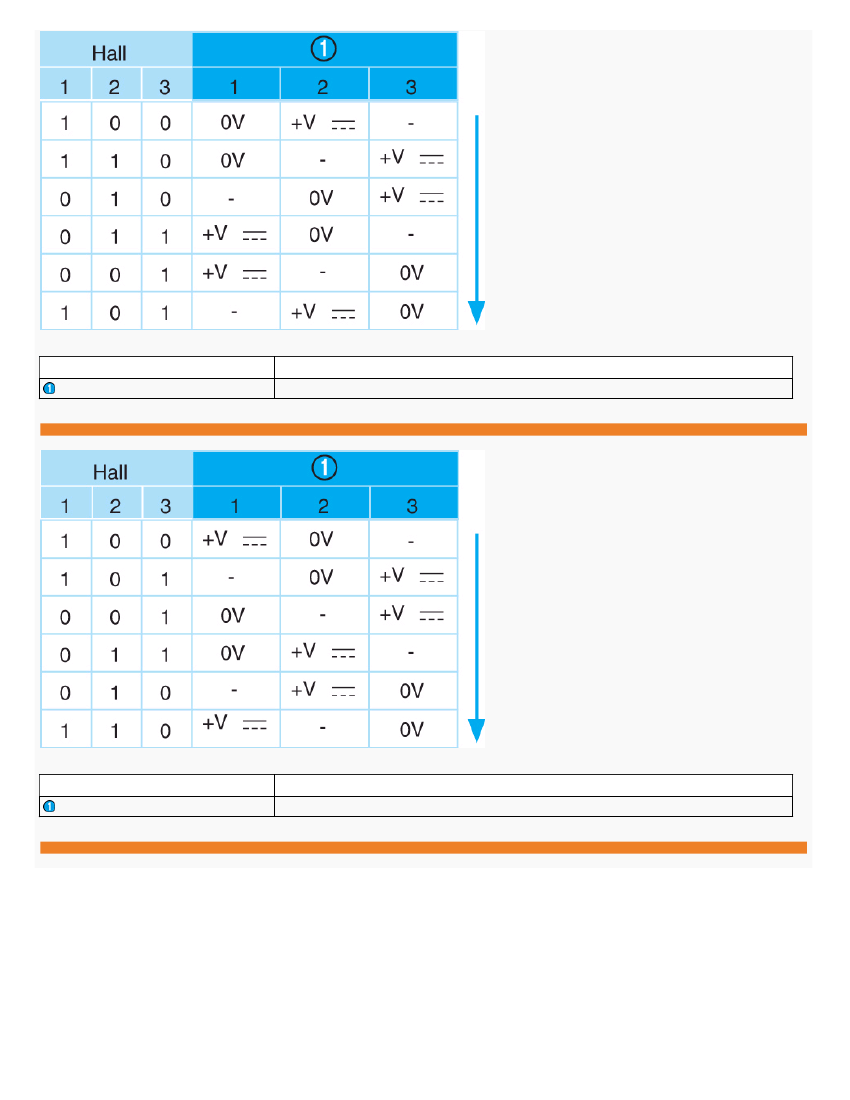

Forward
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
02/11/2015
www.crouzet.com
Hall effect : Voltage range : 4.5 24 VDC Max. current : 20 mA Type of output : NPN open collector Not protected against connection errors
Other information
For other standard windings visit www.crouzet.com
Precautions for use
Not protected against connection errors
Product adaptations
Special shafts
Lead length
A single cable instead of two
C12 connector built in
200, 500, 1000 points/revolution encoder
Shorter motor
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
