DHS10S datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Mechanical and electronic products> switch> DHS10S

DHS10S: DescriptionTantalum Capacitors - Polymer SMD 35volts 47uF 20% ESR=70mohms; CategoryMechanical and electronic products switch; File Size114KB，1 Pages; ManufacturerAPEM; Environmental Compliance

Download Datasheet Parametric Compare View All

DHS10S Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	DHS10S	-	-	View	Buy Now

DHS10S Overview

Tantalum Capacitors - Polymer SMD 35volts 47uF 20% ESR=70mohms

DHS10S Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
Maker	APEM
Reach Compliance Code	compliant
ECCN code	EAR99
Actuator angle
Actuator material	POLYAMIDE
Actuator type	SLIDE
Other features	ULTRA-COMPACT LOW PROFILE
body width	6.2 mm
Body color	BLACK
body height	2.21 mm
Body length or diameter	14.43 mm
center contact material	BERYLLIUM COPPER
Center contact plating	GOLD
Maximum contact current (DC)	0.1 A
Contact (DC) maximum rated R load	.1A@6VDC
Contact function	ON-OFF
Contact resistance	0.1 mΩ
Maximum contact voltage (DC)	6 V
Dielectric withstand voltage	250VDC V
Electrical life	1000 Cycle(s)
End contact material	BERYLLIUM COPPER
End contact plating	GOLD
Shell material	GLASS FILLED POLYPHENYLENE SULPHIDE
Insulation resistance	100000000 Ω
insulator material	GLASS FILLED POLYPHENYLENE SULPHIDE
JESD-609 code	e4
Manufacturer's serial number	DHS
Installation features	SURFACE MOUNT-STRAIGHT
Number of positions	10
Number of switching segments	10
Maximum operating temperature	80 °C
Minimum operating temperature	-40 °C
method of packing	TAPE AND REEL
seal	EPOXY TERMINAL SEALED
Solderability	WAVE
surface mount	NO
Switch action	LATCHED
switch function	SPST
Switch type	SLIDE DIP SWITCH
Terminal surface	Gold (Au)
Terminal material	COPPER ALLOY
Termination type	SOLDER
Washability	SOLVENT

Preview

Download Datasheet

View All

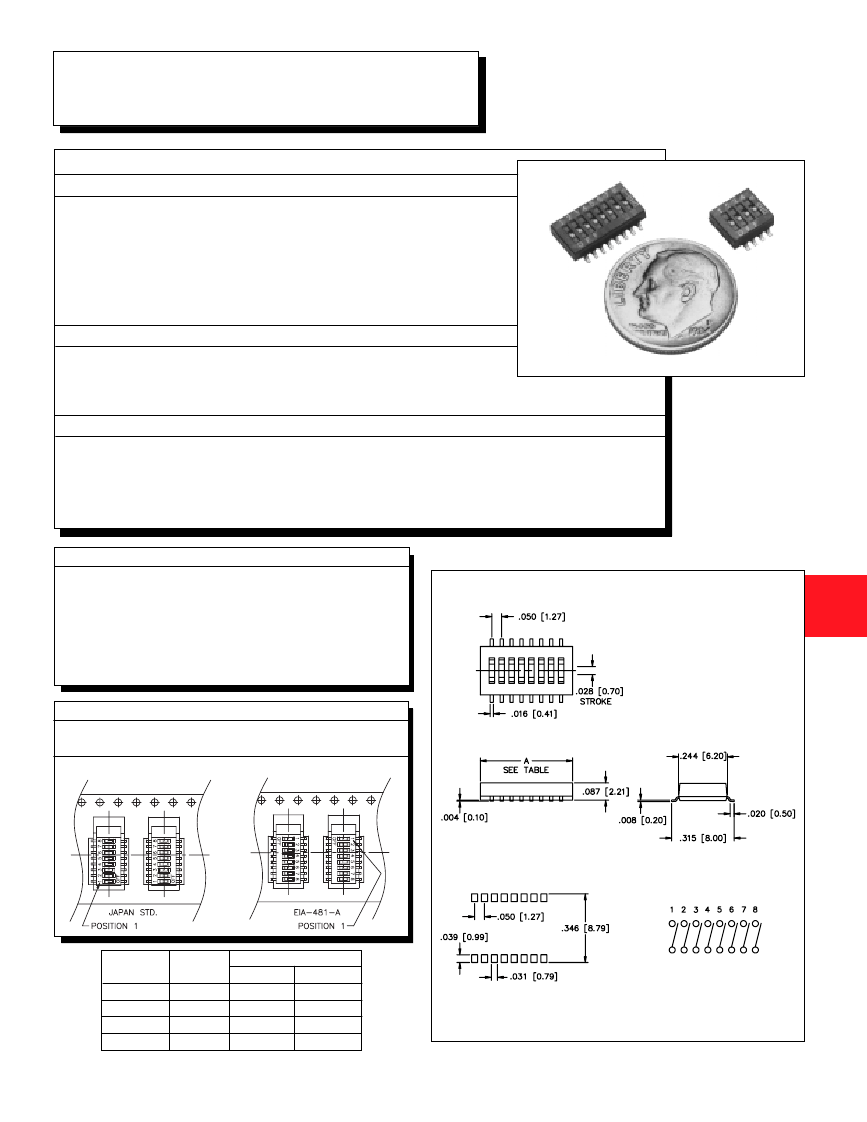

DHS SERIES 1/2 PITCH SPST

SURFACE MOUNT DIP SWITCHES

GENERAL SPECIFICATIONS

ELECTRICALS

SPECIFICATIONS SUBJECT TO CHANGE WITHOUT NOTICE.

FEATURES

Ultra-compact low-profile size.

.050" (1.27mm) terminal spacing.

Self-cleaning twin point contacts.

Auto-insertable and reflow solderable.

Process compatible with std'd. tape seal.

Electrical life

1000 cycles minimum

Contact rating, non-switching

100 mA at 50 VDC

Contact rating, switching

100 mA at 6 VDC

Contact resistance

100 m½ maximum

Insulation resistance

100 M½ minimum

Dielectric strength 250 VDC for 1 min. between adjacent or opposite terminals

Capacitance

5 pf. max. between adjacent or opposite terminals

MECHANICALS, THERMALS

Operating force

400 grams maximum

Vibration

10-55 Hz. per MIL-STD-202F, METHOD 201A

Shock

50 g (peak value) for 11 msec. per MIL-STD-202F, METHOD 213B

Operating temperature range

-40°C to +80°C

SOLDERING & CLEANING RECOMMENDATIONS

Hand soldering

330°C max. for 3 seconds max.(30 watt iron max.)

Reflow soldering

Set oven at 215°C max. for 90 seconds max.

Cleaning

(with standard tape seal in place)

MATERIALS

Base

Cover

Actuators

Contacts

Terminals

Terminal seal

Tape seal

1-1-1 Trichloroethane, Freon TE, Isopropyl alcohol or aqueous

cleaner for 2 minutes max. at 20°C

UL94V-O, glass fiber filled PPS, black

UL94V-O, Polyamide, yellow

Gold plated beryllium copper

Gold plated copper alloy

Epoxy

Polyimide

MECHANICAL OUTLINE

PACKAGING

Supplied in tape & reel packaging.

Reel & tape meets the requirements of EIA-481-A.

Style

CR/TC

Style

MODEL

NUMBER

DHS4C

NO. 0F

POS.

A DIMENSION

IN(± .012) MM(± 0.30)

.268

6.81

DHS6C

.368

9.35

DHS8C

.468

11.89

DHS10C

.568

14.43

Note: C at end of model no. indicates

style pack-

aging. Substitute CR/TC for S for

CR/TC

packaging.

PRINTED CIRCUIT BOARD OUTLINE

(8 positions shown)

SCHEMATIC

(8 positions shown)

APEM

, 63 NECK ROAD, HAVERHILL, MA USA 01835-0788 TOLL FREE: (877) 246-7890 FAX: (781) 245-4531 E-mail: info@apem.com
