Accessories & Hardware
Toggles
Hardware Threading
Many hardware pieces are available in both metric and inch threading, and
in such cases
M
(metric) and
H
(inch) are noted in the descriptions. The customer
must select threading by placing an M or H after the basic AT part number. If the
hardware is available only in metric or inch, no code is used in the description;
threading is designated on the drawing.
Y
www.nkk.com
Y3
Supplement
Accessories
Indicators
Touch
Tilt
Tactiles
Slides
Rotaries
Keylocks
Programmable Illuminated PB
A
B
C
D
E
Black
White
Red
Amber
Yellow
F
G
H
J
S
Green
Blue
Gray
Clear
Metallic Silver
Pushbuttons
Color Codes
Rockers
Accessories & Hardware
Toggles
Pushbuttons
Rockers

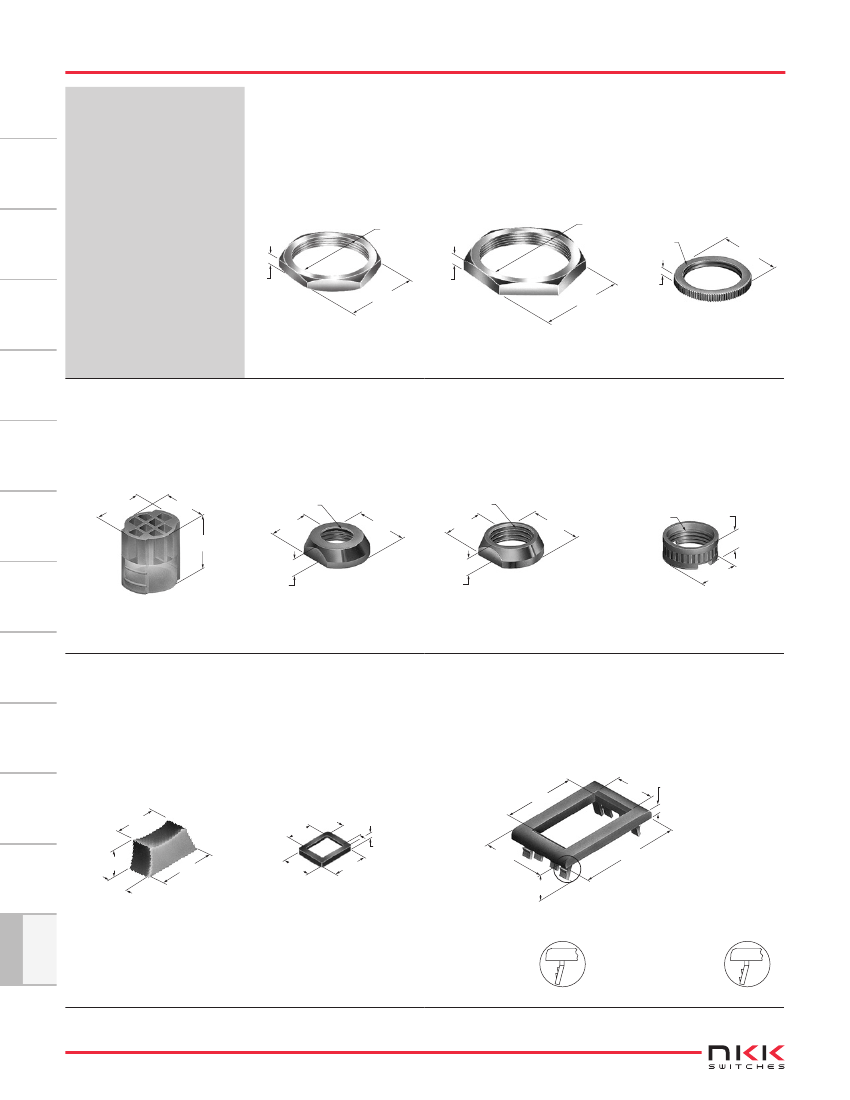

AT010s~
AT090s
*
AT016
16mm Hex Mounting Nut
Steel
Series: CKM
*
AT019
19mm Hex Mounting Nut
Brass with nickel plating
Series: CKL
*
AT050
Knurled Nut
Brass with nickel plating
Series: SB40
M16 P1
M19 P1
15/32-32 NS
(15.06) Dia
.593
Programmable Illuminated PB
(2.5)
.098
(19.0)
.748
(3.4)
.134
(22.0)
.866
(1.68)
.066
* Available in
Americas only
*
AT055
Keylocks
Crossover Guard
Polypropylene
Series: KB
AT056
Dress Cap Nut
Brass with chrome plating
Series: M P S
AT056T
Threaded Through Dress Nut
Brass with chrome plating
Series: M P S
*
AT057
Mounting Nut
Brass with zinc plating,
chromate finish
Series: KB
Rotaries
(14.0) Dia
.551
(12.4) Dia
.488
(14.0)
.551
(17.0)
.669
M12 P1
(16.0) Dia
.630
(14.0)
.551
M12 P1
(16.0) Dia
.630
M12 P1
(5.0)
.196
Tactiles
Slides
(4.27)
.168
(4.27)
.168
(14.0) Dia
.551
*
AT062
Tilt
.250” Wide Rocker
Polyamide
Colors: A B C
Series: A
*
AT063
Gasket
Nitrile butadiene rubber
Color: A
Series: B Threaded Bushing
AT064-1
Panel Frame for Rocker &
Paddle .365” Wide
Polyamide
Color: A
Series: M
AT064-2
Panel Frame for Rocker &
Paddle .365” Wide
Polyamide
Color: A
Series: M
Touch
(17.9)
.705
(11.4)
.448
(9.9)
.390
(2.3)
.090
(6.2)
.244
(4.9)
.193
(1.3)
.051
(8.6)
.339
(15.62)
.615
(6.68)
.263
(25.04)
.986
Indicators
(7.0)
.276
(6.35)
.250
(14.73)
.580
(6.9)
.272
Accessories
Y
Color Codes:
Y4
A
Black
B
White
C
Red
D
Amber
AT064-1 accommodates
panel thickness
1.2 ~ 2.3mm
(.047 ~ .090”)
AT064-2 accommodates
panel thickness
1.57 ~ 3.18mm
(.062 ~ .125”)
Supplement
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
www.nkk.com
Accessories & Hardware
AT065-1
Panel Frame for Rocker &
Paddle .450” Wide
Polyamide
Color: A
Series: M
AT065-2
(12.8)
.504
(12.0)
.472
(2.3)
.090
(11.4)
.448
(7.7)
.303
(6.0) Dia
.236
(7.0)
.276
(7.6)
.300
(6.68)
.263
(15.2)
.600
(+)
(–)
AT065-1 accommodates
panel thickness
1.2 ~ 2.3mm
(.047 ~ .090”)
AT065-2 accommodates
panel thickness
1.57 ~ 3.18mm
(.062 ~ .125”)
*
AT073
Mounting Nut
Brass with nickel plating
Series: HB
*
AT074
Mounting Nut for LB Panel Seal
Brass with chromate
Series: LB
*
AT075
O-ring for LB Panel Seal
Nitrile butadiene rubber
Series: LB
M22 P1
M8 P0.75
(9.0) Dia
.354
(5.0)
.197
(5.5)
.217
(25.0) Dia
.984
AT080
Screw Adaptor for AT452 & AT454
Brass
Series: MB20 SCB
AT089
M16 P1
(16.0) Dia
.630
(4.7)
.185
(11.0)
.433
(12.0) Dia
.472
M3.5 P0.6
(0.5)
.020
(18.0) Dia
.709
Y
Color Codes:
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
H
Gray
J
Clear
Y5
www.nkk.com
Supplement
Accessories
(9.2)
.362
(18.0) Dia
.709
Indicators
(2.4)
.094
Touch
O-ring for YB Panel Seal
Nitrile butadiene rubber
Series: YB
*
AT092
Knurled Mounting Nut
Glass fiber reinforced PBT
Series: YB YB2
Tilt
Tactiles
(25.0) Dia
.984
(0.5)
.020
Slides
(22.0) Dia
.866
Rotaries
Keylocks
Programmable Illuminated PB
(15.62)
.615
(19.43)
.765
Pushbuttons
(5.08) Dia
.200
Rockers
Panel Frame for Rocker &
Paddle .450” Wide
Polyamide
Color: A
Series: M
*

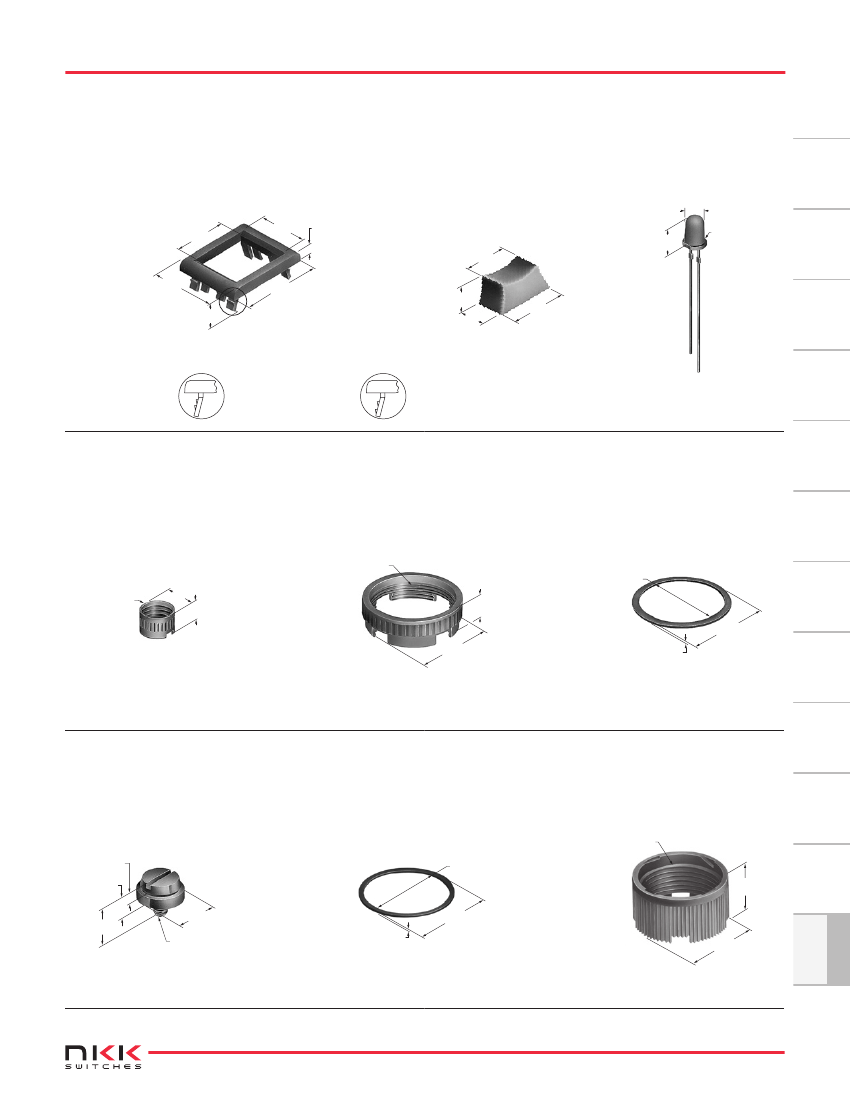

AT066
.300” Wide Rocker
Polyamide
Color: A B C
Series: A
*
AT070
LED for AT208 Bezel
Colors: C F
Series: EB M MB24
Toggles
Accessories & Hardware
Toggles
*

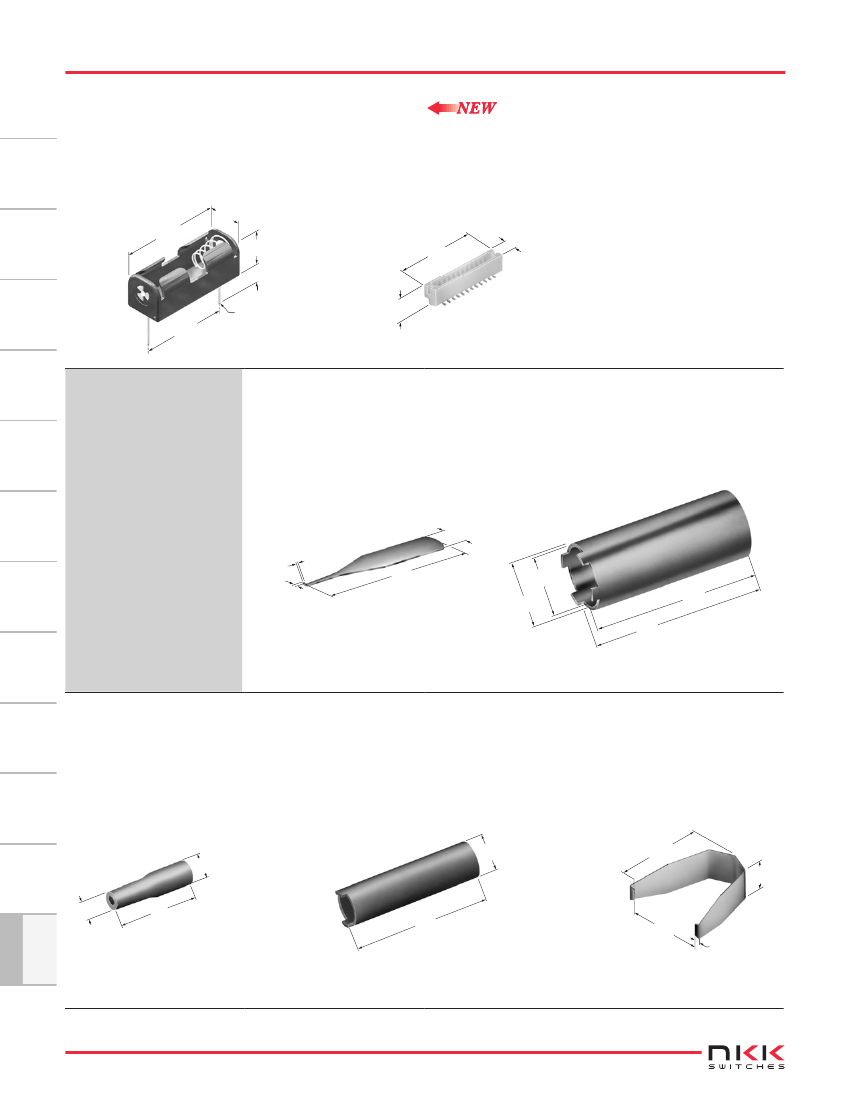

AT094
Rockers
PC Adaptor
Holder: Polypropylene
Spring: Spring steel with nickel plating
PC Pins: Brass with nickel plating
Series: DSA01
(13.0)
.512
(34.93)
1.375
*
AT097
JST Connector for OLED Rocker
JST Part No. BM12B-SURS
PCB Mount
Series: SmartSwitch
Pushbuttons
(12.7)
.500
(11.89)
.468
(11.8)
.465
(2.0)
.079
Programmable Illuminated PB
(29.97)
1.180
(0.78) Dia Typ
.031
(2.7)
.106
AT100s
AT105
Cap Removal Tool
Stainless steel
Series: HB KB LB UB YB
AT106
Socket Wrench
Aluminum with black alumite finish
Series: YB YB2
Rotaries
Keylocks
(10.0)
.394
(0.5)
.020
(1.0)
.039
(60.0)
2.362
Slides
(16.0) Dia
.630
(18.0) Dia
.709
(60.0)
2.362
(57.5)
2.264
Tactiles
AT107
Tilt
Lamp Extractor
Polyvinyl chloride
Series: KB LW MLW YB
AT108
Socket Wrench
Aluminum with black alumite finish
Series: KB
AT109
Cap Extractor
Stainless steel
Series: HB KB LB UB YB
Touch
Indicators
(5.0) Dia
.197
(14.0) Dia
.551
(29.6)
1.165
(10.0)
.394
(3.8) Dia
.150
(20.0)
.787
Accessories
(50.0)
1.97
Y
Color Codes:
Y6
A
Black
B
White
C
Red
D
Amber
E
Yellow
F
Green
G
Blue
(25.0)
.954
(1.5)
.059
Supplement
H
Gray
J
Clear
www.nkk.com
