08/07/2015
www.crouzet.com

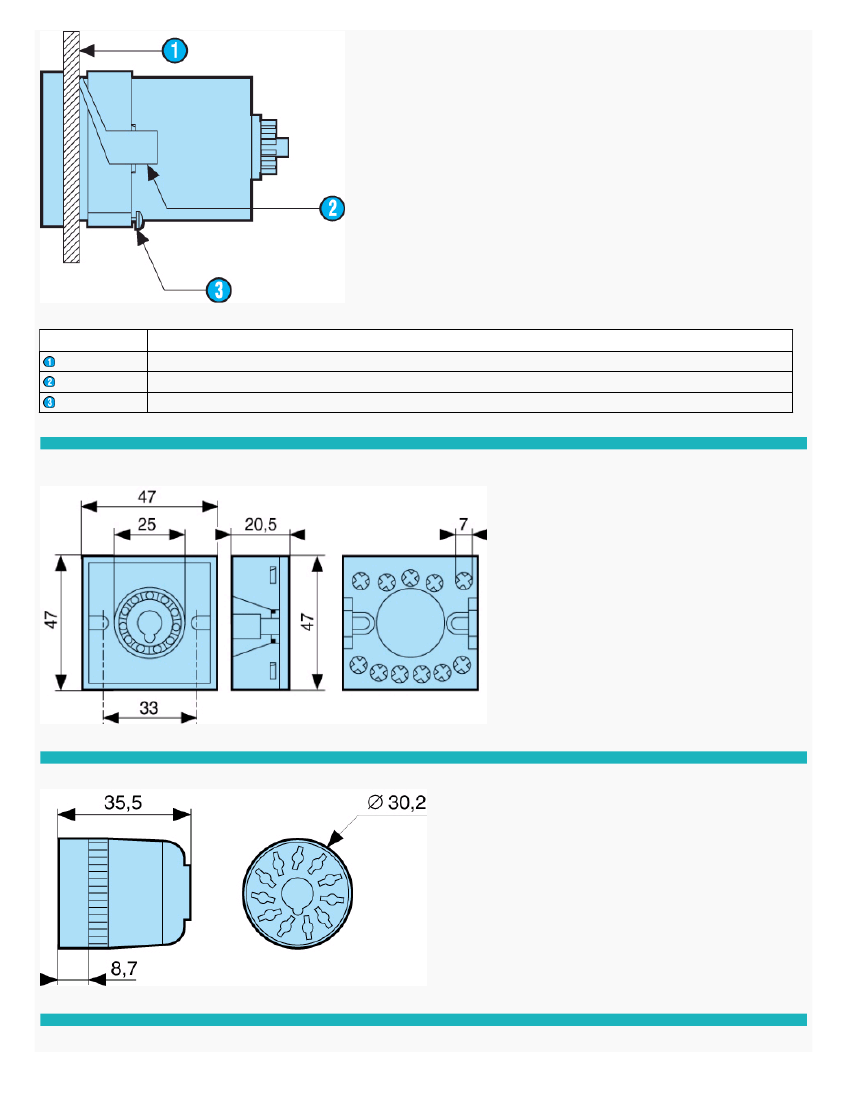

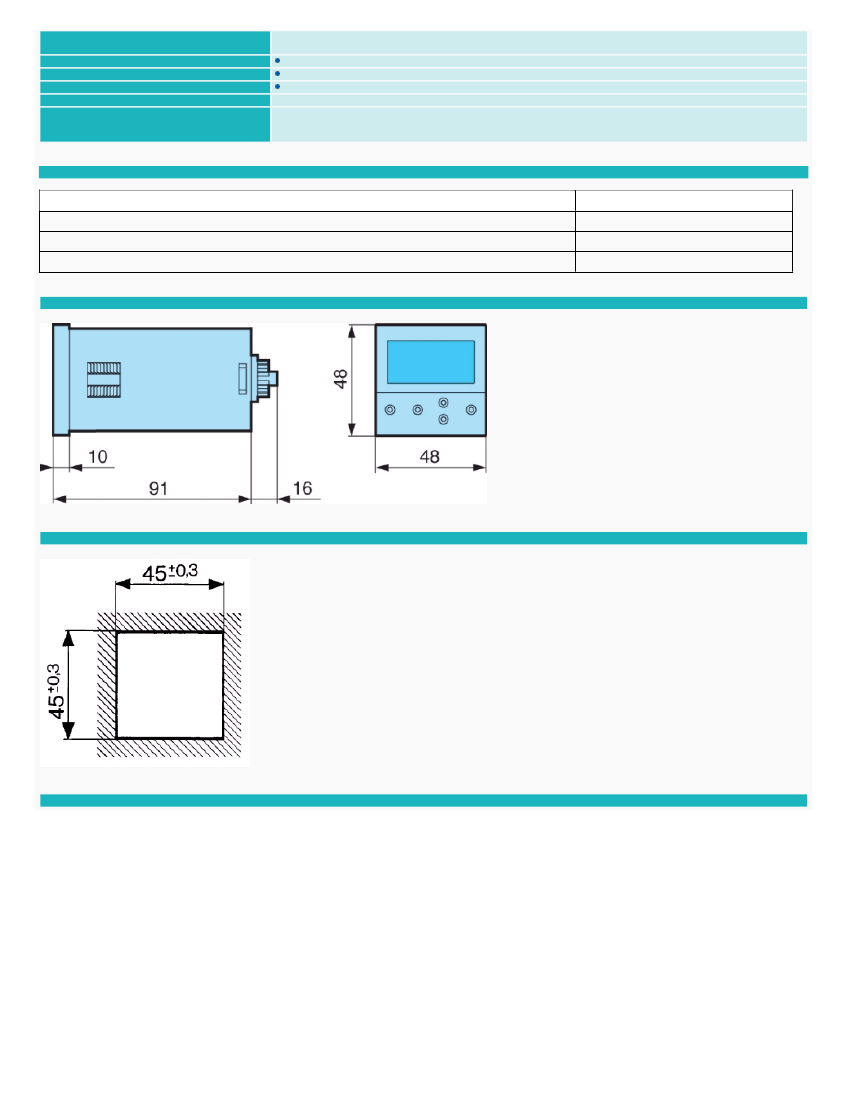

48 x 48 Digital LCD Timer 815E Part number 88857311
Relay output digital timers
LCD or LED (815E)
Multi-range
Multi-voltage
1 or 2 relay outputs
Reset function on panel (Timers 815, 815E)
Data saved in the event of a break in supply (Timer 815, 815E)
Access to programming lockable (Timer 814, 815 and 815E)
Up or down timing mode
Internal power supply by battery (10 years / 20 °C) (Not 815E)
Part numbers
Type
88857311
Timer
815E

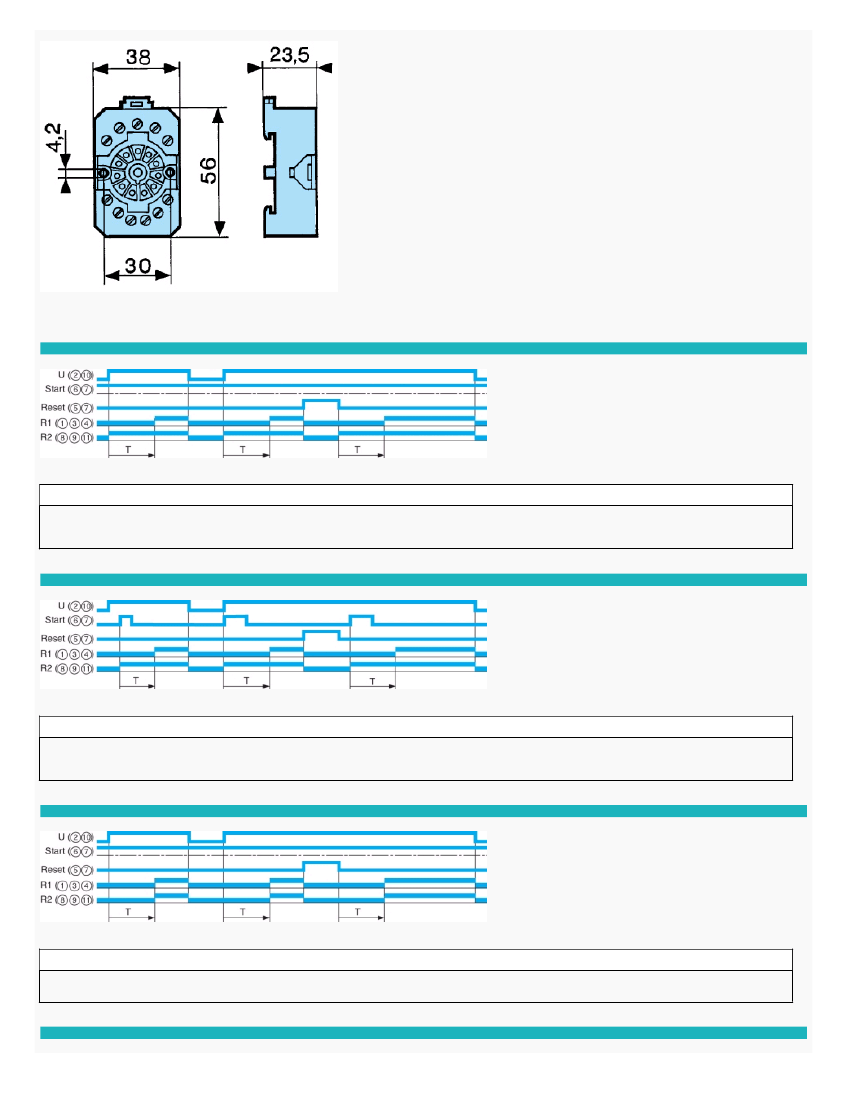

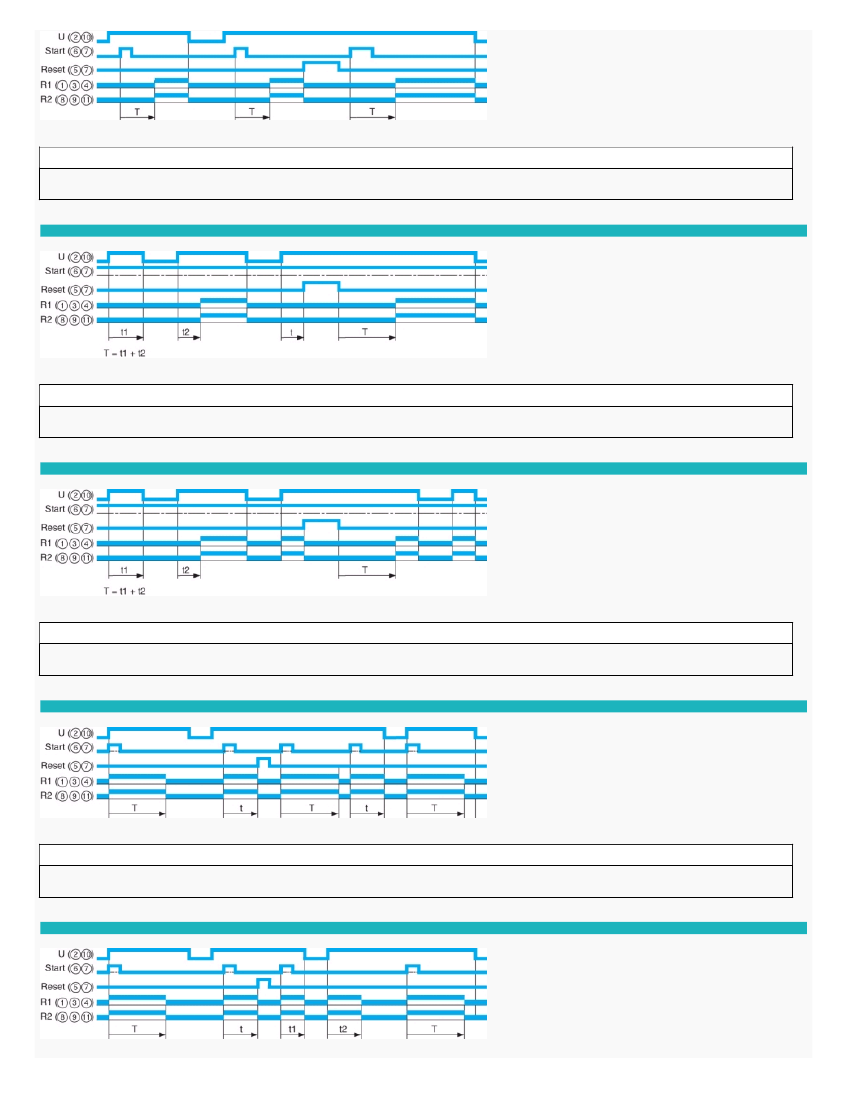

Functions
Connections Relay outputs
Supply voltage
Nominal
rating
A1, A1C, A2, A2C, AM, AMT, B, BM, C, CM, D, Di, DiM, Dpause, H, HM, T,TM, W,
2 double timed
11-pin plug-in
WM
changeover
12-24 V AC/ DC100 →240 V
2x5A
AC
Specifications
Number of digits
Height of digits
Timing ranges
4
TIMER 812 - 814 - 815 : 8 mm
TIMER 815E : 7mm
99,99 s
999,9 s
9999 s
99 min 59 s
99,99 min
999,9 min
9999 min
99 h 59 min
99,99 h
999,9 h
9999 h ( ? 815E)
Repetition accuracy (with constant parameters)
TIMER 812 - 814 - 815 : ± 0,03 % ± 20 ms
TIMER 815E : ± 0,01 %
Display precision
TIMER 812 - 814 - 815 : ± 0,03 % ± 20 ms
TIMER 815E : ± 0,01 %
Min. control pulse
50 ms
Maximum reset time by de-energisation during timed delay
50 ms
Maximum reset time by de-energisation after timing
50 ms
Nominal rating
TIMER 814 - 815 : 8 A AC 8 A DC
TIMER 812 : 5 A AC 5 A DC
TIMER 815E : 5 A - 250 V AC
TIMER 812 - 814 - 815 : 250 V AC 30 V DC
TIMER 815E : 250 V AC 20 V DC
TIMER 814 - 815 : 2000 VA - 190 W
TIMER 812 : 1250 VA - 120 W
TIMER 815E : 1500 VA - 100 W
15 A < 0,01 s
TIMER 812 - 814 - 815 : 250 V AC 30 V DC 100 mA
TIMER 815E : 500 mW (10 V / 5 mA)
10
5
600
TIMER 812 - 814 - 815 : 5 x 10
6
TIMER 815E : 20 x 10
6
Voltage variation
Immunity from micro power cuts
Max. absorbed power
TIMER 814 : + 10 % - 15 %
TIMER 815E : + 10 % - 10 %
< 0,03 s
0.5 W / 12 V 1 VA / 24 V
0.5 W / 24 V 3.5 VA / 110 V
1 W / 48 V 11 VA / 220 V
TIMER 815E : Max. 3 W
TIMER 812 - 814 - 815 : -10 °C →+60 °C
TIMER 815E : 0 °C →+60 °C
TIMER 812 - 814 - 815 : -30 °C →+70 °C
TIMER 815E : -30 °C →+80 °C
TIMER 812 - 814 - 815 : IP65
TIMER 815E : IP30
Max. breaking voltage
Maximum power rating (resistive)
Maximum admissible current
Minimum current
Electrical life at I max., 250 V AC resistive (cycles)
Max. permitted number of operations at 1 max 250 V AC
resistive per hour
Mechanical life (operations)
Temperature limits use (°C)
Temperature limits stored (°C)
Degree of protection front face
Unless otherwise specified, the characteristics given are applicable to all or part of the product range selected
