ZB5AS72

Description
Keylock Switches LATCHING KEYED MUSHROOM 30MM BLACK
CategoryTopical application    Mechanical and electrical/engineering/automation
File Size50KB,2 Pages
ManufacturerSCHNEIDER ELECTRIC
Download Datasheet Parametric View All

ZB5AS72 Online Shopping

Suppliers Part Number Price MOQ In stock
ZB5AS72 - - View Buy Now

ZB5AS72 Overview

Keylock Switches LATCHING KEYED MUSHROOM 30MM BLACK

ZB5AS72 Parametric

Parameter NameAttribute value
Product CategoryKeylock Switches
ManufacturerSCHNEIDER ELECTRIC
IlluminatedNon-Illuminated
Factory Pack Quantity1

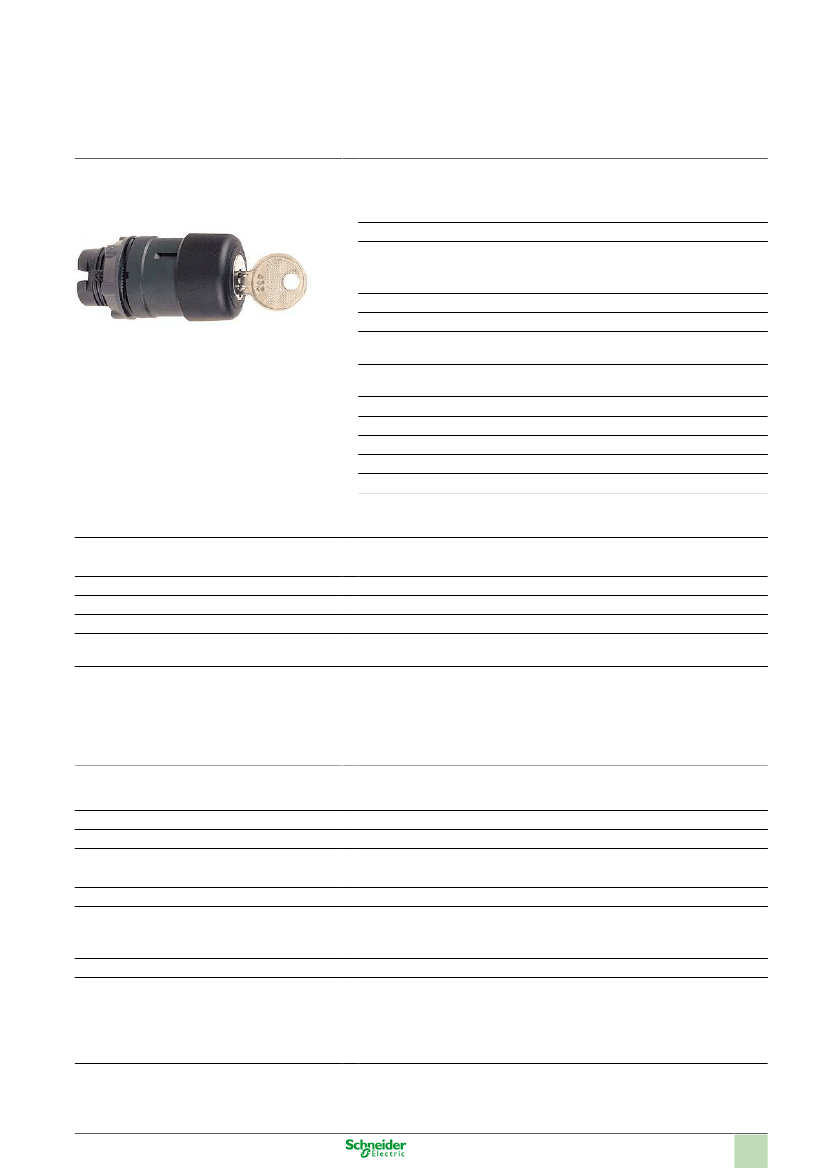

Product data sheet
Characteristics
ZB5AS72
black Ø30 mushroom pushbutton head Ø22
latching key release
Product availability: Non-Stock - Not normally stocked in distribution facility
Main
Commercial Status
Range of product
Product or component
type
Device short name
Bezel material
Mounting diameter
Sale per indivisible
quantity
Shape of signaling unit
head
Type of operator
Reset
Operator profile
Type of keylock
Key withdrawal position
Commercialised
Harmony XB5
Head for non-illuminated pushbutton
ZB5
Plastic
0.87 in (22 mm)
1
Round
The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.
This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.
It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.
Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
Latching
Key release
Black mushroom Ø 30 mm unmarked
Ronis 455
Center
Complementary
CAD overall width
CAD overall height
CAD overall depth
Product weight
Mechanical durability
Station name
Electrical composition code
1.18 in (30 mm)
1.18 in (30 mm)
3.11 in (79 mm)
0.09 lb(US) (0.04 kg)
500000 cycles
XALK 2...5 cut-outs
XALD 1...5 cut-outs
C10 for <= 4 contacts using single and double blocks in front mounting
C8 for <= 4 contacts using single and double blocks in front mounting
C7 for <= 4 contacts using single blocks in front mounting
SR1 for <= 3 contacts using single blocks in rear mounting
SF1 for <= 3 contacts using single blocks in front mounting
C15 for 1 contacts using single blocks in front mounting
C11 for <= 3 contacts using single blocks in front mounting
Environment
Protective treatment
Ambient air temperature for storage
Ambient air temperature for operation
Class of protection against electric shock
IP degree of protection
NEMA degree of protection
Resistance to high pressure washer
IK degree of protection
Standards
TH
-40...158 °F (-40...70 °C)
-13...158 °F (-25...70 °C)
Class II conforming to IEC 60536
IP66 conforming to IEC 60529
NEMA 4X
NEMA 13
1015.26 psi (7000000 Pa) at 131 °F (55 °C),distance: 0.1 m
IK03 conforming to IEC 50102
EN/IEC 60947-1
EN/IEC 60947-5-1
EN/IEC 60947-5-4
JIS C 4520
UL 508
CSA C22.2 No 14
Mar 1, 2016
