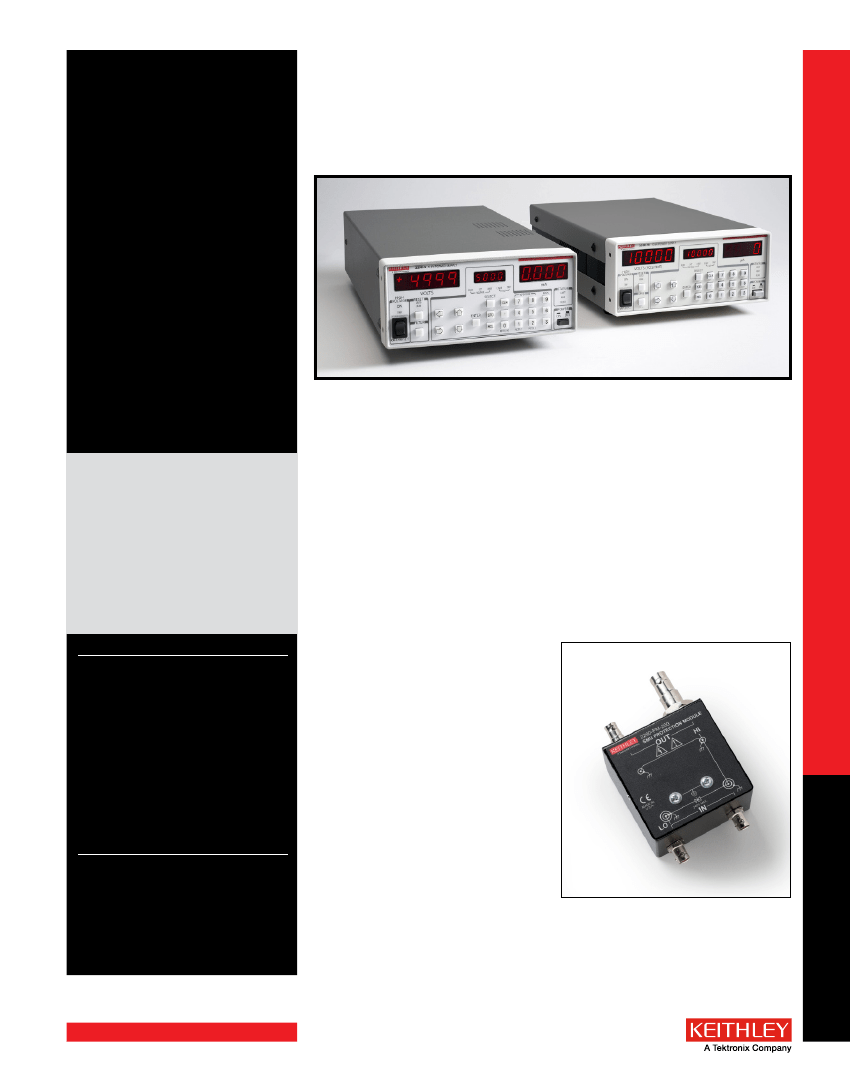

Series 2290
•
Source voltages up to 5kV
and 10kV
•
1µA current measurement
resolution
High Voltage Power Supplies
Multi-channel programmable DC power supplies
•
Low noise for precision sourcing
and sensitive measurements;
selectable filters reduce noise
to less than 3mV
RMS
on the
5kV supply
•
IEEE-488 programmable
•
Protection module prevents
damage to low voltage
instrumentation
TYPICAL APPLICATIONS
• High voltage device breakdown
testing
• High voltage component testing
• Insulation testing
• High voltage resistivity
measurements
• High energy physics research
Series 2290 High Voltage Power Supplies facilitate high voltage device and material testing, as well as
high energy physics experimentation. The Model 2290-5 5kV Power Supply provides voltage outputs
up to 5000V, and the Model 2290-10 10kV Power Supply offers up to 10,000V. The Model 2290-5 has
a 5mA current capacity, and the Model 2290-10 has a 1mA current capacity. These supplies measure
both output voltage with 1V resolution and output current with 1µA resolution. In addition to the
voltage and current output displays, a third display shows one of four settings: output voltage, voltage
limit, current limit, or current trip. These values can be set precisely with the front panel keypad. The
settings can also be programmed over the IEEE-4888 interface, or the output voltage can be set with
an analog control voltage.
Low Noise Ensures Accurate Low Level Measurements
Low output noise is essential when using sensitive measurement instruments to make leakage cur-
rent or high resistivity measurements. The maximum output ripple for the Model 2290-10 is less than
1V
RMS
. The maximum output ripple of the Model 2290-5 is 100mV
RMS
. Two selectable, internal filters
on the Model 2290-5 reduce the maximum output ripple to only 3mV
RMS
. Extremely low noise from
both power supplies enables sensitive measurement instruments to make accurate current measure-
ments down to picoamp levels.
Protecting User and Instrumentation
Series 2290 Power Supplies and a Model 2290-
PM-200 Protection Module protect both user
and instrumentation from hazardous voltages.
An interlock circuit built into the power supplies
can be used to ensure that the output voltage
is disabled if a high voltage test fixture access
door is open. In addition, all Series 2290 power
supplies have low voltage analog outputs to per-
mit safe monitoring of the high voltage and the
output current.
When low voltage measurement instrumentation
is used in the high voltage circuit, the protection
module safely clamps the voltage across the
instrument to a maximum value of 200V even
when a device under test (DUT) breaks down.
Thus, a Series 2290 Power Supply, Model 2290-
PM-200 Protection Module, and Keithley accesso-
ries provide all the elements for building a safe,
high voltage test environment.
Ordering Information
2290-5 5kV Power Supply, 120VAC
Nominal Input Voltage
2290E-5 5kV Power Supply, 240VAC
Nominal Input Voltage
2290J-5 5kV Power Supply, 100VAC
Nominal Input Voltage
2290-10 10kV Power Supply
2290-PM-200
10kV Protection Module
Accessories Supplied
CD with user manual, software
drivers, and accessory information
Power cord
The Model 2290-PM-200 Protection Module
protects low voltage measurement equipment
from voltages greater than 200V.
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
DC POWER SUPPLIES
High voltage power supplies
•
Safety interlock controls high
voltage output
Series 2290
High Voltage Power Supplies
Make Precise Current Measurements Lower Than 1µA
Use a sensitive Keithley measurement instrument, such as a Keithley SourceMeter
®
Source Measure
Unit (SMU) instrument, to measure current drawn by the device under test (DUT) that is below the
sensitivity of the Series 2290 Power Supplies. Keithley SourceMeter SMU instruments can provide
sensitivity as low as 0.1fA. The following diagram shows how the Model 2290-PM-200 Protection
Module protects the low voltage SourceMeter SMU instrument from high voltages when the DUT
breaks down. The leakage current of the protection module limits the measurement resolution to
picoamp levels, which is five decades more sensitive than the current measurement resolution of the
Series 2290 Power Supplies. Keithley can provide a complete high voltage test capability with the
most current measurement sensitivity available anywhere.
ACCESSORIES AVAILAbLE
For 2290-5:
2290-5-SHV
2290-5-MHV
2290-5-SHVBH
2290-5-RMK-1
2290-5-RMK-2
5kV SHV Female–SHV Female Cable,
3m (10 ft)
5kV SHV Female–MHV Male Cable, 3m (10 ft)
5kV SHV Male Bulkhead Connector
Single Fixed Rack Mount Kit for 5kV
Power Supply
Dual Fixed Rack Mount Kit for 5kV
Power Supply
For 2290-10:
2290-10-SHVUC 10kV SHV Male to Unterminated Cable,
3m (10ft)
2290-10-SHV
10kV SHV Male–SHV Male Cable, 3m (10 ft)
2290-10-SHVBH 10kV SHV Female Bulkhead Connector
2290-10-RMK-1 Single Fixed Rack Mount Kit for 10kV
Power Supply
2290-10-RMK-2 Dual Fixed Rack Mount Kit for 10kV
Power Supply
For both:
2290-PM-200
10kV Protection Module
2290-INT-CABLE 3-Pin Connector to Unterminated
Interlock Cable
4299-7
Fixed Shelf Rack Mount Kit
KPCI-488LPA
IEEE-488.2 Interface Board for the PCI Bus
KUSB-488B
IEEE-488.2 USB-GPIB Interface Adapter for USB
port with built-in 2m (6.6 ft) cable
7007-05
Double Shielded Premium IEEE-488 Interface
Cable, 0.5m (1.6 ft)
7007-1
Double Shielded Premium IEEE-488 Interface
Cable, 1m (3.2 ft)
7007-2
Double Shielded Premium IEEE-488 Interface
Cable, 2m (6.5 ft)
7007-3
Double Shielded Premium IEEE-488 Interface
Cable, 3m (10 ft)
7007-4
Double Shielded Premium IEEE-488 Interface
Cable, 4m (13 ft)
High voltage power supplies
Model 2290-5
High Voltage
Power Supply
Model
2290-PM-200
Protection
Module
PM
A
Model 263xB
System
SourceMeter SMU
Instrument
configured as
an ammeter
Reverse breakdown testing of a high voltage diode using a Keithley SourceMeter SMU
instrument to measure leakage current. The Model 2290-PM-200 SMU Protection Module
protects the SourceMeter SMU instrument from high voltage when the diode breaks down.
SERVICES AVAILAbLE
1 Year Factory Warranty extended one
additional year from date of shipment
Model Number-3Y-EW
1 Year Factory Warranty extended
to 3 years frçom date of shipment
Model Number-5Y-EW
1 Year Factory Warranty extended
to 5 years from date of shipment
C/Model
Number-3Y-STD
KeithleyCare 3 Year Standard
Calibration Plan
C/Model
Number-3Y-DATA
KeithleyCare 3 Year Calibration
with Data Plan
C/Model
Number-5Y-STD
KeithleyCare 5 Year Standard
Calibration Plan
C/Model
Number-5Y-DATA
KeithleyCare 5 Year Calibration
with Data Plan
Model Number*-EW
*Insert model number. Examples: 2290-5-EW, C/2290E-10-3Y-STD
Easily Automate a High Voltage Test System
The Series 2290’s IEEE-488 interface allows the creation of an automated high voltage test system.
Software drivers are supplied to simplify and accelerate test system development. This further
enhances safety as the high voltage can be controlled from a remote location.
DC POWER SUPPLIES
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
High voltage power supplies
Series 2290
2290-5 Specifications
5kV Voltage Power Supply Characteristics
High Voltage Power Supplies
CONDITIONS
This document contains specifications and supplemental information for the Model 2290-5
High Voltage Power Supply. Specifications are the standards against which the Model 2290-5 is
tested. Upon leaving the factory, the Model 2290-5 meets these specifications. Characteristics,
supplemental characteristics, and typical values are not warranted, apply at 23°C ±5°C, <70%
relative humidity, and are provided solely as useful information.
CHARACTERISTICS
VOLTAGE RANGE:
ExTERNAL VOLTAgE SET
iNpuT scALE:
0 to +10V for 0 to full scale.
iNpuT impEdANcE:
1MΩ.
AccuRAcy:
±0.2% of full scale.
updATE RATE:
16Hz.
OuTpuT sLEw RATE:
<(rise time + 0.3 seconds) for 0 to full range under full load.
High voltage power supplies
Output Voltage
50 to +5000 V DC
50 to +3000 V DC
50 to +5000 V DC
1
Maximum Output Current
5.000 mA DC
5.000 mA DC
3.000 mA DC
Conditions
No filter
Filter 1
Filter 2
VOLTAGE sET AccuRAcy
2
:
±(0.01% of setting + 2.5V).
VOLTAGE dispLAy AccuRAcy:
Voltage set accuracy ±1V, typical (±2V, maximum).
VOLTAGE REsOLuTiON:
1V (set and display).
VOLTAGE LimiT RANGE:
0 to 100% full scale.
Line:
0.001% for ±10% line voltage change.
VOLTAGE REGuLATiON
3
:
Load:
0.005% for 100% load change, typical.
OuTpuT RippLE (10kHz–100kHz)
4
:
0.002% of full scale, V
RMS
, maximum – No filter.
1.0mV
RMS
@ 1kV – Filter 1 or Filter 2.
2.0mV
RMS
@ 3kV – Filter 1 or Filter 2.
3.0mV
RMS
@ 5kV – Filter 2.
6, 7
:
1.5 seconds for 0 to within 1V of 5000VDC – No filter.
RisE TimE (full load)
3 seconds for 0 to within 1V of 3000VDC – Filter 1.
4 seconds for 0 to within 1V of 5000VDC – Filter 2
6, 7
:
1 second for 5000VDC to 1VDC – No filter.
discHARGE TimE (full load)
3 seconds for 3000VDC to 1VDC – Filter 1.
4 seconds for 5000VDC to 1VDC – Filter 2
6
:
<12 seconds (to <50VDC) – No filter.
discHARGE TimE (no load)
<30 seconds (to <50VDC) – Filter 1 or Filter 2.
sETTLiNG TimE
6, 7
:
From 0 to programmed voltage; to within 99.9% of final value within
3 seconds.
REcOVERy TimE
6, 7
:
120ms for 40% step change in load current (typical).
Current Limit and Trip Range
0.4 mA to 5.25 mA
0.4 mA to 3.25 mA
0.5 mA to 5.25 mA
0.4 mA to 3.25 mA
Voltage Range
0 V to 1.5 kV
1.5 kV to 5.0 kV
Filter
No filter or Filter 1
Filter 2
No filter or Filter 1
Filter 2
iNpuT pOwER:
55 watts.
2290-5 iNpuT VOLTAGE:
120V ±10%, 50 or 60Hz.
2290E-5 iNpuT VOLTAGE:
240V ±10%, 50 or 60Hz.
2290J-5 iNpuT VOLTAGE:
100V ±10%, 50 or 60Hz.
REAR pANEL cONNEcTORs:
SHV male (Kings type 1704-1 or equivalent).
Output high-voltage connector GPIB connector.
bNc connector (two):
Voltage set/Voltage monitor; Current monitor.
TOGGLE swiTcH:
Voltage setting or Voltage monitor.
HiGH-VOLTAGE sAfETy iNTERLOck:
connector:
3-pin press-in connector, 3M part number: 37103-A165-00E-MB.
pin 1:
5V out, 1.5mA maximum out.
pin 2:
Input: High-voltage output enabled: 3–24V DC.
High-voltage output disabled: <1.2V DC.
pin 3:
Chassis ground through a 100Ω resistor.
iNTERfAcE pROTOcOL:
IEEE-488.1.
OpERATiNG ENViRONmENT:
0º to 40ºC; non-condensing.
dimENsiONs:
89mm high × 206mm wide × 406mm deep (3.5 in. × 8.1 in. × 16 in.).
wEiGHT:
5.5kg (12 pounds).
sAfETy:
Conformance to European Union low voltage directive.
wARRANTy:
One year.
wARm-up TimE:
One hour.
1. The output voltage can be programmed to a voltage lower than 50V; however, performance below 50V is not
specified.
2. Add ±2.5VDC when Filter 1 or Filter 2 is enabled.
3. Regulation specifications apply for greater than 25VDC (with full load), or 50VDC (with no load). Below these
values, the unit may not regulate correctly.
4. Peak-to-peak values are within five times the RMS value.
5. Add 2.5µA offset when Filter 1 or Filter 2 is enabled.
6. Times apply with the current limit set to 105% of full scale.
7. Loads are fully resistive.
cuRRENT sET AccuRAcy
5
:
0.01% ±(0.01% + 2.5µA).
cuRRENT REsOLuTiON:
1µA.
cuRRENT dispLAy AccuRAcy:
±1µA, typical (±2µA, maximum).
sTAbiLiTy:
±0.01% per hour; <0.03% per eight hours.
TEmpERATuRE dRifT:
50ppm/ºC, 0º to 40ºC, typical.
pROTEcTiON:
Arc and short circuit protected; programmable voltage and current limits and
current trip.
MONITOR OUTPUTS
OuTpuT scALE:
0 to +10V to full scale.
cuRRENT RATiNG:
10mA maximum.
OuTpuT impEdANcE:
<1Ω.
AccuRAcy:
±0.2% of full scale with a 100kΩ load, minimum.
updATE RATE:
8Hz.

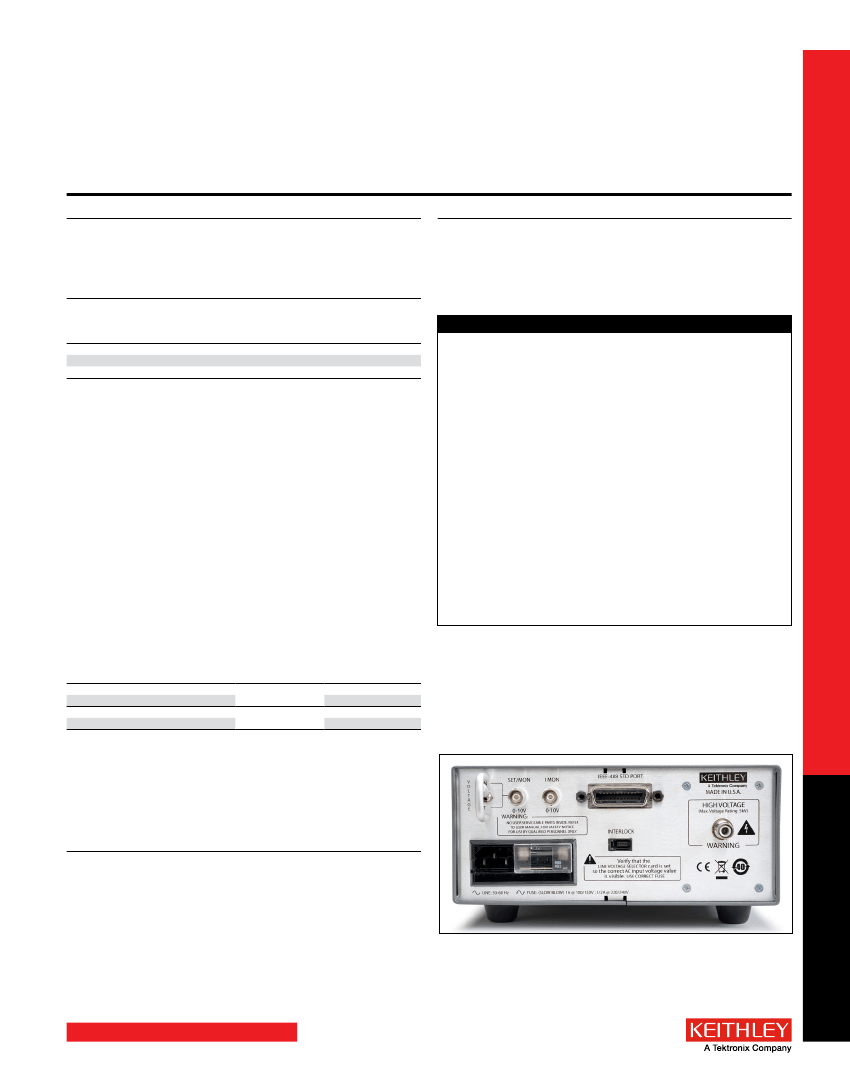

Model 2290-5 rear panel showing the IEEE-488 interface connector,
high voltage output connector, analog control/output connectors, and
interlock connector.
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
DC POWER SUPPLIES
High voltage power supplies
gENERAL
Series 2290
2290-10 Specifications
10kV Voltage Power Supply Characteristics
High Voltage Power Supplies
CONDITIONS
This document contains specifications and supplemental information for the Model 2290-10
High Voltage Power Supply. Specifications are the standards against which the Model 2290-10 is
tested. Upon leaving the factory, the Model 2290-10 meets these specifications. Characteristics,
supplemental characteristics, and typical values are not warranted, apply at 23°C ±5°C, <70%
relative humidity, and are provided solely as useful information.
CHARACTERISTICS
VOLTAGE RANGE:
MONITOR OUTPUTS
OuTpuT scALE:
0 to +10V for 0V to full scale.
cuRRENT RATiNG:
10mA maximum.
OuTpuT impEdANcE:
100Ω.
AccuRAcy:
±0.2% of full scale with a 1MΩ load, minimum.
updATE RATE:
87.5Hz.
ExTERNAL VOLTAgE SET
iNpuT scALE:
0 to +10V for 0 to full scale.
iNpuT impEdANcE:
1MΩ.
AccuRAcy:
±0.2% of full scale.
updATE RATE:
87.5Hz.
OuTpuT sLEw RATE (5% to 95% under full load):
<3 seconds
High voltage power supplies
Output Voltage
1
+100 to +10,000 V DC
Maximum Output Current
1.000 mA DC
VOLTAGE sET AccuRAcy:
±0.06% of full scale.
VOLTAGE dispLAy AccuRAcy:
Voltage set accuracy ±1V, typical (±2V, maximum).
VOLTAGE REsOLuTiON:
1V (set and display).
VOLTAGE LimiT RANGE:
0 to 100% full scale.
VOLTAGE REGuLATiON
2
: Line:
0.001% for ±10% line voltage change.
Load:
0.04% for 100% load change, typical.
OuTpuT RippLE (300Hz–300kHz):
0.01% of full scale, V
RMS
.
RisE TimE (from high voltage turn on to final value under full load)
3, 4
:
<6 seconds to within
1V of the final value.
discHARGE TimE (to 0V under full load)
3, 4
:
1 second to under 10V.
discHARGE TimE (no load)
3
:
<6 seconds (to <1% of full scale voltage with no load, typical).
sETTLiNG TimE
3, 4
:
<4 seconds to within 1V of the final value.
REcOVERy TimE
3, 4
:
120ms for 40% step change in load current (typical).
cuRRENT LimiT RANGE:
0 to 105% of full scale.
cuRRENT sET AccuRAcy:
0.5% of full scale.
cuRRENT REsOLuTiON:
1µA.
cuRRENT dispLAy AccuRAcy:
±1µA, typical (±2µA, maximum).
TRip cuRRENT RANGE:
10µA to 105% of full scale (excluding stored output charge).
OuTpuT sTOREd cHARGE:
<20µC maximum.
TRip REspONsE TimE:
<10ms.
sTAbiLiTy:
±0.01% per hour; <0.03% per eight hours.
TEmpERATuRE dRifT:
50ppm/ºC, 0º to 40ºC, typical.
pROTEcTiON:
Arc and short circuit protected; programmable voltage and current limits and
current trip.
gENERAL
iNpuT pOwER:
75 watts.
iNpuT VOLTAGE:
90V–264VAC, 47 to 63Hz.
REAR pANEL cONNEcTORs:
Output high-voltage connector: SHV male (Kings type 1764-1 or equivalent).
bNc connector (three):
Input, voltage monitor; current monitor.
GPIB connector, 23-pin.
RS-232, 9-pin D-sub
HiGH-VOLTAGE sAfETy iNTERLOck:
connector:
3-pin press-in connector, 3M part number: 37103-A165-00E-MB.
pin 1:
5V out, 70mA maximum out.
pin 2:
Input: High-voltage output enabled:5V DC.
High-voltage output disabled: 0V DC or open connection.
pin 3:
Chassis ground.
iNTERfAcE pROTOcOL:
IEEE-488.1.
OpERATiNG ENViRONmENT:
0º to 40ºC; non-condensing.
dimENsiONs:
89mm high × 206mm wide × 406mm deep (3.5 in × 8.1 in × 16 in).
wEiGHT:
3.7kg (8 pounds).
sAfETy:
Conformance to European Union low voltage directive.
wARRANTy:
One year.
wARm-up TimE:
One hour.
1.
2.
3.
4.
The output voltage can be programmed to voltages below 100V, but accuracy below 100V is not specified.
Regulation specifications apply for greater than 100V.
Times apply with the current limit set to 105% of full scale.
Loads are fully resistive.
DC POWER SUPPLIES

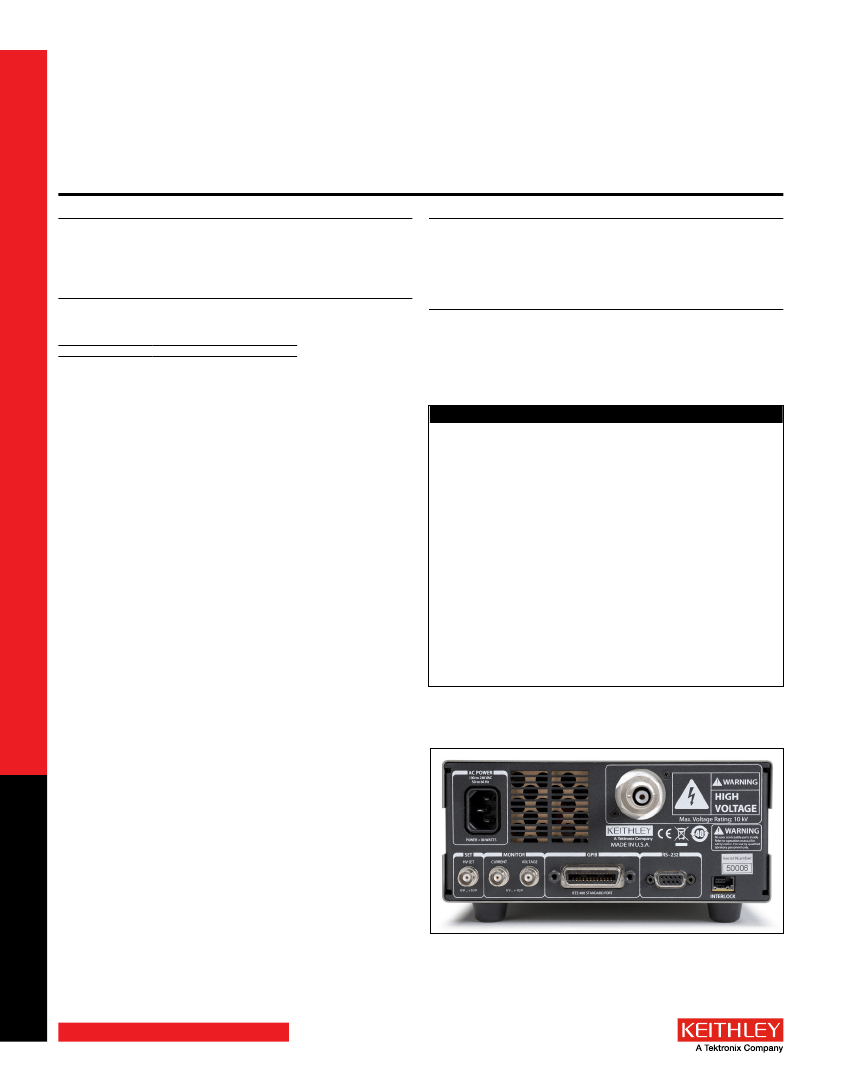

Model 2290-10 rear panel showing the IEEE-488 interface connector,
RS-232 interface connector, high voltage output connector, analog
control/output connectors, and interlock connector.
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
High voltage power supplies
Series 2290
2290-PM-200 Specifications
SMU Protection Module Characteristics
High Voltage Power Supplies
CONDITIONS
This document contains specifications and supplemental information for the Model 2290-PM-
200 Protection Module. Specifications are the standards against which the Model 2290-PM-200
is tested. Upon leaving the factory, the Model 2290-PM-200 meets these specifications.
Characteristics, supplemental characteristics, and typical values are not warranted, apply at 23°C
±5°C, <70 percent relative humidity, and are provided solely as useful information.
CHARACTERISTICS
LEAkAGE:
<10pA at 200V typical.
dc cuRRENT cARRyiNG cApAbiLiTy:
<1.5A in unclamped condition.
puLsEd cuRRENT cARRyiNG cApAbiLiTy:
10A maximum at 1% duty cycle in unclamped
condition.
mAximum pROTEcTiON AcTiVE cuRRENT:
Current must be limited to <120mA in clamped
condition (~230V).
pROTEcTiON VOLTAGE:
220VDC minimum, 230VDC typical, 240VDC maximum.
dimENsiONs:
81.28mm long × 81.53mm wide × 54.10mm high (3.20 in. long × 3.21 in. wide ×
2.13 in. high) Maximum length with high-voltage connectors: 5.34 in (135.64mm).
wEiGHT:
0.25kg (0.55 lb.).
gENERAL
wARRANTy:
1 year.
sAfETy:
Listed to UL 61010-1:2012 (3rd edition). Conforms to European Union Low Voltage
Directive.
cONNEcTORs:
High Voltage: 5kV connector:
male SHV, 0.38 inches (9.35mm) diameter, Kings 1704-1.
10kV connector:
female SHV, 0.535 inches (13.59mm) diameter, Kings 1764-1.
Low Voltage:
Triax, female, quantity of 2
sAfETy:
Screw ground terminal, quantity of 2
High voltage power supplies
1.888.KEITHLEY
(U.S. only)
www.keithley.com
A Greater Measure of Confidence
DC POWER SUPPLIES
High voltage power supplies
Talking
京公网安备 11010802033920号
EEWORLD
