Advantages of a Finger-Safe, Octal and Square Base Socket System
SECTION 2
The Complete
System Solution!

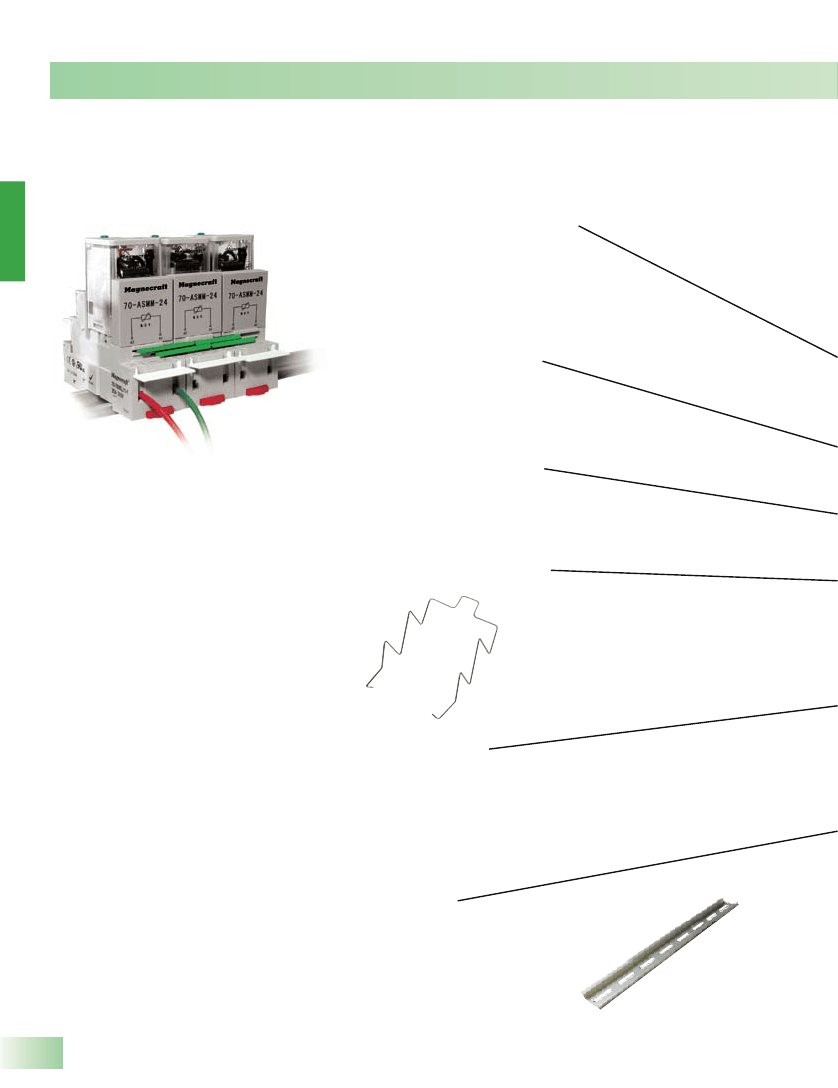

I.D. Tag/Write-On Plastic Label
Used for Custom Identification
of Circuits.
Isolated Input and Output Terminals
Separates Control Circuits from
Load Circuits.
Slim Design
Minimizes Space
on DIN Rail.
• Offers a “one stop solution” for
your power management
system.
• Plug-In switching capabilities
from 5 to 20 Amps.
• Optional Accessories allow for
customized applications.
• Ejector clips, ribbed relay hous-
ings and space-saving sockets
allow for easy removal from
crowded DIN rails.
• Color and appearance designed
for high visibility in all environ-
ments.
• Wiring diagrams include NEMA
and IEC standards.
Mating Hold-Down Clips Available
Secures Relay to Socket.
DIN Rail End Clip
Locking Screw Keeps
a Snug DIN Rail System
by Eliminating Sliding
Sockets.
DIN Rail
35 mm Extruded Aluminum Rail.
Designed to Work With Most Sockets.
Pre-punched for Quick Installation.
2/4
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
Finger-Safe
Protects Operators
from Live Circuits.
Internal Coil Bus
Jumper System
Allows Connection to
Adjacent Sockets Without
Additional Wiring.
I.D. Tag/Write-On Plastic Label
Used for Identification of Relays
in Multi-Relay Circuits.

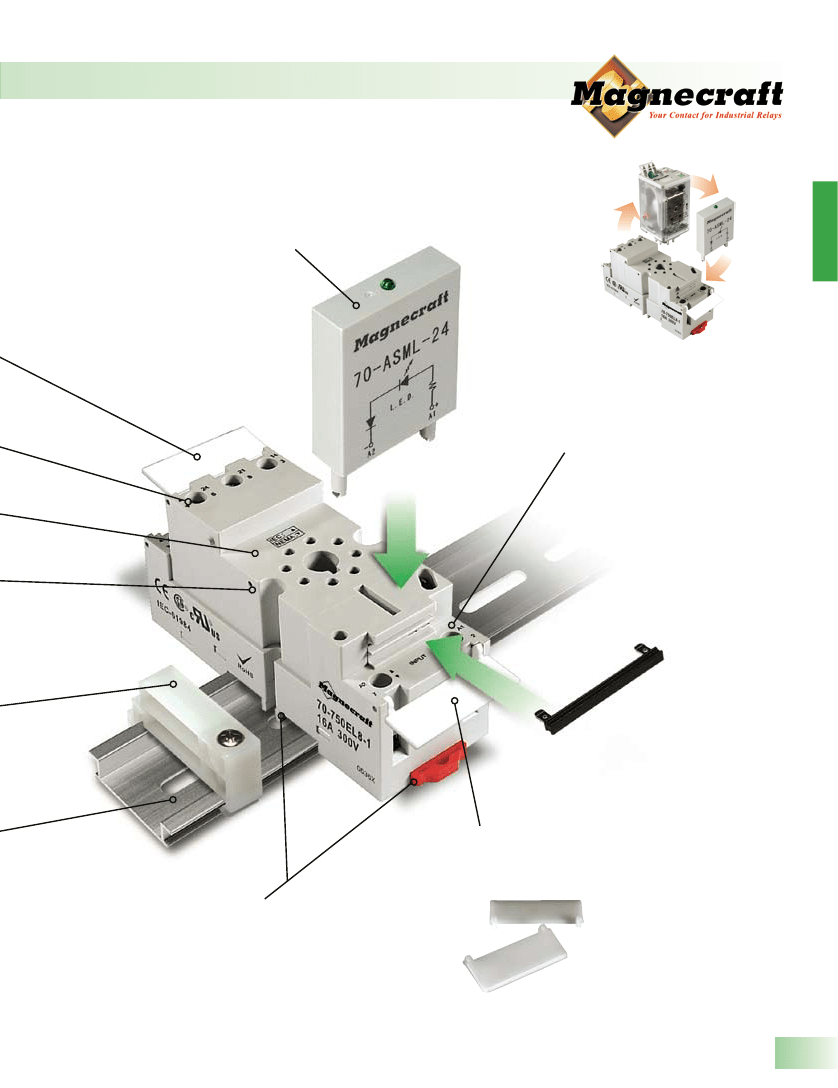

2-Way Side or DIN Rail Mounting System
Retrofits Existing Panel Mounting and
35 mm DIN Rail.
Magnecra f t So l u t io n Gu i de 1 0 5 A
2/5
SECTION 2
Modules
Allows for Optional
Protection or LED Modules
to be Used With Sockets.

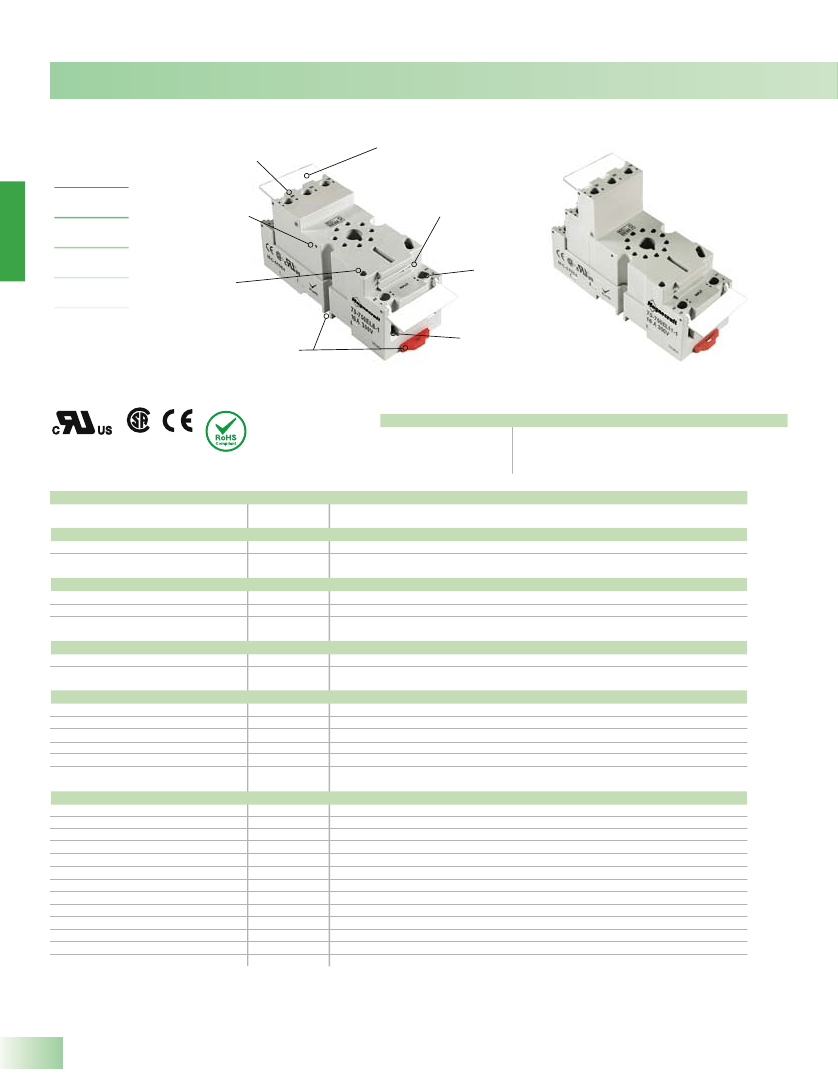

70-750EL8-1, 70-750EL11-1 Sockets/16
Amp Rating, 300 Volts
Ink Marked Terminals
for Easy Identification
Flip-Up I.D. Tag
Write-On Plastic Label
Internal Coil Bus
Jumper System
NEW
NEW
NEW
NEW
NEW
SECTION 2
Mating Hold-Down
Clips Available
Module
Compatible
Isolated Input
Terminals
Side Panel or DIN Rail
Mounting System
Finger-Safe Terminals Protect
Operator from Live Circuits.
Meets IP-20
70-750EL8-1
70-750EL11-1
UL Recognized
File No. E70550
Certified
40787
BOLD-FACED PART NUMBERS ARE NORMALLY STOCKED
Standard Part Number
Description
70-750EL8-1
8 and 11-Pin Octal, Logic Style, Finger-Safe,
DIN/Panel Mount w/Elevator Terminals,
70-750EL11-1
Module Compatible
(UL 508)
Units
Value
8, 11
300
16
3000
3000
3000
- 40 to + 80
- 40 to + 105
IP 20
Copper Alloy, Zinc Plated
Steel, Zinc Plated
Combination Head,
M3.5
9 /1.0
Din / Panel
AWG
mm2
12 / 14 (2)
4 / 2.5 (2)
12 / 14 (2)
4 / 2.5 (2)
Elevator
35mm
7 / 0.8
94V-0
Light Gray
Red Plastic Locking Clip
UL, CSA
CE, RoHS
79
General Specifications
WHITE
Characteristics
Number of Terminals
Electrical Rating
Nominal Voltage Rating
Nominal Current Rating
Volts
Amps
V rms
V rms
V rms
°C
°C
EN 60529
Dielectric Strength
Output to Adjacent Output Terminals
Output to Input Terminals
Terminals to Rail / Chassis
Temperature
Operating Range:
Storage Range:
Construction
Protection Category (Finger-Safe)
Internal Metal Tracks
Screw Terminals
Screw Style
Screw size
Screw Torque 3.5 mm (Maximum)
Miscellaneous
Socket Mounting:
Wire Size Capacity (Maximum)
Soild Cu
Stranded Cu
Wire Connection Method
DIN Rail Mounting
Chassis Mount Screw Torque
Flamability Rating
Body Color
DIN Locking Method
Product Certification
Conformance
Weight
mm
Lb-in / Nm
EN 60204-1
AWG, mm2
AWG, mm2
EN 60715
Lb-in / Nm
Class
grams
2/26
M a gn e c r a ft S o lu t io n G ui de 1 0 5 A
www.magnecraft.com
Optional Mating Accessories
847-441-2540
750 Relay
16-1351
Standard Part Number
70-ASM
16-750/788FT-1
Relay
Metal Hold-Down Clip
Module
Plastic I.D. Tag
Coil Bus Jumper
Metal DIN Rail
DIN Rail Locking Clip
Description
16-750/788CBJ-1
16-700DIN
16-DCLIP-1
750
16-1351
70-ASM
16-750/788FT-1
16-750/788CBJ-1
16-700DIN
16-DCLIP-1
Catalog Location
Section 1 p.24-29
Section 3 p.8-11
Section 3 p.4-5
Section 3 p.12
Section 3 p.13
Section 3 p.19
Section 3 p.19
4.13
(105)
1.77
(45)
70-750EL8-1
0.74
(19)
22
5
24
6
1.4
(36)
11
1
21
8
12
4
14
3

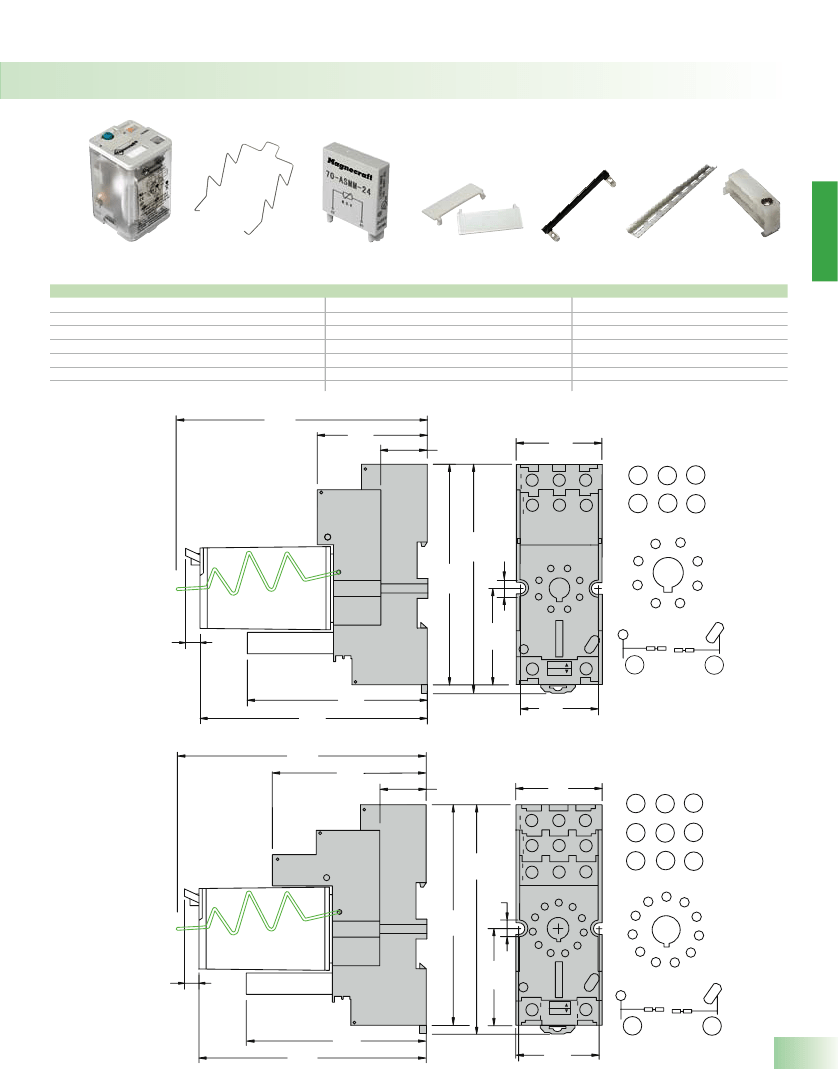

Wiring Diagram
Top View
22
5
24
6
11
1
21
8
12
4
14
3
16-1351
Metal Hold-Down Clip
See Section 3 p.8-11
3.77
(96)
3.62
(92)
0.27
(7)
5
6
7
8
4
3
2
1
MODULE
INPUT
0.24
(6.1)
1.60
(40)
A2
7
IEC:
NEMA:
A1
2
7
Coil Jumper Buss
INPUT
2
INPUT
A2
3.77
(96)
4.13
(105)
2.95
(75)
NEMA
IEC
A1
1.18
(30)
2.48
(63)
70-750EL11-1
0.74
(19)
31
11
32
8
1.4
(36)
21
6
24
7
22
5
11
1
12
4
14
3
Wiring Diagram
Top View
31
21
11
11
32
6
22
1
12
8
34
5
24
4
14
3.77
(96)
0.27
(7)
3.62
(92)
34
9
9
7
3
7
8
9
6
5
4
3
10
2
11
0.24
(6.1)
1.60
(40)
A2
7
IEC:
NEMA:
1
MODULE
INPUT
INPUT
A1
2
Magnecra f t So l u t io n Gu i de 1 0 5 A
3.77
(96)
2.95
(75)
10
Coil Jumper Buss
INPUT
2
1.18
(30)
A2
NEMA
IEC
A1
2/27
SECTION 2
