RN (ARN)
8GHz*, 150W CARRYING
POWER (at 2GHz)
MICROWAVE RELAYS
RN RELAYS (ARN)
TYPICAL APPLICATIONS
• Base stations (Transmitter section)
Mobile phone, terrestrial digital, etc.
• Measuring equipment market
Spectrum analyzer and oscilloscope,
etc.
• Other applications
High-frequency amp switching in
wireless devices, etc.
If you wish to use in applications with
low level loads or with high frequency
switching, please consult us.
*Rating is 6 GHz. Please refer to “REFERENCE DATA” regarding usage between 6 and 8 GHz.
New
FEATURES
1. 150 W carrying power possible
(at 2GHz)
2. Excellent high frequency
characteristics
Low insertion loss: Max. 0.12 dB
(at 2GHz)
3. Miniature size and Surface mount
(SMD) type
L: 9.6
×
W: 14.6
×
H: 10 mm
L: .378
×
W: .575
×
H: .394 inch
Protective construction: Flux-resistant type
RoHS compliant
ORDERING INFORMATION
ARN
Contact arrangement
1: 1 Form C standard contact type
3: 1 Form C reversed contact type
(single side stable type only)
Operating function
0: Single side stable type
2: 2 coil latching type
Terminal shape
A: Surface mount terminal
Coil voltage, DC*
4H: 4.5 V, 12: 12 V, 24: 24 V (H=0.5)
* For 28 V type, please consult us.
Packing style
Nil: Carton packing
X: Tape and reel packing (picked from 1 pin side)
Z: Tape and reel packing (picked from 13 pin side)
A
TYPES
1. Single side stable type
Contact arrangement
Nominal coil voltage
4.5 V DC
12 V DC
24 V DC
Part No.
Standard contact type
ARN10A4H
ARN10A12
ARN10A24
Reversed contact type
ARN30A4H
ARN30A12
ARN30A24
1 Form C
Standard packing: 50 pcs. in an inner package (carton); 500 pcs. in an outer package
2. 2 coil latching type
Contact arrangement
Nominal coil voltage
4.5 V DC
12 V DC
24 V DC
Part No.
Standard contact type
ARN12A4H
ARN12A12
ARN12A24
1 Form C
Standard packing: 50 pcs. in an inner package (carton); 500 pcs. in an outer package
3. Single side stable type
Contact arrangement
Nominal coil voltage
4.5 V DC
12 V DC
24
V DC
Part No.
Standard contact type
ARN10A4H
ARN10A12
ARN10A24
Reversed contact type
ARN30A4H
ARN30A12
ARN30A24
1 Form C
Standard packing: 400 pcs. in an inner package (tape and reel); 800 pcs. in an outer package
* Please add an X (picked from 1 pin side) or Z (picked from 13 pin side) at the end of the part number when ordering.
* Packing style symbol “X”, “Z” is not marked on the relay.
ASCTB71E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RN (ARN)
4. 2 coil latching type
Contact arrangement
Nominal coil voltage
4.5 V DC
1 Form C
12
24
V DC
V DC
Part No.
Standard contact type
ARN12A4H
ARN12A12
ARN12A24
Standard packing: 400 pcs. in an inner package (tape and reel); 800 pcs. in an outer package
* Please add an X (picked from 1 pin side) or Z (picked from 13 pin side) at the end of the part number when ordering.
* Packing style symbol “X”, “Z” is not marked on the relay.
RATING
1. Coil data
1) Single side stable type
Nominal coil
voltage
4.5 V DC
12
24
V DC
V DC
Pick-up voltage
(at 20°C
68°F)
75%V or less of
nominal voltage
(Initial)
Drop-out voltage
(at 20°C
68°F)
10%V or more of
nominal voltage
(Initial)
Nominal operating
current
[±10%] (at 20°C
68°F)
71.1 mA
26.7 mA
13.3 mA
Coil resistance
[±10%] (at 20°C
68°F)
63.3Ω
450
Ω
1,800
Ω
320 mW
110%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 85°C
185°F)
2) 2 coil latching type
Nominal coil
voltage
4.5 V DC
12
24
V DC
V DC
Set voltage
(at 20°C
68°F)
75%V or less of
nominal voltage
(Initial)
Reset voltage
(at 20°C
68°F)
75%V or less of
nominal voltage
(Initial)
Nominal operating
current
[±10%] (at 20°C
68°F)
88.9 mA
33.3 mA
16.7 mA
Coil resistance
[±10%] (at 20°C
68°F)
50.6Ω
360
Ω
1,440
Ω
400 mW
110%V of
nominal voltage
Nominal operating
power
Max. applied voltage
(at 85°C
185°F)
2. Specifications
Characteristics
Contact
Item
Arrangement
Contact material
Contact resistance (Initial)
Nominal switching capacity
Contact carrying power (CW)*
1
Nominal operating power
High frequency
characteristics
(to 6 GHz)
V.S.W.R. (Max.)
Insertion loss (without D.U.T. board’s loss, dB, Max.)
Isolation (dB, Min.)
Insulation resistance (Initial)
Between open contacts
Breakdown
voltage
Between contact and earth terminal
(Initial)
Between contact and coil
Operate time [Set time] (at 20°C
68°F)
Release time [Reset time] (at 20°C
68°F)
Shock
resistance
Vibration
resistance
Mechanical life
Expected life
Electrical life (at 20 cpm)
Functional
Destructive
Functional
Destructive
Specifications
1 Form C
Gold plating
Max. 100 mΩ (By voltage drop 10 V AC 10mA)
80W (at 2 GHz, Impedance 50Ω, V.S.W.R. Max.1.15)
Max.150W (at 20°C
68°F)
(at 2 GHz, Impedance 50Ω, V.S.W.R. Max.1.15, with heat sink)
Max.100W (at 20°C
68°F)
(at 2 GHz, Impedance 50Ω, V.S.W.R. Max.1.15, without heat sink)
Single side stable type: 320 mW, 2 coil latching type: 400 mW
to 1 GHz
1 to 2 GHz
2 to 3 GHz
3 to 6 GHz
1.1
1.15
1.2
1.3
0.1
0.12
0.15
0.5
60
55
45
30
Min. 1,000 MΩ (at 500V DC, Measurement at same location as “Breakdown voltage” section.)
500 AC Vrms for 1min. (Detection current: 10mA)
500 AC Vrms for 1min. (Detection current: 10mA)
500 AC Vrms for 1min. (Detection current: 10mA)
Max. 5 ms (Nominal voltage applied to the coil, excluding contact bounce time)
Single side stable type: Max. 5 ms (Nominal voltage applied to the coil, excluding contact
bounce time)*
2
2 coil latching type: Max. 5 ms (Nominal voltage applied to the coil, excluding contact bounce
time)
Min. 490 m/s
2
(Half-wave pulse of sine wave: 11 ms, detection time: 10
µs)
Min. 980 m/s
2
(Half-wave pulse of sine wave: 6 ms)
10 to 55 Hz at double amplitude of 3 mm
.118 inch
(Detection time: 10
µs)
10 to 55 Hz at double amplitude of 5 mm
.197 inch
Min. 1×10
6
(at 180 cpm)
6
ope. at 10mA 10 VDC resistive load,
• 1×10
• 1×10
6
ope. at 1W High frequency load (at 2 GHz, Impedance 50Ω, V.S.W.R. Max.1.15),
• 1×10
3
ope. at 80 W High frequency load, operating frequency 5.0s ON, 5.0s OFF
(at 2 GHz, Impedance 50Ω, V.S.W.R. Max.1.15, at 20°C
68°F,
with heatsink)
Ambient temperature: –40 to +85°C
–40 to +185°F,
Humidity: 5 to 85% R.H. (Not freezing and condensing at low temperature)
Approx. 2.5 g
.088 oz
Rating
Electrical
characteristics
Mechanical
characteristics
Conditions
Unit weight
Conditions for operation, transport and storage
Notes: *1. Since the design of the PC board and heat dispersion conditions affect contact carrying power, please verify under actual conditions.
*2. Release time will leng then if a diode, etc., is connected in parallel to the coil. Be sure to verify operation under actual conditions.
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB71E 201202-T
RN (ARN)

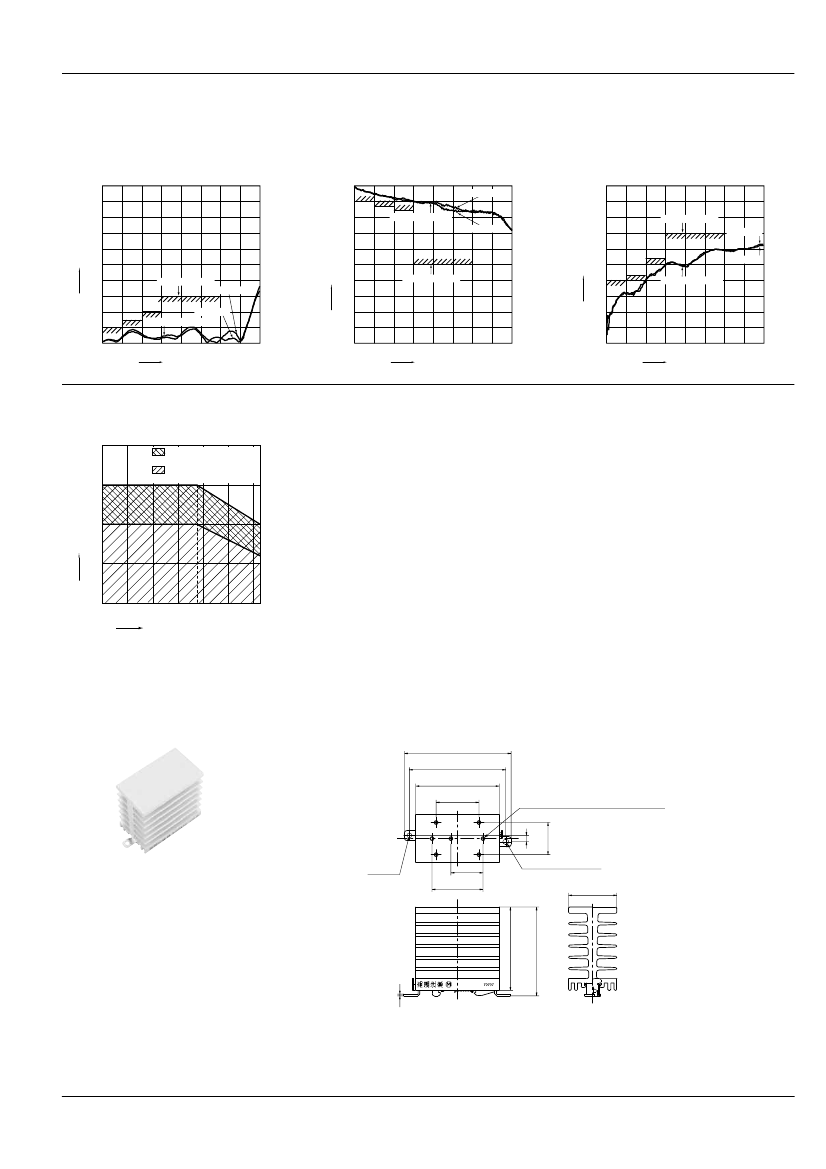

REFERENCE DATA
1. High frequency characteristics
Sample: ARN10A12
Measuring method: Measured with Agilent Technologies network analyzer (E8363B).
• V.S.W.R. characteristics
2.0
1.9
Insertion loss, dB
1.8
V.S.W.R.
1.7
1.6
1.5
1.4
1.3
1.2
1.1
1.0
0
1
2
Standard value
COM-NO
COM-NC
Reference value
3
4
5
6
7
8
* For details see “9. Measuring method of High frequency
characteristics (Impedance 50Ω)” under “NOTES”.
• Isolation characteristics
0
10
• Insertion loss characteristics
(without D.U.T. board’s loss)
0.0
0.1
0.2
0.3
0.4
0.5
0.6
0.7
0.8
0.9
1.0
0
1
2
3
4
5
6
7
8
Standard value
Reference value
COM-NO
COM-NC
20
Isolation, dB
30
40
50
60
70
80
90
100
0
1
2
Standard value
COM-NC
COM-NO
Reference value
3
4
5
6
7
8
Frequency, GHz
Frequency, GHz
Frequency, GHz
2. Contact carrying power (CW)
Max. 150 W (whith heat sink) (at 2 GHz, Impedance 50Ω, V.S.W.R. Max. 1.15, at 20°C
68°F)
Max. 100 W (whithout heat sink) (at 2 GHz, Impedance 50Ω, V.S.W.R. Max. 1.15, at 20°C
68°F)
200W
Input power (at 2 GHz)
Whith heat sink
Range that can be used
Whithout heat sink
Range that can be used
150W
100W
100W
50W
60W
0W
-40
-40
20 35
60
85
+68 +95
+140
+185
Ambient temperature,
°C
°F
Measuring conditions:
Heat sink (AQP-HS-SJ20A) is used. (Reference: 2.9°C
37.22°F/W)
Heat sink (AQP-HS-SJ20A)
(mm
inch)
External dimensions
100
3.937
90
3.543
78
3.071
40
1.575
5-M4
(Effective screw depth: 6 mm
.236 inch)
6
30
.236 1.181
4.6 dia.
.181 dia.
30
1.181
47.6
1.874
4.6×5.6 elliptical hole
.181×.220
45
1.772
78
83
3.071 3.268
1.6
.063
AQP812
General tolerance:
±0.1
±.004
ASCTB71E 201202-T
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
RN (ARN)

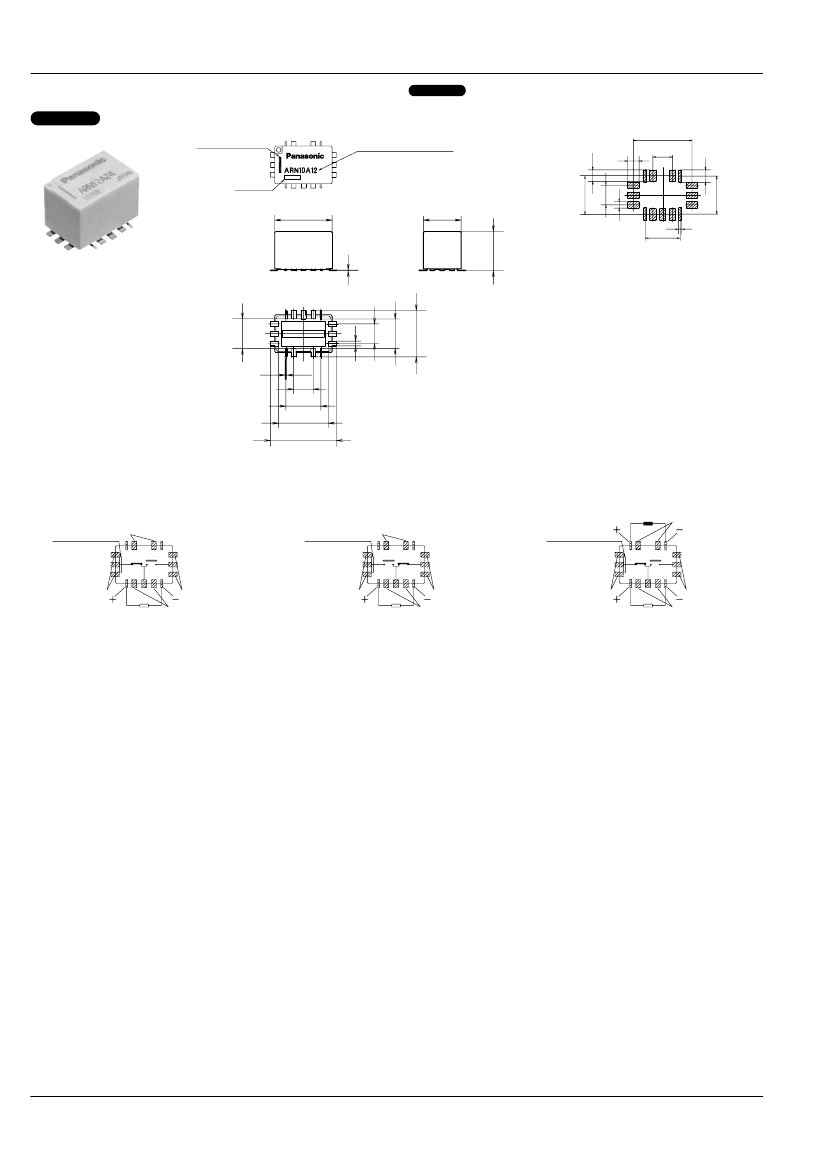

DIMENSIONS
(mm
inch)
CAD Data
Direction indication
14
15
16
Lot No.
The CAD data of the products with a
CAD Data
mark can be downloaded from: http://industrial.panasonic.com/ac/e/
External dimensions
13 12
10 9
8
7
6
The part numbers depend
on the type and voltage.
2.90
.114
PC board pattern
14.90
.587
5.00
.197
3.17
.125
2.90
.114
9.90
.390
9.60
.378
5.00 11-1.60
.197 11-.063
00000
JAPAN
1 2 3 4 5
14.60
.575
0.20
.008
9.64
.380
4-0.80
4-.031
8.89
.350
7.60
.299
10.00
.394
5.00 7.47 11.80
.197 .294 .465
11-1.20
11-.047
5.00
.197
8.89
.350
12.60
.496
16.80
.661
4-0.40
4-.016
General tolerance:
±0.3
±.012
Schematic
Single side stable type/Standard contact type
Direction indication
GND
Single side stable type/Reversed contact type
Direction indication
GND
2 coil latching type/Standard contact type
GND
Direction indication
14
NC
15
1312
10 9
16
GND
1 2 3 4 5
COM
8
7
NO
6
GND
GND
14
NO
15
1312
10 9
16
GND
1 2 3 4 5
8
7
NC
6
GND
GND
14
RESET
15
1312
10 9
16
GND
1 2 3 4 5
COM
8
7
SET
6
GND
GND
(Deenergized condition)
(Deenergized condition)
(Reset condition)
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
ASCTB71E 201202-T
RN (ARN)

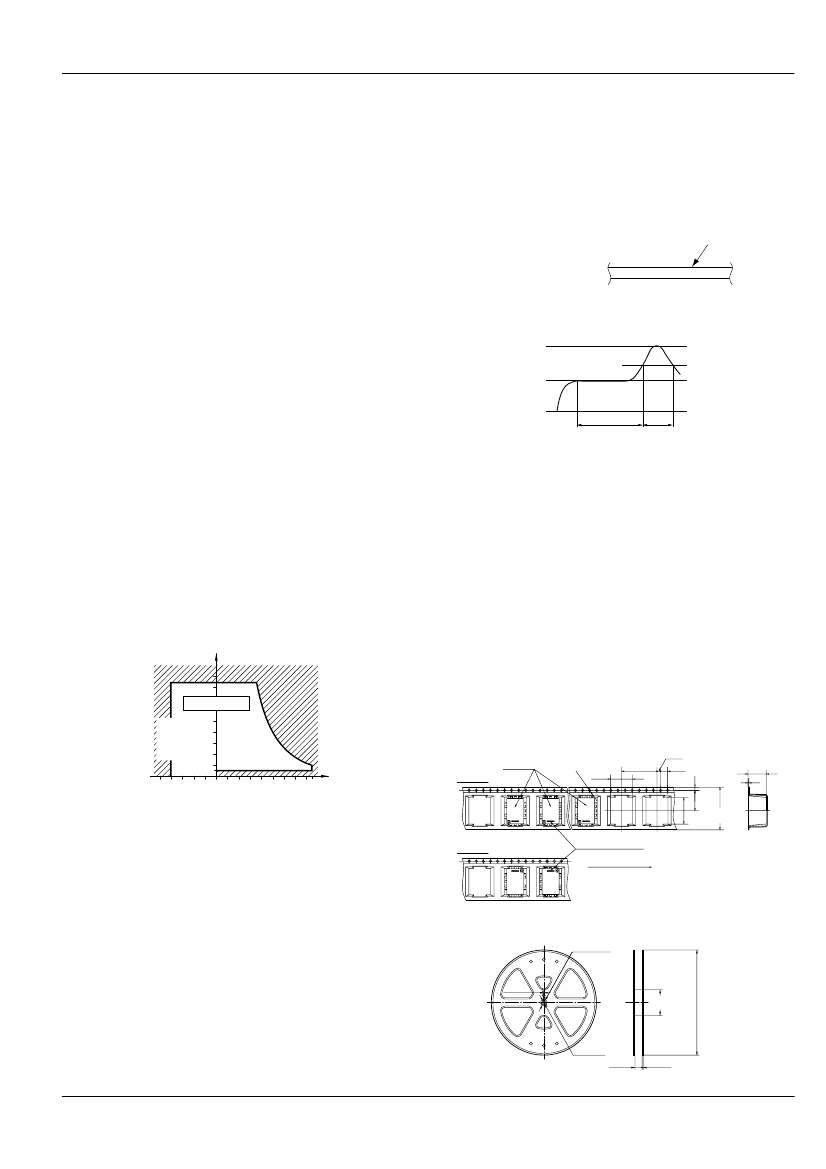

NOTES
1. Regarding cautions for use, please refer to “GENERAL
APPLICATION GUIDELINES” on our general catalog.
2. Coil operating power
Pure DC current should be applied to the coil. If it includes
ripple, the ripple factor should be less than 5%. However, check
it with the actual circuit since the characteristics may be slightly
different. The wave form of power should be rectangular. To
ensure accurate operation, the voltage on both sides of the coil
should be
±5%
(at 20°C
68°F)
of the nominal coil voltage. Also,
please note that the pick-up and drop-out voltages (set and reset
voltages) will change depending on operation temperature and
conditions of use.
3. Coil connection
This relay is polarized relay, the coil voltage must be applied with
correct polarity.
4. External magnetic field
Since RN relays are highly sensitive polarized relays, their
characteristics will be affected by a strong external magnetic
field. Avoid using the relay under that condition.
5. Cleaning
This product is not sealed type, therefore washing is not allowed.
6. Conditions for operation, transport and storage
1) Temperature: –40 to +85°C
–40 to +185°F
(But allowable
temperature is from –40 to +60°C
–40 to +140°F
at our standard
packing condition.)
2) Humidity: 5 to 85% R.H. (Avoid freezing and condensation.)
The humidity range varies with the temperature. Use within the
range indicated in the graph below.
3) Atmospheric pressure: 86 to 106 kPa
Temperature and humidity range for usage, transport, and
storage
Humidity, %RH
pack, storage in anti-humidity packaging with an antihumidity
bag to which silica gel has been added, is recommended.
*Furthermore, if the relay is solder mounted when it has been
subjected to excessive humidity, cracks and leaks can occur. Be
sure to mount the relay under the required mounting conditions.
7. Soldering
Please meet the following conditions if this relay is to be
automatically soldered.
1) Position of measuring temperature
A
A: Surface of PC board where relay is mounted.
2) IR (infrared reflow) soldering method
T
3
T
2
T
1
t
1
T
1
= 150 to 180°C
302 to 356°F
T
2
= 230°C
446°F
and higher
T
3
= 250°C
482°F
max.
t
2
t
1
= 60s to 120s
t
2
= within 30s
85
Tolerance range
(Avoid freezing
when used at
temperatures
lower than
0°C
32°F)
5
–40
–40
(Avoid
condensation
when used at
temperatures
higher than
0°C
32°F)
85
+185
• Mounting cautions
Rise in relay temperature depends greatly on the component
mix on a given PC board and the heating method of the reflow
equipment. Therefore, please test beforehand using actual
equipment to ensure that the temperature where the relay
terminals are soldered and the temperature at the top of the
relay case are within the conditions given above.
3) Please meet the following conditions if this relay is to be
soldered by hand.
(1) Max. 260°C
500°F
(solder temperature), within 10 seconds
(soldering time)
(2) Max. 350°C
662°F
(solder temperature), within 3 seconds
(soldering time)
The effect on the relay depends on the actual PC board used.
Please verify the PC board to be used.
8. Tape and reel packing
1) Tape dimensions (General tolerance:
±0.1
±.004)
RN relay
1.5
+0.1
dia.
0
.059
+.004
dia.
12.4
0
.488
20.0
.787
2.0
.079
4.0 1.75
.157 .069
10.3
.406
0.5
.020
X type
Temperature,
°C
°F
0
+32
4) Condensation
Condensation forms when there is a sudden change in
temperature under high temperature and high humidity
conditions. Condensation will cause deterioration of the relay
insulation.
5) Freezing
Condensation or other moisture may freeze on the relay when
the temperature is lower than 0°C
32°F.
This causes problems
such as sticking of movable parts or operational time lags.
6) Low temperature and low humidity environments
The plastic becomes brittle if the relay is exposed to a low
temperature, low humidity environment for long periods of time.
7) Storage requirements
Since the relay is sensitive to humidity, it comes in sealed anti-
humidity packaging. However, when storing, please be careful of
the following.
(1) Please use promptly once the anti-humidity pack is opened.
(2) When storing for a log period after opening the anti-humidity
ASCTB71E 201202-T
11.5
.453
24.0±0.3
15.0
.945±.012
.591
Z type
Direction indication
Tape coming out direction
2) Dimensions of plastic reel
21
±0.8
dia.
.827
±.031
dia.
2.0
±0.5
.079
±.020
80
±1
dia.
380
±2
dia.
3.150
±.039
dia. 14.961
±.079
dia.
13
±0.2
dia.
.512
±.008
dia.
24.4
+2.0
0
.961
+.079
0
2.0
±0.2
.079
±.008
Panasonic Corporation
Automation Controls Business Unit
industrial.panasonic.com/ac/e/
京公网安备 11010802033920号
EEWORLD
