ZCP25 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Topical application> Mechanical and electrical/engineering/automation> ZCP25

ZCP25: DescriptionAutomotive Connectors DT 3 WAY RECP SZ 16; CategoryTopical application Mechanical and electrical/engineering/automation; File Size226KB，2 Pages; ManufacturerSCHNEIDER ELECTRIC

Download Datasheet Parametric View All

ZCP25 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	ZCP25	-	-	View	Buy Now

ZCP25 Overview

Automotive Connectors DT 3 WAY RECP SZ 16

ZCP25 Parametric

Parameter Name	Attribute value
Product Category	Limit Switches
Manufacturer	SCHNEIDER ELECTRIC
Contact Form	SPDT
Current Rating	1.5 A
Voltage Rating AC	240 VAC
Voltage Rating DC	250 VDC
Termination Style	Screw
Mounting	Cable
Operating Temperature Range	- 25 C to + 70 C
Factory Pack Quantity	1
Switch Type	Limit Switches
Type	Snap Action

Preview

Download Datasheet

View All

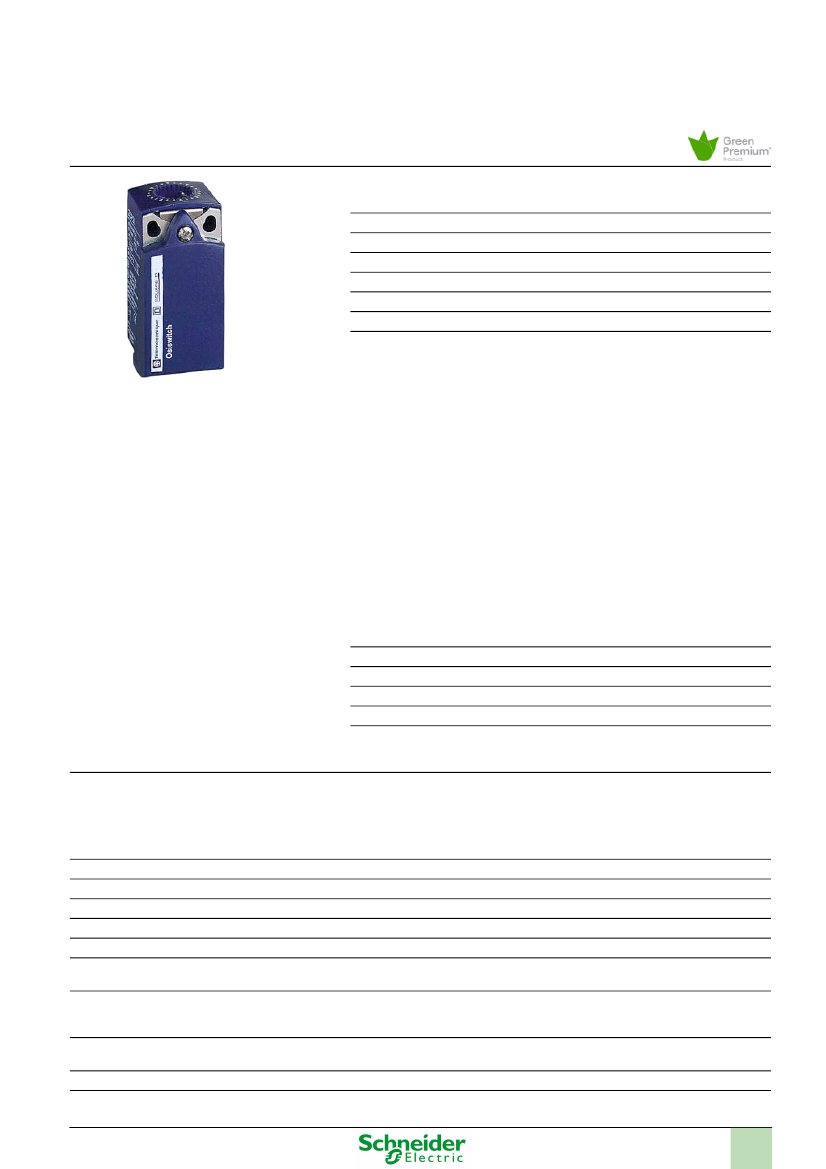

Product datasheet

Characteristics

ZCP25

limit switch body ZCP - compact - 1NC+1NO - slow-

break

Main

Range of product

Series name

Product or component type

Device short name

Design

Body type

Associated head

OsiSense XC

Standard compact

Limit switch body

ZCP

Compact

Fixed

ZCE01

ZCE02

ZCE05

ZCE06

ZCE07

ZCE08

ZCE10

ZCE11

ZCE13

ZCE14

ZCE21

ZCE24

ZCE27

ZCE28

ZCE29

ZCE62

ZCE63

ZCE64

ZCE65

ZCE66

ZCE67

ZCEH0

ZCEH2

Plastic

1 NC + 1 NO

Slow-break, break before make

Body material

Number of poles

Contacts type and composition

Contacts operation

Complementary

Associated connection component

ZCPEF12

ZCPEG11

ZCPEG13

ZCPEN12

ZCPEP16

ZCPEP20

Screw-clamp terminals, clamping capacity: 1 x 0.5...2 x 2.5 mm²

Silver plated contacts

With

6 m/s

B300, AC-15 (Ue = 240 V, Ie = 1.5 A) conforming to EN/IEC 60947-5-1 appendix A

R300, DC-13 (Ue = 250 V, Ie = 0.1 A) conforming to EN/IEC 60947-5-1 appendix A

500 V degree of pollution 3 conforming to IEC 60947-1

300 V conforming to CSA C22-2 No 14

300 V conforming to UL 508

6 kV conforming to IEC 60664

6 kV conforming to IEC 60947-1

10 A by gG cartridge fuse

5000000 cycles, DC-13 120 V, 7 W, operating rate: < 60 cyc/mn, load factor: 0.5

Electrical connection

Contacts insulation form

Contacts material

Positive opening

Minimum actuation speed

Contact code designation

[Ui] rated insulation voltage

[Uimp] rated impulse withstand voltage

Short circuit protection

Electrical durability

1/2

The information provided in this documentation contains general descriptions and/or technical characteristics of the performance of the products contained herein.

This documentation is not intended as a substitute for and is not to be used for determining suitability or reliability of these products for specific user applications.

It is the duty of any such user or integrator to perform the appropriate and complete risk analysis, evaluation and testing of the products with respect to the relevant specific application or use thereof.

Neither Schneider Electric Industries SAS nor any of its affiliates or subsidiaries shall be responsible or liable for misuse of the information contained herein.
