SEALED, ILLUMINATED ROCKER SWITCHES
ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
SEALED
ROCKERS
K3

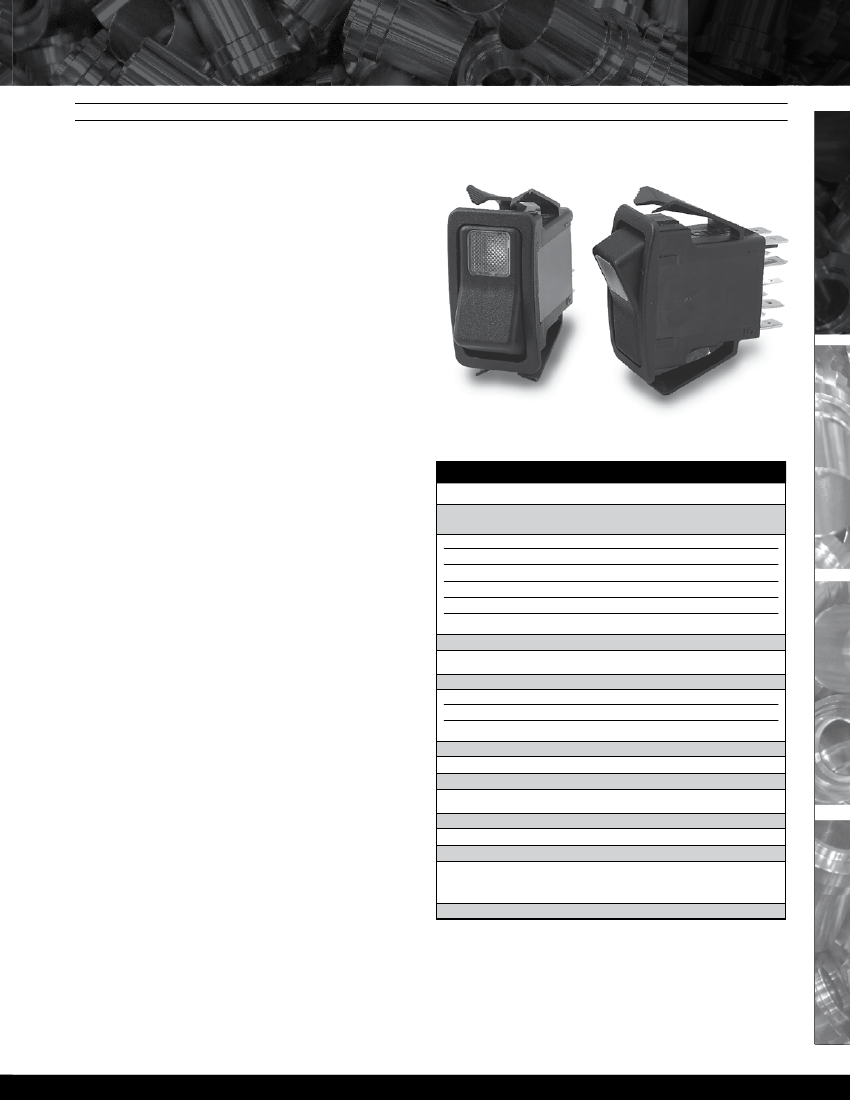

The OTTO K3 rocker switch is a quality, precision switch designed
to comply with standards established for appliance, marine (ignition
protection) and off-road vehicles along with other demanding
applications where rugged rocker switches are required.
K3 sealed rocker switches snap into industry-standard panel
cutouts. Choose illuminated and printed legends, thru-panel
drain option and switching compatibility from low level to
20 amps.
The K3 offers a choice of LED, incandescent and neon
illumination. Legends can be stamped onto a non-illuminated
button, stamped onto an illuminated lens or laser etched into
the lens and backlit.
Available in standard and low level contact ratings, the K3
rockers will fit a wide range of applications. Expect a minimum
of 25,000 cycles at a full rated load of 20 amps resistive or 15
amps inductive. 100,000 cycles mechanical. A full complement
of switch operation is available including momentary and
maintained action in 2 or 3-position switches in SPST, SPDT,
SPTT, DPST and DPDT circuit arrangements.
OTTO can provide custom colors upon request. Value-added
assemblies with wire leads are also available. Please consult the
factory for assistance.
Standard Characteristics/Ratings:
ELECTRICAL RATINGS:
Load
Resistive
Inductive
Lamp
Motor
DWV
Low Level
Electrical Life:
25,000 cycles
Sea Level
@ 12/28VDC
20A
15A
5A
0.5HP @ 110VAC
1050Vrms except across light terminals
10mA @ 30mV
Sea Level
@ 125VAC, 60Hz
16A
15A
5A
ROCKER SWITCHES
Features:
• Sealed watertight per IP68S
• Snap-in panel mounting into industry standard
panel cutout
• Optional panel seal gasket
• Thru-panel drain option
• LED, neon & incandescent lighting
• 0.250” Quick Connect terminals
• Optional one-piece connector
• Optional terminal barriers
• Low level up to 20 amp switch
• Configurable Single Pole Triple Throw (SPTT)
with external jumpers
• RoHS/WEEE/Reach compliant
LIGHTING:
Light Source
Incandescent
Neon
LED
Mechanical Life:
Seal:
Rating
(VDC) 6V, 12V, 24V
(VAC) 125V, 250V
(VDC) 2V, 6V, 12V, 24V
100,000 cycles
IP68S
Operating Temp Range:
-40°C to +85°C
MATERIALS:
Case:
Button:
Terminals/Contact:
Terminal Hardware:
Thermoplastic, black
Thermoplastic
Brass, silver alloy with silver plate, gold flash for low level
K3 series recommended Quick Connect terminals:
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
None provided
Mounting Hardware:
Specifications Subject To Change Without Notice
www.ottoexcellence.com
146
K3
SEALED
ROCKERS
K3
Base Options
A.
With Keying Pin Only
Standard Rating
Silver Plate
B.
Without Barriers or Pin
Standard Rating
Silver Plate
C.
With Terminal Barriers Only
Standard Rating
Silver Plate
D.
With Keying Pin Only
Low Level Rating
Gold Plate
E.
Without Barriers or Pin
Low Level Rating
Gold Plate
F.
With Terminal Barriers Only
Low Level Rating
Gold Plate
G.
With Keying Pin Only
Standard Rating
No Plate
H.
Without Barriers or Pin
Standard Rating
No Plate
J.
With Terminal Barriers Only
Standard Rating
No Plate
SEALED, ILLUMINATED ROCKER SWITCHES
X
X
Case Style/Button Color
A.
Case With Drain Holes
Button Color: Black
B.
Case Without Drain Holes
Button Color: Black
C.
Case With Drain Holes
Button Color: Red
D.
Case Without Drain Holes
Button Color: Red
E.
Case With Drain Holes
Button Color: White
F.
Case Without Drain Holes
Button Color: White
NOTE: Switch case is black for
all options below:
1.
Case With Drain Holes
Button Not Included
2.
Case Without Drain Holes
Button Not Included
1H.
1J.
1K.
1L
1M.
1N.
1P.
2R.
2S.
Position
“A”
3-4/8-9
3-4/8-9
(3-4)/(8-9)
(3-4)/(8-9)
3-4/8-9
(3-4)/(8-9)
(3-4)/(8-9)
3-4/8-9
(3-4)/8-9
1A.
2A.
1B.
2B.
1C.
2C.
1D.
2D.
1E.
2E.
1F.
2F.
1G.
2G.
Position
“A”
3-4
3-4/8-9
3-4
3-4/8-9
(3-4)
(3-4)/(8-9)
(3-4)
(3-4)/(8-9)
(3-4)
(3-4)/(8-9)
3-4
3-4/8-9
(3-4)
(3-4)/(8-9)

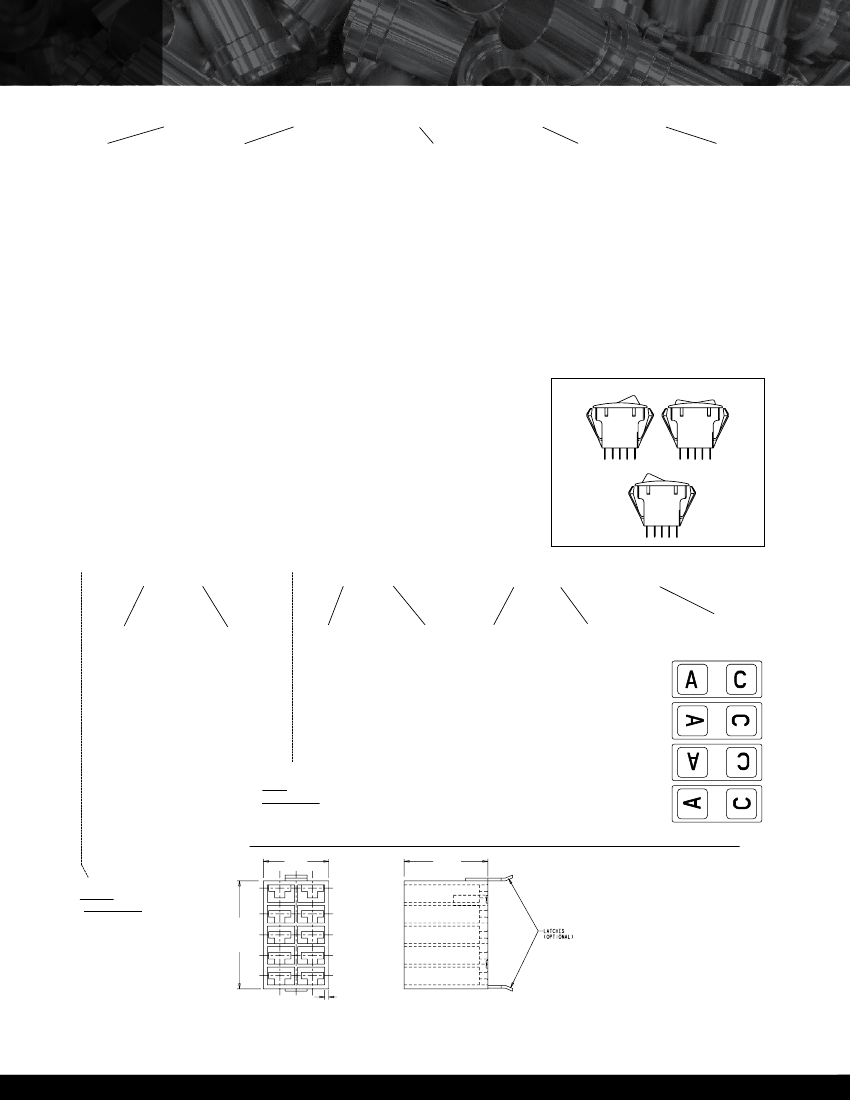

K3 SERIES PART NUMBER CODE
XX
Switch Action/Circuit
Position
“B”
NONE
NONE
NONE
NONE
NONE
NONE
NONE
NONE
OFF
OFF
OFF
OFF
OFF
OFF
Position
Circuit
“C”
OFF
SPST
OFF
DPST
3-2
SPDT
3-2/8-7
DPDT
OFF
SPST
OFF
DPST
3-2
SPDT
3-2/8-7
DPDT
(3-2)
SPDT
(3-2)/(8-7) DPDT
3-2
SPDT
3-2/8-7
DPDT
3-2
SPDT
3-2/8-7
DPDT
Part Number Code Continued Below
X
Light Source Type
A.
No Illumination
B.
6V Incandescent
C.
12V Incandescent
D.
24V Incandescent
E.
125VAC Neon
F.
250VAC Neon
G.
2V Red LED
H.
2V Green LED
J.
2V Amber LED
K.
6V Red LED
L.
6V Green LED
M.
6V Amber LED
N.
12V Red LED
P.
12V Green LED
Q.
12V Amber LED
R.
24V Red LED
S.
24V Green LED
T.
24V Amber LED
X
Light Circuit
Circuit
A.
None
B.
Dep. in “A”
C.
Dep. in “C”
D.
Ind. in “A”
E.
Ind. in “C”
F.
Dep. in “A”
Dep. in “C”
G.
Dep. in “A”
Ind. in “C”
H.
Ind. in “A”
Dep. in “C”
J.
Ind. in “A”
Ind. in “C”
Terminal
Connections
None
1(-) & 4(+)
2(+) & 5(-)
1(-) & 6(+)
5(-) & 10(+)
1(-) & 4(+)
2(+) & 5(-)
1(-) & 4(+)
5(-) & 10(+)
1(-) & 6(+)
2(+) & 5(-)
1(-) & 6(+)
5(-) & 10(+)
Special Circuits
Position
“B”
8-9
8-9
8-9
8-9
3-2/8-9
3-2/8-9
3-2/8-9
OFF/8-9
OFF/8-9
Position
“C”
OFF
NONE
OFF
NONE
3-2/8-7
3-2/8-7
(3-2)/(8-7)
OFF/OFF
OFF/OFF
Special
Circuits
ON/ON/OFF
ON/ON/NONE
(ON)/ON/OFF
(ON)/ON/NONE
ON/ON/ON
(ON)/ON/ON
(ON)/ON/(ON)
ON/OFF/OFF
ON/ON/OFF
(ON)/OFF/OFF
ON/ON/OFF
NOTE: Polarity only applies to
LED circuits.
SWITCH ACTION/CIRCUIT
POS. A
POS. B
6
10
6
10
6,1
10,5
6,1
POS. C
10,5
6
10
NOTE: ( ) denotes momentary action.
6,1
10,5
–
1.
2.
3.
4.
5.
Z.
X
X
Lens Color
K3 PART NUMBER CODE - CONTINUED FROM ABOVE
XX
XX
X
X
X
Legend Orientation
1.
Std.
Position
“A”
Position
“C”
Legend Style
Position “C”
ZZ. No
Legend
Legend Color
Position “C”
1.
Red
2.
Black
9.
White
B.
Backlight/
Daylight White
➃
D.
Backlight/
Deadfront
➃
Z.
No Legend
Position “A”
Transparent Red
Transparent Green
Transparent Amber
➀
Clear
➀
Translucent White➁
No Lens
➂
1.
2.
3.
4.
5.
Z.
Position “C”
Transparent Red
Transparent Green
Transparent Amber
➀
Clear
➀
Translucent White
➁
No Lens
➂
Position “A”
ZZ. No
Legend
NOTE: It is not recommended to use
green LEDs with translucent white
lenses. This will reduce light intensity.
Use clear lenses with green LEDs for
maximum light intensity.
NOTE: For all other legend options,
refer to the legend table, find the two
digit code and enter the code in the
appropriate position(s).
Position “A”
1.
Red
2.
Black
9.
White
B.
Backlight/
Daylight White
➃
D.
Backlight/
Deadfront
➃
Z.
No Legend
2.
90°
➃
For legend color “B” and “D”, please
STOP HERE
for
lighted switches
without legends.
Example: K3AAIFNH-44
use button color “A” & “B” and
lens color “Z” for each position.
3.
180°
➀
Recommended for neon lamps.
S
➁
pecial Order: Ultra bright green
LED to be used with translucent
white lenses.
➂
Legend colors “B” & “D” are only
available on lens color “Z”.
4.
270°
.83
STOP HERE
for
unlighted switches
without legends.
Example: K3AAIFAA
1.00
K3 Connector
P/N 801775-2A Without Latches
P/N 801775-2B With Latches
1.276
± .007
Panel Seal Gasket
P/N 807037
Order separately for use with switches with-
out drain holes.
.046 TYP.
• K3 panel plugs available as shown on page 160.
147
OTTO Full Line Catalog
Recommended Quick Connect Terminals:
AMP 60253-2 for 12-16 AWG
AMP 42100-2 for 14-18 AWG
Panel Plug
See Panel Plug (PP) page 160.
Specifications Subject To Change Without Notice

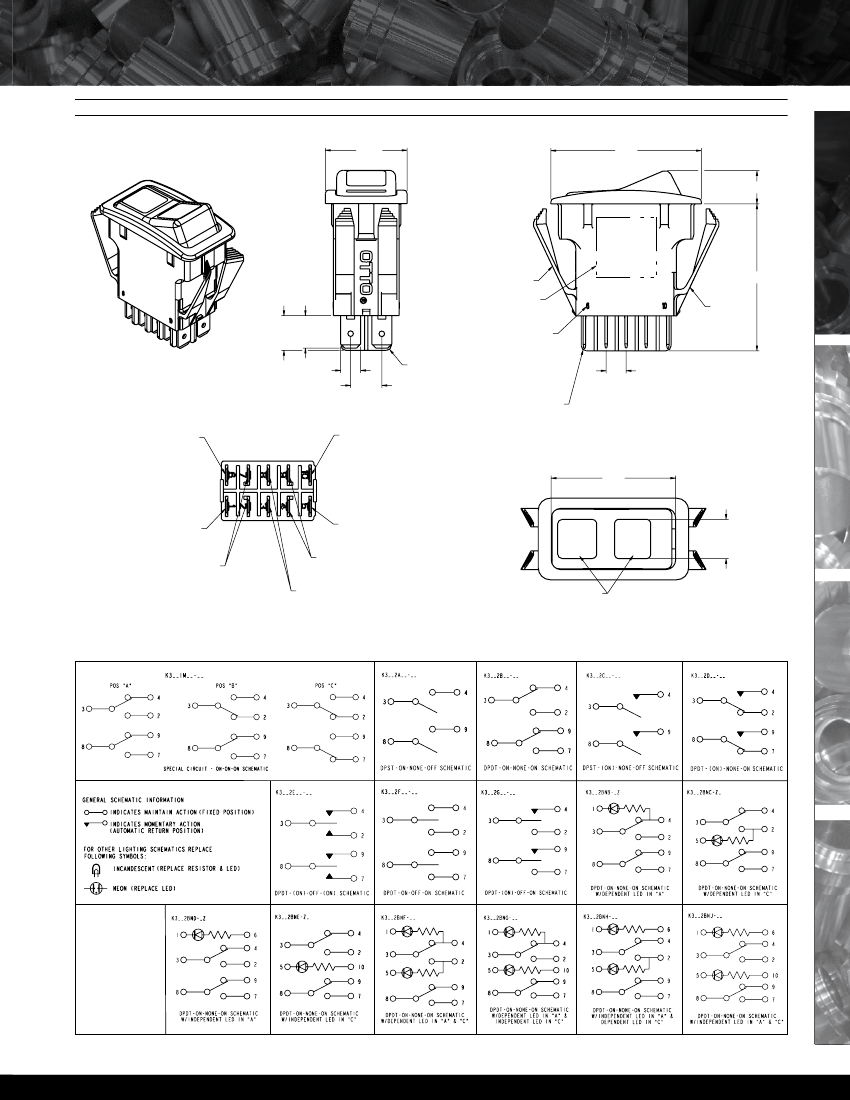

SEALED, ILLUMINATED ROCKER SWITCHES
SNAP-IN PANEL MOUNTING, ATTRACTIVE & RUGGED FOR WET & DUSTY ENVIRONMENTS
1.02
SEALED
ROCKERS
K3
1.89
ROCKER SWITCHES
.42
SIDE "A"
LABEL
SIDE "C"
1.83
.44
.39
TERMINAL ID
TERMINAL BARRIER
(OPTIONAL)
.39
SWITCH SHOWN WITH TERMINAL BARRIERS
CONNECTOR KEY FEATURE OPTIONAL
.25
.25 TYP.
SWITCH SHOWN IN POSITION "A"
LIGHT TERMINAL LOCATION
IND IN "A"
(LED POLARITY NOTED)
ANODE (+)
CATHODE (-)
LIGHT TERMINAL LOCATION
IND/DEP IN "A"
(LED POLARITY NOTED)
POSITION "C" STATIONARY
TERMINAL SIDE
(TERMINAL NUMBERS 2 & 7)
LIGHT TERMINAL LOCATION
IND IN "C"
(LED POLARITY NOTED)
ANODE (+)
CATHODE (-)
LIGHT TERMINAL LOCATION
IND/DEP IN "C"
(LED POLARITY NOTED)
POSITION "A" STATIONARY
TERMINAL SIDE
(TERMINAL NUMBERS 4 & 9)
COMMON TERMINALS (3 & 8)
LENSES/LEGEND
LOCATIONS
2X .50
SQ. LENSES
1.53
TERMINAL LOCATIONS AS VIEWED FROM
BOTTOM OF SWITCH (CASE REMOVED FOR CLARITY)
CONTACT MADE IN OPPOSITE DIRECTION OF ROCKER TRAVEL
Specifications Subject To Change Without Notice
www.ottoexcellence.com
148

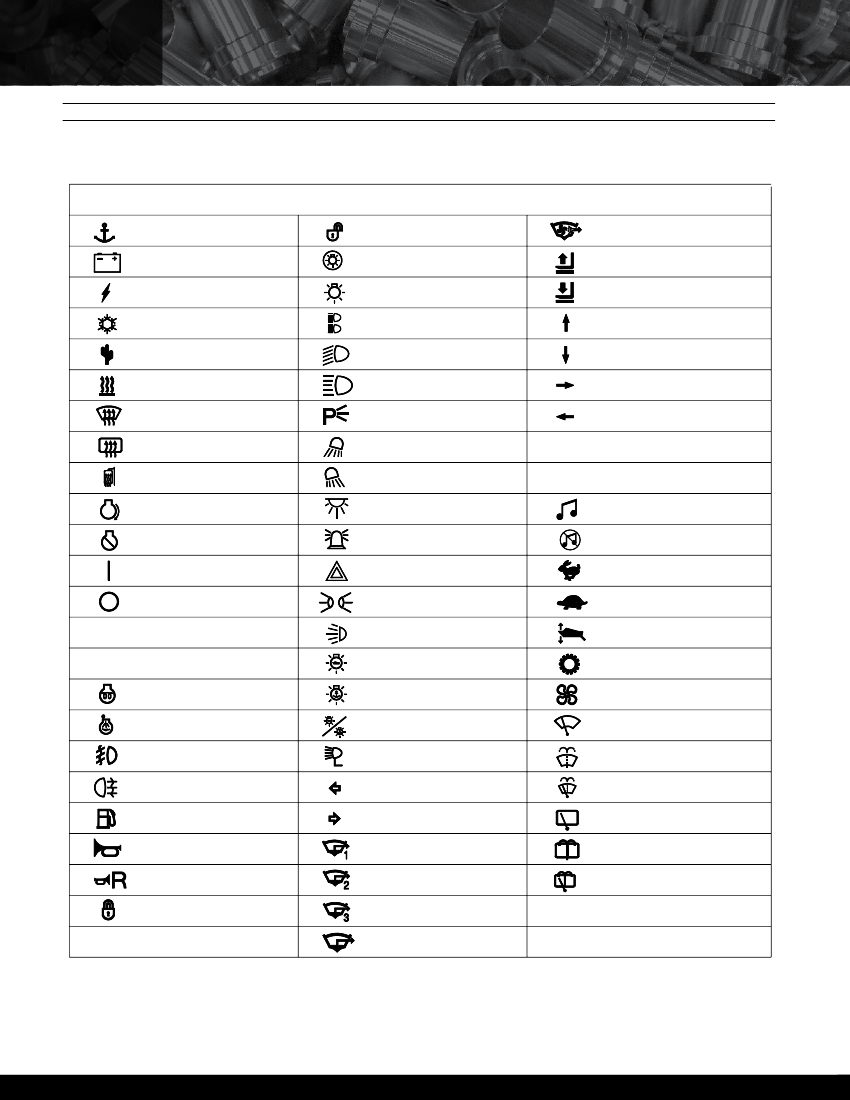

STANDARD
LEGENDS
STANDARD LEGENDS PER SAE
SNAP-IN PANEL MOUNTING
Standard Legends Per SAE Specifications
STANDARD LEGENDS PER SAE SPECIFICATIONS
A1
B1
B2
C1
C2
C3
D1
D2
D3
E1
E2
E3
E4
E5
ON
ANCHOR
BATTERY
ELECTRIC POWER
AC/COOLING SYSTEMS
DEHUMIDIFIER
K2
L1
L2
L3
L4
UNLOCK
LIGHT
P5
R1
BILGE BLOWER
LIFT
LOWER
UP
DOWN
RIGHT
LEFT
FORWARD
REVERSE
RADIO
MUTE
FAST
SLOW
TRIM TAB /
TRIMMING OPERATION
TRANSMISSION
VENTILATING / AC FAN
WINDSHIELD WIPER
WINDSHIELD-WASHER
WINDSHIELD-WASHER/WIPER
REAR WINDOW WIPER
REAR WINDOW-WASHER
REAR WINDOW-WASHER/WIPER
NO LEGEND
MASTER LIGHTING SWITCH R2
HEADLIGHTS
HEADLIGHTS-LOW /
DIPPED BEAM
HEADLIGHTS-HIGH /
UPPER BEAM
PARKING LIGHT
WORK LAMP
WORK LAMP
INTERIOR DOME LIGHT
BEACON
R3
R4
R5
R6
R7
FWD
R8
REV
S1
S2
HEATER/INTERIOR HEATING L5
WINDSHIELD DEFROSTER
L6
REAR WINDOW DEFROSTER L7
MIRROR DEFROSTER
ENGINE/START
ENGINE/STOP
ON/START
OFF/STOP
ON
OFF
L8
L9
M1
M2
M3
M4
M5
HAZARD/POSITION LIGHTS T1
CLEARANCE LIGHTS
SIDE MARKER LIGHT
RUNNING LIGHTS
(UNDER POWER)
ANCHOR LIGHT
T2
T3
T4
V1
E6
OFF
E7
E8
F1
F2
G1
H1
H2
K1
ENGINE ELECTRIC PREHEAT M6
ENGINE-GAS INJECTION
FRONT FOG LIGHTS
REAR FOG LIGHTS
FUEL
HORN
HORN REAR
LOCK
M7
M8
M9
MA
P1
P2
P3
P4
RUNNING/ANCHOR LIGHTS W1
SEARCH LIGHT
LEFT TURN SIGNAL
RIGHT TURN SIGNAL
BILGE PUMP #1
BILGE PUMP #2
BILGE PUMP #3
BILGE PUMP
W2
W3
W4
W5
W6
ZZ
For legends not shown, please consult an OTTO representative.
155
OTTO Full Line Catalog
Specifications Subject To Change Without Notice
京公网安备 11010802033920号
EEWORLD
