4211R-23 datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Analog mixed-signal IC> filter> 4211R-23

4211R-23: DescriptionFerrite Beads EMI/RFI Suppressor Filter Bead SMT; CategoryAnalog mixed-signal IC filter; File Size3MB，1 Pages; ManufacturerAPI Delevan; Websitehttp://www.delevan.com/; Environmental Compliance

Download Datasheet Parametric View All

4211R-23 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	4211R-23	-	-	View	Buy Now

4211R-23 Overview

Ferrite Beads EMI/RFI Suppressor Filter Bead SMT

4211R-23 Parametric

Parameter Name	Attribute value
Is it lead-free?	Lead free
Is it Rohs certified?	conform to
package instruction	ROHS COMPLIANT PACKAGE-2
Reach Compliance Code	compliant
ECCN code	EAR99
Other features	IMPEDANCE AT 25 MHZ
diameter	3.51 mm
filter type	FERRITE BEAD
high	8.89 mm
JESD-609 code	e3
Manufacturer's serial number	4211R
Installation type	THROUGH HOLE MOUNT
Number of functions	1
Output impedance	138 OHM Ω
method of packing	TAPE AND REEL
physical size	D3.51XH8.89 (mm)/D0.138XH0.35 (inch)
Terminal surface	Tin (Sn)
Base Number Matches	1

Preview

Download Datasheet

View All

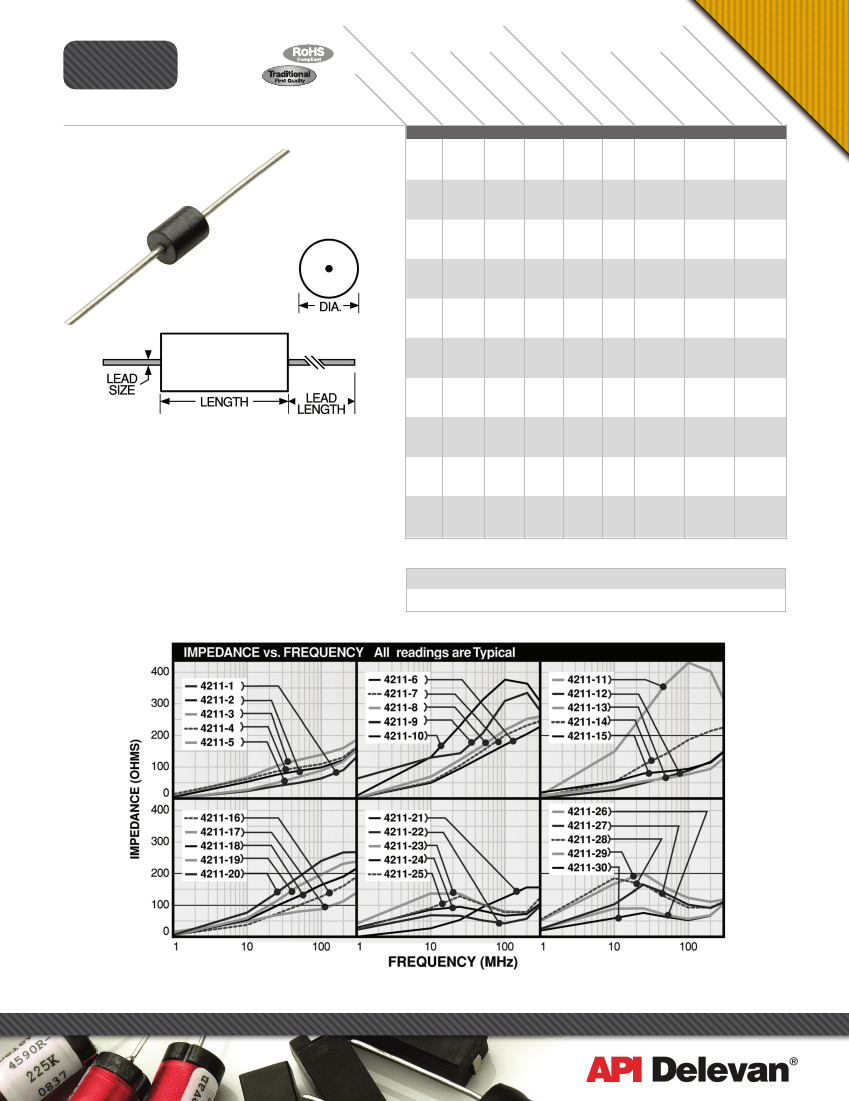

SERIES

4211R

4211

DIMENSIONS

(Inches)

±.

IMPEDANCE

(OHMS)

Axial Leaded Filter Bead

Actual Size (-20)

Impedance

measured at indicated frequencies, utilizing

an HP 4191A at 25°C

Lead Material

capable of meeting MIL-STD-202, Method

208 solderability requirements

Packaging

Tape & reel: 14" reel. Series 4211-1 to 4211-8

and 4211-12 to 4211-30, 4000 pieces max. Series 4211-9

to 4211-11, 1000 pieces max. 12" reel not available

Lead Length

1 Inch min.

-1

-2

-3

-4

-5

-6

-7

-8

-9

-10

-11

-12

-13

-14

-15

-16

-17

-18

-19

-20

-21

-22

-23

-24

-25

-26

-27

-28

-29

-30

0.138

0.385

0.138

SERIES 4211

0.025 0.175

0.025 0.350

0.025 0.263

0.025 0.300

0.025 0.236

0.025 0.375

0.025 0.450

0.025 0.545

0.032 0.450

0.032 0.550

0.032 0.650

0.025 0.206

0.025 0.175

0.025 0.350

0.025 0.263

0.025 0.300

0.025 0.236

0.025 0.375

0.025 0.450

0.025 0.545

0.025 0.206

0.025 0.175

0.025 0.350

0.025 0.263

0.025 0.300

0.025 0.236

0.025 0.375

0.025 0.450

0.025 0.545

0.025 0.206

/ 4211R FERRITE CORE

±.010

≥

54 - 82

±.020

≥

106 - 160

±.010

≥

80 - 120

±.020

≥

88 - 132

±.010

≥

72 - 109

±.010

≥

120 - 180

±.015

≥

144 - 216

±.025

≥

114

176 - 264

±.015

≥

154

216 - 325

±.020

≥

188

264 - 397

±.020

≥

224

312 - 469

±.010

≥

66 - 98

±.010

50 min.

±.020

105 min.

±.010

78 min.

±.020

90 min.

±.010

70 min.

±.010

112 min.

±.015

135 min.

±.025

163 min.

±.010

61 min.

±.010

≥38

49-73

±.020

≥75

92-138

±.010

≥56

69-103

±.020

≥64

79-118

±.010

≥50

62-93

±.025

≥88

108-162

±.015

≥100

124-187

±.025

≥121

152-228

±.010

≥44

54-82

72 - 108

134- 202

100 - 150

115 - 173

90 - 136

144 - 216

170 - 255

206 - 310

80 - 120

*Complete part # must include series # PLUS the dash #

For surface ﬁnish information, refer to www.delevanﬁnishes.com

For more detailed graphs, contact factory

270 Quaker Rd., East Aurora NY 14052 • Phone 716-652-3600 • Fax 716-652-4814 • E-mail: apisales@delevan.com • www.delevan.com

1/2009
