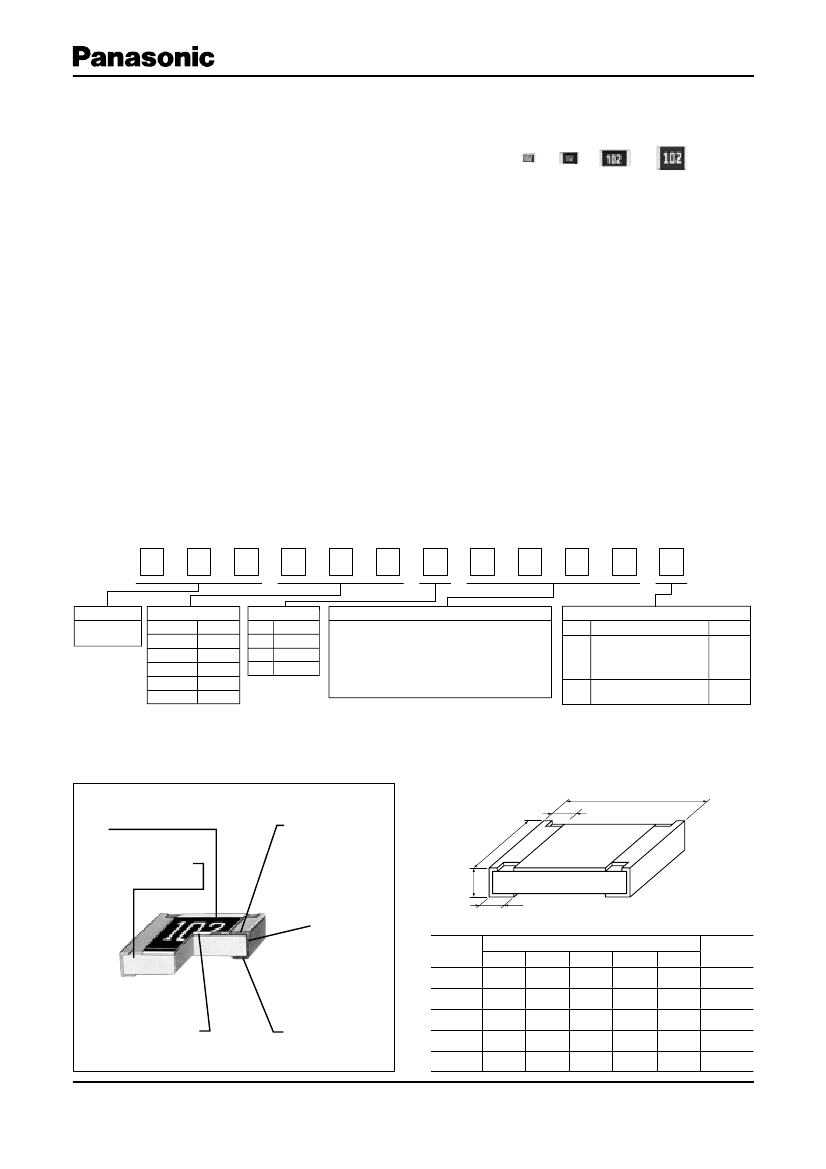

Anti-Surge Thick Film Chip Resistors
Anti-Surge Thick Film Chip Resistors
0603, 0805, 1206, 1210
Type:
ERJ P03, PA3, P06, P08, P14
■
Features
●
ESD surge characteristics superior to standard metal film resistors
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Suitable for both reflow and flow soldering
●
High power… 0.20 W : 1608(0603) size(ERJP03)
0.25 W : 1608(0603) size(ERJPA3)
0.50 W : 2012(0805) size(ERJP06), 3225(1210) size(ERJP14)
0.66 W : 3216(1206) size(ERJP08)
●
Reference Standards…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
AEC-Q200 qualified
●
RoHS compliant
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Type: inch Power R.
P03 : 0603 0.20 W
PA3 : 0603 0.25 W
P06 : 0805 0.50 W
P08 : 1206 0.66 W
P14 : 1210 0.50 W
Resistance Tolerance
Code Tolerance
D
± 0.5 %
F
±1%
J
±5%
Resistance Value
The first two or three digits are significant figures
of resistance and the third or 4th one denotes
number of zeros following.
Three digit type (±5%),
four digit type (±1%, ±0.5%)
Example: 222 2.2 k , 1002 10 k
Code
V
Packaging Methods
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
Type
ERJP03
ERJPA3
ERJP06
ERJP08
U
Embossed Carrier Taping
ERJP14
4 mm pitch, 5,000 pcs.
■
Construction
Protective coating
■
Dimensions in mm (not to scale)
L
a
Electrode (Inner)
W
Alumina substrate
t
b
Type
(inch size)
ERJP03
(0603)
ERJPA3
(0603)
ERJP06
(0805)
ERJP08
(1206)
ERJP14
(1210)
Dimensions (mm)
L
W
a
b
t
1.60
±0.15
0.80
+0.15
0.15
+0.15
0.30
±0.15
0.45
±0.10
–0.10
–0.05
1.60
±0.15
0.80
+0.15
0.15
+0.15
0.25
±0.10
0.45
±0.10
–0.10
–0.05
2.00
±0.20
1.25
±0.10
0.25
±0.20
0.40
±0.20
0.60
±0.10
3.20
–0.20
1.60
–0.15
0.40
±0.20
0.50
±0.20
0.60
±0.10
3.20
±0.20
2.50
±0.20
0.35
±0.20
0.50
±0.20
0.60
±0.10
+0.05
+0.05
Electrode
(Between)
Mass (Weight)
[g/1000 pcs.]
2
2
4
10
16
Thick film
resistive element
Electrode (Outer)
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
06 Feb. 2014
19
Anti-Surge Thick Film Chip Resistors
■
Ratings
Type
(inch size)
Power Rating
at 70 °C
(W)
(3)
Limiting
Element
(1)
Voltage
(V)
Maximum
Overload
(2)
Voltage
(V)
Resistance
Tolerance
(%)
±0.5
Resistance
Range
(Ω)
10 to 1 M
(E24, E96)
10 to 1 M
(E24, E96)
1 to 1 M
(E24)
10 to 1 M
(E24, E96)
1 to 1.5 M
(E24)
10 to 1 M
(E24, E96)
1 to 3.3 M
(E24)
10 to 1 M
(E24, E96)
1 to 10 M
(E24)
10 to 1 M
(E24, E96)
1 to 1 M
(E24)
T.C.R.
(×10
–6
/°C)
±150
±200
R < 10
Ω
:
–150 to +400
10
Ω
<
R
:
±200
±100
Category
Temperature
Range (°C)
ERJP03
(0603)
0.20
150
200
±1
±5
–55 to +155
ERJPA3
(0603)
±0.5, ±1
0.25
150
200
±5
±0.5, ±1
–55 to +155
±200
R < 33
Ω
:
±300
33
Ω
<
R
:
±100
R < 10
Ω
:
–100 to +600
10
Ω
<
R < 33
Ω
:
±300
33
Ω
<
R
:
±200
±100
R < 10
Ω
10
Ω
<
R
:
–100 to +600
:
±200
–55 to +155
ERJP06
(0805)
0.50
400
600
±5
±0.5, ±1
–55 to +155
ERJP08
(1206)
ERJP14
(1210)
0.66
500
1000
±5
±0.5, ±1
±100
R < 10
Ω
:
–100 to +600
10
Ω
<
R
:
±200
–55 to +155
0.50
200
400
±5
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5
×
Power Rating or max. Overload Voltage listed above whichever less.
(3) Use it on the condition that the case temperature is below 155 °C.
–55 °C
100
Rated Load (%)
80
60
40
20
0
–60 –40 –20
ERJ P03, PA3,
P14
155 °C
0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
70 °C
125 °C
ERJ P06,
P08
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure on the right.
½
When the temperature of ERJP14 is 155 °C or less, the
derating start temperature can be changed to 125 °C.
(See the dotted line)
■
ESD Characteristic
R=0 ( 1.5 k )/150 (> 1.5 k )
±3.0kV
C=150pF
Sample
Anti-Surge Thick Film Chip Resistors(ERJP Type)
Thick Film Chip Resistors(ERJ Type)
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
ERJP06
ERJ6G
ERJP06 (2012 (0805) size)
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
ERJP03, PA3(1608 (0603) size)
ERJPA3
ERJP03
ERJ3G
10
100
1k
10k
100k
1M
10
100
1k
10k
100k
1M
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
ERJP08(3216 (1206) size)
ERJP08
ERJ8G
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
ERJP14(3225 (1210) size)
ERJP14
ERJ14
10
100
1k
10k
100k
1M
10
100
1k
10k
100k
1M
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
06 Feb. 2014
20

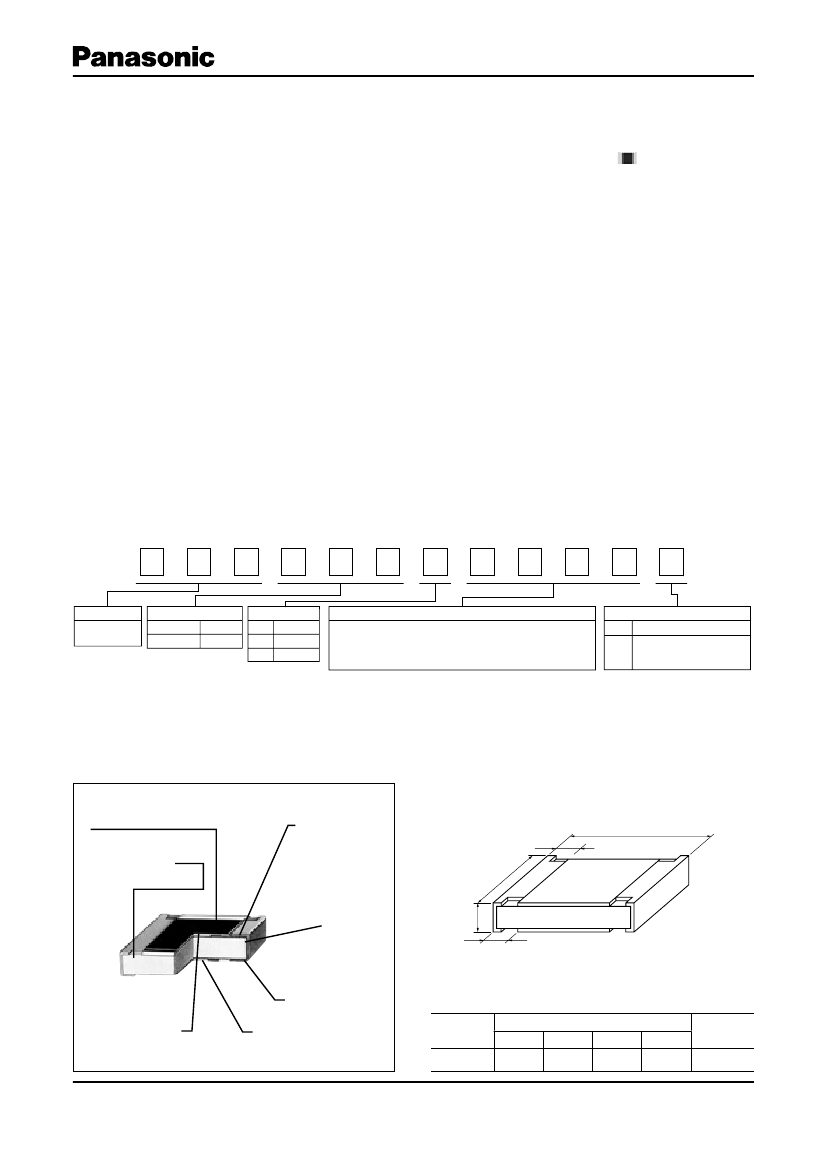

Anti-Surge Thick Film Chip Resistors (Double-sided resistive elements structure)
Anti-Surge Thick Film Chip Resistors
(Double-sided resistive elements structure)
0805
Type:
ERJ P6W
■
Features
●
ESD surge characteristics superior to standard metal film resistors
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Suitable for both reflow and flow soldering
●
High power… 0.50 W : 2012(0805) size(ERJP6W)
●
High pulse characteristics…1.5 times higher than 0805 inch size Anti-Surge Thick Film Chip Resistors (ERJP06)
●
Reference Standards…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
AEC-Q200 qualified
●
RoHS compliant
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
12
Resistance Tolerance
Size, Power Rating
Product Code
Thick Film
Type: inch Power R. Code Tolerance
Chip Resistors P6W : 0805 0.50 W
F
±1%
J
±5%
Resistance Value
The first two or three digits are significant figures of resistance
and the third or 4th one denotes number of zeros following.
Three digit type (±5%), four digit type (±1%)
Example: 222 2.2 k , 1002 10 k
Packaging Methods
Code
V
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
■
Construction
Protective coating
■
Dimensions in mm (not to scale)
Electrode (Inner)
a
L
Alumina substrate
W
Electrode
(Between)
t
a
Electrode (Outer)
Thick film
resistive element
Bottom side element
Type
(inch size)
ERJP6W
(0805)
Dimensions (mm)
L
2.00
±0.20
W
1.25
±0.20
a
0.35
±0.20
t
0.65
±0.10
Mass (Weight)
[g/1000 pcs.]
6
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2014
21
Anti-Surge Thick Film Chip Resistors (Double-sided resistive elements structure)
■
Ratings
Type
(inch size)
Power Rating
at 70 °C
(W)
(3)
Limiting
Element
(1)
Voltage
(V)
150
Maximum
Overload
(2)
Voltage
(V)
200
Resistance
Tolerance
(%)
±1
Resistance
Range
(Ω)
10 to 1 M
(E24, E96)
1 to 1 M
(E24)
T.C.R.
(×10
–6
/°C)
±200
R < 10
Ω
:
–100 to +600
10
Ω
<
R
:
±200
Category
Temperature
Range (°C)
ERJP6W
(0805)
0.50
–55 to +155
±5
(1) Rated Continuous Working Voltage (RCWV) shall be determined from RCWV=
√
Power Rating
×
Resistance Values, or Limiting Element Voltage
listed above, whichever less.
(2) Overload (Short-time Overload) Test Voltage (SOTV) shall be determined from SOTV=2.5
×
Power Rating or max. Overload Voltage listed above whichever less.
(3) Use it on the condition that the case temperature is below 155 °C.
Rated Load (%)
Power Derating Curve
For resistors operated in ambient temperatures above
70 °C, power rating shall be derated in accordance
with the figure on the right.
–55 °C
100
80
60
40
20
0
–60 –40 –20
70 °C
155 °C
0 20 40 60 80 100 120 140 160 180
Ambient Temperature (°C)
■
ESD Characteristic
R=0 ( 1.5 k )/150 (> 1.5 k )
±3.0kV
C=150pF
Sample
Anti-Surge Thick Film Chip Resistors(ERJP6W Type)
Thick Film Chip Resistors(ERJ6G Type)
5%
0%
-5%
-10%
-15%
-20%
-25%
-30%
10
100
1k
10k
100k
1M
■
Limiting Power Curve
●
In rush pulse Characteristic
Pulse duration :
t
Pp
Limiting
Power
0
Test cycle : 1 cycles
Spec
: Resistance value = within ±1%
Anti-Surge Thick Film Chip Resistors(ERJP6W Type)
Anti-Surge Thick Film Chip Resistors(ERJP06 Type)
Limiting Power : Pp (W)
100
10
1
1
10
100
Pulse duration
t
(msec)
1000
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
01 Feb. 2014
22

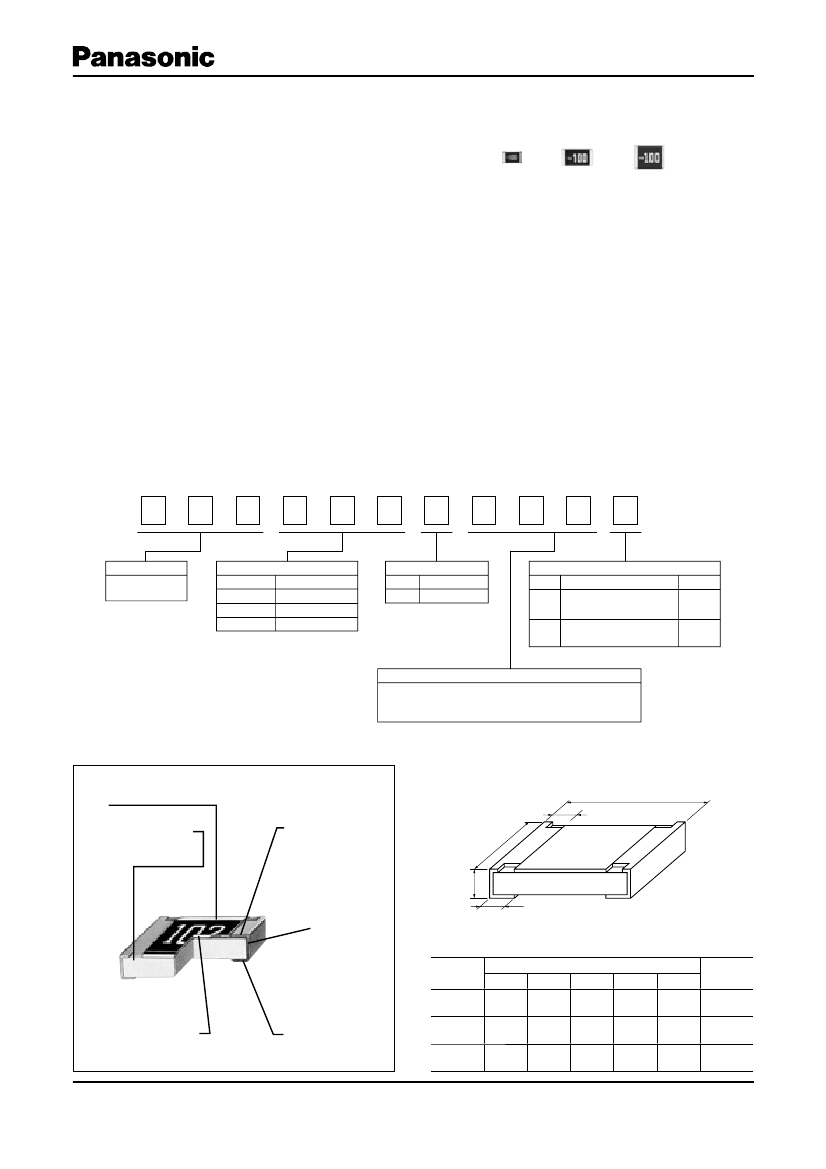

Anti-Pulse Thick Film Chip Resistors
Anti-Pulse Thick Film Chip Resistors
0805, 1206, 1210
Type:
ERJ T06, T08, T14
■
Features
●
Anti-Pulse characteristics
High pulse characteristics achieved by the optimized trimming specifications
●
High reliability
Metal glaze thick film resistive element and three layers of electrodes
●
Suitable for both reflow and flow soldering
●
High power… 0.25 W : 2012(0805) size
0.33 W : 3216(1206) size
0.5 W : 3225(1210) size
●
Reference Standards…IEC 60115-8, JIS C 5201-8, EIAJ RC-2134B
●
AEC-Q200 qualified
●
RoHS compliant
■
Packaging Methods, Land Pattern, Soldering Conditions and Safety Precautions
Please see Data Files
■
Explanation of Part Numbers
1
2
3
4
5
6
7
8
9
10
11
Product Code
Thick Film
Chip Resistors
Size, Power Rating
Type: inch
Power R.
T06 : 0805
0.25 W
T08 : 1206
0.33 W
T14 : 1210
0.5 W
Resistance Tolerance
Code
J
Tolerance
±5%
Code
V
U
Packaging Methods
Packaging
Punched Carrier Taping
4 mm pitch, 5,000 pcs.
Type
ERJT06
ERJT08
Embossed Carrier Taping
ERJT14
4 mm pitch, 5,000 pcs.
Resistance Value
The first two digits are significant figures of resistance
and the third one denotes number of zeros following.
Example: 222 2.2 k
■
Construction
Protective coating
■
Dimensions in mm (not to scale)
L
a
Electrode (Inner)
W
Alumina substrate
t
b
Electrode
(Between)
Type
(inch size)
ERJT06
(0805)
Thick film
resistive element
Electrode (Outer)
ERJT08
(1206)
ERJT14
(1210)
Dimensions (mm)
L
2.00
±0.20
W
1.25
±0.10
a
0.25
±0.20
b
0.40
0.50
0.50
±0.20
t
0.60
0.60
0.60
±0.10
Mass (Weight)
[g/1000 pcs.]
4
10
16
3.20
–0.20
1.60
–0.15
0.40
3.20
±0.20
+0.05
+0.05
±0.20
±0.20
±0.10
2.50
±0.20
0.35
±0.20
±0.20
±0.10
Design and specifications are each subject to change without notice. Ask factory for the current technical specifications before purchase and/or use.
Should a safety concern arise regarding this product, please be sure to contact us immediately.
03 Feb. 2014
23
京公网安备 11010802033920号
EEWORLD
