T520D337M006AHE018 datasheet, PDF

Datasheet> All Categories > Passive components> capacitor> T520D337M006AHE018

T520D337M006AHE018: DescriptionTantalum Capacitors - Polymer SMD 6.3volts 330uF 20% ESR=18; CategoryPassive components capacitor; File Size71KB，1 Pages; ManufacturerKEMET; Websitehttp://www.kemet.com

Download Datasheet Parametric View All

T520D337M006AHE018 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	T520D337M006AHE018	-	-	View	Buy Now

T520D337M006AHE018 Overview

Tantalum Capacitors - Polymer SMD 6.3volts 330uF 20% ESR=18

T520D337M006AHE018 Parametric

Parameter Name	Attribute value
Is it lead-free?	Contains lead
Is it Rohs certified?	incompatible
Maker	KEMET
package instruction	CHIP
Reach Compliance Code	not_compliant
ECCN code	EAR99
Samacsys Description	Tantalum Capacitors - Polymer SMD 6.3volts 330uF 20% ESR=18
capacitance	330 µF
Capacitor type	TANTALUM CAPACITOR
dielectric materials	TANTALUM (SOLID POLYMER)
ESR	18 mΩ
high	2.8 mm
JESD-609 code	e0
leakage current	0.2079 mA
length	7.3 mm
Installation features	SURFACE MOUNT
negative tolerance	20%
Number of terminals	2
Maximum operating temperature	105 °C
Minimum operating temperature	-55 °C
Package shape	RECTANGULAR PACKAGE
Package form	SMT
method of packing	TR, EMBOSSED PLASTIC, 7 INCH
polarity	POLARIZED
positive tolerance	20%
Rated (DC) voltage (URdc)	6.3 V
ripple current	875 mA
size code	2917
surface mount	YES
Delta tangent	0.1
Terminal surface	Tin/Lead (Sn90Pb10)
Terminal shape	J BEND
width	4.3 mm

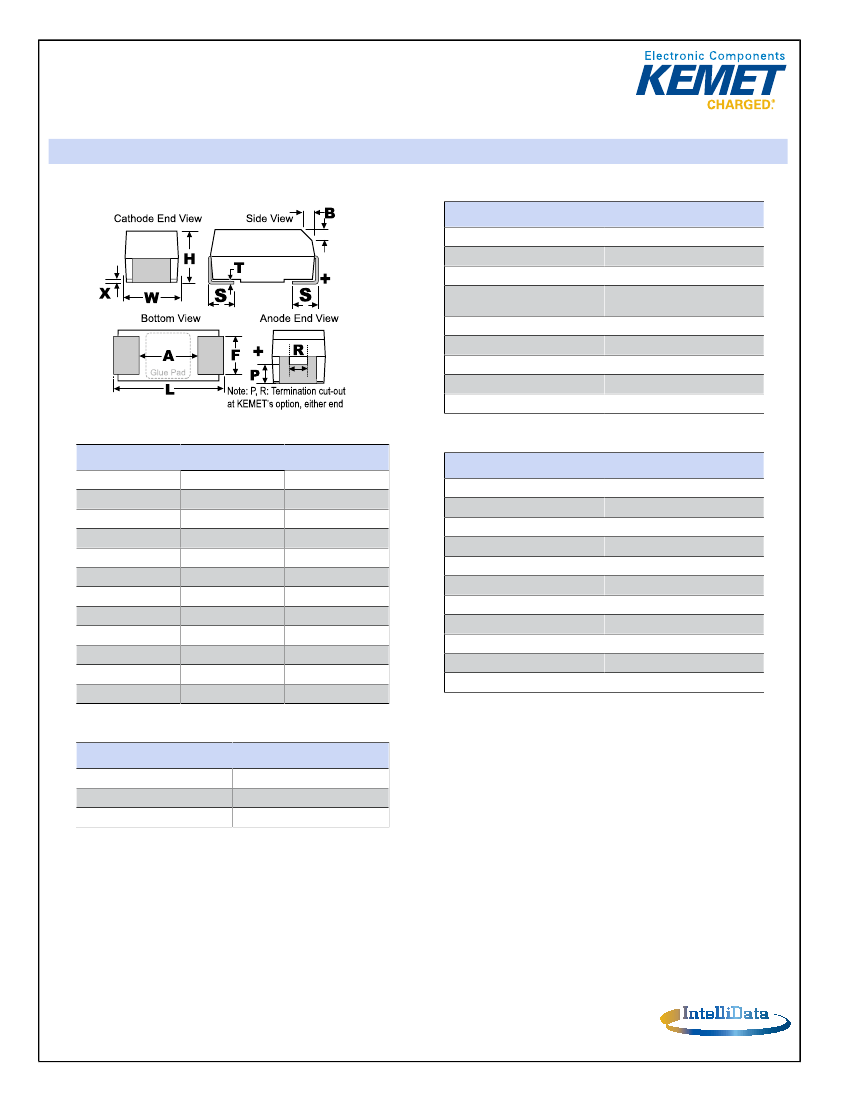

Preview

Download Datasheet

View All

KEMET Part Number: T520D337M006AHE018

Capacitor, Tantalum, SMD, Polymer, Molded, Low ESR, Non-Combustible, 330 uF, 7343, +/-20% Tol, -55/+105C, 6.3 VDC (105C)

General Information

Supplier:

Application:

Sub Application:

Part Type Description:

Construction:

Body Type:

Footprint:

Weight:

RoHS:

KEMET

Low ESR

(NonCombustibleCathode)

SMD, Polymer, Molded, Low

ESR, Non-Combustible

Standard Chip-Polymer

SMD Chip

7343

434.83 mg

Symbol

Dimensions (mm)

Dimension

7.3

4.3

2.8

2.4

1.3

0.5

0.1

0.9

0.13

3.6

Tolerance

+/-0.3

+/-0.1

+/-0.3

+/-0.15

+/-0.1

REF

MIN

Specifications

Capacitance:

Tolerance:

Voltage:

Temperature Range:

Current/Ripple Current:

Resistance/ESR:

Failure Rate:

Leakage Current:

Dissipation Factor:

330 uF

+/-20%

6.3 VDC (105C)

-55/+105C

3500 mAmps (100kHz 45C)

2450 mAmps (85C)

1662.5 mAmps (105C)

18 mOhms (100kHz 25C)

N/A

207.9 uA

10%

Packaging Specifications

Package Kind:

Package Size:

Package Quantity:

T&R

7 in/180 mm

500

Statements of suitability for certain applications are based on our knowledge of typical operating conditions for such applications, but are not intended to constitute - and

we specifically disclaim - any warranty concerning suitability for a specific customer application or use. This Information is intended for use only by customers who have the

requisite experience and capability to determine the correct products for their application. Any technical advice inferred from this Information or otherwise provided by us

with reference to the use of our products is given gratis, and we assume no obligation or liability for the advice given or results obtained.

Generated 10/12/2017 - d340ed93-db94-4d3c-aa18-41e5890c345b
