EH28-15-02-27M-X datasheet, PDF

Datasheet> All Categories > Passive components> EH28-15-02-27M-X

EH28-15-02-27M-X: DescriptionHeaders u0026 Wire Housings VERT PCB HDR 4P TIN FRICTION LOCK; CategoryPassive components; File Size180KB，5 Pages; ManufacturerSchaffner

Download Datasheet Parametric Compare View All

EH28-15-02-27M-X Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	EH28-15-02-27M-X	-	-	View	Buy Now

EH28-15-02-27M-X Overview

Headers u0026 Wire Housings VERT PCB HDR 4P TIN FRICTION LOCK

EH28-15-02-27M-X Parametric

Parameter Name	Attribute value
Product Category	Common Mode Chokes / Filters
Manufacturer	Schaffner
RoHS	Details
Termination Style	Radial
Inductance	27 mH
Tolerance	30 %
Maximum DC Resistance	245 mOhms
Maximum Operating Temperature	+ 100 C
Minimum Operating Temperature	- 25 C
Length	28 mm
Width	28 mm
Height	22.9 mm
Product	Chokes
Operating Temperature Range	- 25 C to + 100 C
Shielding	Unshielded
Factory Pack Quantity	25
Test Frequency	10 kHz
Unit Weight	1.093493 oz

Preview

Download Datasheet

View All

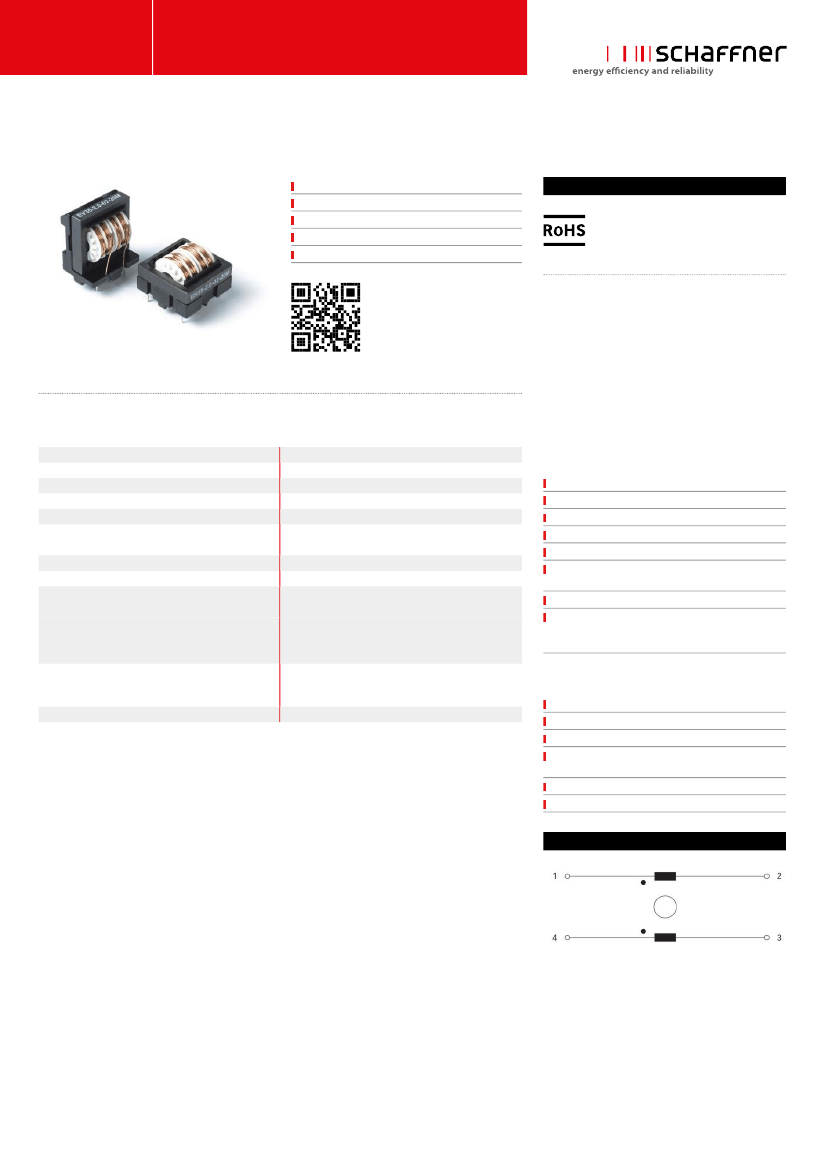

DATASHEET

EV/EH series

Common-mode Suppression Chokes

Rated currents up to 5 A

Broadband attenuation characteristics

Low magnetic leakage flux

UL rated materials

RoHS compliant

Approvals

Technical specifications

Maximum continuous operating voltage

Operating frequency

Rated currents

250 VAC @ 50 °C

dc to 400Hz @ 50 °C

0.3 to 5 A

Common-mode suppression chokes are mainly used

to filter noise on AC power lines. Noise on

commercial power lines could enter the equipment

and disturb the proper function. Noise generated by

the equipment for example from switch mode power

supplies need to be filtered and the spread of such

generated noise need to be suppressed. Common-

mode suppression chokes together with line bypass

capacitors building an AC EMI suppression filter

device.

Features and benefits

Rated currents up to 5A

Compact and light weight

Sectional winding

Overcurrent

High potential test voltage

1.5x Inominal for 1 minute, once per hour

3000 VAC, 60 sec, guaranteed

2000 V, 50 Hz, 2 sec, factory test

-25 °C to +100 °C (25/100/21)

UL 94 V-0

10 kHz; 5 mA < 16 μH;

winding-to-winding @ 25°C

Temperature range (operation and storage)

Flammability corresponding to

Measuring frequency

Low magnetic leakage flux

Standard foot print

Broad range of available inductances and current

ratings

Custom-specific versions

Schaffner offers you also EMI measure- ment service

to verify that your design will pass the required

safety standards

500 μA > 16 μH < 160 μH;

50 μA > 160 μH > 16 mH;

Resistance

Electrical characteristics

50 mV > 16 mH < 160 mH

Inductance tolerance ±30%

Tolerance max. ±15% @ 25 °C; ≤ 20 mΩ, 1 A;

> 20 mΩ ≤ 200 mΩ, 100 mA; > 200 mΩ ≤ 2 V, 10

@ 25 °C ±2 °C

Typical applications

Input filters for switch mode power supplies

Filters to reduce leaking noise

TVs, VCRs, multimedia and audio equipment

Office automation, communications and other

electronic devices

Electric ballast

AC/AC converters

Typical electrical schematic
