KEMET
POLYMER TANTALUM CHIP CAPACITORS
T530 SERIES
FEATURES
•
•
•
•
•
•
•
•
Highest CV in Standard EIA Size
Extremely Low ESR
125 C Max, Temperature Capability
Polymer Cathode Technology
High Frequency Capacitance Retention
Non-Ignition Failure Mode
Capacitance: 330 to 1500 F
Voltage: 3V to 10V
•
•
•
•
•
•
•
•
Molded Case (pick-and-place precision)
100% Accelerated Steady State Aging
100% Surge Current Testing
Utilizes Multiple Tantalum Anode Technology
Volumetric Efficiency
Use Up to 80% of Rated Voltage (20% Derating)
Self-Healing Mechanism
True SMT Capability
OUTLINE DRAWINGS
CATHODE (-) END
VIEW
W
SIDE VIEW
B
B
H
K
X
S
T
G
S
A
L
E
F
ANODE (+) END
VIEW
BOTTOM VIEW
DIMENSIONS - MILLIMETERS (INCHES)
Case Size
KEMET EIA
D
7343-31
Y
7343-40
X
7343-43
L
7.3 ± 0.3
7.3 ± 0.3
7.3 ± 0.3
W
4.3 ± 0.3
4.3 ± 0.3
4.3 ± 0.3
H
2.8 ± 0.3
4.0 max
4.0 ± 0.3
K ±0.20
1.5
1.9
2.3
F ±0.1
2.4
2.4
2.4
S ±0.3
1.3
1.3
1.3
X(Ref)
0.10 ± 0.10
0.10 ± 0.10
0.10 ± 0.10
T(Ref)
0.13
0.13
0.13
A(Min)
3.8
3.8
3.8
G(ref)
3.5
3.5
3.5
E(ref)
3.5
3.5
3.5
T530 ORDERING INFORMATION
T 530 X 158 M 003 A
Tantalum
Series
T530 - Multiple Anode
Polymer Tantalum
S E008
S - Standard Solder Coated
T - 100% Tin
G - Gold
ESR
Lead Material
Failure Rate
Case Size
D, X,
Y
A - Not Applicable
Capacitance Picofarad Code
Voltage
Note: 006 = 6.3
Capacitance Tolerance
M -
±
20%
42
KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
POLYMER TANTALUM CHIP CAPACITORS
KEMET
T530 SERIES
®

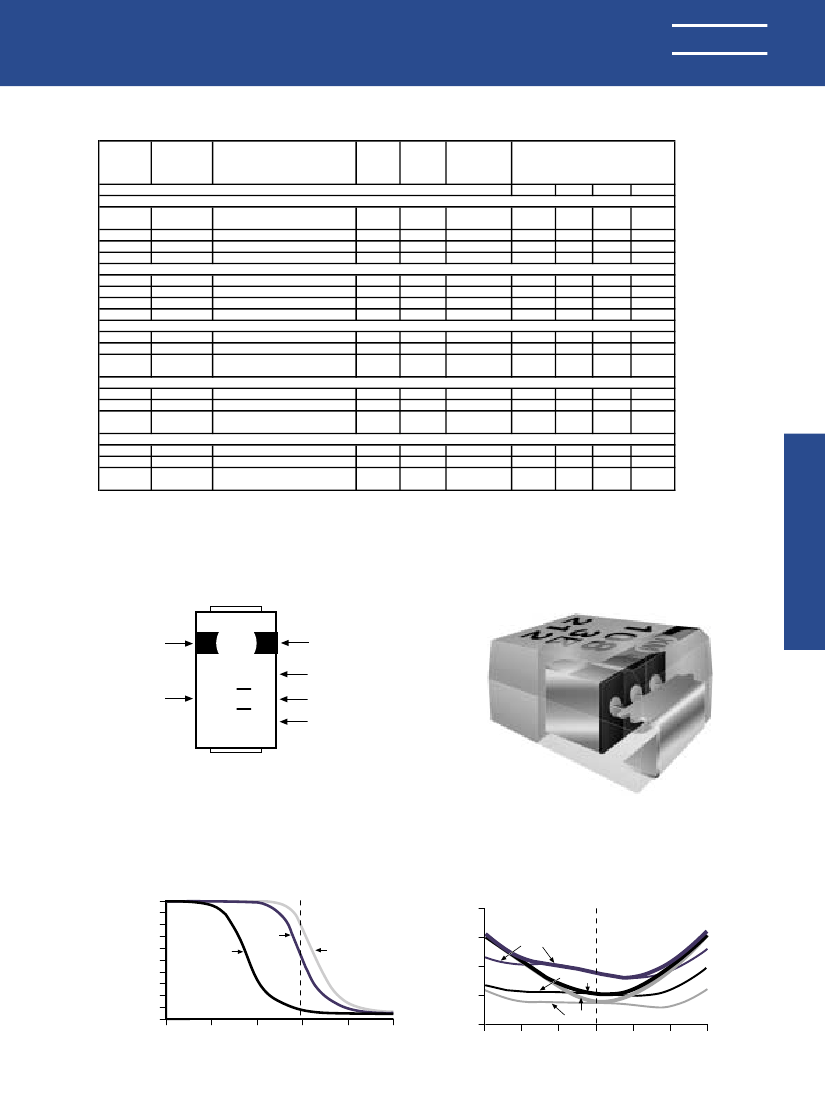

T530 RATINGS & PART NUMBER REFERENCE
Capaci-
tance µF
Case Size
KEMET Part Number
DCL
V
R
DF %
120Hz
ESR mΩ
@100 kHz
25°C Max
Ripple Current (Arms)
@ 100 kHz
25°C
470.0
470.0
560.0
680.0
1000.0
470.0
680.0
1000.0
1500.0
330.0
470.0
680.0
680.0
220.0
330.0
470.0
470.0
150.0
220.0
330.0
330.0
D/7343-31
D/7343-31
D/7343-31
D/7343-31
X/7343-43
D/7343-31
D/7343-31
X/7343-43
X/7343-43
D/7343-31
D/7343-31
X/7343-43
X/7343-43
D/7343-31
D/7343-31
X/7343-43
X/7343-43
D/7343/31
D/7343/31
X/7343-43
X/7343-43
2.5 Volt Rating at 85°C (2 Volt Rating at 105°C)
T530D477M2R5ASE006
118µA
8.0
6
T530D477M2R5ASE010
117µA
10.0
10
T530D567M2R5ASE005
140µA
8.0
5
T530D687M2R5ASE010
170µA
8.0
10
T530X108M2R5ASE006
250µA
8.0
6
3 Volt Rating at 85°C (2.4 Volt Rating at 105°C)
T530D477M003ASE010
141µA
8.0
10
T530D687M003ASE010
204µA
8.0
10
T530X108M003ASE010
300µA
8.0
10
T530X158M003ASE008
450µA
8.0
8
4 Volt Rating at 85°C (3.3 Volt Rating at 105°C)
T530D337M004ASE006
132µA
8.0
6
T530D477M004ASE010
188µA
8.0
10
T530X687M004ASE006
272µA
8.0
6
T530X687M004ASE010
272µA
8.0
10
6 Volt Rating at 85°C (5 Volt Rating at 105°C)
T530D227M006ASE006
139µA
8.0
6
T530D337M006ASE010
208µA
8.0
10
T530X477M006ASE006
297µA
8.0
6
T530X477M006ASE010
296µA
8.0
10
10 Volt Rating at 85°C (8 Volt Rating at 105°C)
T530D157M010ASE006
150µA
8.0
6
T530D227M010ASE010
220µA
8.0
10
T530X337M010ASE006
330µA
8.0
6
T530X337M010ASE010
330µA
8.0
10
6.5
5.0
7.1
5.0
6.7
5.0
5.0
5.2
5.8
6.5
5.0
6.7
5.2
6.5
5.0
6.7
5.2
6.5
5.0
6.7
5.2
85°C
5.9
4.5
6.4
4.5
6.0
4.5
4.5
4.7
5.2
5.9
4.5
6.0
4.7
5.9
4.5
6.0
4.7
5.9
4.5
6.0
4.7
105°C
5.9
4.5
6.4
4.5
6.0
4.5
4.5
4.7
5.2
5.9
4.5
6.0
4.7
5.9
4.5
6.0
4.7
5.9
4.5
6.0
4.7
125°C
2.6
2.0
2.9
2.0
2.7
2.0
2.0
2.1
2.3
2.6
2.0
2.7
2.1
2.6
2.0
2.7
2.1
2.6
2.0
2.7
2.1
220.0
D/7343/31
T530D227M010ASE010
220µA
8.0
COMPONENT MARKING
330.0
X/7343-43
(KM) KEMET
330.0
X/7343-43
Multi Polymer
Anode
220.0
Y/7343/40
T530 SERIES CONSTRUCTION
8.0
8.0
Rated
Voltage
KM
158
3K
205
T530Y227M010ATE006
220µA
T530X337M010ASE006
330µA
Polarity
T530X337M010ASE010
330µA
Indicator
Picofarad Code
KEMET ID
PWC*
“205” = The 5th week
of 2002.
T530X/T510E/T491E 1,000µF
Capacitance vs. Frequency
1000
900
800
700
600
500
400
300
200
100
0
1.E+02
100 kHz
T530X/T510E/T491E 1,000µF
Impedance & ESR vs. Frequency
10
100 kHz
Capacitance
T510E
T491E
T530X
Z & ESR (Ohms)
1
0.1
T491E
T510E
0.01
1.E+03
1.E+04
1.E+05
1.E+06
1.E+07
T530X
0.001
1.E+02 1.E+03 1.E+04 1.E+05 1.E+06 1.E+07 1.E+08
Frequency (Hz )
Frequency (Hz )
KEMET Electronics Corporation, P.O. Box 5928, Greenville, S.C. 29606, (864) 963-6300
43
Polymer Tantalum Surface Mount
Embedded System
