Multilayer Chip Ferrite Beads Array
——SHB-4-3216
Features
1. Availing in a wide range of impedance values.
2. Providing excellent EMI suppression characteristics for various types of noise.
3. 4Lines achieved with a single chip, very usefully adopted in high density circuit design.
4. Heat generation and crosstalk between adjacent circuits are at minimum.
5. Excellent solderability.
6. Lead Free (RoHS Compliance)
PAGE
1/4
Applications
1. Waveform correction in personal computers, electric equipment, communication equipment, OA equipment,
2. Provides radiated noise countermeasures in interfaces and harness connecting parts.
3. Prevents noise intrusion in video, LCD module, etc
4. Parallel signal line.
Ordering Information
SHB -
(1)
4
(2)
M
(3)
- 3216
(4)
□
(5)
-
121
(6)
J
(7)
T
(8)
(4) Thickness
A : 0.9㎜ max
B : 0.7㎜ max
(6) Impedance (at 100㎒)
First two digits are impedance values.
Last digit is the number of zeros.
(7) Termination
J : Nickel barrier
(8) Packaging
B : Bulk package
T : Tape & Reel (Φ178㎜ [ 7 inches ])
L : Tape & Reel (Φ254㎜ [ 10 inches ])
(1) Series
SHB : For signal line
(2) Type
4 : 4 Array
(3) Material & Design
H
: For general purpose
S
: For high speed
M : For high impedance type
T : For Low speed
(4) Dimensions
First two digits : length(㎜)
Last two digits : width(㎜)
Shape and Dimensions
·
4 Array
C© ü
unit : mm〔inches〕
Type
T
W
D
L
C© û
M
SHB-4□3216- A
L
3.20±0.2
W
1.60±0.2
T
0.80±0.1
C1
0.40±0.15
[.016±.006]
C2
0.30±0.10
[.012±.004]
D
0.80±0.1
[.031±.004]
M
0.20±0.1
[.008±.004]
[.126±.008] [.063±.008] [.031±.004]
*All specifications are subject to change without notice.
Multilayer Chip Ferrite Beads Array
——SHB-4-3216
Electrical Parameters
lZl
typ.
30
60
80
120
200
240
300
470
600
1000
60
120
200
240
300
470
600
1000
50
80
120
200
240
300
at 100㎒(Ω)
min.
22
45
60
90
150
180
225
353
450
750
45
90
150
180
225
353
450
750
37
60
90
150
180
225
DC Resistance
(Ω) max.
0.10
0.12
0.15
0.20
0.30
0.40
0.45
0.45
0.50
0.80
0.12
0.20
0.30
0.40
0.45
0.50
0.50
0.80
0.20
0.25
0.25
0.30
0.35
0.40
PAGE
2/4
Part No.
SHB-4H3216□-300□□
SHB-4M3216□-600□□
SHB-4M3216□-800□□
SHB-4M3216□-121□□
SHB-4M3216□-201□□
SHB-4M3216□-241□□
SHB-4M3216□-301□□
SHB-4M3216□-471□□
SHB-4M3216□-601□□
SHB-4M3216□-102□□
SHB-4T3216□-600□□
SHB-4T3216□-121□□
SHB-4T3216□-201□□
SHB-4T3216□-241□□
SHB-4T3216□-301□□
SHB-4T3216□-471□□
SHB-4T3216□-601□□
SHB-4T3216□-102□□
SHB-4S3216□-500□□
SHB-4S3216□-800□□
SHB-4S3216□-121□□
SHB-4S3216□-201□□
SHB-4S3216□-241□□
SHB-4S3216□-301□□
Rated current
(mA) max
200
200
150
100
100
100
100
100
100
100
200
200
150
150
150
100
100
50
200
200
200
200
200
200
※
Parts with other electrical characteristics available upon request.
※
Test equipment : HP4291A + HP16192A

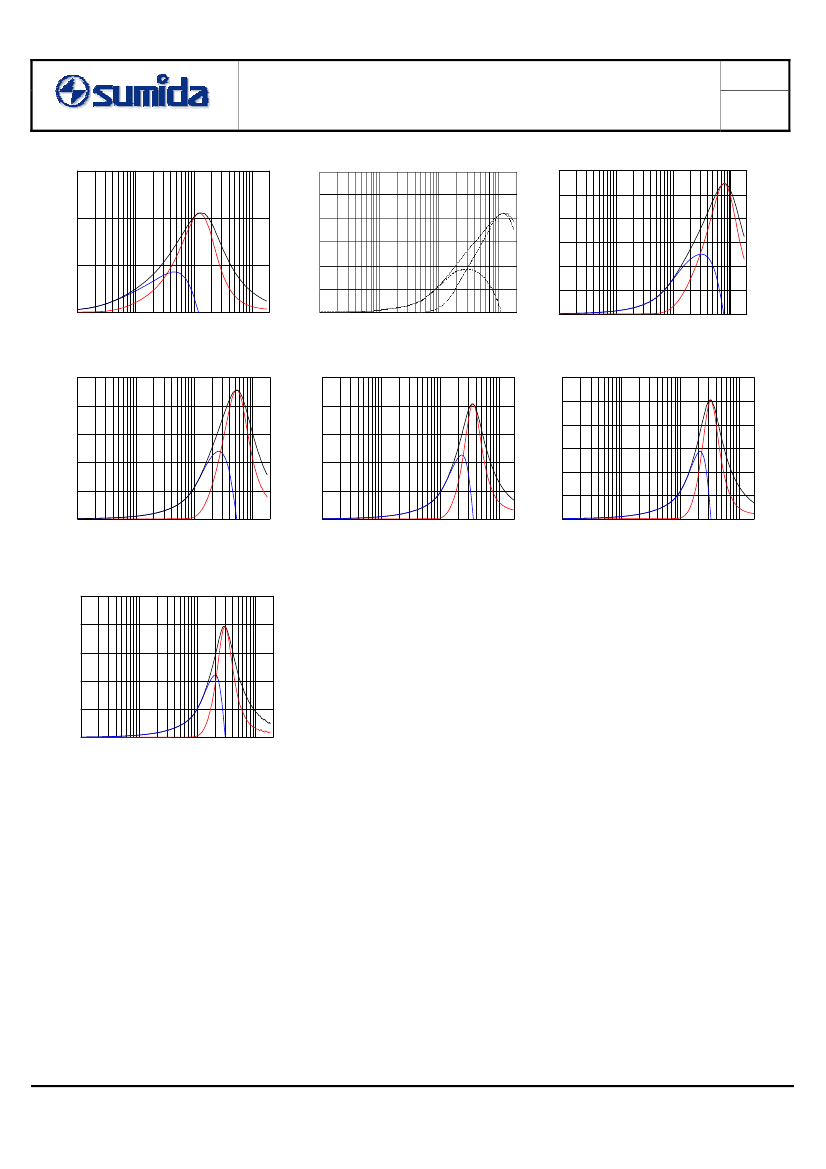

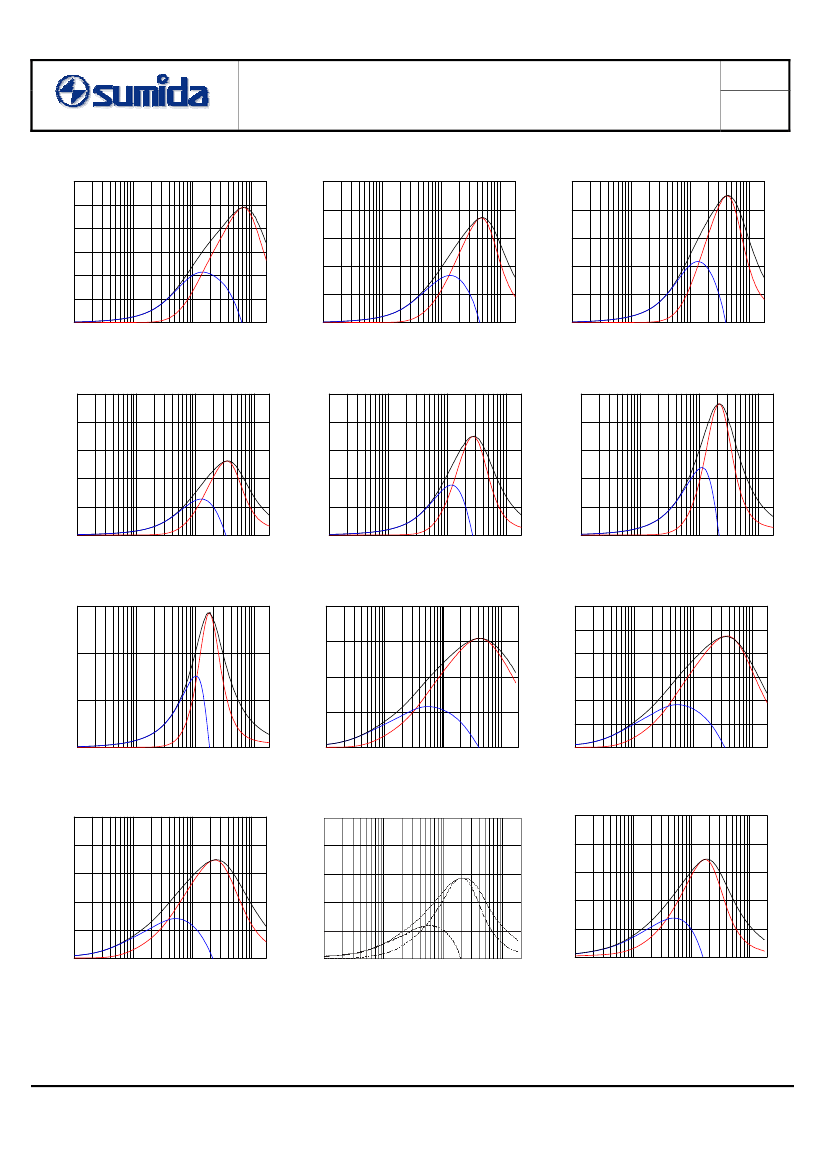

Electrical Characteristic Curves
HB-4H3216A-300J
SHB-4M3216A-300J
SHB
100
200
SHB
HB-4M3216A-600J
200
HB-4M3216A-800J
SHB
SHB
80
150
150
Z
R
Impedance [
Ω
]
Impedance [
Ω
]
60
Z
40
100
Z
R
Impedance [
Ω
]
100
R
X
X
50
50
20
X
0
1M
10M
100M
1G
0
1M
10M
100M
1G
0
1M
10M
100M
1G
Frequency [Hz]
Frequency [Hz]
Frequency [Hz]
*All specifications are subject to change without notice.
