SS220M6R3ST datasheet, PDF - EEWORLD Datasheet

Datasheet> All Categories > Passive components> SS220M6R3ST

SS220M6R3ST: DescriptionAluminum Electrolytic Capacitors - Leaded 22uF 6.3Volts Case .157D X .276L; CategoryPassive components; File Size322KB，4 Pages; ManufacturerCornell Dubilier

Download Datasheet Parametric View All

SS220M6R3ST Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	SS220M6R3ST	-	-	View	Buy Now

SS220M6R3ST Overview

Aluminum Electrolytic Capacitors - Leaded 22uF 6.3Volts Case .157D X .276L

SS220M6R3ST Parametric

Parameter Name	Attribute value
Product Category	Aluminum Electrolytic Capacitors - Leaded
Manufacturer	Cornell Dubilier
RoHS	Details
Termination Style	Radial
Capacitance	22 uF
Voltage Rating DC	6.3 VDC
Tolerance	20 %
Ripple Current	34 mA
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Diameter	4 mm
Length	7 mm
Lead Spacing	1.5 mm
Lead Style	Straight
Life	1000 Hour
ESR	14.48 Ohms
Packaging	Bulk
Product	General Purpose Electrolytic Capacitors
Factory Pack Quantity	2000

Preview

Download Datasheet

View All

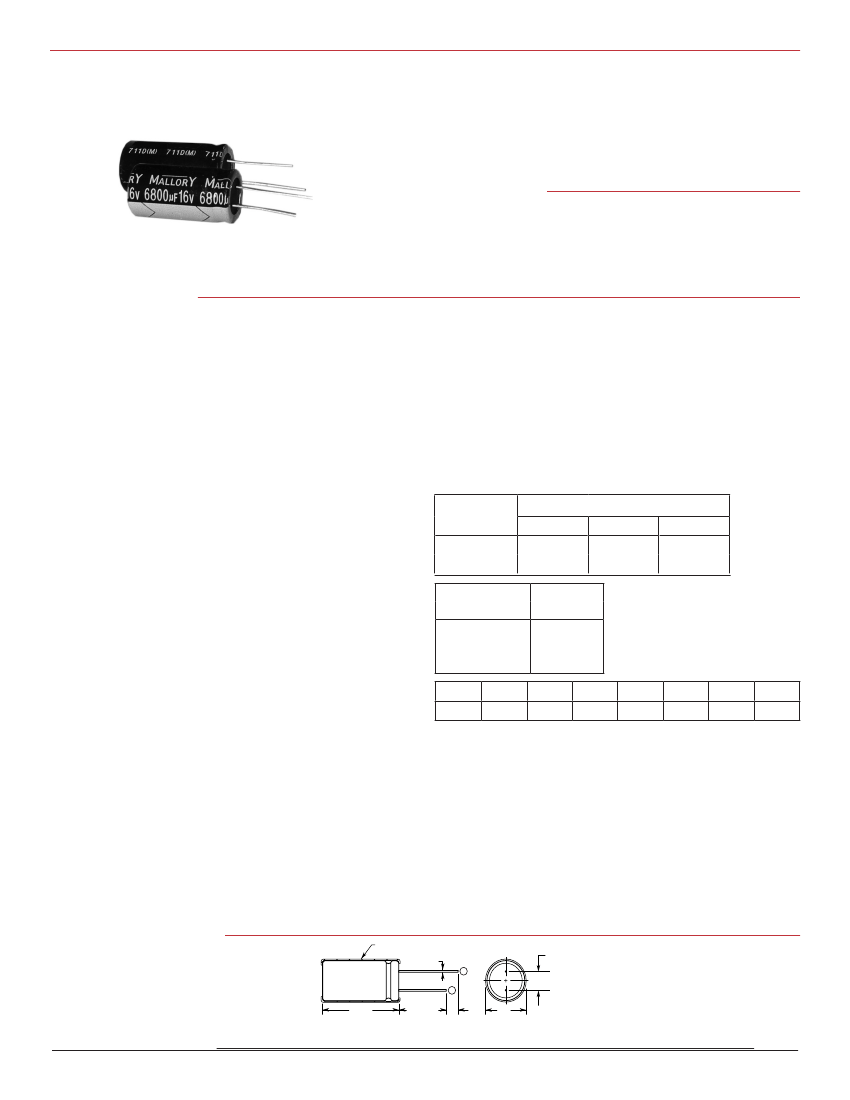

Type SS

85 ºC Sub-Miniature Aluminum Electrolytic Capacitors

Type SS

85 ºC Sub-Miniature Aluminum Electrolytic Capacitors

Radial Leaded, General Purpose Aluminum Electrolytic

Type SS is

is a sub-miniature radial leaded aluminum

Type SS

a sub-miniature radial leaded aluminum

electrolytic capacitor with a +85 ºC, 1000 hour long life

rating. The SS has a

a small size

and is

is ideal for high

rating. The SS has

small size

and

ideal for high

density packaging applications.

Speciﬁcations

Specifications

Capacitance Range:

0.1 to

to 100 µF

Capacitance Range:

0.1

100 µF

Voltage Range:

6.3 to

to 63 Vdc

Voltage Range:

6.3

63 Vdc

Capacitance Tolerance:

±20%

Capacitance Tolerance:

±20%

Operating Temperature Range:

–40 ºC to

to +85 ºC

Operating Temperature Range:

–40 ºC

+85 ºC

DC Leakage Current:

After 2

minutes, +25 ºC at

at rated voltage

DC Leakage Current:

After minutes, +25 ºC

rated voltage

I =

= .01CV or 3 µA Max, whichever is greater

.01CV or 3 µA Max, whichever is greater

C = Capacitance in (µF)

= Capacitance in (µF)

V = Rated voltage

= Rated voltage

I =

= Leakage current in µA

Leakage current in µA

Ripple Multipliers for Voltage and Temperature:

Rated

Ripple Multipliers

Rated

WVdc

6 to

to 25

35 to

to 63

Ripple Multipliers

60 Hz

kHz

60 Hz

120 Hz

1 kHz

0.85

1.0

1.10

0.85

1.0

1.10

0.80

1.0

1.15

Dissipation Factor @@ 120 Hz, +20 ºC:

Dissipation Factor 120 Hz, +20 ºC:

Outline Drawing

15 Min.

Case vented on

diameters 6.3 and greater.

Vinyl sleeve adds .5 Max. to diameter

and 2.0 Max. to length.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 •

• Phone: (508)996-8561 •

Fax: (508)996-3830 • www.cde.com

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744

Phone: (508)996-8561 •

Fax: (508)996-3830 • www.cde.com

Highlights

•

Sub-miniature

+85 ºC

Great for high density packaging

Available in

in T&R

and ammo pack

Available

T&R

and ammo pack

Ambient

Ripple

Ambient

Ripple

Temperature Multiplier

+85 ºC

+75 ºC

+65 ºC

1.00

1.14

1.25

WVdc

6.3

WVdc

6.3

DF (%)

For capacitors whose capacitance values exceed 1000 µF, the

value of

of DF (%) is increased 2% for every additional 1000 µF

value

DF (%) is increased 2% for every additional 1000 µF

Load Life Test:

Apply WVdc for 1,000 hours at

at +85 ºC

Load Life Test:

Apply WVdc for 1,000 hours

+85 ºC

Shelf Life:

1000 hrs with no voltage applied

Shelf Life:

1000 hrs with no voltage applied

Capacitance change within 20% of

of initial limit

Capacitance change within 20%

initial limit

DC leakage current meets initial limits

ESR ≤

≤ 200% of initial value

ESR

200%

of initial value

Cap change within 20% of

of initial values

Cap change within 20%

initial values

DC leakage meets initial requirement

DF 200%, meets initial requirement

0.5

PVC Sleeve

0.05

Dimensions in (millimeters)

Type SS

85 ºC Sub-Miniature Aluminum Electrolytic Capacitors

Notice and Disclaimer:

All product drawings, descriptions, specifications, statements, information and

data (collectively, the “Information”) in this datasheet or other publication are subject to change. The

customer is responsible for checking, confirming and verifying the extent to which the Information con-

tained in this datasheet or other publication is applicable to an order at the time the order is placed. All

Information given herein is believed to be accurate and reliable, but it is presented without any guaran-

tee, warranty, representation or responsibility of any kind, expressed or implied. Statements of suitability

for certain applications are based on the knowledge that the Cornell Dubilier company providing such

statements (“Cornell Dubilier”) has of operating conditions that such Cornell Dubilier company regards

as typical for such applications, but are not intended to constitute any guarantee, warranty or representa-

tion regarding any such matter – and Cornell Dubilier specifically and expressly disclaims any guarantee,

warranty or representation concerning the suitability for a specific customer application, use, storage,

transportation, or operating environment. The Information is intended for use only by customers who

have the requisite experience and capability to determine the correct products for their application. Any

technical advice inferred from this Information or otherwise provided by Cornell Dubilier with reference

to the use of any Cornell Dubilier products is given gratis (unless otherwise specified by Cornell Dubilier),

and Cornell Dubilier assumes no obligation or liability for the advice given or results obtained. Although

Cornell Dubilier strives to apply the most stringent quality and safety standards regarding the design

and manufacturing of its products, in light of the current state of the art, isolated component failures may

still occur. Accordingly, customer applications which require a high degree of reliability or safety should

employ suitable designs or other safeguards (such as installation of protective circuitry or redundancies

or other appropriate protective measures) in order to ensure that the failure of an electrical component

does not result in a risk of personal injury or property damage. Although all product-related warnings,

cautions and notes must be observed, the customer should not assume that all safety measures are indi-

cated in such warnings, cautions and notes, or that other safety measures may not be required.

CDE Cornell Dubilier • 1605 E. Rodney French Blvd. • New Bedford, MA 02744 • Phone: (508)996-8561 • Fax: (508)996-3830 • www.cde.com
