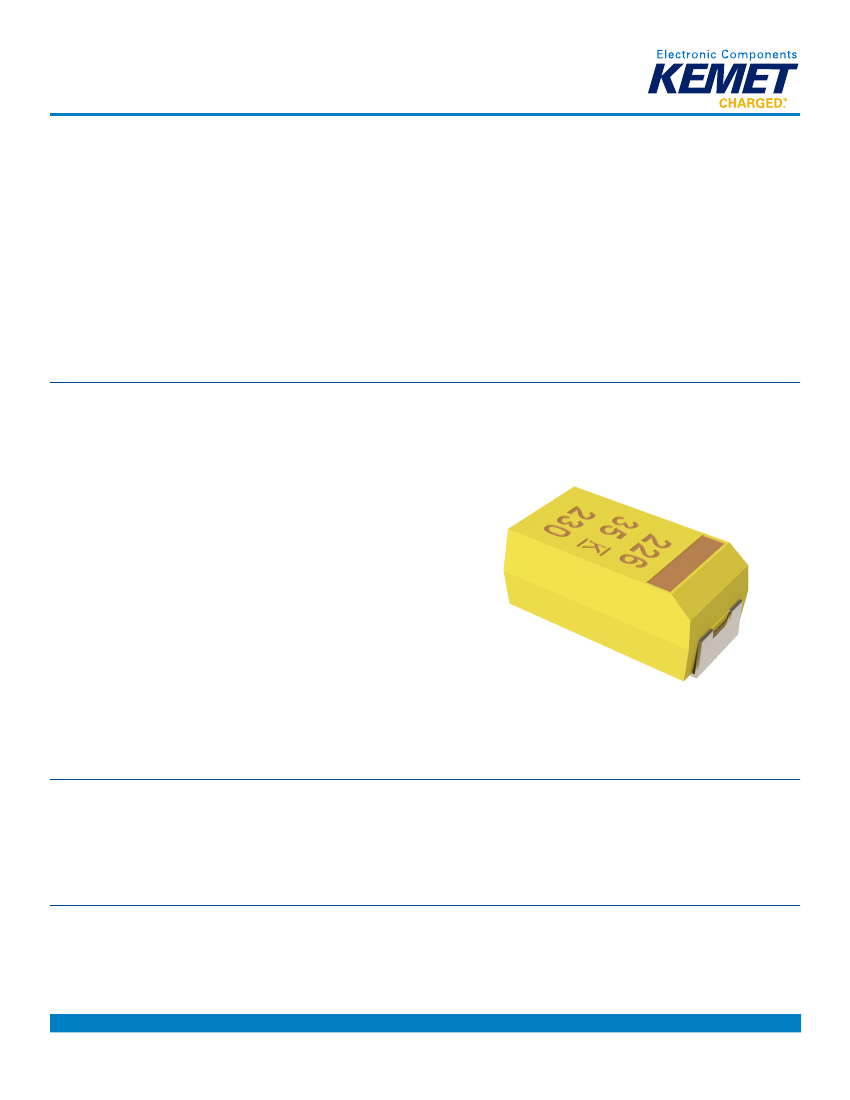

Tantalum Surface Mount Capacitors – Standard Tantalum
T491 Series Industrial Grade MnO
2
Electrical Characteristics

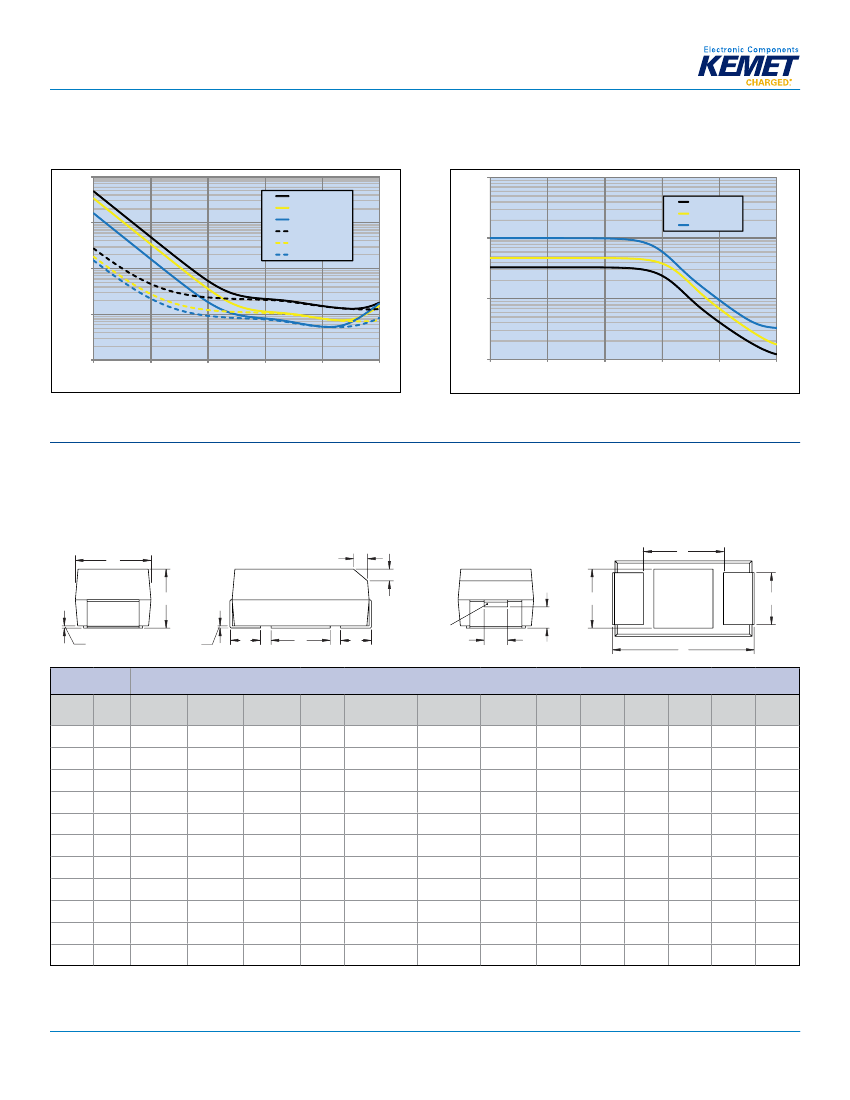

ESR vs. Frequency
100
T491C336M025AT_IMP
T491D476M025AT_IMP
Capacitance vs. Frequency
1,000
T491C336M025AT
T491D476M025AT
T491X107M025AT
Impedance, ESR (Ohms)
10
T491X107M025AT_IMP
T491C336M025AT_ESR
T491D476M025AT_ESR
T491X107M025AT_ESR
1
Capacitance (µF)
100
10
0.1
0.01
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
1
100
1,000
10,000
Frequency (Hz)
100,000
1,000,000
10,000,000
Dimensions – Millimeters (Inches)
Metric will govern
CATHODE (-) END VIEW
W
H
X
T
S
G
S
Termination cutout
at KEMET's option,
either end
SIDE VIEW
B
B
ANODE (+) END VIEW
BOTTOM VIEW
A
E
P
R
L
F
Case Size
KEMET
A
B
C
D
X
E
S
T
U
V
W
EIA
3216–18
3528–21
6032–28
7343–31
7343–43
7360-38
3216–12
3528–12
6032–15
7343-20
7343-15
Component
L*
W*
H*
3.2 ±0.2
1.6 ±0.2
1.6 ±0.2
(0.126 ±0.008) (0.063 ±0.008) (0.063 ±0.008)
3.5 ±0.2
2.8 ±0.2
1.9 ±0.2
(0.138 ±0.008) (0.110 ±0.008) (0.075 ±0.008)
6.0 ±0.3
3.2 ±0.3
2.5 ±0.3
(0.236 ±0.012) (0.126 ±0.012) (0.098 ±0.012)
7.3 ±0.3
4.3 ±0.3
2.8 ±0.3
(0.287 ±0.012) (0.169 ±0.012) (0.110 ±0.012)
7.3 ±0.3
4.3 ±0.3
4.0 ±0.3
(0.287 ±0.012) (0.169 ±0.012) (0.157 ±0.012)
7.3 ±0.3
6.0± 0.3
3.6 ± 0.2
(0.287 ±0.012) (0.236 ±0.012) (0.142 ±0.008)
3.2 ±0.2
1.6 ±0.2
1.2 (0.047)
(0.126 ±0.008) (0.063 ±0.008)
3.5 ±0.2
2.8 ±0.2
1.2 (0.047)
(0.138 ±0.008) (0.110 ±0.008)
6.0 ±0.3
3.2 ±0.2
1.5 (0.059)
(0.236 ±0.012) (0.110 ±0.008)
7.3 ±0.3
4.3 ±0.3
2.0 (0.079)
(0.287 ±0.012) (0.169 ±0.012)
7.3 ±0.3
4.3 ±0.3
1.5 (0.059)
(0.287 ±0.012) (0.169 ±0.012)
F* ±0.1
±(0.004)
1.2 (0.047)
2.2 (0.087)
2.2 (0.087)
2.4 (0.094)
2.4 (0.094)
4.1 (0.161)
1.2 (0.047)
2.2 (0.087)
2.2 (0.087)
2.4 (0.094)
2.4 (0.094)
S*
0.80 (0.032) + 0.2
(0.008) /-0.3(0.011)
0.80 (0.032) + 0.1
(0.004) /-0.3(0.011)
1.30 (0.051)
±0.3 (0.011)
1.30 (0.051)
±0.3 (0.011)
1.30 (0.051)
±0.3 (0.011)
1.30 (0.051)
±0.3 (0.011)
0.80 (0.032) + 0.2
(0.008) /-0.3(0.011)
0.80 (0.032) + 0.1
(0.004) /-0.3(0.011)
1.30 (0.051)
±0.3 (0.011)
1.30 (0.051)
±0.3 (0.011)
1.30 (0.051)
±0.3 (0.011)
B* ±0.15
(Ref) ±0.006
0.4 (0.016)
0.4 (0.016)
0.5 (0.020)
0.5 (0.020)
0.5 (0.020)
0.5 (0.020)
N/A
N/A
N/A
N/A
N/A
X (Ref)
P (Ref) R (Ref) T (Ref) A (Min) G (Ref) E (Ref)
0.4 (0.016)
1.0 (0.039)
1.0 (0.039)
1.0 (0.039)
1.0 (0.039)
N/A
N/A
N/A
N/A
N/A
N/A
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
0.13
(0.005)
1.2 (0.047) 1.1 (0.043) 1.3 (0.051)
1.9 (0.075) 1.8 (0.071) 2.2 (0.087)
2.9 (0.114) 2.8 (0.110) 2.4 (0.094)
3.6 (0.142) 3.5 (0.138) 3.5 (0.138)
3.6 (0.142) 3.5 (0.138) 3.5 (0.138)
1.2 (0.047) 3.5 (0.138) 3.5 (0.138)
1.2 (0.047) 1.1 (0.043) 1.3 (0.051)
1.9 (0.075) 1.8 (0.071) 2.2 (0.087)
2.9 (0.114) 2.8 (0.110) 2.4 (0.094)
3.6 (0.142) 3.5 (0.138) 3.5 (0.138)
3.6 (0.142) 3.5 (.0138) 3.5 (0.138)
0.10 ±0.10
0.4 (0.016)
(0.004 ±0.004)
0.10 ±0.10
0.5 (0.020)
(0.004 ±0.004)
0.10 ±0.10
0.9 (0.035)
(0.004 ±0.004)
0.10 ±0.10
0.9 (0.035)
(0.004 ±0.004)
0.10 ±0.10
1.7 (0.067)
(0.004 ±0.004)
0.10 ± 0.10
N/A
(0.004 ±0.004)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
0.05 (0.002)
N/A
N/A
N/A
N/A
N/A
Notes: (Ref) – Dimensions provided for reference only. No dimensions are provided for B, P or R because low profile cases do not have a bevel or a notch.
Tantalum Surface Mount Capacitors – Standard Tantalum
T491 Series Industrial Grade MnO
2
Table 1 – Ratings & Part Number Reference
Rated Rated Case Code/
Voltage Cap
Case Size
VDC at 85ºC
2.5
2.5
3
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
4
VDC at 85ºC
µF
100
220
33
3.3
4.7
6.8
6.8
10
10
10
15
15
15
15
22
22
22
22
22
33
33
33
33
33
47
47
47
47
47
68
68
68
68
68
100
100
100
100
100
100
150
150
150
150
150
220
µF
KEMET/EIA
T/3528-12
D/7343-31
A/3216-18
A/3216-18
A/3216-18
A/3216-18
S/3216-12
B/3528-21
A/3216-18
S/3216-12
B/3528-21
A/3216-18
T/3528-12
S/3216-12
C/6032-28
B/3528-21
A/3216-18
T/3528-12
S/3216-12
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
D/7343-31
C/6032-28
U/6032-15
B/3528-21
A/3216-18
D/7343-31
C/6032-28
U/6032-15
B/3528-21
A/3216-18
T/3528-12
D/7343-31
U/6032-15
V/7343-20
C/6032-28
B/3528-21
V/7343-20
KEMET/EIA
KEMET Part
Number
(See below for
part options)
T491T107(1)2R5A(2)
T491D227(1)2R5A(2)
T491A336(1)003A(2)
T491A335(1)004A(2)
T491A475(1)004A(2)
T491A685(1)004A(2)
T491S685(1)004A(2)
T491B106(1)004A(2)
T491A106(1)004A(2)
T491S106(1)004A(2)
T491B156(1)004A(2)
T491A156(1)004A(2)
T491T156(1)004A(2)
T491S156(1)004A(2)
T491C226(1)004A(2)
T491B226(1)004A(2)
T491A226(1)004A(2)
T491T226(1)004A(2)
T491S226(1)004A(2)
T491C336(1)004A(2)
T491U336(1)004A(2)
T491B336(1)004A(2)
T491A336(1)004A(2)
T491T336(1)004A(2)
T491C476(1)004A(2)
T491U476(1)004A(2)
T491B476(1)004A(2)
T491A476(1)004A(2)
T491T476(M)004A(2)
T491D686(1)004A(2)
T491C686(1)004A(2)
T491U686(1)004A(2)
T491B686(1)004A(2)
T491A686(1)004A(2)
T491D107(1)004A(2)
T491C107(1)004A(2)
T491U107(1)004A(2)
T491B107(M)004A(2)
T491A107(M)004A(2)
T491T107(M)004A(2)
T491D157(1)004A(2)
T491U157(1)004AT
T491V157(1)004A(2)
T491C157(1)004A(2)
T491B157(M)004A(2)
T491V227(1)004A(2)
(See below for
part options)
DC
Leakage
µA at +20ºC
Maximum/
5 Minutes
2.5
5.5
1.0
0.5
0.5
0.5
0.5
0.5
0.5
0.5
0.6
0.6
0.6
0.6
0.9
0.9
0.9
0.9
0.9
1.3
1.3
1.3
1.3
1.3
1.9
1.9
1.9
1.9
1.9
2.7
2.7
2.7
2.7
2.7
4.0
4.0
4.0
4.0
4.0
4.0
6.0
6.0
6.0
6.0
6.0
8.8
µA at +20ºC
Maximum/
5 Minutes
DF
% at +20ºC
120 Hz
Maximum
24.0
8.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
6.0
10.0
6.0
6.0
6.0
6.0
10.0
6.0
6.0
6.0
6.0
8.0
6.0
6.0
6.0
10.0
12.0
6.0
6.0
6.0
6.0
30.0
8.0
8.0
10.0
8.0
30.0
30.0
8.0
8.0
8.0
8.0
12.0
8.0
% at +20ºC
120 Hz
Maximum
ESR
Ω at +20ºC
100 kHz
Maximum
3.9
0.3
4.0
8.0
8.0
6.0
15.0
3.5
4.5
15.0
3.5
4.0
5.0
15.0
1.8
3.0
3.5
5.0
10.0
1.8
1.8
2.5
3.0
5.0
1.6
1.8
2.0
2.5
6.0
0.8
1.5
1.8
1.8
4.0
0.8
1.2
1.8
0.9
4.0
5.0
0.8
1.3
0.7
1.2
2.0
0.7
Ω at +20ºC
100 kHz
Maximum
Maximum Allowable
Ripple Current
mA at
+25ºC
100 kHz
134
707
137
97
97
112
63
156
129
63
156
137
118
63
247
168
137
118
77
247
224
184
137
118
262
224
206
173
108
433
271
224
217
137
433
303
224
307
137
118
433
263
423
303
206
423
mA at
+25ºC
100 kHz
mA at
+85ºC
100 kHz
121
636
123
87
87
101
57
140
116
57
140
123
106
57
222
151
123
106
69
222
202
166
123
106
236
202
185
156
97
390
244
202
195
123
390
273
202
276
123
106
390
237
381
273
185
381
mA at
+85ºC
100 kHz
mA at
+125ºC
100 kHz
54
283
55
39
39
45
25
62
52
25
62
55
47
25
99
67
55
47
31
99
90
74
55
47
105
90
82
69
43
173
108
90
87
55
173
121
90
123
55
47
173
105
169
121
82
169
mA at
+125ºC
100 kHz
Maximum
Operating
Temp
ºC
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
125
ºC
MSL
Reflow Temp
≤ 260 ºC
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
1
Reflow Temp
≤ 260 ºC
Rated
Voltage
Rated
Cap
Case Code/
Case Size
KEMET Part
Number
DC
Leakage
DF
ESR
Maximum Allowable
Ripple Current
Maximum
Operating
Temp
MSL
(1) To complete KEMET part number, insert M for ±20% or K for ±10%. Designates capacitance tolerance.
(2) To complete KEMET part number, insert T = 100% Matte Tin (Sn) Plated, G = Gold Plated, H = Standard Solder coated (SnPb 5% Pb minimum), N = Non-
Magnetic 100% Tin (Sn), M = Non-Magnetic (SnPb). Designates Termination Finish.
Refer to Ordering Information for additional detail.
Higher voltage ratings and tighter tolerance product including ESR may be substituted within the same size at KEMET's option. Voltage substitution will be marked
with the higher voltage rating. Substitutions can include better than series.
Hey guys, I burned a program into 2440 yesterday, and then the display screen was white, and the LED was not on. I suspect that the original Bootloader was overwritten. I can use the SJF burning tool ...
After reading everyone's recruitment information, I found that they are all high-end talent demand information. Of course, there are many experts in the forum, but would experts look for jobs like thi...
This oxygen detector is produced by RKI of Japan, model number 0X-01. Judging from the date in the manual, it should be a product before 2004. It can be found on Taobao now, and the price is around 3K...
1 Introduction
The high temperature tester is mainly used for temperature tracking measurement and data acquisition during the heating process. By systematically analyzing the test data, the...[Details]
Microcontrollers (MCUs), which are widely used in automotive electronics, are rapidly facing time and cost pressures. The main advantage of using MCUs has always been to create high-level system in...[Details]
With the continuous improvement of the requirements of intelligent building security systems and the continuous improvement of people's safety awareness, indoor anti-theft has gradually attracted peop...[Details]
1. Background:
The instrument system parameter detection and control of the chemical production workshop of Tangshan Coal Gas Coking Plant are all analog instruments, some of which are eve...[Details]
1 Introduction
Building Automation System (BAS) is a distributed monitoring system (DCS) designed according to distributed information and control theory. It is the result of the mutual de...[Details]
Since the No. 4 blast furnace of Handan Iron and Steel was put into operation in 1993, its external equipment has been seriously aged, and the original PLC control system TDC3000 of the hot blast furn...[Details]
1 Introduction
With the development of control, computer, communication, network technology, etc., a new control technology, namely fieldbus, has emerged in the field of industrial control...[Details]
1 Introduction
In recent years, there have been many major advances in the production technology and processes of automotive headlights, which have greatly improved the performance of automoti...[Details]
Different initialization between C8051F and 80C51 series microcontrollers
In the past 30 years, major electronic component manufacturers in the world have launched their own unique single-chip...[Details]
At very low temperatures, certain metals and alloys lose their resistance to electric
current
and become
superconductors
. Two parameters that are often measured are the transition ...[Details]
LED technology has made rapid progress, and improvements in chip design and materials have promoted the development of brighter and more durable light sources, and the scope of light source applica...[Details]
Today, with energy becoming increasingly scarce, the utilization of natural energy has become the focus of people's attention. Among various natural energies, the endless solar energy is highly fav...[Details]
System Overview
The system consists of a signal preprocessing circuit, a single-chip computer AT89C2051, a systematic LED display module, a serial port data storage circuit and system software...[Details]
Introduction
Nowadays, people pay more and more attention to the security alarm system, and people have higher and higher requirements for the functions and performance of the alarm. This paper prop...[Details]
Liquid crystal display (LCD) panels have a wide range of applications, from small portable electronic devices to large fixed devices, including digital cameras, laptops, personal data assistants, d...[Details]
ARM Technology
京公网安备 11010802033920号
EEWORLD
