B953AS-3R9N=P3: DescriptionFixed Inductors 3.9uH 14mOhms 10.3A +/-30%; CategoryPassive components; File Size976KB，2 Pages; ManufacturerMurata; Websitehttps://www.murata.com

Download Datasheet Parametric View All

B953AS-3R9N=P3 Online Shopping

Suppliers	Part Number	Price	MOQ	In stock
	B953AS-3R9N=P3	-	-	View	Buy Now

B953AS-3R9N=P3 Overview

Fixed Inductors 3.9uH 14mOhms 10.3A +/-30%

B953AS-3R9N=P3 Parametric

Parameter Name	Attribute value
Product Category	Fixed Inductors
Manufacturer	Murata
RoHS	Details
Inductance	3.9 uH
Tolerance	30 %
Maximum DC Current	10.3 A
Maximum DC Resistance	14 mOhms
Q Minimum	-
Test Frequency	-
Product	Power Inductors
Termination Style	SMD/SMT
Termination	-
Mounting Style	SMD/SMT
Package / Case	-
Length	12.8 mm
Width	12.8 mm
Height	6.8 mm
Diameter	-
Packaging	MouseReel
Packaging	Reel
Packaging	Cut Tape
Type	Ferrite Inductors
Core Material	Ferrite
Lead Diameter	-
Lead Spacing	-
Operating Temperature Range	-
Self Resonant Frequency	-
Factory Pack Quantity	500

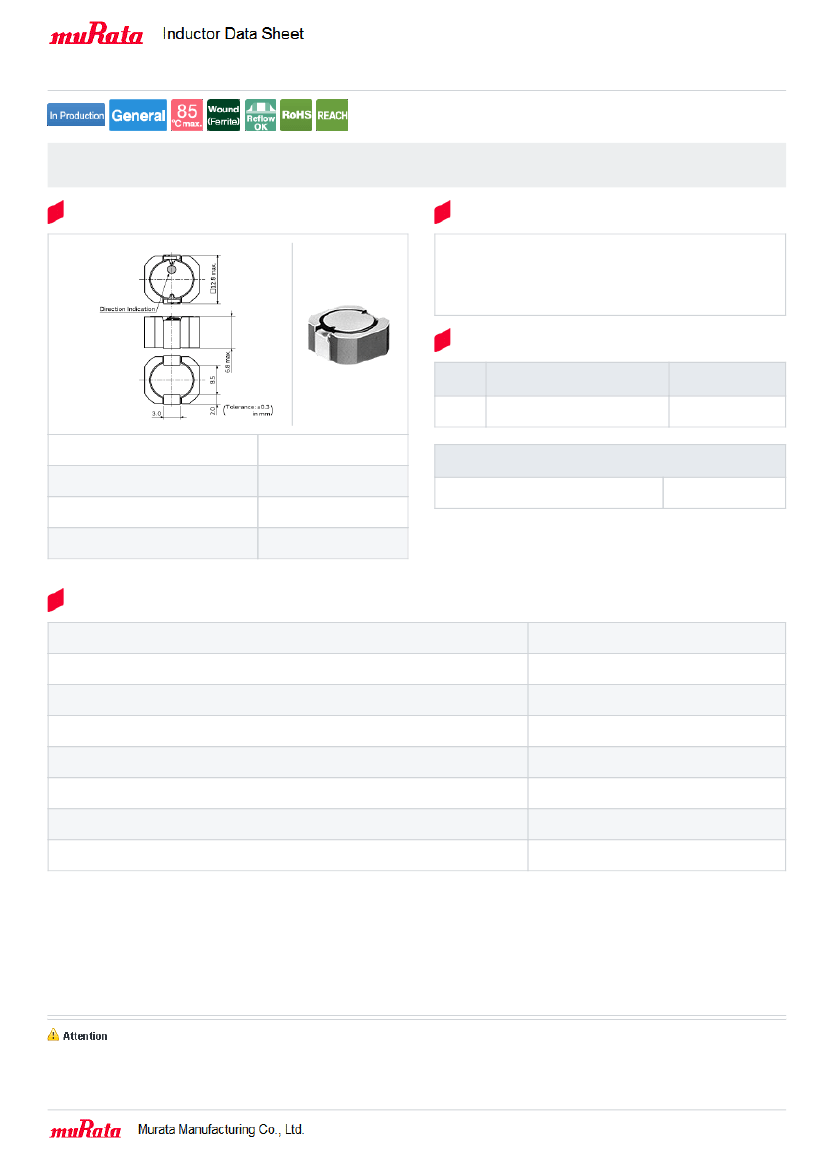

Preview

Download Datasheet

View All

#B953AS-3R9N=P3

< List of part numbers with package codes >

#B953AS-3R9N=P3

Shape

Notes

Rated current (Isat) is specified when the decrease of the initial

inductance value at 10%. (The ambient reference temperature is 20℃.)

Rated current (Itemp) is specified when temperature of inductor the is

raised 40℃ by DC current. (The ambient reference temperature is 20℃.)

References

Packaging

code

=P3

Specifications

φ330mm

Embossed taping

Minimum quantity

500

L size

W size

T size

Size code in inch (mm)

12.5 ±0.3mm

6.8 mm

4949 (125125)

Mass (Typ.)

1 piece

3.688g

Specifications

Inductance

Inductance test frequency

Rated current (Isat) (Based on Inductance change)

Rated current (Itemp) (Based on Temperature rise)

Max. of DC resistance

Operating temperature range (Self-temperature rise is included)

Class of magnetic shield

Series

3.9µH ±30%

0.1MHz

7900mA

6000mA

0.014Ω

-40〜85℃

Ferrite Core

DS126C2

1 of 2

1.This datasheet is downloaded from the website of Murata Manufacturing Co., Ltd. Therefore, it’s specifications are subject to change or our products in it may be discontinued

without advance notice. Please check with our sales representatives or product engineers before ordering.

2.This datasheet has only typical specifications because there is no space for detailed specifications.

Therefore, please review our product specifications or consult the approval sheet for product specifications before ordering.

URL : http://www.murata.com/

Last updated: 2018/01/09
