MatchPort
b/g
Wireless Device Server
Extremely affordable embedded 802.11 b/g wireless networking
Wired Ethernet-to-wireless bridging
Common platform form factor for a family of wired and wireless modules
Bulletproof security with IEEE 802.11i-PSK, WPA-PSK, TKIP and
optional 256-bit AES end-to-end encryption
Full TCP/IP stack, web server and Windows deployment software
Two serial channels; up to 921 Kbps data rate
FCC Class B, UL and EN EMC and safety-compliant
Compact: 45mm x 45mm with 40-pin 2 mm header
The Ultimate in Flexibility, Security, Performance and
Affordability in Embedded Wireless Networking
MatchPort
™
b/g enables you to build wireless
networking into virtually any electronic device
with a serial interface. With this full-featured,
turnkey embedded device server module your
products can be wirelessly accessed and
controlled over the Internet!
(Rijndael) encryption for true end-to-end (along the wired/wireless
path) secure data transfer.
Robust, Feature-Rich Software Suite
Eliminating the need to negotiate the intricacies of
Transmission Control Protocol (TCP) or Internet Protocol (IP),
MatchPort b/g incorporates:
•
Robust operating system
•
Full-featured network protocol stack and radio system driver
•
Proven, ready-to-use serial-to-wireless application
•
Built-in web server for device communication and
configuration via a standard browser
•
Windows-based DeviceInstaller
™
– making configuring
one or more units in a subnet quick and easy
Pin-compatible Wireless/Wired Module Family
MatchPort b/g is the first in a family of pin and form-factor
compatible wireless and wired module solutions. The MatchPort
family enables you to “future proof” your designs with a choice of
flexible media-independent 802.11 b/g or Ethernet networking
products. It takes the complexity out of RF design and embedded
Ethernet networking, enabling you to focus on your products. And
it minimizes engineering risk, reduces cost and shortens
development time.
FCC Certified for Immediate Deployment
MatchPort b/g is module certified by the U.S. Federal
Communications Commission (FCC). This allows you to leverage
the Lantronix FCC license grant and bypass 802.11 regulatory
testing, speeding time-to-market and minimizing development
and testing costs. MatchPort b/g is also pre-tested for European
telecommunications regulations.
Complete Wireless Network Processing Module
MatchPort b/g is a dedicated co-processor module that manages
wireless and network activity, permitting the device’s host
microprocessor to function at maximum efficiency. Using
a dual processor design (one for converting wired serial data
into TCP/IP packets and providing web server capabilities, the
other an 802.11 b/g baseband and radio chipset) MatchPort b/g
enables 802.11 wireless connectivity and web services on any
device with a serial interface on its host microcontroller.
Powered by a Lantronix DSTni
™
x86 class processor SoC with
256 KB of on-chip SRAM, MatchPort b/g also includes 2MB
of Flash memory for web page storage and firmware.
Flexible, Efficient Design
Designed without an attached antenna, MatchPort b/g provides
the flexibility to design and place the antenna and antenna
connector based on your design requirements. MatchPort b/g
includes a user controlled intelligent power management option
to shut the radio off during periods of inactivity minimizing
unnecessary current consumption.
Ethernet-to-Wireless Bridging
With a separate Ethernet port, MatchPort b/g offers the unique
ability to transparently bridge existing Ethernet-ready devices to
a wireless network.
Scan, Gather and Report Radio Parameters
Bulletproof Security
With IEEE 802.11i-PSK (AES-CCMP) or WPA-PSK (TKIP) security,
MatchPort b/g offers the highest levels of wireless encryption. It
also optionally supports 256-bit Advanced Encryption Standards
With its Scan command, MatchPort b/g enables the ability to
report BSSID, RSSI and SSID. The Network Status command
reports BSSID, authentication and negotiated encryption
types for the current association.
Embedded Wireless Device Server
MatchPort b/g
Features and Specifications
Wireless Specifications
Wireless Standards: IEEE 802.11b; 802.11g
Channel Frequency Range: 2.412 – 2.484 GHz
Maximum Output Power: 14dBm +2.0 dBm/-1.5 dBm
(does not include antenna gain)
Maximum Receive Sensitivity: -91dBm @ 1Mbps
Data Rates With Automatic Fallback
54Mbps – 1Mbps
Range: Up to 328 feet indoors
Modulation Techniques: OFDM, DSSS, CCK, DQPSK, DBPSK,
64 QAM, 16 QAM
Packaging
Dimensions: 44.4 x 44.4 x 10.4 mm
(1.75 x 1.75 x .41 in)
Weight: 14g
Material: Plastic shell, 260°C tolerant
Included Software
Windows
®
98/NT/2000/XP/Vista based DeviceInstaller
configuration software and Com Port Redirector
™
,
Web-Manager
MatchPort b/g
Warranty
2-year limited warranty
Serial Interface
Embedded Wireless Device Server
Two Serial Ports
Interface: CMOS
(Asynchronous)
3.3V-level signals, rate is
software selectable
(300 bps to 921,000 bps)
Serial Line Formats: 7 or 8 data bits, 1-2 Stop bits
Parity: odd, even, none
Modem Control: DTR, DCD
Flow Control: XON/XOFF
(software),
CTS/RTS
(hardware),
none
Network Interface
Interface: Wireless 802.11b and 802.11g
Protocols Supported: ARP, UDP, TCP, Telnet, ICMP, SNMP,
DHCP, BOOTP, Auto IP, HTTP, SMTP, TFTP

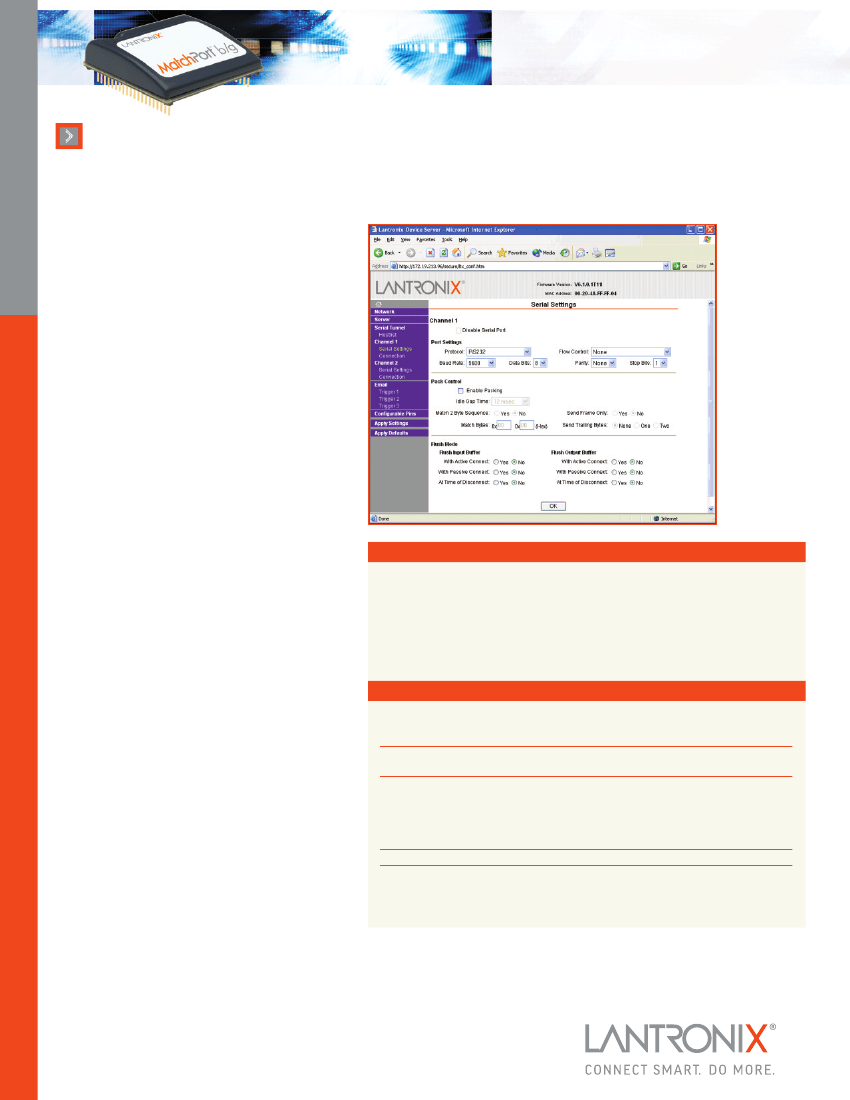

The included
DeviceInstaller
software makes
configuration
quick and easy!
Management
Internal web server
SNMP
(read only)
Serial login
Telnet login
DeviceInstaller software
MatchPort b/g Demonstration Kit
The demonstration kit contains the key accessories to evaluate a MatchPort b/g product:
•
MatchPort b/g demonstration board
•
RS-232 cable, DB9F, null modem
•
Cat5e UTP RJ45M/M Ethernet cable
•
3.3V power supply
•
Antenna
Note: MatchPort b/g sample must be purchased separately.
Security
IEEE 802.11i - PSK with AES-CCMP Encryption
WPA - PSK
TKIP Encryption
64/128-bit WEP
Internal Web Server
Serves web pages
Storage capacity: 1.2 MB
Architecture
CPU, Memory: Lantronix DSTni-EX x86 CPU, on-chip 256 KB
zero wait static SRAM, 2,048 KB Flash, 16 KB Boot ROM,
8 GPIO
Firmware: Upgradeable via TFTP and serial port
Ordering Information
Part Number
MP1001000G-01
MP1002000G-01
MP100200SG-01
Description
– MatchPort b/g bulk pack
– Minimum order quantity 50 units
– MatchPort b/g AES bulk pack
– Minimum order quantity 50 units
– MatchPort b/g AES sample case
– One (6 in.)Antenna cable U.FL to R-SMA (p/n 500-180-R-ACC)
– One MatchPort b/g enclosed
– Free 30-day Secure Com Port Redirector
™
evaluation license
– Order quantities of up to 10
– MatchPort b/g Demonstration Kit
– Accessory antenna
– Antenna cable (6 in.) U.FL to R-SMA (10 pack)
– Antenna cable (6 in.) U.FL to U.FL (10 pack)
Power Consumption
Average Power Consumption: Data Transfer
• 740 mW
(Low cpu); active
• 250 mW
(Low cpu); inactive
Peak Supply Current: 360 mA Data Transfer
Environmental
Operating range, WLAN: -40° to 70°C
(-40° to 158°F)
Storage range: -40° to 85°C
(-40° to 185°F)
MP10010NMK-01
930-033-R
500-180-R-ACC
500-181-R-ACC
Lantronix Corporate Headquarters
167 Technology Drive
Irvine CA 92618
t: 800.422.7055
sales@lantronix.com
NASDAQ: LTRX
European Headquarters
t: +31 (0) 76 52 36 74 4
EMEA@lantronix.com
Asia/Pacific Headquarters
t: +852 3428 2338
asiapacific_sales@lantronix.com
Japan Headquarters
t: +81.3.6277.8802
japan_sales@lantronix.com
©2013 Lantronix is a registered trademark, and MatchPort, DSTni, Secure Com Port Redirector and
DeviceInstaller are trademarks of Lantronix, Inc. All other trademarks are the property of their respective
owners. Specifications subject to change without notice. All rights reserved. 910-514
