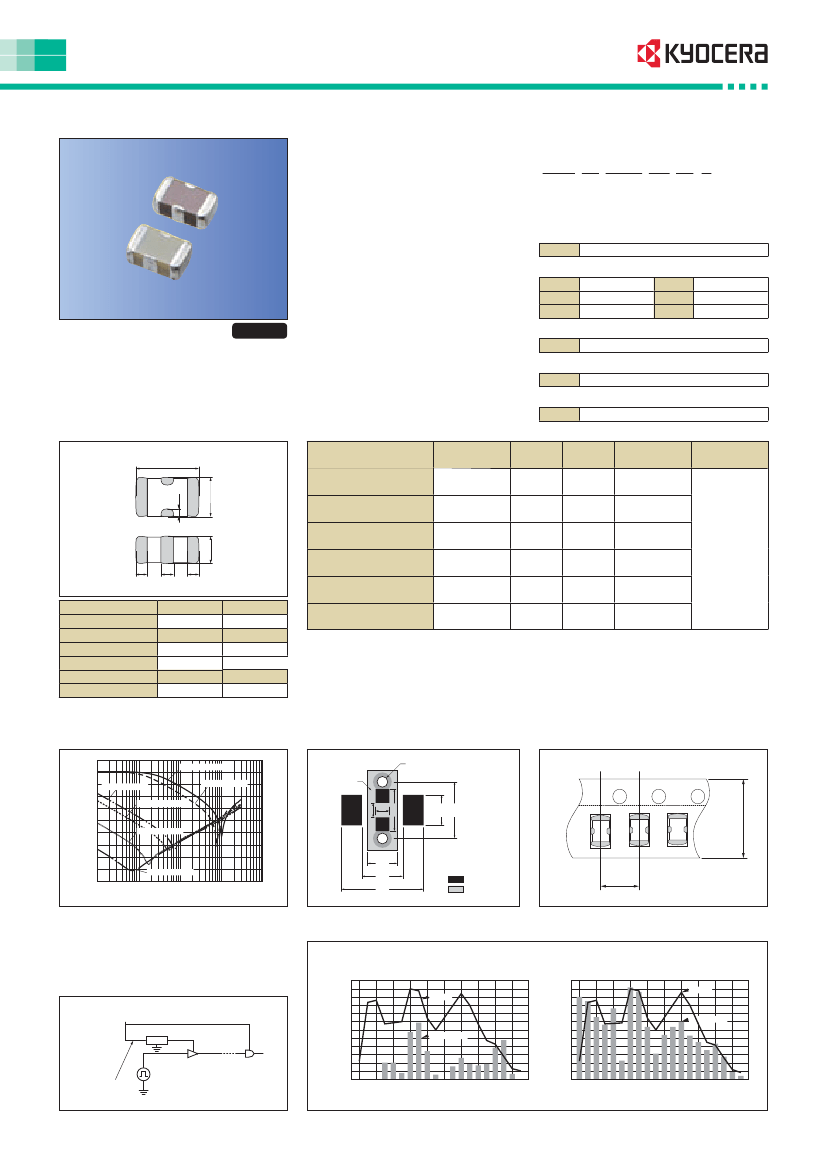

KNH21C473DA3T Overview

USB Connectors WR-COM Type A Dual 2x4 Horztl Stkd Feml

KNH21C473DA3T Parametric

Parameter Name	Attribute value
Product Category	Feed Through Capacitors
Manufacturer	AVX
RoHS	Details
Product	Three Terminal Filter Capacitors
Capacitance	0.047 uF
Voltage Rating DC	50 VDC
Tolerance	- 20 %, + 50 %
Current Rating	2 A
Ground Terminal	0.4 mm
Termination Style	SMD/SMT
Minimum Operating Temperature	- 40 C
Maximum Operating Temperature	+ 85 C
Package / Case	0805 (2012 metric)
Length	2 mm
Width	1.25 mm
Height	0.85 mm
Packaging	Cut Tape
Packaging	MouseReel
Packaging	Reel
Capacitance - nF	47 nF
Capacitance - pF	47000 pF
Operating Temperature Range	- 40 C to + 85 C
Factory Pack Quantity	3000
Type	EMI Filter
Voltage Rating	50 V
Unit Weight	0.000194 oz

Preview

Download Datasheet

View All

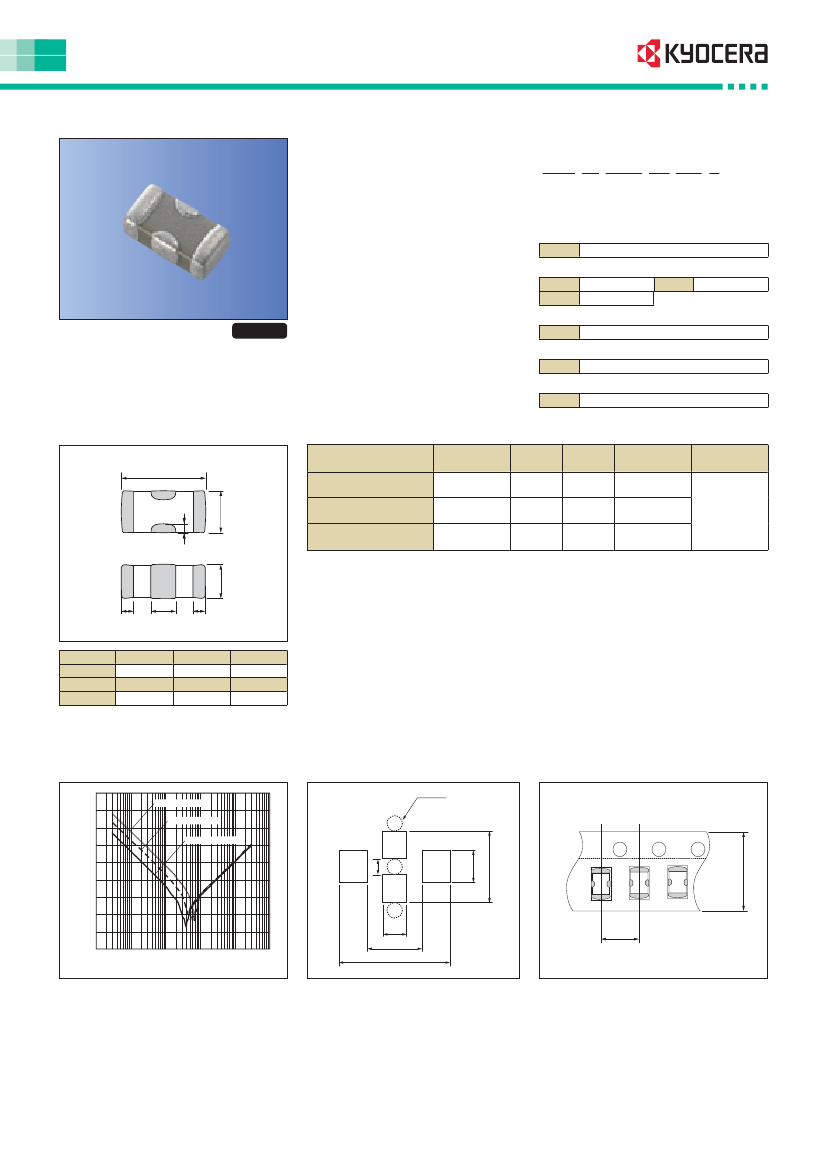

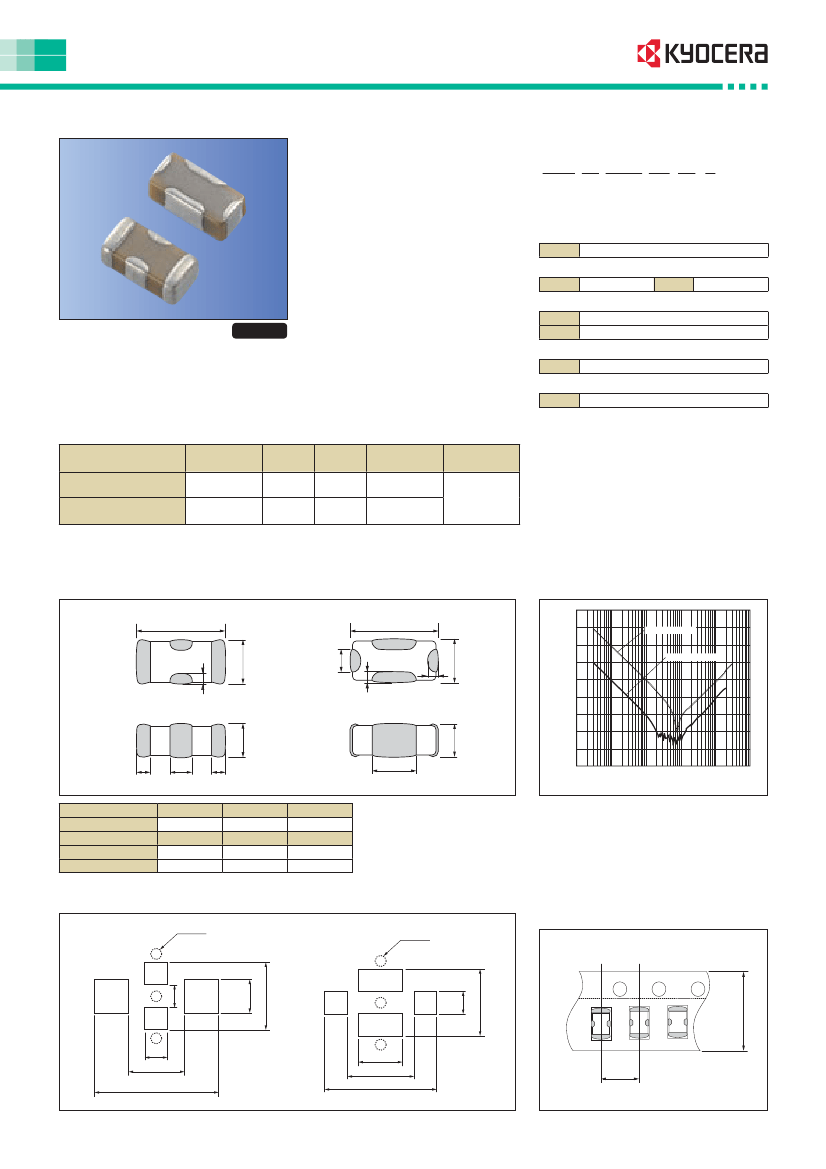

EMI Filters

KNH10 Series

Features

• 0402 Size. Rated current up to 2A MAX.

• Effective for filtering noise on power (Vcc)

lines.

How to Order

KNH 10 C104 DA 20T S

①

②

③

④

⑤ ⑥

Applications

• PCs, Laser Printers, Cellular Phone,

Power/ Signal Lines for LCD Display,

Office Equipments

• AV Power Supply/ Signal Line, TV, VCR, etc.

• High Current Signal Lines

①

Series

②

Size Code

1005 (EIA:0402)

470,000pF

220,000pF

C104

100,000pF

③

Capacitance

C474

C224

④

Application

RoHS Compliant

Digital Circuit in General

T&R: 20,000 pcs. (Std.)

Std.

⑤

Packaging

20T

⑥

Termination

Dimensions

(Unit: mm)

Specifications

Part Number

KNH10C474DA20TS

KNH10C224DA20TS

KNH10C104DA20TS

•

Storage

Capacitance Rated

(+50/

−20%)

Current

470,000pF

220,000pF

100,000pF

2.0A

Rated Temp. Coefficient Operating

Voltage of Capacitance Temperature

10VDC

±15%

−40

+85°C

condition

Temperature:

−10

+45°C

Humidity: 45 to 75%RH

CODE

Dimensions

1.00±0.10 0.50±0.10 0.35±0.05

CODE

≥0.01

Dimensions

0.30±0.05 0.15±0.075

Attenuation Characteristics

Recommended Land Pattern

(Unit: mm)

Packaging Specification

• Taping (20,000/ reel)

(Unit: mm)

−

Attenuation (dB)

−

0.1

100

1000

10000

Frequency (MHz)
