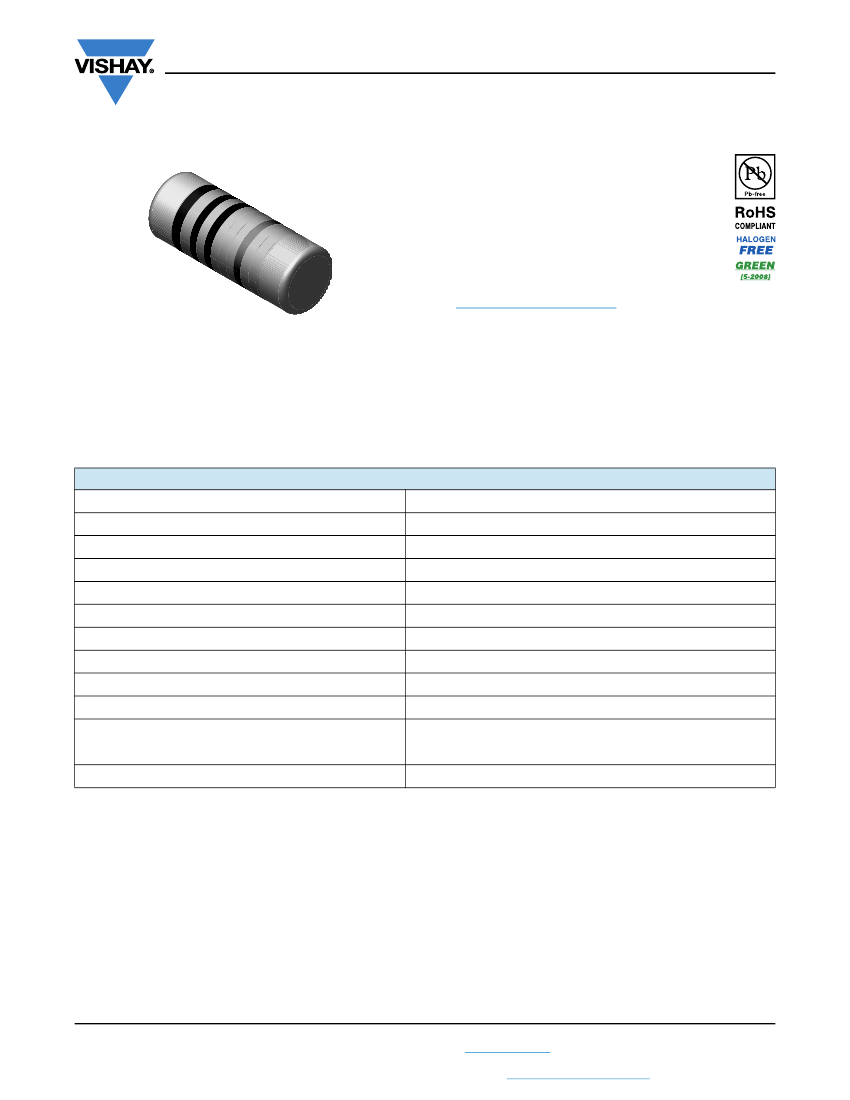

SMM0102
www.vishay.com
Vishay Draloric
Thin Film Micro-MELF Resistors
FEATURES
• Advanced thin film technology
• Low TCR and tight tolerances
• Excellent stability in different environmental
conditions
• Intrinsic sulfur resistance
• Material categorization:
for definitions of compliance please see
www.vishay.com/doc?99912
APPLICATIONS
• Automotive
SMM0102 thin film Micro-MELF resistors are the perfect
choice for most fields of modern professional electronics
where reliability and stability is of major concern. The typical
applications in the fields of automotive and medical
equipment reflect the outstanding level of proven reliability.
• Telecommunication
• Industrial
• Medical equipment
TECHNICAL SPECIFICATIONS
DESCRIPTION
DIN size
Metric size code
Resistance range
Resistance tolerance
Temperature coefficient
Rated dissipation,
P
70 (1)
Operating voltage,
U
max.
AC
RMS
/DC
Permissible film temperature,
ϑ
F max. (1)
Operating temperature range
(1)
Permissible voltage against ambient (insulation):
1 min;
U
ins
Failure rate: FIT
observed
Note
(1)
Please refer to APPLICATION INFORMATION below.
200 V
≤
0.1 x 10
-9
/h
SMM0102
0102
RC2211M
10
Ω
to 2.21 MΩ; 0
Ω
± 1 %; ± 0.1 %
± 50 ppm/K; ± 25 ppm/K; ± 15 ppm/K
0.200 W
150 V
125 °C
-55 °C to 125 °C
APPLICATION INFORMATION
When the resistor dissipates power, a temperature rise above the ambient temperature occurs, dependent on the thermal
resistance of the assembled resistor together with the printed circuit board. The rated dissipation applies only if the permitted
film temperature is not exceeded.
These resistors do not feature a limited lifetime when operated within the permissible limits. However, resistance value drift
increasing over operating time may result in exceeding a limit acceptable to the specific application, thereby establishing a
functional lifetime.
Revision: 04-Dec-15
Document Number: 20003
1
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0102
www.vishay.com
Vishay Draloric
MAXIMUM RESISTANCE CHANGE AT RATED DISSIPATION
OPERATION MODE
Rated dissipation,
P
70
Operating temperature range
Permissible film temperature,
ϑ
F
max.
SMM0102
Max. resistance change at
P
70
for resistance range,
|ΔR/R| after:
1000 h
8000 h
SMM0102
STANDARD
0.200 W
-55 °C to 125 °C
125 °C
10
Ω
to 2.21 MΩ
≤
0.5 %
≤
1%
Note
• A suitable low thermal resistance of the circuit board assembly must be safeguarded in order to maintain the film temperature of the resistors
within the specified limits. Please consider the application note “Thermal Management in Surface-Mounted Resistor Applications”
(www.vishay.com/doc?28844) for information on the general nature of thermal resistance.
TEMPERATURE COEFFICIENT AND RESISTANCE RANGE
TYPE / SIZE
TCR
± 50 ppm/K
SMM0102
± 25 ppm/K
± 15 ppm/K
OMM0102
Jumper,
I
max.
= 2 A
TOLERANCE
±1%
± 0.1 %
± 0.1 %
≤
10 mΩ
RESISTANCE
10
Ω
to 2.21 MΩ
100
Ω
to 100 kΩ
100
Ω
to 100 kΩ
0
Ω
E24; E192
E-SERIES
E24; E96
-
PACKAGING
TYPE / SIZE
CODE
B1
(1)
SMM0102
OMM0102
B3
B0
(1)
QUANTITY
1000
3000
10 000
PACKAGING STYLE
WIDTH
PITCH
PACKAGING
DIMENSIONS
Ø 180 mm / 7"
Antistatic blister tape acc.
IEC 60286-3, Type 2a
8 mm
4 mm
Ø 180 mm / 7"
Ø 330 mm / 13"
Note
Package of 1000 pieces, code B1, is available only for products with tolerance ± 0.1 %.
Revision: 04-Dec-15
Document Number: 20003
2
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
SMM0102
www.vishay.com
DESCRIPTION
Production is strictly controlled and follows an extensive set
of instructions established for reproducibility. A
homogeneous film of metal alloy is deposited on a high
grade ceramic body (Al
2
O
3
) and conditioned to achieve the
desired temperature coefficient. Nickel plated steel
termination caps are firmly pressed on the metallized rods.
A special laser is used to achieve the target value by
smoothly cutting a helical groove in the resistive layer
without damaging the ceramic. The resistor elements are
covered by a protective coating designed for electrical,
mechanical and climatic protection. The terminations
receive a final pure tin on nickel and copper plating for
enhanced temperature cycling stability. Four or five color
code rings designate the resistance value and tolerance in
accordance with
IEC 60062
(1)
.
The result of the determined production is verified by an
extensive testing procedure performed on 100 % of the
individual resistors. This includes full screening for the
elimination of products with a potential risk of early field
failures according to EN 140401-803, 2.1.2.2. Only
accepted products are laid directly into the blister tape in
accordance with
IEC 60286-3, Type 2a
(1)
.
Vishay Draloric
MATERIALS
Vishay acknowledges the following systems for the
regulation of hazardous substances:
• IEC 62474, Material Declaration for Products of and for the
Electrotechnical Industry, with the list of declarable
substances given therein
(2)
• The Global Automotive Declarable Substance List
(GADSL)
(3)
• The REACH regulation (1907/2006/EC) and the related list
of substances with very high concern (SVHC)
(4)
for its
supply chain
The products do not contain any of the banned substances
as per IEC 62474, GADSL, or the SVHC list, see
www.vishay.com/how/leadfree.
Hence the products fully
comply with the following directives:
• 2000/53/EC End-of-Life Vehicle Directive (ELV) and
Annex II (ELV II)
• 2011/65/EU Restriction of the Use of Hazardous
Substances
Directive
(RoHS)
with
amendment
2015/863/EU
• 2012/19/EU Waste Electrical and Electronic Equipment
Directive (WEEE)
Vishay pursues the elimination of conflict minerals from its
supply chain, see the Conflict Minerals Policy at
www.vishay.com/doc?49037.
ASSEMBLY
The resistors are suitable for processing on automatic SMD
assembly systems. They are suitable for automatic
soldering using wave, reflow or vapor phase as shown in
IEC 61760-1
(1)
. The encapsulation is resistant to all
cleaning solvents commonly used in the electronics
industry, including alcohols, esters and aqueous solutions.
The suitability of conformal coatings, potting compounds
and their processes, if applied, shall be qualified by
appropriate means to ensure the long-term stability of the
whole system.
The resistors are completely lead (Pb)-free, the pure tin
plating provides compatibility with lead (Pb)-free and lead
containing soldering processes. Solderability is specified for
2 years after production or requalification, however,
excellent solderability is proven after extended storage in
excess of 10 years. The permitted storage time is 20 years.
The immunity of the plating against tin whisker growth has
been proven under extensive testing.
RELATED PRODUCTS
Resistors are available with established reliability in
accordance with
EN 140401-803 Version E.
Please refer to
datasheet “MELF Resistors with Established Reliability”
(www.vishay.com/doc?28707).
MS1 .... ESCC high-reliability thin film MINI-MELF resistors
are the premium choice for design and manufacture of
equipment, where matured technology and proven reliability
are of utmost importance. They are regularly used in
communication and research satellites and fit equally well
into aircraft and military electronic systems.
Approval of the MS1 .... ESCC products is granted by the
European Space Components Coordination and registered
in the ESCC Qualified Parts List, REP005
(www.vishay.com/doc?28790).
Notes
(1)
The quoted IEC standards are also released as EN standards with the same number and identical contents.
(2)
The IEC 62474 list of declarable substances is maintained in a dedicated database, which is available at
http://std.iec.ch/iec62474.
(3)
The Global Automotive Declarable Substance List (GADSL) is maintained by the American Chemistry Council and available at
www.gadsl.org.
(4)
The SVHC list is maintained by the European Chemical Agency (ECHA) and available at
http://echa.europa.eu/candidate-list-table.
Revision: 04-Dec-15
Document Number: 20003
4
For technical questions, contact:
melf@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
