T
IP
& R
ING
C
HIP
C
APACITORS

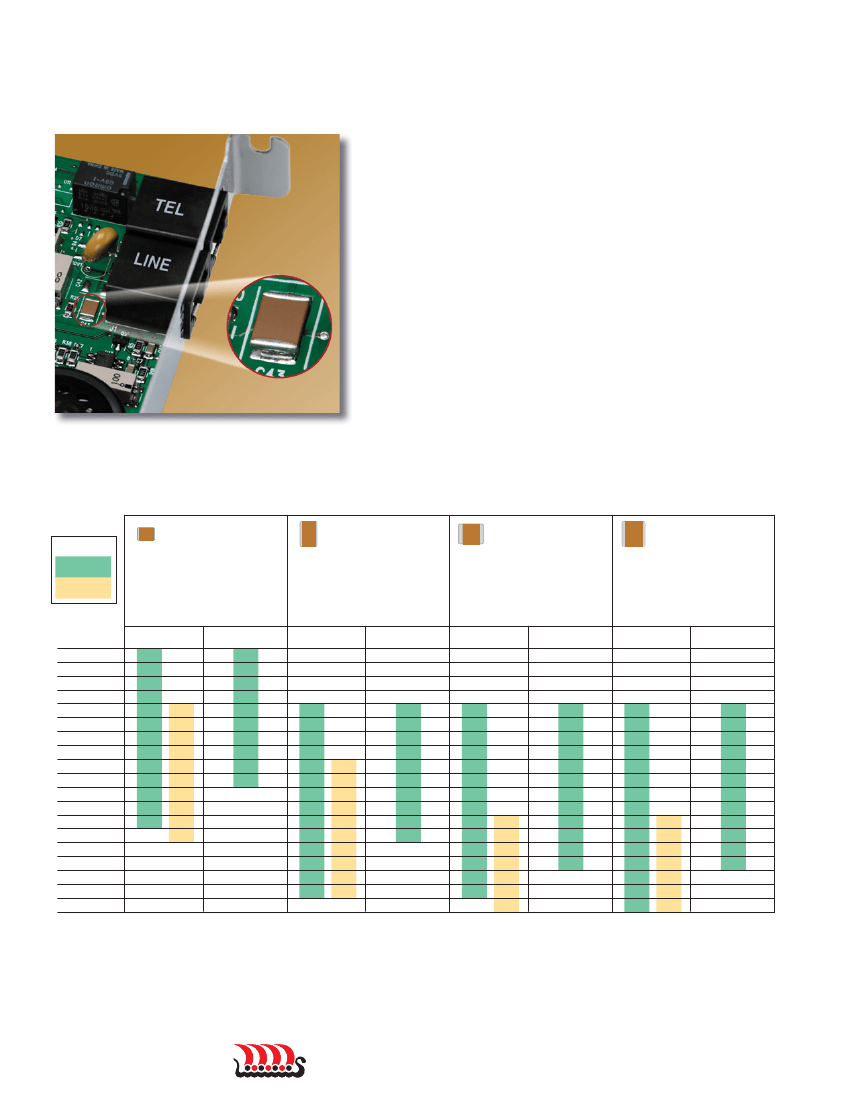

The Tip & Ring MLCC series are designed specifically for
telecom ringer circuit applications where it is necessary to
provide a block of the line voltage (typically -48 VDC) while
passing the AC ringing voltage. These compact ceramic SMD
chips replace bulky leaded film caps saving board space and
stream-lining the assembly process.
K
EY
F
EATURES
•
•
•
•
•
•
Blocks Off-hook DC Voltage
Passes AC Ring Signal
250 VDC & 300 VDC Ratings For Telecom Interface
Choice of SMD Chip Sizes
Low ESR versus Frequency
Stable Temperature Performance (X7R)
C
APACITANCE
S
ELECTION
-1812-2225 S
IZE
S43 / 1812
DIELECTRIC
S49 / 1825
L
W
T
E/B
INCHES
.180 ±.010
.250 ±.010
.110 Max.
.025 ±.015
(mm)
(4.57 ±.25)
(6.35 ±.25)
(2.80)
(0.64±.38)
L
W
T
E/B
S47 / 2220
INCHES
.225 ±.010
.200 ±.010
.110 Max.
.025 ±.015
(mm)
(5.72 ±.25)
(5.08 ±.25)
(2.80)
(0.64±.38)
L
W
T
E/B
S48 / 2225
INCHES
.225 ±.010
.250 ±.010
.110 Max.
.025 ±.015
(mm)
(5.72 ±.25)
(6.35 ±.25)
(2.80)
(0.64±.38)
X7R
Z5U
L
W
T
E/B
INCHES
.175 ±.010
.125 ±.010
.085 Max.
.025 ±.015
(mm)
(4.45 ±.25)
(3.17 ±.25)
(2.16)
(0.64±.38)
250 VDC
.047 µF
.056 µF
.068 µF
.082 µF
0.10 µF
0.12 µF
0.15 µF
0.18 µF
0.22 µF
0.27 µF
0.33 µF
0.39 µF
0.47 µF
0.56 µF
0.68 µF
0.82 µF
1.00 µF
1.20 µF
1.50 µF
300 VDC
250 VDC
300 VDC
250 VDC
300 VDC
250 VDC
300 VDC
Please contact the factory for capacitance, voltage, case size combinations not shown.
1
www.johanson dielectrics.com
T
IP
& R
ING
C
HIP
C
APACITORS
C
APACITANCE
S
ELECTION
- 0805-1808 S
IZE
R15 / 0805
DIELECTRIC
R18 / 1206
INCHES
.125 ±.010
.062 ±.010
.055 Max.
.020 ±.010
(mm)
(3.17 ±.25)
(1.57 ±.25)
(1.40)
(0.51±.25)
L
W
T
E/B
S41 / 1210
INCHES
.125 ±.010
.095 ±.010
.065 Max.
.020 ±.010
(mm)
(3.18 ±.25)
(2.41 ±.25)
(1.65)
(0.51±.25)
L
W
T
E/B
R29 / 1808
INCHES
.180 ±.010
.080 ±.010
.065 Max.
.020 ±.010
(mm)
(4.57 ±.25)
(2.41 ±.25)
(1.65)
(0.51±.25)
X7R
L
W
T
E/B
INCHES
.080 ±.010
.050 ±.010
.050 Max.
.020 ±.010
(mm)
(2.03 ±.25) L
(1.27 ±.25) W
(1.27)
T
(0.51±.25) E/B
250 VDC
1000 pF
1200 pF
1500 pF
1800 pF
2200 pF
2700 pF
3300 pF
3900 pF
4700 pF
5600 pF
8200 pF
.010 µF
.012 µF
.015 µF
.018 µF
.022 µF
.027 µF
.033 µF
.039 µF
.047 µF
.056 µF
.068 µF
.082 µF
0.10 µF
0.22 µF
0.27 µF
300 VDC
250 VDC
300 VDC
250 VDC
300 VDC
250 VDC
300 VDC
Please contact the factory for capacitance, voltage, case size combinations not shown.
H
OW TO
O
RDER
T
IP
& R
ING
251
VOLTAGE
251 = 250 V
301 = 300 V
S43
CASE SIZE
See Chart
Z
DIELECTRIC
W = X7R
Z = Z5U
474
CAPACITANCE
1st two digits are
significant; third digit
denotes number of
zeros.
474 = 0.47 µF
105 = 1.00 µF
M
TOLERANCE
K = ± 10%
M = ± 20%
Z = +80% -20%
V
TERMINATION
V = Ni barrier w/
100% Sn Plating
MARKING
4 = Unmarked
6 = EIA “J” Code*
4
E
TAPE MODIFIER
Code Type Reel
E
Plastic 7”
U
Plastic 13”
Tape specifications
conform to EIA RS481
P/N written: 251S43Z474MV4E
www.johanson dielectrics.com
2
T
IP
& R
ING
C
HIP
C
APACITORS
X7R D
IELECTRIC
C
HARACTERISTICS
TEMPERATURE COEFFICIENT:
± 15%, -55 to +125°C
DISSIPATION FACTOR:
20%
X7R C
AP
.
VS
T
EMPERATURE
2.5% max
3.0% max
3.5% max
For
≥50
Volts:
For 25 Volts:
For 16 Volts:
0%
-20%
AGING:
INSULATION RESISTANCE:
2.5% / decade hour
1000
ΩF
or 100 GΩ,
whichever is less
@ 25°C, WVDC
(500
ΩF
or 10 GΩ for Tanceram
®
capacitors)
125°C IR is 10% of 25°C rating.
2.5 X rated voltages of 6 to 200 VDC
2.0 X rated voltages of 201 to 499 VDC
1.5 X rated voltages of 500 to 999 VDC
1.2 X rated voltages of 1000 VDC or higher.
1kHz ±50Hz, 1.0±0.2 VRMS, 25°C
-40%
-60%
DIELECTRIC STRENGTH:
-80%
-55°C
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
TEST PARAMETERS:
Z5U D
IELECTRIC
C
HARACTERISTICS
TEMPERATURE COEFFICIENT:
+ 22% - 56% , +10 to +85°C
DISSIPATION FACTOR:
AGING:
INSULATION RESISTANCE:
DIELECTRIC STRENGTH:
TEST PARAMETERS:
20%
Z5U C
AP
.
VS
T
EMPERATURE
4.0% max
5.0% max
For
≥
25 Volts:
For 16 Volts:
0%
5% / decade hour
100
ΩF
or 10 GΩ,whichever is less @ 25°C,WVDC;
-20%
-40%
2.5 X rated voltages of 6 to 200 VDC
2.0 X rated voltages of 201 to 499 VDC
1kHz ±50Hz, 0.5±0.2 VRMS, 25°C
-60%
-80%
-55°C
-25°C
0°C
25°C
50°C
75°C
100°C
125°C
