IHLP5050CEEBR68M01

Description
Fixed Inductors .68uH 20%
CategoryPassive components    inductor
File Size168KB,5 Pages
ManufacturerVishay
Websitehttp://www.vishay.com
Environmental Compliance
Download Datasheet Parametric Compare View All

IHLP5050CEEBR68M01 Online Shopping

Suppliers Part Number Price MOQ In stock
IHLP5050CEEBR68M01 - - View Buy Now

IHLP5050CEEBR68M01 Overview

Fixed Inductors .68uH 20%

IHLP5050CEEBR68M01 Parametric

Parameter NameAttribute value
Is it lead-free?Lead free
Is it Rohs certified?conform to
package instruction5251
Reach Compliance Codeunknown
ECCN codeEAR99
Is SamacsysN
uppercase and lowercase codes5251
structureChip
core materialIRON
DC Resistance0.025 Ω
Nominal inductance(L)0.68 µH
Inductor ApplicationsHIGH CURRENT INDUCTOR
Inductor typeGENERAL PURPOSE INDUCTOR
JESD-609 codee3
Manufacturer's serial numberIHLP-5050CE-01
Number of functions1
Number of terminals2
Maximum operating temperature125 °C
Minimum operating temperature-55 °C
Package height3.5 mm
Package length13.2 mm
Package formSMT
Package width12.9 mm
method of packingBulk
Maximum rated current28 A
seriesIHLP-5050CE-01
Shape/Size DescriptionRECTANGULAR PACKAGE
shieldYES
surface mountYES
Terminal surfaceMatte Tin (Sn) - with Nickel (Ni) barrier
Terminal locationDUAL ENDED
Terminal shapeWRAPAROUND
Test frequency0.1 MHz
Tolerance20%
Base Number Matches1

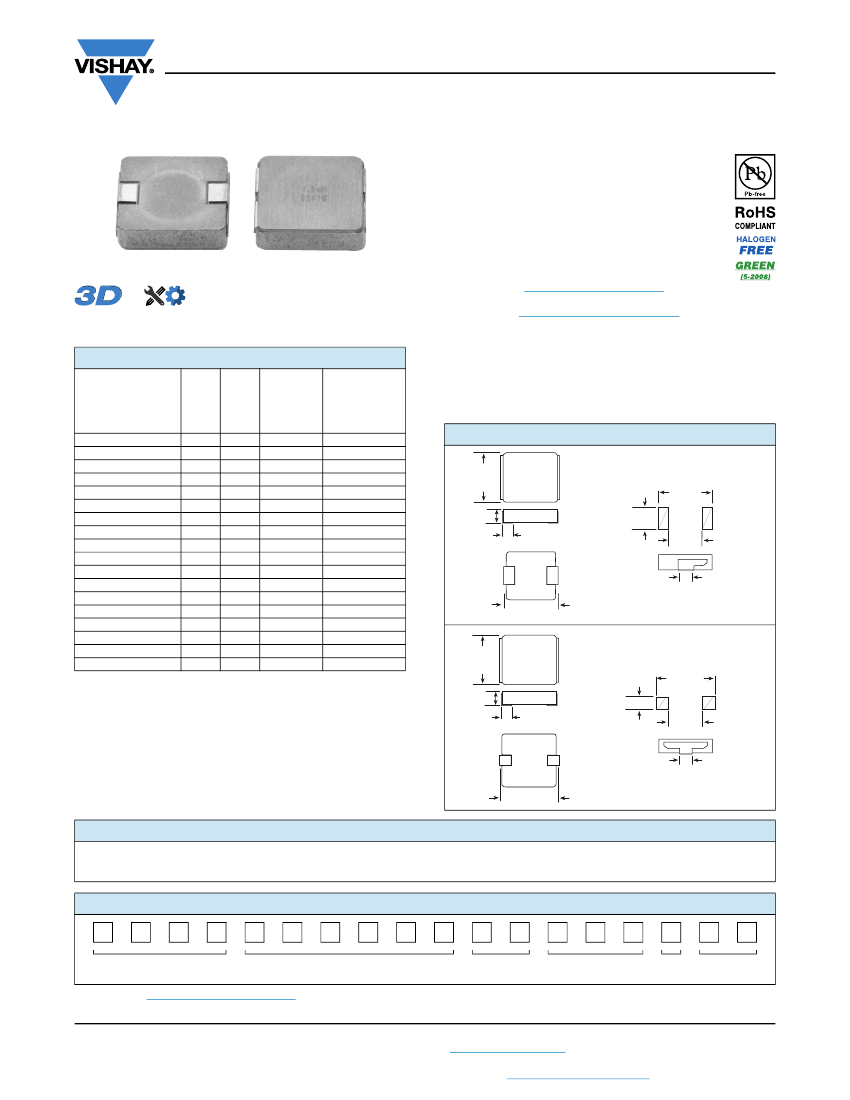

IHLP-5050CE-01
www.vishay.com
Vishay Dale
IHLP
®
Commercial Inductors, High Saturation Series
FEATURES
Lowest height (3.5 mm) in this package footprint
Shielded construction
Frequency range up to 5.0 MHz
Lowest DCR/μH, in this package size
Handles high transient current spikes without
saturation
• Ultra low buzz noise, due to composite
construction
• IHLP design.
PATENT(S):
www.vishay.com/patents
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
DESIGN SUPPORT TOOLS
click logo to get started
Models
Available
Design Tools
Available
APPLICATIONS
HEAT
RATING SATURATION
DCR
MAX. CURRENT
CURRENT
25 °C DC TYP.
DC TYP.
(A)
(1)
(mΩ)
(A)
(2)
0.96
43
84
1.2
41
75
1.3
38.5
65
1.5
36.5
62
2
32
55
2.2
29
51
2.5
28
49
3
25
44
3.5
24
40
5.5
19
35
7
16.5
30
8
16
29
12
12
27
15
10
24
19
9.5
19
22
9
18
28
8.5
16
34
7
14
STANDARD ELECTRICAL SPECIFICATIONS
L
0
INDUCTANCE
± 20 % AT 100 kHz,
0.25 V, 0 A
(μH)
0.10
0.15
0.22
0.33
0.47
0.60
0.68
0.82
1.0
1.5
1.8
2.2
3.3
4.7
5.6
6.8
8.2
10
DCR
TYP.
25 °C
(mΩ)
0.8
1
1.1
1.3
1.6
1.8
2.3
2.6
3.3
5.1
6.5
7.2
11
14.3
18.3
19.8
24.8
30.4
PDA / notebook / desktop / server applications
High current POL converters
Low profile, high current power supplies
Battery powered devices
DC/DC converters in distributed power systems
DC/DC converter for Field Programmable Gate Array (FPGA)
DIMENSIONS
in inches [millimeters]
0.508
[12.9]
Max.
Typical Pad Layout
0.580
[14.732]
0.091 ± 0.01
[2.3 ± 0.3]
0.195
[4.95]
0.325
[8.255]
0.138
[3.5] Max.
0.185 ± 0.01
[4.7 ± 0.3]
0.520 ± 0.015
[13.2 ± 0.38] Max.
This diagram applies to values 0.6 µH and below.
0.508
[12.9]
Max.
Typical Pad Layout
0.575
[14.605]
0.128 [3.3]
0.087 ± 0.01
[2.2 ± 0.254]
0.325
[8.255]
Notes
• All test data is referenced to 25 °C ambient
• Operating temperature range -55 °C to +125 °C
• The part temperature (ambient + temp. rise) should not exceed
125 °C under worst case operating conditions. Circuit design,
component placement, PWB trace size and thickness, airflow
and other cooling provisions all affect the part temperature. Part
temperature should be verified in the end application.
• Rated operating voltage (across inductor) = 75 V
(1)
DC current (A) that will cause an approximate
ΔT
of 40 °C
(2)
DC current (A) that will cause L to drop approximately 20 %
0
0.138
[3.5] Max.
0.118 ± 0.01
[3.0 ± 0.3]
0.520 ± 0.015
[13.2 ± 0.38]
This diagram applies to values 0.68 µH and above.
DESCRIPTION
IHLP-5050CE-01
MODEL
1.0 μH
INDUCTANCE VALUE
± 20 %
INDUCTANCE TOLERANCE
ER
PACKAGE CODE
JEDEC
®
e3
LEAD (Pb)-FREE STANDARD
GLOBAL PART NUMBER
I
H
L
P
5
0
5
SIZE
0
C
E
E
R
1
R
0
M
TOL.
0
1
PRODUCT FAMILY
PACKAGE
CODE
INDUCTANCE
VALUE
SERIES
PATENT(S):
www.vishay.com/patents
This Vishay product is protected by one or more United States and international patents.
Revision: 07-Jun-17
Document Number: 34105
1
For technical questions, contact:
magnetics@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
