LFXTAL060222Cutt

Description
Crystals 33.0MHz 3.2 x 2.5 x 0.8mm
CategoryPassive components
File Size263KB,1 Pages
ManufacturerIQD
Download Datasheet Parametric View All

LFXTAL060222Cutt Online Shopping

Suppliers Part Number Price MOQ In stock
LFXTAL060222Cutt - - View Buy Now

LFXTAL060222Cutt Overview

Crystals 33.0MHz 3.2 x 2.5 x 0.8mm

LFXTAL060222Cutt Parametric

Parameter NameAttribute value
Product CategoryCrystals
ManufacturerIQD
RoHSDetails
Termination StyleSMD/SMT
Package / Case3.4 mm x 2.7 mm
Load Capacitance18 pF
Frequency33 MHz
Tolerance20 PPM
Frequency Stability30 PPM
Drive Level100 uW
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
Length3.4 mm
Width2.7 mm
Height0.8 mm
PackagingBulk
ESR40 Ohms
Mounting StyleSMD/SMT
Factory Pack Quantity100
TypeQuartz Crystal

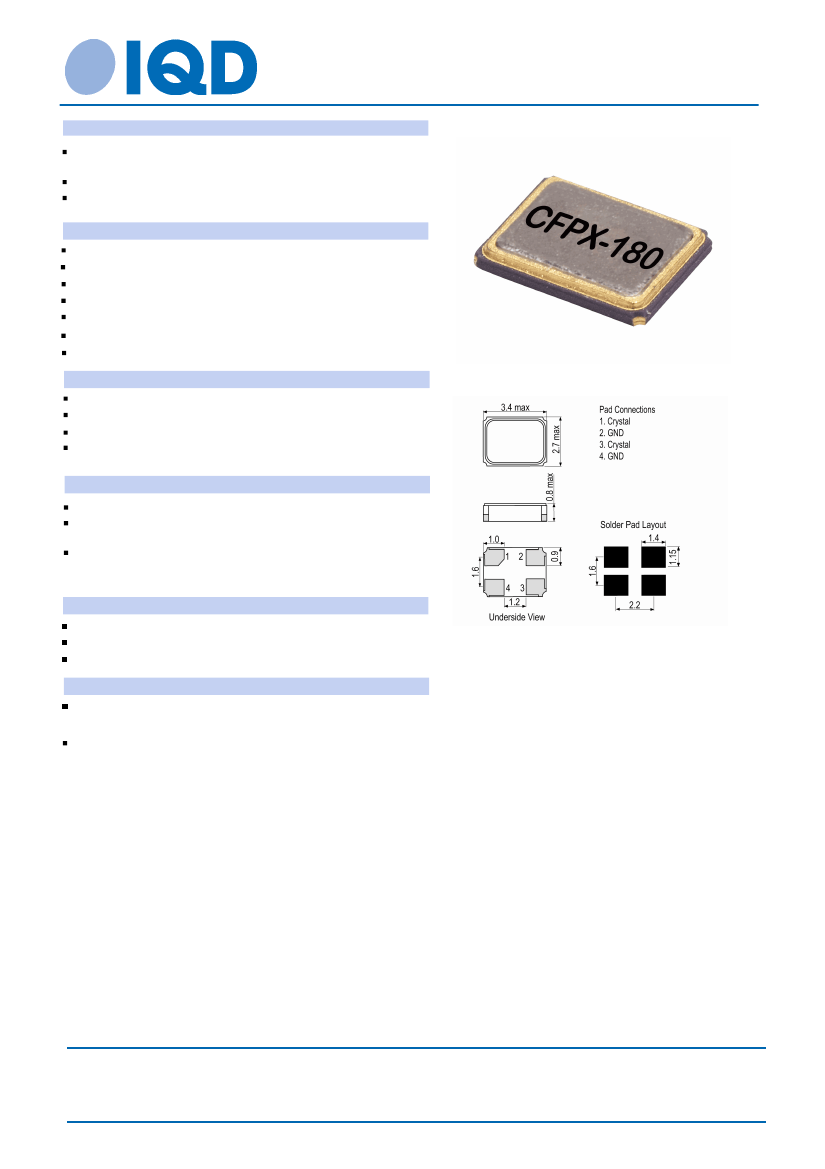

Quartz Crystal Specification
Part No. + Packaging:
LFXTAL060222Cutt
Description
Standard 3.2 x 2.5mm SMD crystal in a ceramic package with a
seam sealed metal lid, hermetically sealed.
Model
CFPX-180
Model Issue number
9
Frequency Parameters
Frequency
Frequency Tolerance
Tolerance Condition
Frequency Stability
Operating Temperature Range
Overtone Order
Ageing
Electrical Parameters
33.0MHz
±20.00ppm
@ 25°C
±
30.00ppm
-40.00 to 85.00°C
Fundamental
±5ppm max per year @ 25°C
Outline (mm)
Load Capacitance (CL)
Shunt Capacitance (C0)
Drive Level
ESR
Environmental Parameters
18.00pF
7pF max
100µW max
40.00Ω max
Storage Temperature Range: -55 to 125°C
Shock: MIL-STD-202F, Method 213B: 1000G, 0.5ms, 1/2 sine
wave
Vibration: MIL-STD-202F, Method 204D, Test Condition D:
20G (10Hz-2000Hz), 4hrs in 3 mutually perpendicular planes
(total 12hrs)
Compliance
RoHS Status (2011/65/EU)
REACh Status
MSL Rating (JDEC-STD-033):
Packaging Details
Compliant
Compliant
Not Applicable
Pack Style: Cutt
Pack Size: 1
In tape, cut from a reel
Alternative packing option available
Sales Office Contact Details:
UK: +44 (0)1460 270200
Germany: 0800 1808 443
France: 0800 901 383
USA: +1 408.273.4530
Email: info@iqdfrequencyproducts.com
Web: www.iqdfrequencyproducts.com
Page 1 of 1
