MKC 1862
Not for new designs
Vishay Roederstein
Metallized Polycarbonate Film Capacitor
Related Document: IEC 60384-6
Dimensions in millimeters
L Max.
W Max.
Marking
FEATURES
Product is completely lead (Pb)-free.
Product is RoHS compliant.
DERATING FOR DC AND AC. CATEGORY
VOLTAGE U
C
H
Max.
0.6
At + 85°C: U
C
= 1.0 U
R
At + 100°C: U
C
= 0.8 U
R
0.01µF to 10µF
e3
RoHS
COMPLIANT
CAPACITANCE RANGE
6.0
- 1
±
0.4
pcm
±
0.4
0.8
PERMISSIBLE AC VOLTAGES (RMS) UP TO 60HZ
40 VAC, 63 VAC, 160 VAC, 200 VAC
1.6 x U
R
for 2 s
TEST VOLTAGE (ELECTRODE/ELECTRODE)
INSULATION RESISTANCE
MAIN APPLICATIONS
MARKING
Storage, filter, timing and integrating circuits.
Manufacturer's logo/type/C-value/rated voltage/tolerance/
date of manufacture
DIELECTRIC
Measured at 100 VDC (63 VDC series measured at
50 VDC) after one minute
For C
≤
0.33µF and U
R
> 100 VDC:
30,000 MΩ minimum value (100,000 MΩ typical value)
For C
≤
0.33µF and U
R
≤
100 VDC:
15,000 MΩ minimum value (50,000 MΩ typical value)
Polycarbonate film
TIME CONSTANT
ELECTRODES
COATING
Vacuum deposited aluminum
Flame retardant plastic case (UL-class 94 V-0), red, epoxy
resin sealed
Measured at 100 VDC (63 VDC series measured at
50 VDC) after one minute
For C > 0.33µF and U
R
> 100 VDC:
10,000 s minimum value (40,000 s typical value)
For C > 0.33µF and U
R
≤
100 VDC:
5000 s minimum value (15,000 s typical value)
CONSTRUCTION
LEADS
CAPACITANCE DRIFT
SELF INDUCTANCE
Extended metallized film (refer to general information)
Tinned wire
Up to + 40°C, ± 1% for a period of two years
~ 6 nH measured with 2mm long leads
IEC TEST CLASSIFICATION
PULL TEST ON LEADS
55/100/56, according to IEC 60068
≥
30 N in direction of leads according to IEC 60068-2-21
OPERATING TEMPERATURE RANGE
- 55°C to + 100°C
BEND TEST ON LEADS
RELIABILITY
2 bends through 90° with half of the force used in pull test
Operational life > 300,000 h
Failure rate < 1 FIT (40°C and 0.5 x U
R
)
For further details, please refer to the general information
available at www.vishay.com/doc?26033.
CAPACITANCE TOLERANCES
± 20% (M), ± 10% (K), ± 5% (J)
RATED VOLTAGES (U
R
)
63 VDC, 100 VDC, 250 VDC, 400 VDC
MAXIMUM PULSE RISE TIME
PCM
(mm)
10
15
22.5
27.5
Maximum Pulse Rise Time d
v
/d
t
[V/µs]
63 VDC
17
9
6
5
100 VDC
23
13
8
6
250 VDC
38
21
13
10
400 VDC
61
33
20
16
If the maximum pulse voltage is less than the rated voltage higher dv/dt values can be permitted.
Document Number: 26027
Revision: 05-Jul-05
For technical questions contact; dc-film@vishay.com
www.vishay.com
1
MKC 1862
Metallized Polycarbonate Film Capacitor
Related Document: IEC 60384-6
Vishay Roederstein
VRMS
100
7
5
3
2
10
7
5
3
2
1
10
2
63 VDC
2
3
5 7 10
3
2
3
VRMS
Capacitance in
µF
0.2
2
0.4
7
1.0
2.2
4.7
10
.0
100
7
5
3
2
10
7
5
3
2
1
100 VDC
10
2
2 3
5 7 10
3
Capacitance in
µF
2
3
5 7 10
4
2
3
5 7 10
5
f [Hz]
10
.0
6.
8
3.3
2. 2
0.0
6
8
0.1
5
0.3
3
1.5
0.6
8
0.4
7
5 7 10
4
2
3
5 7 10
5
f [Hz]

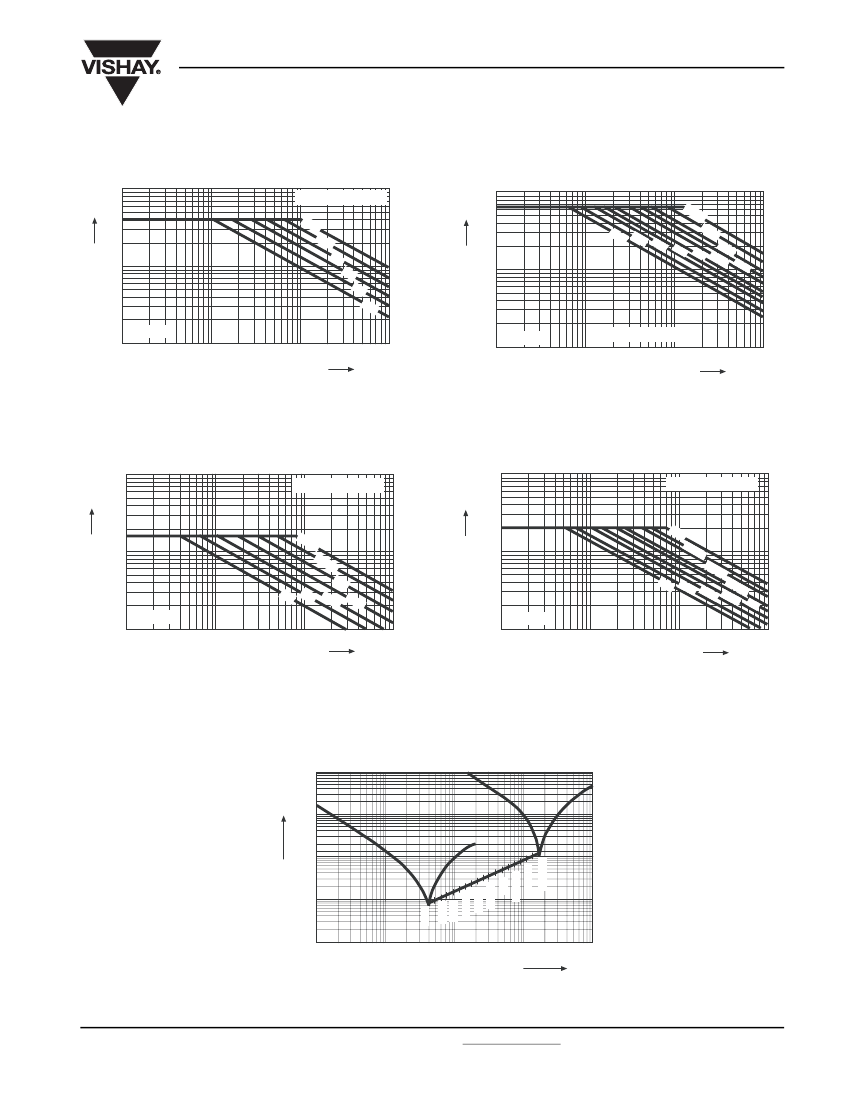

Permissible AC Voltage versus Frequency
Permissible AC Voltage versus Frequency
1000
7
5
3
2
100
7
5
3
2
10
10
2
250 VDC
2
3
5 7 10
3
2
3
2.2
VRMS
Capacitance in
µF
1000
7
5
3
2
VRMS
Capacitance in
µF
0. 0
0.0
1
0.0
22
0. 0
33
1. 0
0.6
8
0.3
0.0
6
8
3 0.2
2 0.
1
22
0.0
4
7
0.1
100
7
5
0.2
2
1.0
0. 4
7
3
2
5 7 10
5
f [Hz]
10
10
2
400 VDC
2
3
5 7 10
3
2 3
5 7 10
4
2
3
5 7 10
4
2
3
Permissible AC Voltage versus Frequency
5 7 10
5
f [Hz]
Permissible AC Voltage versus Frequency
Z [
Ω]
10
7
5
3
2
1.0
7
5
3
2
0.1
7
5
3
2
0.01
7
5
3
2
0.001
10
µF
0.01
2 3
5 7 0.1
2 3
5 7 1.0
4.7
µF
2.2
µF
1.0
µF
0.47
µF
0.22
µF
2 3
1µF
0.047
µF
5 7 10
0.022
µF
0.01
µF
2 3
5 7 100
MHz
Impedance versus Frequency Z = f (f) (Lead length 2.0mm)
Document Number: 26027
Revision: 05-Jul-05
For technical questions contact; dc-film@vishay.com
www.vishay.com
3
