Multilayer Ceramic Inductors
Features
Monolithic structure with high reliability
Standard EIA/EIAJ chip sizes such as 0402/1005 and 0603/1608
High quality ceramic material and unique manufacturing processes
providing high Q at high frequencies and high self-resonant
frequencies
Superior termination bonding strength
Nickel barrier with solder overplated termination offering excellent
solderability and solder leach resistance, suitable for both wave
and reflow soldering processes
Operating Temperature
-40º — +125º
C
C
Product Identification
MHI 0603 C 1N8 S T - T
(1) (2) (3) (4) (5) (6) (7)
(1)
(2)
(3)
(4)
Series code :
MHI: Multilayer Ceramic Inductor
Dimensions: L x W inches
The first two digits: L (length)
The last two digits: W (width)
Characteristic code: C
Value code: Inductance
N — decimal point for nH
Example: 1N8 = 1.8 nH
R — decimal point for µH (1000 nH)
Example: R12 = 0.12 µH = 120 nH
Tolerance code:
J =±
5%
K =±
10%
S = ± nH
0.3
Package code:
T = Tape & Reel
B = Bulk
Termination plating code:
T = 100% Sn plating Terminations
(Sn/Pb plating no longer available)
Applications
High frequency equipment including cellular phones, pagers, radar
detectors, computer communications, etc
(5)
Recommended PC Board Land Patterns
CHIP SIZE
EIA/EIAJ
0402(1005)
0603(1608)
L
INCH (mm)
0.063 (1.60)
0.102 (2.60)
G
INCH (mm)
0.016 (0.40)
0.022 (0.55)
H
INCH (mm)
0.024 (0.60)
0.037 (0.94)
(6)
(7)
Shape and Dimensions
G
H
SILVER
METALLIZATION
T
SOLDER
W
NICKEL
L
L
ELECTRODE
BW
SIZE
EIA/EIAJ
0402/1005
0603/1608
LENGTH (L)
INCH (mm)
0.039 ± 0.004
(1.00 ± 0.10)
0.063 ± 0.006
(1.60 ± 0.15)
WIDTH (W)
INCH (mm)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
THICKNESS (T)
INCH (mm)
0.020 ± 0.004
(0.50 ± 0.10)
0.031 ± 0.006
(0.80 ± 0.15)
TERMINATION (BW)
INCH (mm)
0.010± 0.004
(0.25 ± 0.10)
0.014 ± 0.006
(0.36 ± 0.15)
20
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
MHI Series (High Frequency)
AEM Part
Number
L, nH
Tolerance
Min.Q
Typ. Q
@100 MHz
Typ. Q
@800 MHz
Test
Frequency
MHz
Min.
SRF
MHz
Max. R
DC
Max. I
A
MHI0402C1N0
MHI0402C1N2
MHI0402C1N5
MHI0402C1N8
MHI0402C2N2
MHI0402C2N7
MHI0402C3N3
MHI0402C3N9
MHI0402C4N7
MHI0402C5N6
MHI0402C6N8
MHI0402C8N2
MHI0402C10N
MHI0402C12N
MHI0402C15N
MHI0402C18N
MHI0402C22N
MHI0402C27N
MHI0402C33N
MHI0402C39N
MHI0402C47N
MHI0402C56N
MHI0402C68N
MHI0402C82N
MHI0402CR10
1.0
1.2
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
S
S
S
S
S
S
S, K
S, K
S, K
S, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
8
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
11
10
10
40
36
36
35
33
33
33
31
30
30
30
30
30
28
28
27
26
26
24
20
18
18
16
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
8000
8000
8000
6000
6000
6000
6000
4000
4000
4000
3900
3500
3200
2600
2300
2000
1600
1400
1200
1100
900
750
700
600
600
0.12
0.12
0.13
0.14
0.16
0.20
0.22
0.25
0.28
0.30
0.35
0.40
0.45
0.50
0.55
0.65
0.80
0.90
1.10
1.20
1.30
1.40
1.40
1.60
2.00
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.25
0.25
0.25
0.20
0.20
0.20
0.20
0.20
0.18
0.18
0.12
0.10
Other values may be available upon request.
Please add tolerance, packaging and termination type codes when ordering.
21
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd
MHI Series (for high frequency)
AEM Part
Number
L, nH
Tolerance
Min.Q
Typ. Q
@100 MHz
Typ. Q
@800 MHz
Test
Frequency
MHz
Min.
SRF
MHz
Max. R
DC
Max. I
A
MHI0603C1N5
MHI0603C1N8
MHI0603C2N2
MHI0603C2N7
MHI0603C3N3
MHI0603C3N9
MHI0603C4N7
MHI0603C5N6
MHI0603C6N8
MHI0603C8N2
MHI0603C10N
MHI0603C12N
MHI0603C15N
MHI0603C18N
MHI0603C22N
MHI0603C27N
MHI0603C33N
MHI0603C39N
MHI0603C47N
MHI0603C56N
MHI0603C68N
MHI0603C82N
MHI0603CR10
MHI0603CR12
MHI0603CR15
MHI0603CR18
MHI0603CR22
1.5
1.8
2.2
2.7
3.3
3.9
4.7
5.6
6.8
8.2
10
12
15
18
22
27
33
39
47
56
68
82
100
120
150
180
220
S
S
S
S
S, K
S, K
S, K
S, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
J, K
8
8
8
8
10
10
10
10
10
10
12
12
12
12
12
12
12
12
12
12
12
12
12
8
8
8
8
14
14
14
14
14
14
14
14
15
15
15
15
15
15
15
15
15
15
15
15
15
15
15
13
13
13
13
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
46
39
37
36
29
16
16
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
100
50
50
50
50
6000
6000
6000
6000
5000
4500
4000
4000
3500
3000
2000
1800
1500
1500
1300
1200
1000
1000
800
700
650
600
550
500
500
400
400
0.10
0.12
0.16
0.20
0.22
0.25
0.28
0.29
0.30
0.33
0.35
0.40
0.45
0.50
0.55
0.60
0.65
0.70
0.90
1.00
1.20
1.50
1.70
2.00
2.40
2.70
2.80
0.50
0.50
0.50
0.40
0.40
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.30
0.25
0.25
0.25
0.25
0.25
0.20
0.20
0.20
0.20
0.20
0.15
0.15
0.15
0.15
Other values may be available upon request.
Please add tolerance, packaging and termination type codes when ordering.
22
458 Shenhu Road, Suzhou Industrial Park Jiangsu, P.R. China
www.aemchina.com
Phone: 86-512-62580028, Fax: 86-512-62580018
AEM Components Co., Ltd

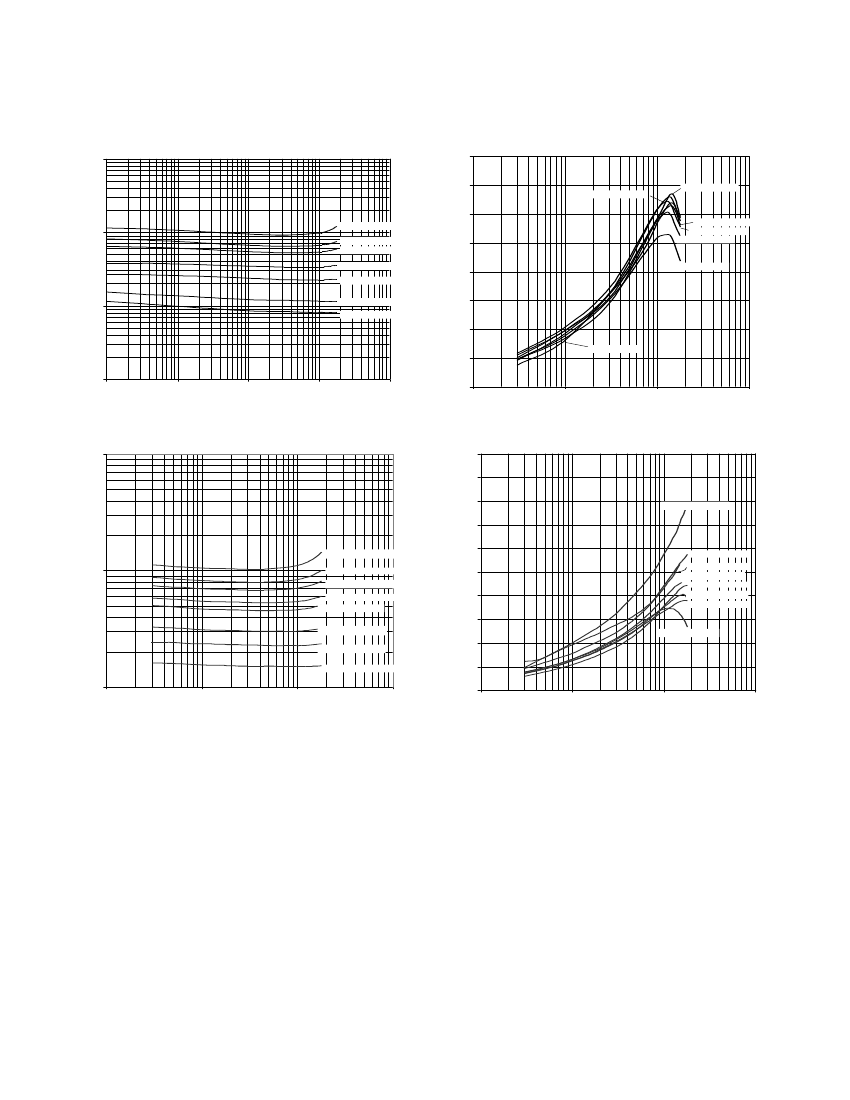

Typical Electrical Characteristics
(Curves not listed are available upon request)
M HI 0402 SERIES
100
40
M HI 0402 Series
35
MHI0402C3N9
MHI0402C1N5
30
MHI0402C10N
MHI0402C2N7
MHI0402C5N6
MHI0402C6N8
10
MHI0402C6N8
MHI0402C5N6
25
L (nH)
MHI0402C3N9
MHI0402C2N7
20
Q
MHI0402C10N
1
MHI0402C1N5
MHI0402C1N0
15
10
MHI0402C1N0
5
0
1
10
100
FREQUENCY (MHz )
1000
10000
0
10
100
1000
10000
FREQUENCY (MHz )
M HI0603 Series
100
100
M HI0603 Series
90
80
MHI0603C1N5
70
MHI0603C10N
60
MHI0603C3N3
MHI0603C2N2
MHI0603C6N8
MHI0603C4N7
L (nH)
10
MHI0603C8N2
MHI0603C6N8
MHI0603C5N6
MHI0603C4N7
50
Q
40
MHI0603C8N2
MHI0603C5N6
30
MHI0603C3N3
MHI0603C10N
MHI0603C2N2
20
MHI0603C1N5
10
1
10
100
1000
10000
Frequency (MHz)
0
10
100
1000
10000
Frequency (MHz)
