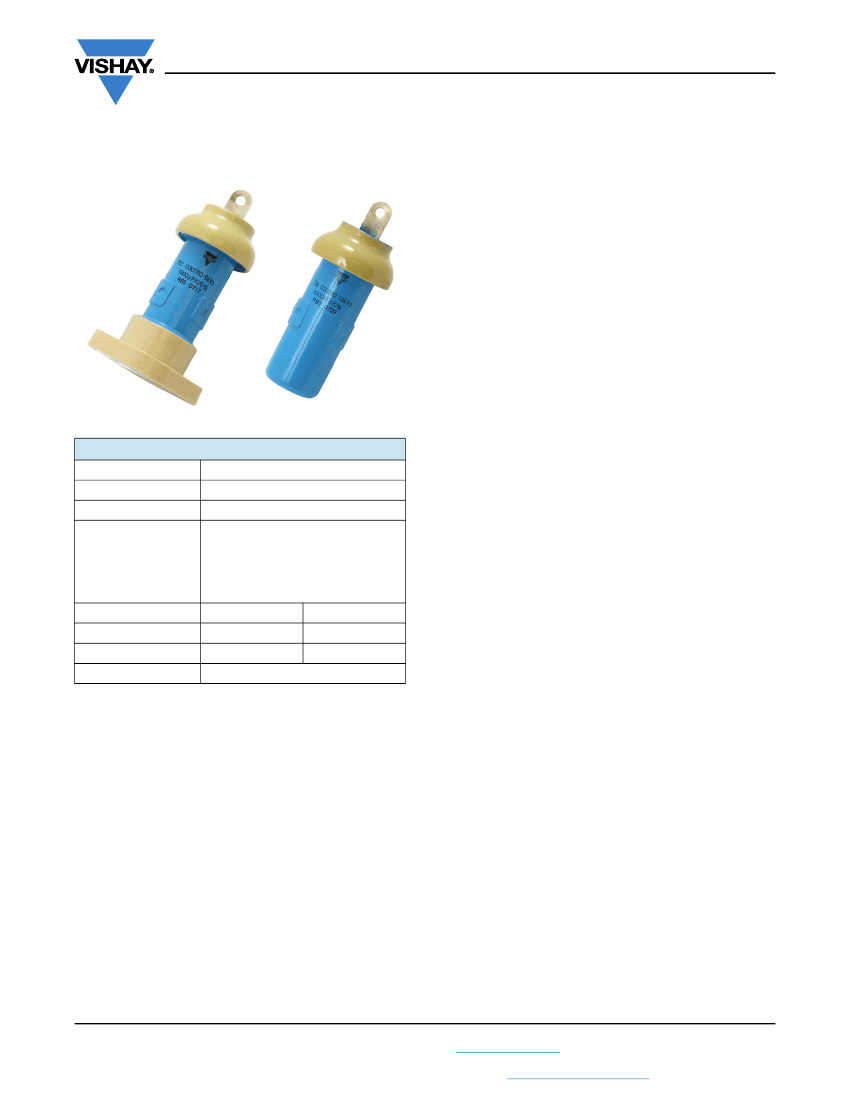

RF Power Pot Capacitors
with Mounting Tags or Screw Terminals, Class 1 Ceramic
FEATURES
• High reliability
• Multiple terminals
• Wide range of capacitance values
APPLICATIONS
• Induction and dielectric heating
• Antenna units
• Filter, bypass, and coupling circuits
CAPACITANCE RANGE
50 pF to 1.6 nF
CAPACITANCE TOLERANCE
± 20 %; ± 10 %; ± 5 %
QUICK REFERENCE DATA
DESCRIPTION
Ceramic Class
Ceramic Dielectric
VALUE
1
R7, R16, R42, R85
TA 030090
TB 030090
TC 030090
TD 030090
TDZ 030090
TE 030090
9000
1200
1600
Screw terminal
10 000
50
1000
CERAMIC DIELECTRICS
• R7 (TCC + 100 ppm/K)
• R16 (TCC + 100 ppm/K)
• R42 (TCC - 250 ppm/K)
• R85 (TCC - 750 ppm/K)
Type
RATED VOLTAGE
• 9.0 kV
p
• 10.0 kV
p
Voltage (V
p
)
Min. Capacitance (pF)
Max. Capacitance (pF)
Mounting
DIELECTRIC STRENGTH TEST
200 % of rated AC voltage (50 Hz, 5 minutes)
DISSIPATION FACTOR
MATERIAL
Capacitor elements made from class 1 ceramic dielectric
with noble metal electrodes.
Connection terminals:
made from copper / brass, silver plated.
R7:
R16:
R42, R85:
max. 0.07 %
max. 0.04 %
max. 0.05 %
Measuring frequencies:
1 MHz (< 1 nF); 300 kHz or 100 kHz ( 1 nF)
FINISH
Capacitor body completely protective lacquered.
The contoured insulating rim is additionally glazed.
INSULATION RESISTANCE
Min. 100 000 M (at 25 °C)
OPERATING TEMPERATURE RANGE
-55 °C to +100 °C
MARKING
Type designator, capacitance value and tolerance, rated
peak voltage, ceramic material code, production date code,
manufacturer logo
Revision: 04-Sep-15
Document Number: 22094
1
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 030090
www.vishay.com
Vishay Draloric
CAP.
VALUES
(pF)
50
60
80
100
120
160
200
250
300
400
500
600
800
1000
1200
1600
RATED
VOLTAGE
(kV
P
)
RATED
POWER
(1)
(kvar)
RATED
CURRENT
(A
RMS
)
SAP PART NUMBER AND ELECTRICAL DATA
PART NUMBER
T#030090BH500##BF1
T#030090BH600##BF1
T#030090BH800##BF1
T#030090BH101##BG1
T#030090BH121##BG1
T#030090BH161##BG1
T#030090BH201##BH1
T#030090BH251##BH1
T#030090BH301##BH1
T#030090BH401##BH1
T#030090BH501##BJ1
T#030090BH601##BJ1
T#030090BH801##BJ1
T#030090BH102##BJ1
T#030090WC122##BJ1
T#030090WC162##BJ1
CERAMIC
R7
14
R16
10
9.0
R42
18
R85
9.0
Notes
• # 2
nd
digit: code letter of the terminal version A, B, C, D, E (exception: TDZ30090)
• ## 14
th
to 15
th
digit: capacitance tolerance code ± 20 % = 38, ± 10 % = 36, ± 5 % = 33
(1)
The surface temperature during operation must not exceed +100 °C

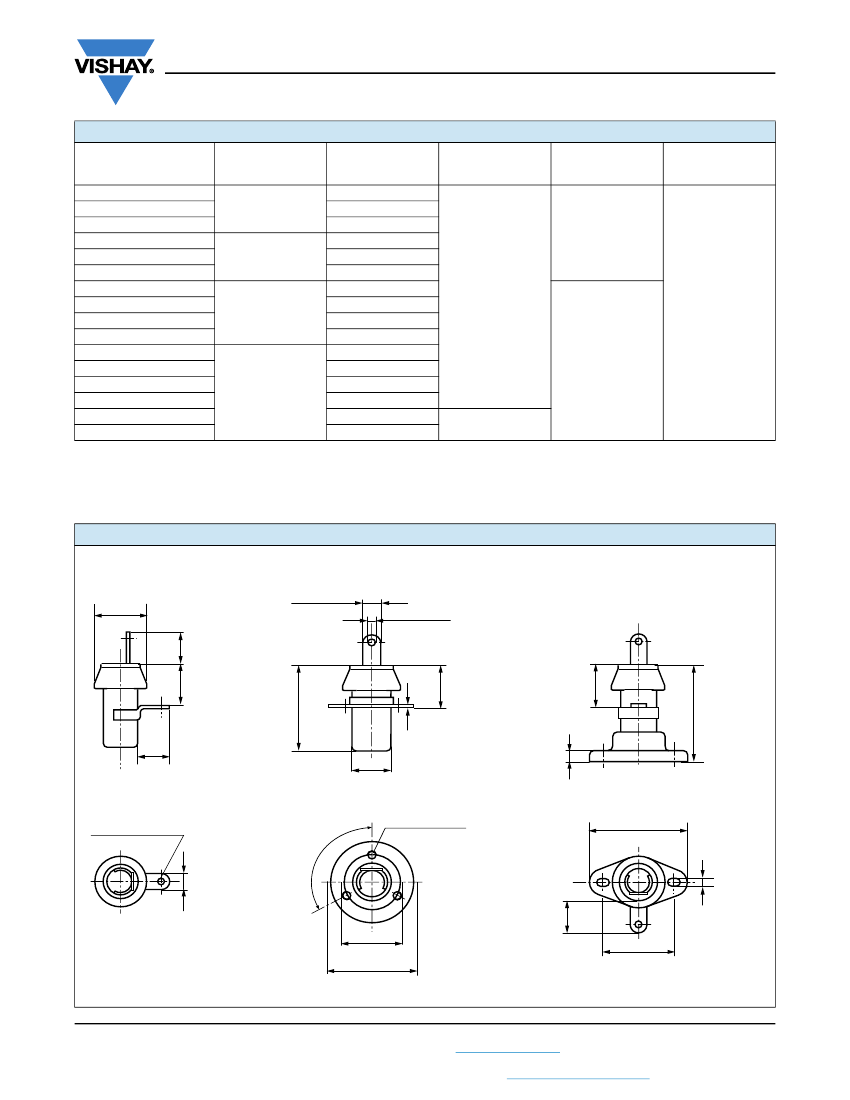

DIMENSIONS
in millimeters (inches)
TA
Ø 45
(1.77 Dia.)
18 + 1
(0.71 + 0.04)
45 ± 2
(1.77 ± 0.08)
90
(3.54)
TB
12 x 0.5
(0.47 x 0.020)
Ø 5.0 ± 0.2
(0.197 ± 0.008 Dia.)
TC
45 ± 2
(1.77 ± 0.08)
0.5
(0.020)
Ø 30
(1.18 Dia.)
45 ± 2
(1.77 ± 0.08)
96 ± 2
(3.78 ± 0.08)
18 + 1
(0.71 ± 0.04)
9
(0.35)
Insulating base
Ø 5.4 ± 0.2
(0.213 ± 0.008 Dia.)
120°
Ø 5.3 + 0.2
(0.209 + 0.008 Dia.)
65
(2.56)
12 x 0.5
(0.47 x 0.020)
18 + 1
(0.71 + 0.04)
Ø 45 ± 0.2
(1.77 ± 0.008 Dia.)
Ø 60
(2.36) Dia.
50 ± 1
(1.97 ± 0.04)
Ø 4.3 + 0.2
(0.169 + 0.008 Dia.)
Revision: 04-Sep-15
Document Number: 22094
2
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 030090
www.vishay.com
Vishay Draloric
DIMENSIONS
in millimeters (inches)
TD
TDZ
2.0
(0.079)
TE
97
(3.82)
99 ± 2
(3.90 ± 0.08)
92 ± 2
(3.62 ± 0.08)
16
(0.63)
16
(0.63)
0.6
(0.024)
M6 Thread
M6 thread
55
(2.17)
45 ± 0.2
(1.77 ± 0.008)
Ø 4.3 + 0.2
(0.169 + 0.008 Dia.)

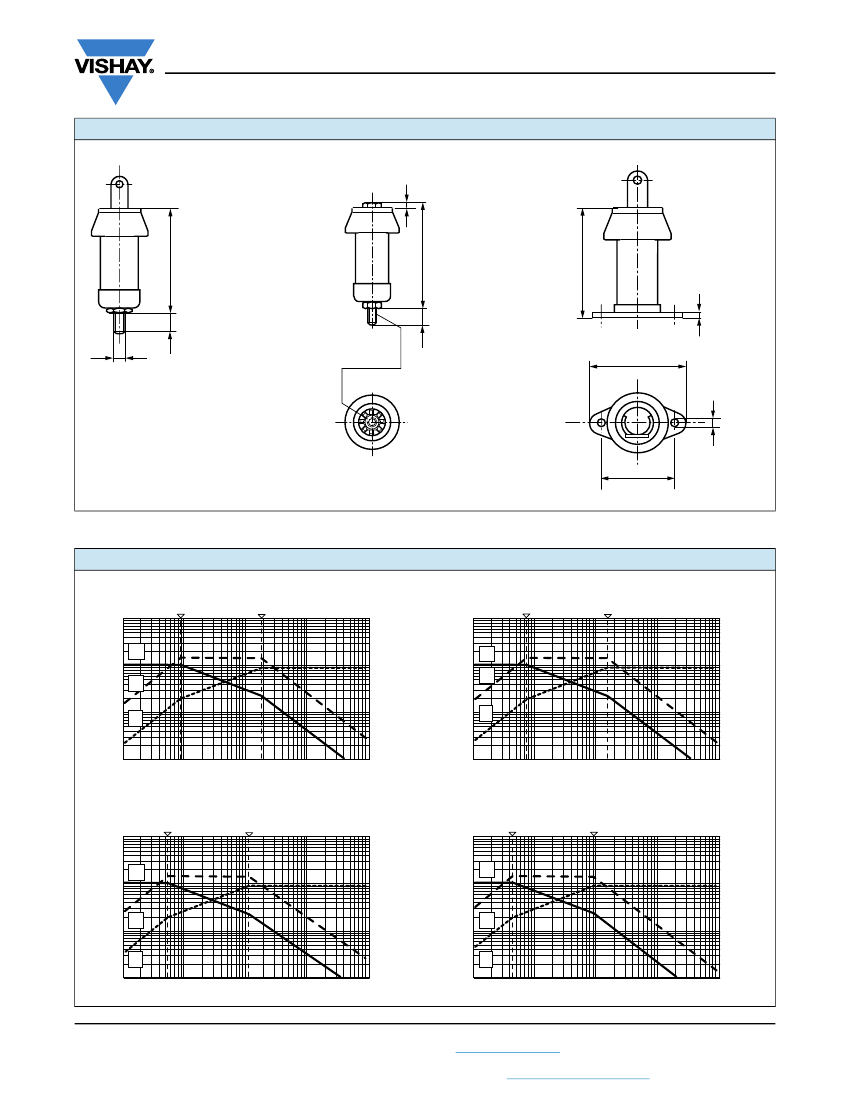

DERATING DIAGRAMS
T#030090BH500##BF1
U
g
(kV
p
)
100
U
g
10
Q
g
1
I
g
1
1
10
10
Q
g
0.89 MHz
18.4 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
T#030090BH600##BF1
0.74 MHz
15.3 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
I
g
1
0.1
0.1
1
10
Frequency (MHz)
100
0.1
1000
0.1
0.1
1
10
Frequency (MHz)
100
0.1
1000
T#030090BH800##BF1
U
g
(kV
p
) 0.56 MHz
100
11.5 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
) 0.45 MHz
100
U
g
10
Q
g
1
I
g
0.1
0.1
1
10
Frequency (MHz)
100
0.1
1000
0.1
0.1
1
1
I
g
1
10
T#030090BH101##BG1
9.20 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
10
Q
g
1
10
Frequency (MHz)
100
0.1
1000
Revision: 04-Sep-15
Document Number: 22094
3
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 030090
www.vishay.com
Vishay Draloric
T#030090BH161##BG1
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
10
10
10
Q
g
1
1
I
g
1
0.28 MHz
5.75 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100

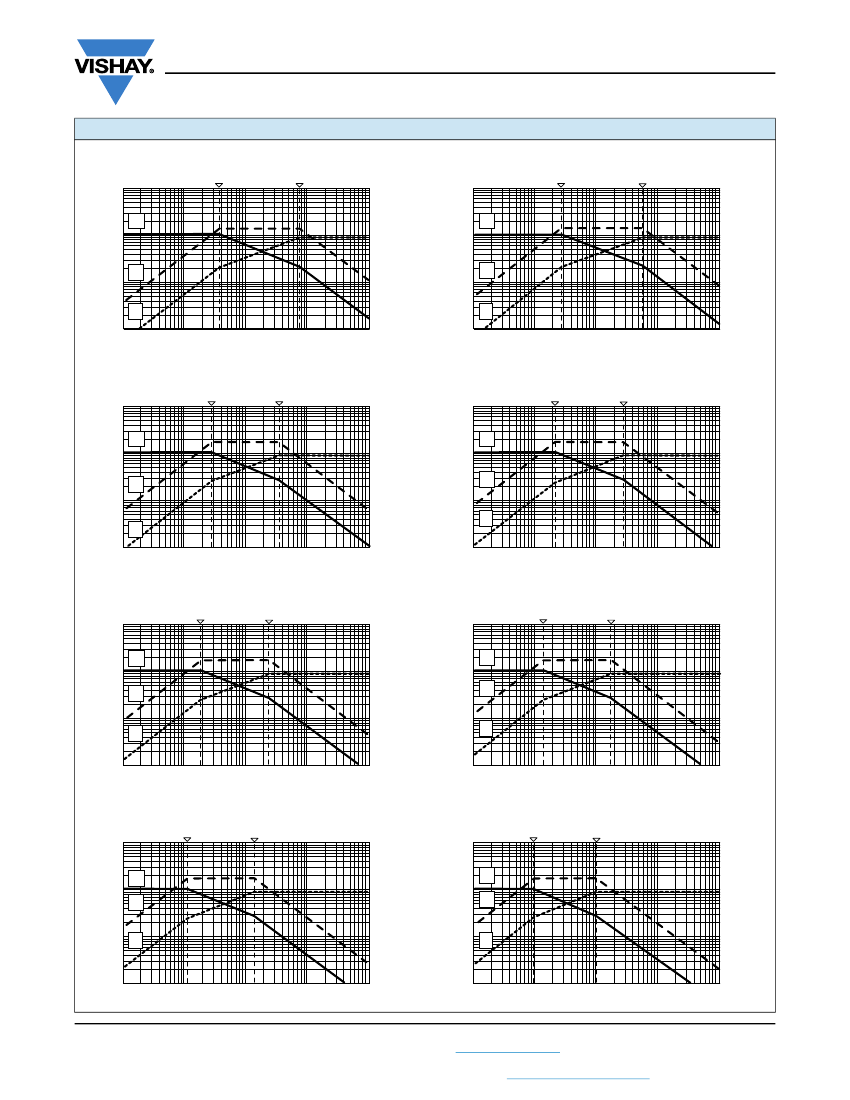

DERATING DIAGRAMS
T#030090BH121##BG1
U
g
(kV
p
)
100
U
g
10
0.37 MHz
7.67 MHz
1
Q
g
I
g
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
T#030090BH201##BH1
U
g
(kV
p
)
100
U
g
10
Q
g
1
I
g
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
1
1
I
g
0.1
0.01
10
10
Q
g
0.29 MHz
3.58 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
T#030090BH251##BH1
0.23 MHz
2.86 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
1
0.1
1
Frequency (MHz)
10
0.1
100
T#030090BH301##BH1
U
g
(kV
p
)
100
U
g
10
Q
g
1
I
g
0.1
0.01
0.1
100
1
1
10
10
Q
g
0.19 MHz
2.39 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
T#030090BH401##BH1
0.14 MHz
1.79 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
I
g
1
0.1
1
Frequency (MHz)
10
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
T#030090BH501##BJ1
U
g
(kV
p
)
100
0.11 MHz
1.43 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
10
Q
g
10
Q
g
T#030090BH601##BJ1
0.10 MHz
1.19 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
10
10
1
I
g
1
1
I
g
1
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
Revision: 04-Sep-15
Document Number: 22094
4
For technical questions, contact:
powcap@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
T. 030090
www.vishay.com
Vishay Draloric
T#030090BH102##BJ1
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
10
10
10
0.06 MHz
0.72 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
DERATING DIAGRAMS
T#030090BH801##BJ1
U
g
(kV
p
)
100
U
g
10
0.07 MHz
0.89 MHz
Q
g
1
I
g
0.1
0.01
0.1
1
Frequency (MHz)
10
0.1
100
1
1
Q
g
1
I
g
0.1
0.001
0.1
0.01
0.1
Frequency (MHz)
1
10
T#030090WC122##BJ1
U
g
(kV
p
)
100
U
g
10
10
10
0.06 MHz
0.60 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
U
g
(kV
p
)
100
U
g
T#030090WC162##BJ1
0.04 MHz
0.45 MHz
I
g
(A
RMS
)
Q
g
(kvar)
100
10
1
Q
g
1
1
Q
g
I
g
1
I
g
0.1
0.001
0.1
0.01
0.1
Frequency (MHz)
1
10
0.1
0.001
0.1
0.01
0.1
Frequency (MHz)
1
10
RELATED DOCUMENTS
