5400FB15A0100E

Description
Signal Conditioning 5.4 GHz WIFI SMD Balun Ceramic Filt.
CategoryPassive components
File Size171KB,2 Pages
ManufacturerJohanson Technology
Websitehttp://www.johansontechnology.com
Download Datasheet Parametric View All

5400FB15A0100E Online Shopping

Suppliers Part Number Price MOQ In stock
5400FB15A0100E - - View Buy Now

5400FB15A0100E Overview

Signal Conditioning 5.4 GHz WIFI SMD Balun Ceramic Filt.

5400FB15A0100E Parametric

Parameter NameAttribute value
Product CategorySignal Conditioning
ManufacturerJohanson Technology
RoHSDetails
ProductBaluns
Frequency5400 MHz
Frequency Range4900 MHz to 5875 MHz
Impedance50 Ohms, 100 Ohms
Termination StyleSMD/SMT
Package / Case0805 (2012 metric)
Minimum Operating Temperature- 40 C
Maximum Operating Temperature+ 85 C
PackagingReel
Insertion Loss2 dB
MountingSMD/SMT
Operating Temperature Range- 40 C to + 85 C
Factory Pack Quantity4000
TypeHigh Frequency Ceramic Filter Balun Combination
Unit Weight0.000194 oz
"High Frequency Ceramic Solutions"

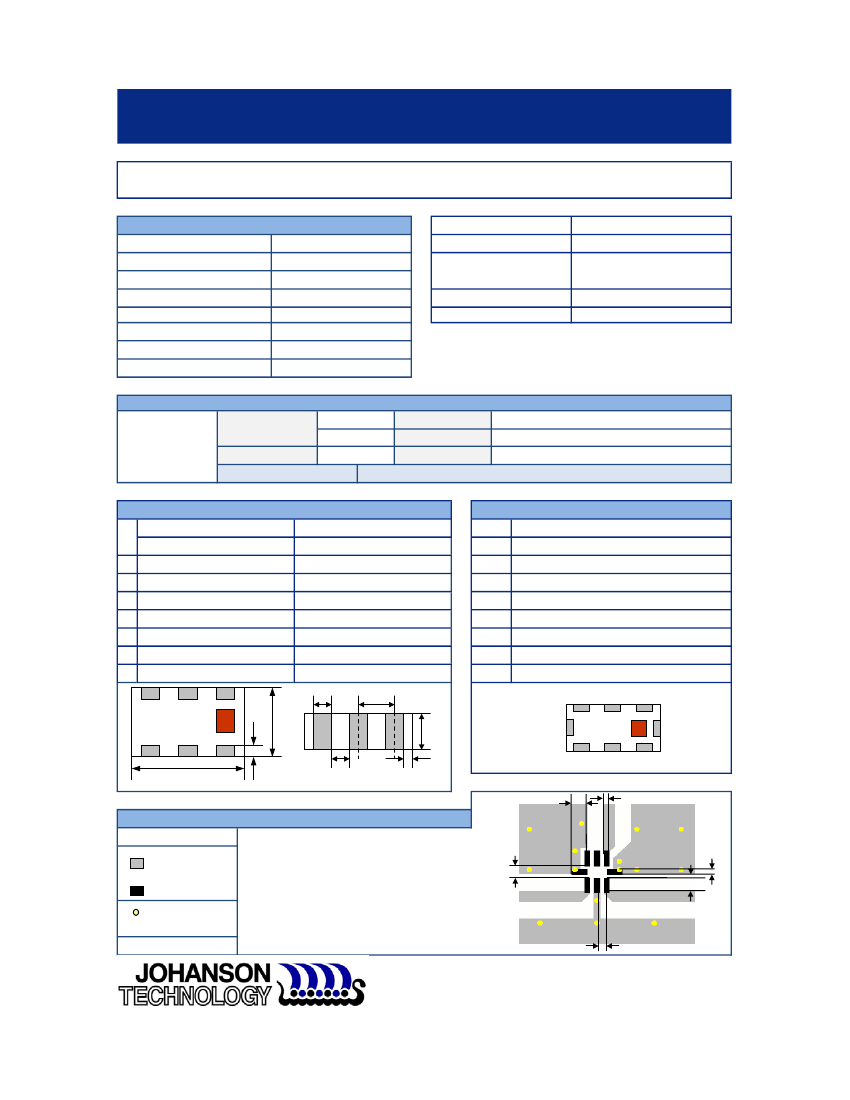

5.4 GHz Filter Balun Combination
Detail Specification: 04/04/12
P/N 5400FB15A0100
Page 1 of 3
Attenuation (db)
Operating Temperature
Storage Temperature
Input Power
Reel Quanity
30 min.@3500MHz
-40 to +85°C
+5 to +35°C, Humidity
45~75%RH, 12 mos. Max
2 Watt max.
4,000
General Specifications
Part Number
Frequency (MHz)
Unbalanced Impedence
Balanced Impendance
Insertion Loss
Return Loss
Phase Difference (degree
Amplitude Difference
5400FB15A0100
4900-5875
50 Ω
100 Ω
2 dB max.
9.5 db min.
180 ± 15
2.0 dB max.
Part Number Explanation
P/N Suffix
Bulk
Suffix = S
eg. 5400FB15A0100S
T&R
Suffix = E
eg. 5400FB15A0100E
Termination style 100% Tin
Suffix = None eg. 5400FB15A0100 (E or S)
Evaluation Board
5400FB15A0100-EBSMA
Packing Style
Terminal Configuration
No.
Function
Unbalanced Port (IN)
1
NC or DC Feed
2
NC
3
GND
4
Balanced Port
5
GND
6
Balanced Port
7
GND
8
3
4
5
1.0
6
7
0.35
2
1
8
Mechanical Dimensions
L
W
T
a
b
c
g
p
0.079
0.049
0.037
0.012
0.008
0.012
0.014
0.026
±
±
±
±
±
+
±
±
In
0.008
0.008
0.004
0.004
0.004
0.004 / -0.008
0.004
0.002
2.00
1.25
0.95
0.30
0.20
0.30
0.35
0.65
±
±
±
±
±
+
±
±
mm
0.20
0.20
0.10
0.10
0.10
0.10
0.10
0.05
/ -0.20
a
W
c
g
L
Mounting Considerations
LEGEND
Solder
Land
Through-hole
(φ0.3)
p
T
b
*
0.35
0.8
1.0
*
Line width should be designed to
match 50Ω characteristic impedance,
depending on PCB material and
thickness.
*
0.30
*
Unit : mm

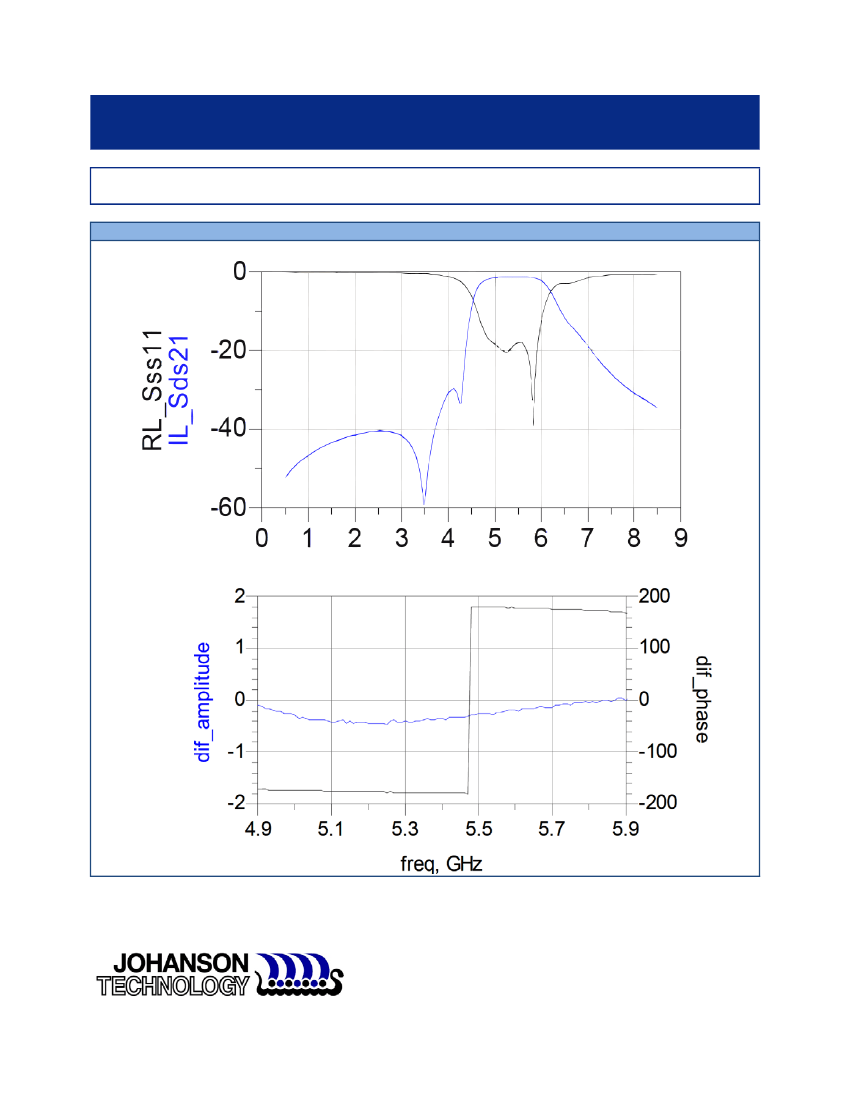

www.johansontechnology.com
4001 Calle Tecate • Camarillo, CA 93012 • TEL 805.389.1166 FAX 805.389.1821
2012 Johanson Technology, Inc. All Rights Reserved
