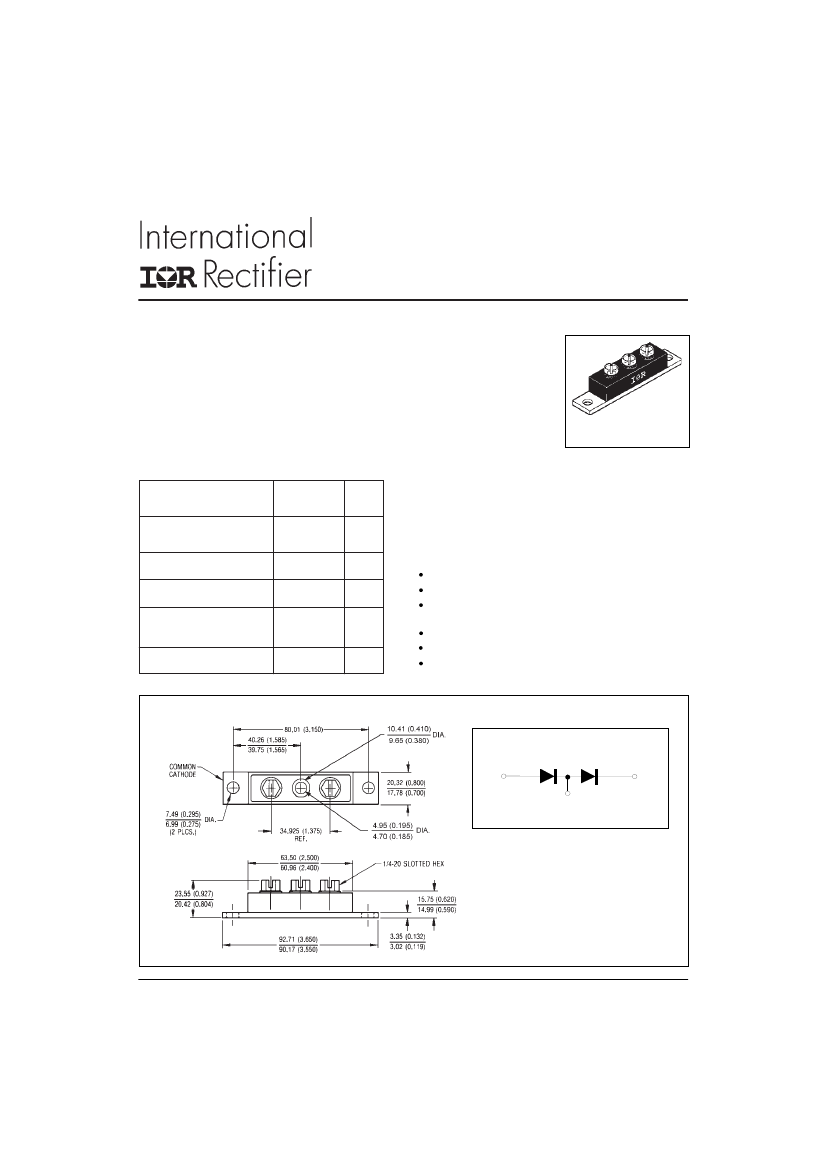

Bulletin PD-2.539 rev. C 02/04
403DMQ... Series
SCHOTTKY RECTIFIER
400 Amp
TO-244AB
isolated doubler
Major Ratings and Characteristics
Characteristics
I
F(AV)
Rectangular
waveform
V
RRM
I
FSM
@ tp = 5 µs sine
V
F
T
J
@ 200Apk, T
J
=125°C
(per leg)
range
Description/ Features
The 403DMQ100 center tap Schottky rectifier module series
has been optimized for low reverse leakage at high tempera-
ture. The proprietary barrier technology allows for reliable
operation up to 175 °C junction temperature. Typical applica-
tions are in high current switching power supplies, plating
power supplies, UPS systems, converters, free-wheeling
diodes, welding, and reverse battery protection.
175 °C T
J
operation
Center tap module
403DMQ... Units
400
100
25,500
0.72
A
V
A
V
High purity, high temperature epoxy encapsulation for
enhanced mechanical strength and moisture resistance
Low forward voltage drop
High frequency operation
Guard ring for enhanced ruggedness and long term
reliability
- 55 to 175
°C
1
2
3
Modified JEDEC
Outline TO-244AB Isolated
Dimensions in millimeters and (inches)
www.irf.com
1
403DMQ... Series
Bulletin PD-2.259
rev. C 02/04
Voltage Ratings
Parameters
V
R
Max. DC Reverse Voltage (V)
V
RWM
Max. Working Peak Reverse Voltage (V)
403DMQ100
100
Absolute Maximum Ratings
Parameters
I
F(AV)
Max. Average Forward
Current ( Per Leg )
I
FSM
E
AS
I
AR
Max. Peak One Cycle Non-Repetitive
Surge Current (Per Leg)
Non-Repetitive Avalanche Energy
(Per Leg)
Repetitive Avalanche Current
(Per Leg)
25,500
3,300
15
1
A
mJ
A
5µs Sine or 3µs Rect. pulse
10ms Sine or 6ms Rect. pulse
Following any rated
load condition and with
rated V
RRM
applied
403DMQ Units
400
A
Conditions
50% duty cycle @ T
C
= 82 °C, rectangular wave form
T
J
= 25 °C, I
AS
= 1 Amps, L = 30 mH
Current decaying linearly to zero in 1 µsec
Frequency limited by T
J
max. V
A
= 1.5 x V
R
typical
Electrical Specifications
Parameters
V
FM
Max. Forward Voltage Drop
(Per Leg)
(1)
403DMQ Units
0.87
1.06
0.72
0.86
6
140
5500
5.0
10000
V
V
V
V
mA
mA
pF
nH
V/ µs
@ 200A
@ 400A
@ 200A
@ 400A
Conditions
T
J
= 25 °C
T
J
= 125 °C
V
R
= rated V
R
I
RM
C
T
L
S
Max. Reverse Leakage Current
(Per Leg)
(1)
Max. Junction Capacitance (Per Leg)
Typical Series Inductance (Per Leg)
T
J
= 25 °C
T
J
= 125 °C
V
R
= 5V
DC
, (test signal range 100Khz to 1Mhz) 25°C
From top of terminal hole to mounting plane
dv/dt Max. Voltage Rate of Change
(Rated V
R
)
Thermal-Mechanical Specifications
Parameters
T
J
T
stg
Max. Junction Temperature Range
Max. Storage Temperature Range
(1) Pulse Width < 300µs, Duty Cycle <2%
403DMQ Units
-55 to 175
-55 to 175
0.4
0.2
°C
°C
Conditions
R
thJC
Max. Thermal Resistance Junction
to Case (Per Leg)
R
thJC
Max. Thermal Resistance Junction
to Case (Per Package)
°C/W DC operation
°C/W DC operation
R
thCS
Typical Thermal Resistance, Case
0.1
°C/W Mounting surface , smooth and greased
to Heatsink
wt
Approximate Weight
79 (2.80) g (oz.)
T
Mounting Torque Base
Min.
24 (20)
Max.
35 (30)
Kg-cm
Mounting Torque Center HoleTyp.
13.5 (12)
(Ibf-in)
Terminal Torque
Min.
35 (30)
Max.
46 (40)
Case Style
TO - 244AB isolated doubler Modified JEDEC
2
www.irf.com
403DMQ... Series
Bulletin PD-2.259
rev. C 02/04

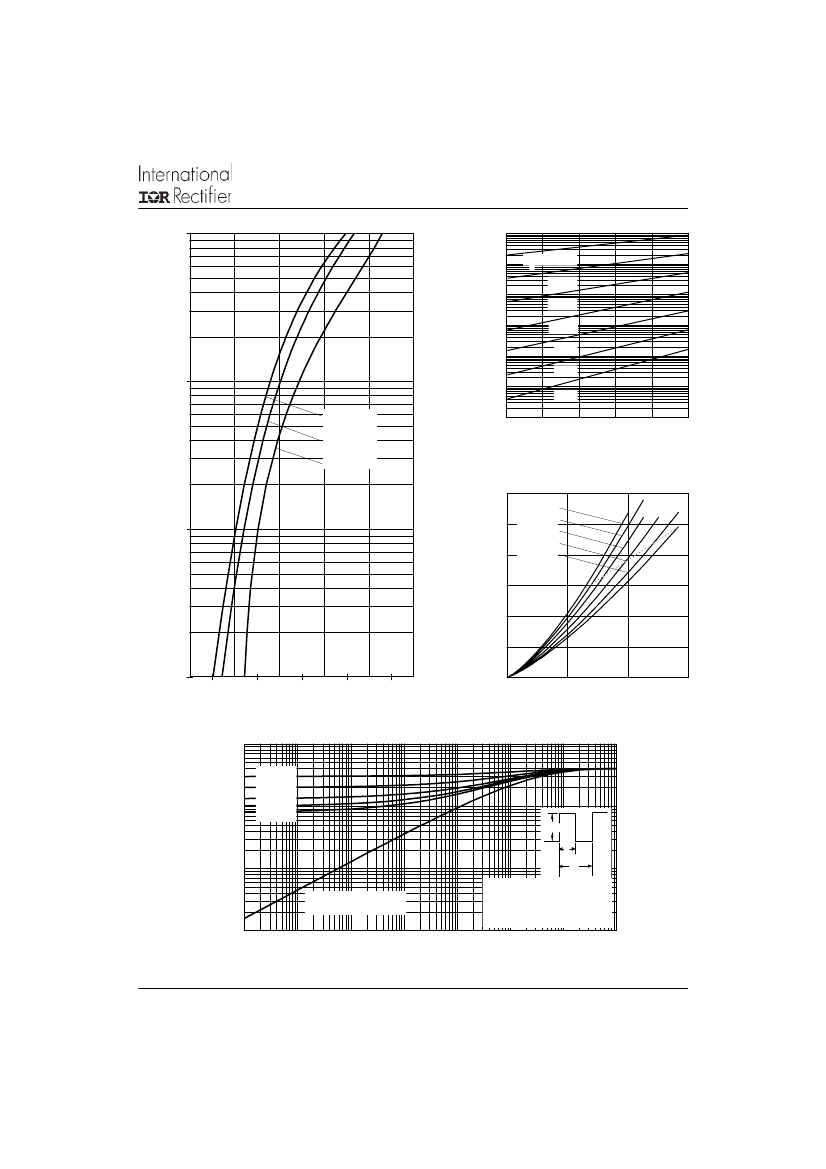

1000
1000
100
10
125˚C
T J = 175˚C
150˚C
Reverse Current - I
R
(mA)
1
0.1
0.01
0.001
0
20
100˚C
75˚C
50˚C
25˚C
Instantaneous Forward Current - I
F
(A)
100
T = 175˚C
J
T = 125˚C
J
T = 25˚C
J
40
60
80
100
Reverse Voltage - V
R
(V)
Fig. 2 - Typical Values Of Reverse Current
Vs. Reverse Voltage
600
10
Junction Capacitance - C
T
(pF)
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS Limit
DC
400
200
1
0
0.3
0.6
0.9
1.2
Forward Voltage Drop - V
FM
(V)
1.5
0
0
200
400
600
Reverse Voltage - V
R
(V)
Fig. 3 - Typical Junction Capacitance
Vs. Reverse Voltage
Fig. 1 - Max. Forward Voltage Drop Characteristics
1
(°C/W)
D = 0.75
D = 0.50
D = 0.33
D = 0.25
D = 0.20
thJC
0.1
Thermal Impedance Z
P
DM
t1
0.01
Notes:
t2
Single Pulse
(Thermal Resistance)
1. Duty factor D = t1 / t2
2. Peak T
J
= P
DM
x Z
thJC
+ T
C
0.001
0.00001
0.0001
0.001
0.01
0.1
1
t
1
, Rectangular Pulse Duration (Seconds)
Fig. 4 - Max. Thermal Impedance Z
thJC
Characteristics
10
100
www.irf.com
3
403DMQ... Series
Bulletin PD-2.259
rev. C 02/04
200
Allowable Case Temperature (°C)
Average Power Loss (Watts)
600
D = 0.20
D = 0.25
D = 0.33
D = 0.50
D = 0.75
RMS Limit
DC
160
DC
400
120
80
Square wave (D = 0.50)
80% Rated VR applied
40
see note (2)
200
0
200
400
600
Average Forward Current - I
F(AV)
(A)
Fig. 5 - Max. Allowable Case Temperature
Vs. Average Forward Current
Non-Repetitive Surge Current - I
FSM
(A)
0
0
0
200
400
600
Average Forward Current - I
F(AV)
(A)
Fig. 6 - Forward Power Loss Characteristics
100000
10000
At Any Rated Load Condition
And With Rated V
Applied
RRM
Following Surge
1000
10
100
1000
10000
Square Wave Pulse Duration - t
P
(microsec)
Fig. 7 - Max. Non-Repetitive Surge Current
L
HIGH-S
PEED
S CH
WIT
FREE-WHEEL
DIODE
40HF
L40S
02
+
DUT
IR P460
F
R = 25 ohm
g
Vd = 25 Volt
CURRENT
MONIT
OR
Fig. 8 - Unclamped Inductive Test Circuit
(2)
Formula used: T
C
= T
J
- (Pd + Pd
REV
) x R
thJC
;
Pd = Forward Power Loss = I
F(AV)
x V
FM
@ (I
F(AV)
/
D) (see Fig. 6);
Pd
REV
= Inverse Power Loss = V
R1
x I
R
(1 - D); I
R
@ V
R1
= 80% rated V
R
4
www.irf.com
403DMQ... Series
Bulletin PD-2.259
rev. C 02/04
Data and specifications subject to change without notice.
This product has been designed and qualified for Industrial Level.
Qualification Standards can be found on IR's Web site.
IR WORLD HEADQUARTERS:
233 Kansas St., El Segundo, California 90245, USA Tel: (310) 252-7105
TAC Fax: (310) 252-7309
Visit us at www.irf.com for sales contact information. 02/04
