162/163 PLL-PW
www.vishay.com
Vishay BCcomponents
Aluminum Electrolytic Capacitors
Power Long Life Printed Wiring

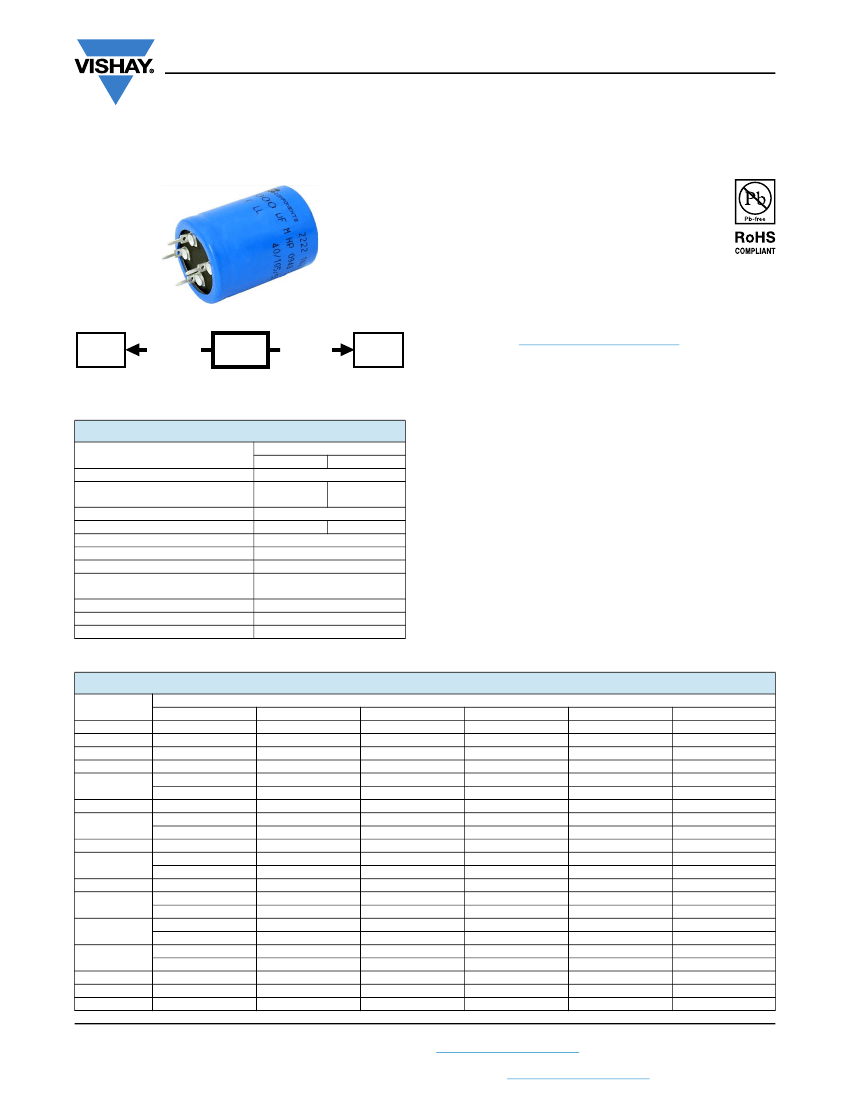

FEATURES
• Polarized aluminum electrolytic capacitors,
non-solid electrolyte
• Large types, minimized dimensions, cylindrical
aluminum case, insulated with a blue sleeve
• Provided with keyed polarity
• Very long useful life: 5000 h at 105 °C
• High ripple current capability
• Temperature range up to 105 °C
• High resistance to shock and vibration
• Material categorization: for definitions of compliance
please see
www.vishay.com/doc?99912
050/052
PED-PW
high ripple
current
85 °C
162/163
PLL-PW
equivalent
85 °C
051/053
PEC-PW
APPLICATIONS
•
•
•
•
Computer, telecommunication and industrial systems
Smoothing and filtering
Standard and switched mode power supplies
Energy storage in pulse systems
Fig. 1
QUICK REFERENCE DATA
VALUE
162
163
Nominal case size (Ø D x L in mm)
25 x 30 to 40 x 100
470 μF to
68 μF to
Rated capacitance range
150 000 μF
3300 μF
(E6 series), C
R
Tolerance on C
R
± 20 %
10 V to 100 V 200 V to 400 V
Rated voltage range, U
R
Category temperature range
-40 °C to +105 °C
Endurance test at 105 °C
2000 h
Useful life at 105 °C
5000 h
Useful life at 40 °C,
150 000 h
1.9 x I
R
applied
Shelf life at 0 V, 105 °C
500 h
Based on sectional specification
IEC 60384-4 / EN130300
Climatic category IEC 60068
40 / 105 / 56
DESCRIPTION
MARKING
The capacitors are marked (where possible) with the
following information:
• Rated capacitance (in μF)
• Tolerance on rated capacitance, code letter in accordance
with IEC 60062 (M for ± 20 %)
• Rated voltage (in V)
• Date code (YYMM)
• Name of manufacturer
• Code for factory of origin
• Polarity of the terminals and “-” sign to indicate the
negative terminal, visible from the top and / or side of the
capacitor
• Code number
• Climatic category in accordance with IEC 60068
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 162 SERIES
(Ø D x L in mm)
C
R
(μF)
470
680
1000
1500
2200
3300
4700
6800
10 000
15 000
22 000
33 000
47 000
68 000
100 000
150 000
Revision: 13-Oct-16
U
R
(V)
10
-
-
-
-
-
-
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
16
-
-
-
-
-
-
-
-
-
25 x 30
25 x 40
-
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
25
-
-
-
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
40
-
-
-
-
25 x 30
-
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
63
-
-
25 x 30
25 x 40
30 x 40
-
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
-
40 x 100
-
-
-
-
-
-
-
-
-
-
-
-
Document Number: 28347
1
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
162/163 PLL-PW
www.vishay.com
Vishay BCcomponents
U
R
(V)
200
-
-
250
-
25 x 30
25 x 40
30 x 40
35 x 40
-
35 x 50
40 x 40
40 x 50
-
40 x 70
40 x 100
-
385
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
400
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
-
40 x 70
-
40 x 100
-
-
SELECTION CHART FOR C
R
, U
R
, AND RELEVANT NOMINAL CASE SIZES FOR 163 SERIES
(Ø D x L in mm)
C
R
(μF)
68
100
150
220
330
470
680
1000
1500
2200
25 x 30
25 x 40
30 x 40
-
35 x 40
-
35 x 50
40 x 50
40 x 50
40 x 70
40 x 100
DIMENSIONS
in millimeters
AND AVAILABLE FORMS
2.5
Ø D + 1 max.
-
-
10 ± 0.1
L
L + 5 max.
1.3
(3 x)
4.9 ± 0.2
12.5
± 0.1

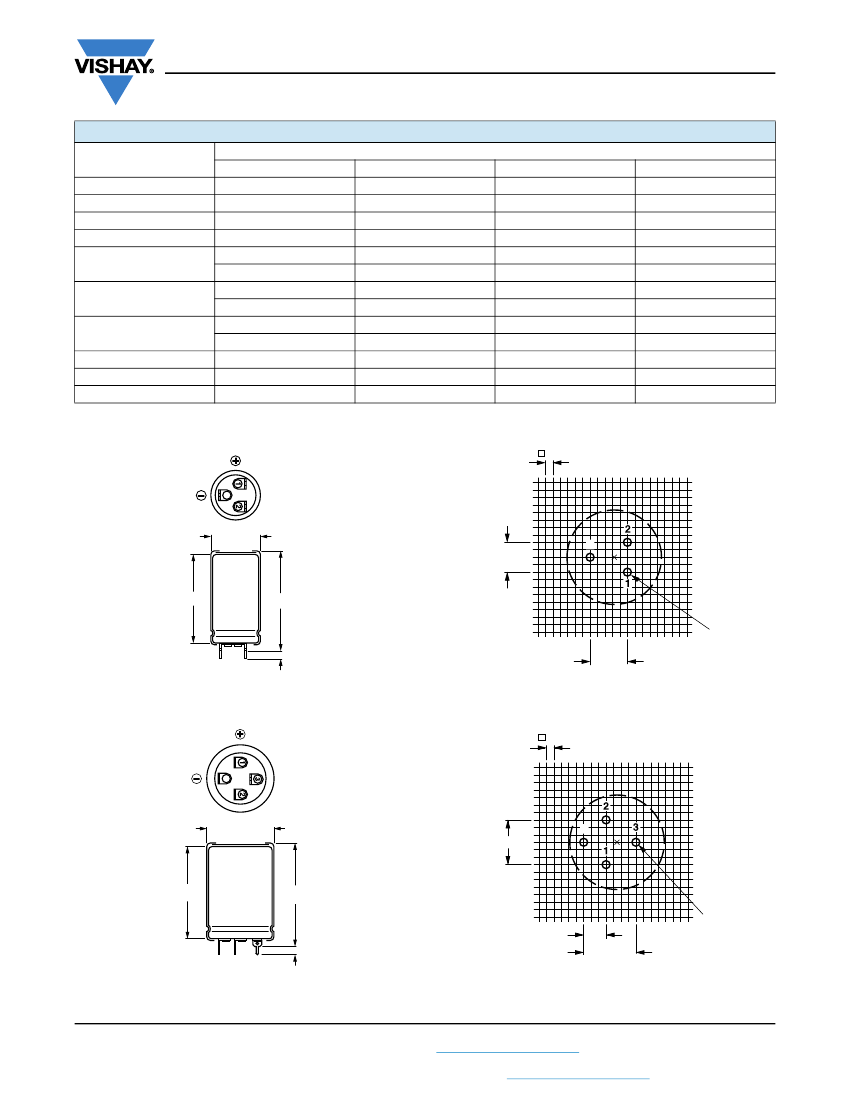

Fig. 2 - Printed wiring pin version
(case Ø D = 25 mm)
Fig. 3 - Mounting hole diagram viewed from component side
(case Ø D = 25 mm)
2.5
Ø D + 1 max.
15 ± 0.1
-
-
L
L + 5 max.
1.3
(4 x)
7.5 ± 0.1
4.9 ± 0.2
17.5 ± 0.1
Fig. 4 - Printed wiring pin version
(case Ø D = 30 mm)
Fig. 5 - Mounting hole diagram viewed from component side
(case Ø D = 30 mm)
Revision: 13-Oct-16
Document Number: 28347
2
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
162/163 PLL-PW
www.vishay.com
Vishay BCcomponents
2.5
1
3
Ø D + 1 max.
15 ± 0.1
-
2
-
L
L + 5 max.
1.3
(4 x)
4.9 ± 0.2
7.5 ± 0.1
17.5 ± 0.1

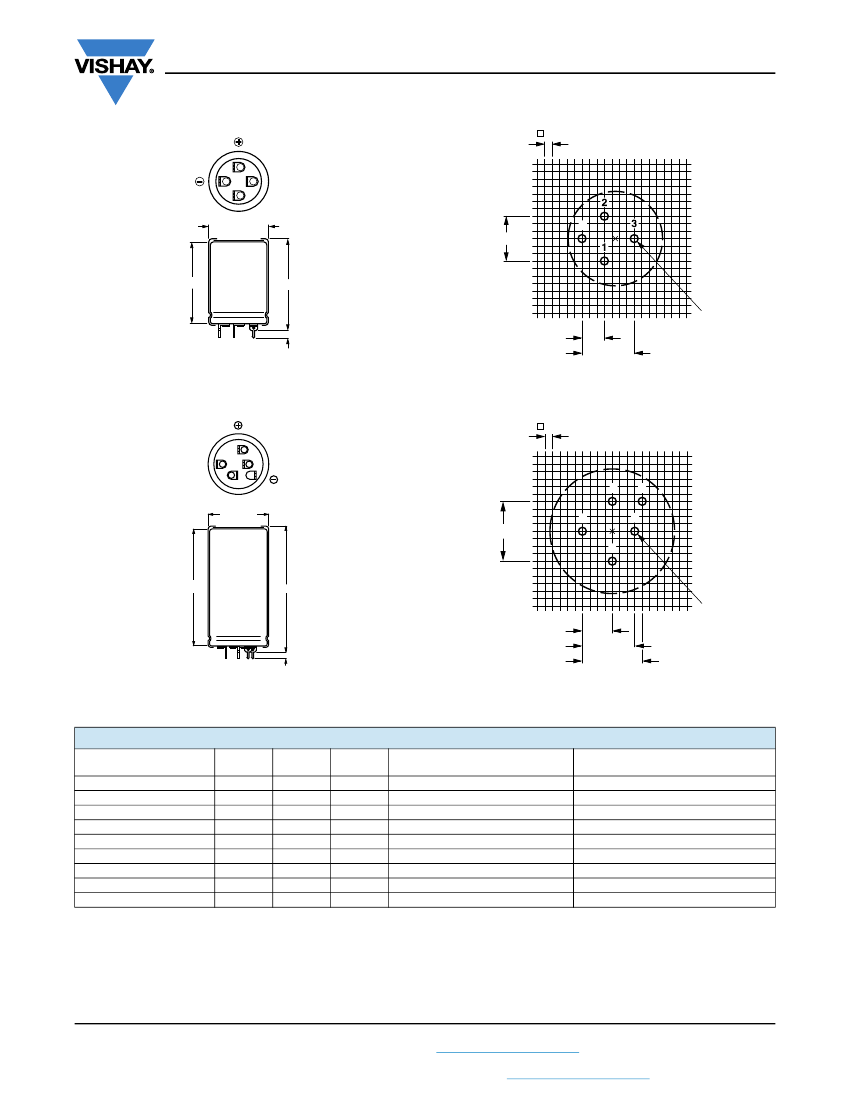

Fig. 6 - Printed wiring pin version
(case Ø D = 35 mm)
Fig. 7 - Mounting hole diagram viewed from component side
(case Ø D = 35 mm)
2.5
1
4
3
-
Ø D + 1 max.
2
3
2
20 ± 0.1
-
4
1
L
L + 5 max.
1.3
(5 x)
10 ± 0.1
4.9 ± 0.2
17.5 ± 0.1
20 ± 0.1
Fig. 8 - Printed wiring pin version
(case Ø D = 40 mm)
Fig. 9 - Mounting hole diagram viewed from component side
(case Ø D = 40 mm)
Table 1
DIMENSIONS
in millimeters,
MASS AND PACKAGING QUANTITIES PW VERSIONS
NOMINAL CASE SIZE
ØDxL
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
Ø D
max.
26
26
31
36
36
41
41
41
41
L
max.
35
45
45
45
55
45
55
75
105
MASS
(g)
24
28
38
51
66
78
82
110
176
PACKAGING QUANTITIES
(units per box)
100
100
100
50
50
50
50
25
25
CARDBOARD BOX DIMENSIONS
LxWxH
290 x 280 x 50
290 x 280 x 60
340 x 330 x 60
390 x 198 x 60
390 x 198 x 70
440 x 223 x 60
440 x 223 x 70
230 x 230 x 90
230 x 230 x 120
MOUNTING
When a number of capacitors are connected in a bank, they must not be closer together than 15 mm, when no derating of ripple
current and / or temperature is applied.
Pin number 1 is the positive terminal. Pin “-” is the negative terminal.
Pin numbers 2, 3 and 4 (if present) should be free from the electrical circuit or connected to the minus terminal.
Revision: 13-Oct-16
Document Number: 28347
3
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
162/163 PLL-PW
www.vishay.com
Vishay BCcomponents
ORDERING EXAMPLE
Electrolytic capacitor 162 series
10 000 μF / 25 V; ± 20 %
Nominal case size: Ø 30 mm x 40 mm
Ordering code: MAL2 16256103E3
Former 12NC: 2222 16256103
ELECTRICAL DATA
SYMBOL
C
R
I
R
I
L1
I
L5
ESR
Z
DESCRIPTION
Rated capacitance at 100 Hz
Rated RMS ripple current at 100 Hz and 105 °C
Max. leakage current after 1 min at U
R
Max. leakage current after 5 min at U
R
Max. equivalent series resistance at 100 Hz
Max. impedance at 10 kHz
Note
• Unless otherwise specified, all electrical values in Tables 2 and 3
apply at T
amb
= 20 °C, P = 86 kPa to 106 kPa, RH = 45 % to 75 %
Table 2
ELECTRICAL DATA AND ORDERING INFORMATION FOR 162 SERIES
U
R
(V)
C
R
100 Hz
(μF)
10 000
15 000
22 000
33 000
47 000
47 000
68 000
100 000
150 000
6800
10 000
15 000
22 000
33 000
33 000
47 000
68 000
100 000
4700
6800
10 000
15 000
22 000
22 000
33 000
47 000
68 000
2200
3300
4700
6800
10 000
10 000
15 000
22 000
33 000
1000
1500
2200
3300
4700
4700
6800
10 000
15 000
NOMINAL
CASE SIZE
Ø D x L (mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
105 °C
(A)
3.17
4.21
5.05
5.63
6.19
6.19
7.64
10.0
12.9
3.11
4.09
4.97
5.53
6.08
6.08
7.46
9.70
12.90
2.94
3.93
4.81
5.43
5.98
5.98
7.30
9.43
12.44
2.36
3.17
3.93
4.59
5.03
5.03
6.09
8.34
10.97
1.55
2.10
2.72
3.44
4.09
4.09
5.10
6.86
9.31
I
L1
1 min
(mA)
0.60
0.90
1.32
1.98
2.82
2.82
4.08
6.00
9.00
0.65
0.96
1.44
2.12
3.17
3.17
4.52
6.53
9.60
0.71
1.02
1.50
2.25
3.30
3.30
4.95
7.05
10.20
0.53
0.79
1.13
1.63
2.40
2.40
3.60
5.28
7.92
0.38
0.57
0.83
1.25
1.78
1.78
2.57
3.78
5.67
I
L5
5 min
(mA)
0.20
0.30
0.44
0.66
0.94
0.94
1.36
2.00
3.00
0.22
0.32
0.48
0.71
1.06
1.06
1.51
2.18
3.20
0.24
0.34
0.50
0.75
1.10
1.10
1.65
2.35
3.40
0.18
0.27
0.38
0.55
0.80
0.80
1.20
1.76
2.64
0.13
0.19
0.28
0.42
0.60
0.60
0.86
1.26
1.89
ESR
100 Hz
(m)
48
34
29
27
26
26
21
16
13
50
36
30
29
28
28
22
17
13
56
39
32
30
29
29
23
18
14
87
60
48
42
41
41
33
23
18
202
137
100
75
62
62
47
34
25
Z
10 kHz
(m)
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
37
27
23
22
21
21
18
15
12
54
38
33
31
29
29
24
18
15
155
109
79
61
53
53
40
29
21
ORDERING CODE
MAL2162.......
54103E3
54153E3
54223E3
54333E3
54473E3
44473E3
54683E3
54104E3
54154E3
55682E3
55103E3
55153E3
55223E3
55333E3
45333E3
55473E3
55683E3
55104E3
56472E3
56682E3
56103E3
56153E3
56223E3
46223E3
56333E3
56473E3
56683E3
57222E3
57332E3
57472E3
57682E3
57103E3
47103E3
57153E3
57223E3
57333E3
58102E3
58152E3
58222E3
58332E3
58472E3
48472E3
58682E3
58103E3
58153E3
10
16
25
40
63
Revision: 13-Oct-16
Document Number: 28347
4
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
162/163 PLL-PW
www.vishay.com
Vishay BCcomponents
I
R
100 Hz
105 °C
(A)
1.42
1.90
2.48
3.17
3.79
3.79
4.81
6.49
8.80
ELECTRICAL DATA AND ORDERING INFORMATION FOR 162 SERIES
U
R
(V)
C
R
100 Hz
(μF)
470
680
1000
1500
2200
2200
3300
4700
6800
NOMINAL
CASE SIZE
Ø D x L (mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
L1
1 min
(mA)
0.28
0.41
0.60
0.90
1.32
1.32
1.98
2.82
4.08
I
L5
5 min
(mA)
0.10
0.14
0.20
0.30
0.44
0.44
0.66
0.94
1.36
ESR
100 Hz
(m)
240
167
120
88
72
72
53
38
28
Z
10 kHz
(m)
155
109
79
61
53
53
40
29
21
ORDERING CODE
MAL2162.......
59471E3
59681E3
59102E3
59152E3
59222E3
49222E3
59332E3
59472E3
59682E3
100
Table 3
ELECTRICAL DATA AND ORDERING INFORMATION FOR 163 SERIES
U
R
(V)
C
R
100 Hz
(μF)
150
220
330
470
680
680
1000
1500
2200
100
150
220
330
470
470
680
1000
1500
68
100
150
220
330
330
470
680
1000
68
100
150
220
330
330
470
680
1000
NOMINAL
CASE SIZE
Ø D x L (mm)
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
25 x 30
25 x 40
30 x 40
35 x 40
35 x 50
40 x 40
40 x 50
40 x 70
40 x 100
I
R
100 Hz
105 °C
(A)
0.72
0.96
1.29
1.66
2.09
2.09
2.71
3.75
5.24
0.67
0.92
1.28
1.65
2.01
2.01
2.59
3.58
5.05
0.61
0.82
1.10
1.44
1.84
1.84
2.37
3.24
4.54
0.39
0.53
0.72
0.94
1.24
1.24
1.59
2.18
3.07
I
L1
1 min
(mA)
0.18
0.26
0.40
0.57
0.82
0.82
1.20
1.80
2.64
0.15
0.22
0.33
0.49
0.70
0.70
1.02
1.50
2.25
0.16
0.23
0.35
0.51
0.77
0.77
1.09
1.58
2.31
0.16
0.24
0.36
0.52
0.79
0.79
1.12
1.63
2.40
I
L5
5 min
(mA)
0.06
0.09
0.14
0.19
0.28
0.28
0.40
0.60
0.88
0.05
0.08
0.11
0.17
0.24
0.24
0.34
0.50
0.75
0.06
0.08
0.12
0.17
0.26
0.26
0.36
0.53
0.78
0.06
0.08
0.12
0.17
0.26
0.26
0.37
0.54
0.80
ESR
100 Hz
(m)
950
650
442
321
237
237
167
114
79
1060
710
492
325
256
256
182
125
85
1650
1120
755
525
360
360
260
180
125
3200
2180
1460
1010
680
680
485
336
230
Z
10 kHz
(m)
710
485
330
240
185
185
133
90
62
710
485
330
240
185
185
133
90
62
1260
855
580
405
280
280
205
140
100
2660
1810
1210
830
570
570
407
282
193
ORDERING CODE
MAL2163.......
52151E3
52221E3
52331E3
52471E3
52681E3
42681E3
52102E3
52152E3
52222E3
53101E3
53151E3
53221E3
53331E3
53471E3
43471E3
53681E3
53102E3
53152E3
58689E3
58101E3
58151E3
58221E3
58331E3
48331E3
58471E3
58681E3
58102E3
56689E3
56101E3
56151E3
56221E3
56331E3
46331E3
56471E3
56681E3
56102E3
200
250
385
400
Revision: 13-Oct-16
Document Number: 28347
5
For technical questions, contact:
aluminumcaps2@vishay.com
THIS DOCUMENT IS SUBJECT TO CHANGE WITHOUT NOTICE. THE PRODUCTS DESCRIBED HEREIN AND THIS DOCUMENT
ARE SUBJECT TO SPECIFIC DISCLAIMERS, SET FORTH AT
www.vishay.com/doc?91000
京公网安备 11010802033920号
EEWORLD
