110.50
[4.350]
66.09
[2.602]
139.14
[5.478]
100.00
[3.937]
39.25
[1.545]
INSIDE
HEIGHT
A
82.40
[3.244]
B
B
72.00
[2.835]
75.55
[2.974]
INSIDE
WIDTH
A

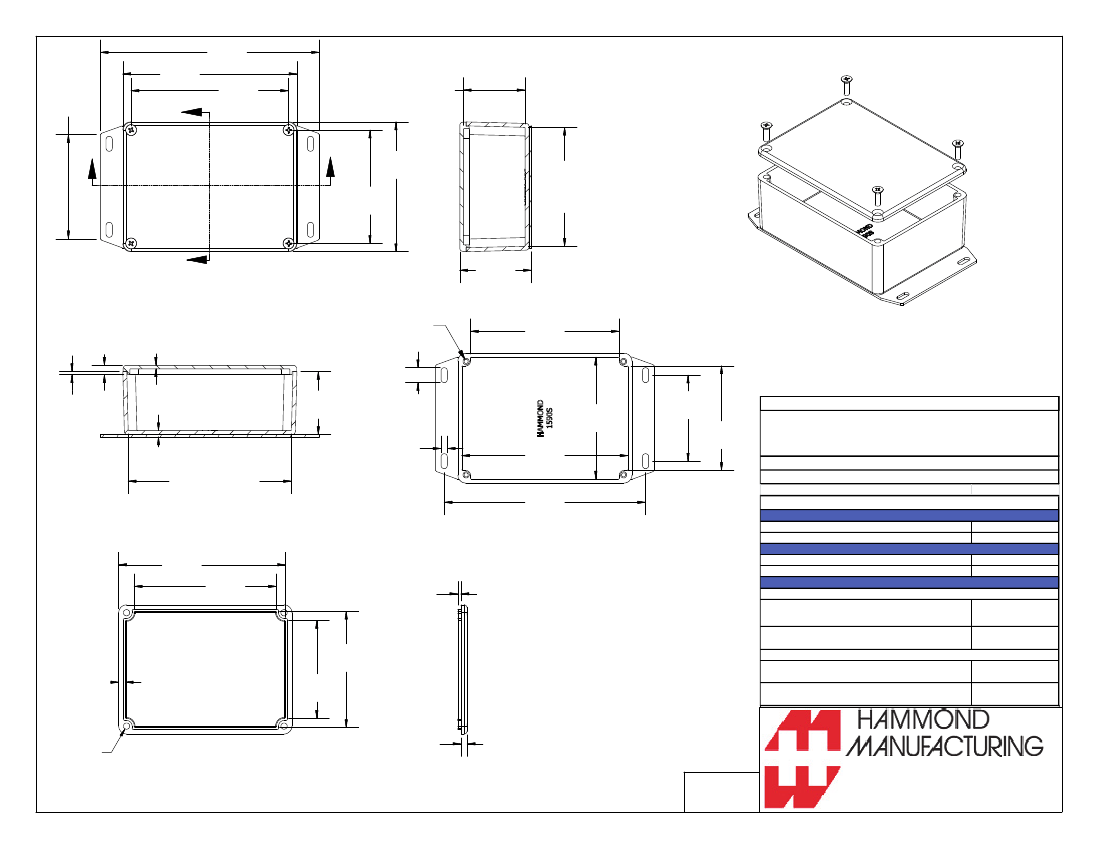

TOP VIEW
6.00
[.236]
2.25
[.089]
4X 6-32 UNC
0.72
0.16
0.12
45.50
[1.791]
SECTION A-A
END VIEW
94.50
[3.720]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
2.00
[.079]
40.00
[1.575]
9.53
[.375]
3.96
[.156]
105.50
[4.153]
127.86
[5.034]
77.40
[3.047]
54.61
[2.150]
66.40
[2.614]
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
Purchased assembly includes box, lid and 4 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
Silicone Gasket supplied with liquid resistant enclosure.
Bottom Flange is Welded.
4.00
[.157]
103.65
[4.081]
INSIDE LENGTH
Recommended Torque: 50-55 cN.m [71-78 ozf.in]
Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]
SECTION B-B
SIDE VIEW
105.80
[4.165]
PART NUMBERS
1590SF Enclosure
1590SF
Natural Finish Enclosure
1590SFBK
Black Textured Enclosure
1590SF Liquid Resistant Enclosure (Silicone Gasket)
1590WSF
Natural Finish Enclosure
1590WSFBK
Black Textured Enclosure
ACCESSORIES
INSIDE BOX
90.30
[3.555]
2.00
[.079]
Liquid Resistant Cover Screws
Stainless Steel Cover Screws (Pkg 100)
[6-32 x 1/2" With O-Ring]
Black Stainless Steel Cover Screws (Pkg 100)
[6-32 x 1/2" With O-Ring]
1590WMS100
1590WMS100BK
73.80
[2.906]
4.20
[.165]
62.10
[2.445]
Standard Cover Screws
Plated Cover Screw s (Pkg 100)
[6-32 x 1/2"]
Black Cover Screws (Pkg 100)
[6-32 x 1/2"]
1590MS100
1590MS100BK
4X
4.00
[.157]
INSIDE LID
4.00
[.157]
Dimensions:
mm
[inches]
1590SF
