119.50
[4.705]
148.24
[5.836]
109.50
[4.311]
A
29.75
[1.171]
INSIDE
HEIGHT
78.16
[3.077]
94.00
[3.701]
B
B
84.00
[3.307]
87.16
[3.432]
INSIDE
WIDTH
A

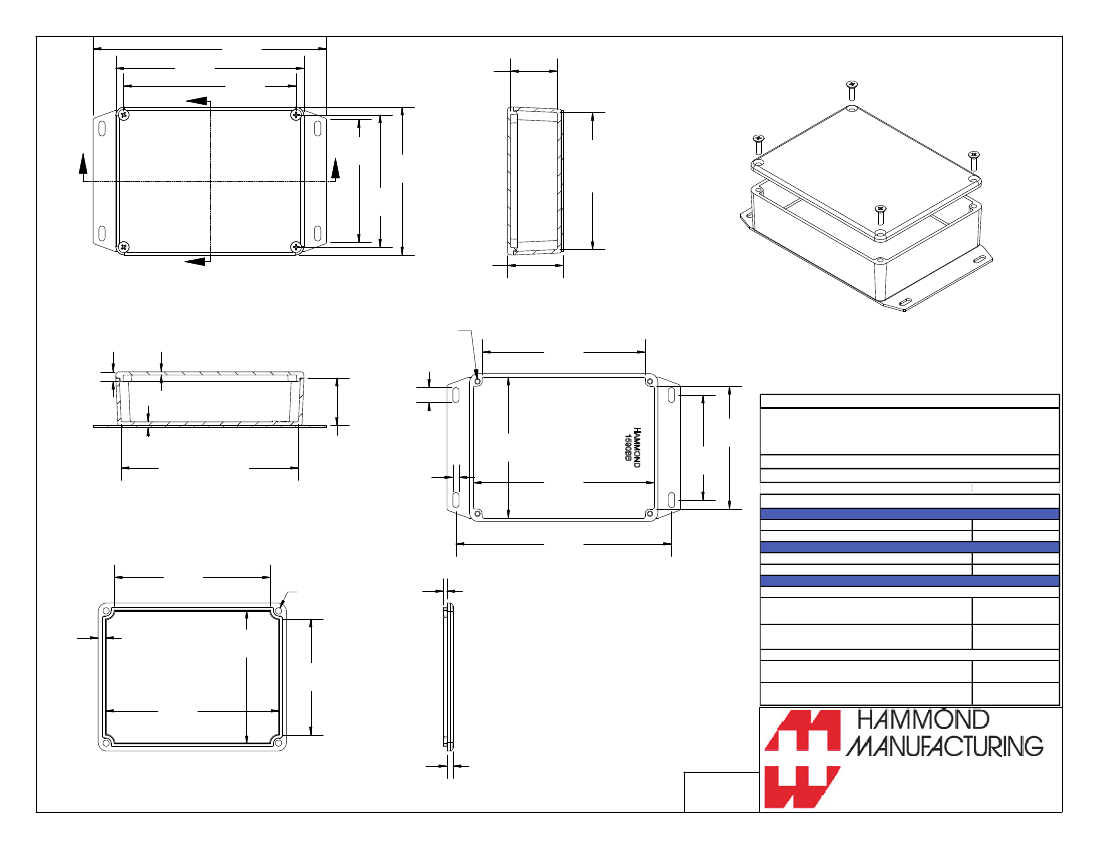

TOP VIEW
4X 6-32 UNC
0.43
0.14
0.12
35.50
[1.398]
SECTION A-A
END VIEW
6.00
[.236]
2.00
[.079]
103.50
[4.075]
Enclosures can be Factory Modified ( Milling, Drilling, Printing etc.)
Contact Factory
mjm@hammondmfg.com for quotes
Solid models of this enclosure available in STEP or IGES.
(Part number and text placement/orientation on our products are subject to change,
we do not recommend using them as a locating reference for modification purposes)
NOTE
9.53
[.375]
3.75
[.148]
112.66
[4.435]
INSIDE LENGTH
30.00
[1.181]
3.96
[.156]
89.50
[3.524]
115.00
[4.528]
78.00
[3.071]
66.68
[2.625]
Purchased assembly includes box, lid and 4 cover screws.
Box and lid are made from Diecast Aluminum Alloy.
Silicone Gasket supplied with liquid resistant enclosure.
Bottom Flange is W elded.
Recommended Torque: 50-55 cN.m [71-78 ozf.in]
Recommended Torque with Gasket : 25-30 cN.m [36-43 ozf.in]
SECTION B-B
SIDE VIEW
136.96
[5.392]
99.12
[3.902]
4X
4.00
[.157]
84.86
[3.341]
73.62
[2.898]
110.36
[4.345]
2.00
[.079]
PART NUMBERS
1590BBF Enclosure
1590BBF
Natural Finish Enclosure
1590BBFBK
Black Textured Enclosure
1590BBF Liquid Resistant Enclosure (Silicone Gasket)
1590W BBF
Natural Finish Enclosure
1590W BBFBK
Black Textured Enclosure
ACCESSORIES
INSIDE BOX
Liquid Resistant Cover Screws
Stainless Steel Cover Screw s (Pkg 100)
[6-32 x 1/2" W ith O-Ring]
Black Stainless Steel Cover Screw s (Pkg 100)
[6-32 x 1/2" W ith O-Ring]
1590W MS100
1590W MS100BK
4.69
[.185]
Standard Cover Screws
Plated Cover Screw s (Pkg 100)
[6-32 x 1/2"]
Black Cover Screw s (Pkg 100)
[6-32 x 1/2"]
1590MS100
1590MS100BK
INSIDE LID
4.00
[.157]
Dimensions:
mm
[inches]
1590BBF
