Electronic housing - UEGM 40/2 BU - 2792604
Please be informed that the data shown in this PDF Document is generated from our Online Catalog. Please find the complete data in the user's
documentation. Our General Terms of Use for Downloads are valid
(http://phoenixcontact.com/download)
Electronic housing, fully equipped with 6 screw connections per side for two PCBs
The illustration shows a green
version
Key Commercial Data
Packing unit
Weight per Piece (excluding packing)
Custom tariff number
Country of origin
1 pc
82.07 g
85369010
Germany
Technical data
General
Housing type
Housing material
Color
Complete housing
Polyamide (PA 6.6)
blue
Ambient conditions
Ambient temperature (operation)
-40 °C ... 105 °C
Dimensions
Length
Width
Pitch
79 mm
40 mm
5 mm
Technical data
Connection in acc. with standard
Nominal voltage U
N
Nominal current I
N
CUL
300 V
10 A
04/27/2016 Page 1 / 5
https://www.phoenixcontact.com/us/products/2792604
Electronic housing - UEGM 40/2 BU - 2792604
Technical data
Technical data
AWG/kcmil
Indicator1
Flammability rating according to UL 94
Power dissipation without gap
Power dissipation with 20 mm gap
Number of positions
30-12
CUL1
V0
5.2 W
11.2 W
12
Connection data
Conductor cross section solid min.
Conductor cross section solid max.
Conductor cross section flexible min.
Conductor cross section flexible max.
Conductor cross section AWG min.
Conductor cross section AWG max.
Stripping length
0.2 mm²
4 mm²
0.2 mm²
2.5 mm²
24
12
8 mm
Standards and Regulations
Connection in acc. with standard
Flammability rating according to UL 94
CUL
V0
Classifications
eCl@ss
eCl@ss 4.0
eCl@ss 4.1
eCl@ss 5.0
eCl@ss 5.1
eCl@ss 6.0
eCl@ss 7.0
eCl@ss 8.0
eCl@ss 9.0
27180401
27180401
27180506
27180506
27180802
27182702
27182702
27182702
ETIM
ETIM 2.0
ETIM 3.0
ETIM 4.0
ETIM 5.0
EC001031
EC001031
EC001031
EC001031
04/27/2016 Page 2 / 5
https://www.phoenixcontact.com/us/products/2792604
Electronic housing - UEGM 40/2 BU - 2792604
Classifications
UNSPSC
UNSPSC 6.01
UNSPSC 7.0901
UNSPSC 11
UNSPSC 12.01
UNSPSC 13.2
31261501
31261501
31261501
31261501
31261501
Approvals
Approvals
Approvals
UL Recognized / EAC / cULus Recognized
Ex Approvals
Approvals submitted
Approval details
UL Recognized
EAC
cULus Recognized
mm²/AWG/kcmil
Nominal current IN
Nominal voltage UN
30-12
10 A
300 V
Accessories
Accessories
Bridge
04/27/2016 Page 3 / 5
https://www.phoenixcontact.com/us/products/2792604
Electronic housing - UEGM 40/2 BU - 2792604
Accessories
Wire bridge - DB 50- 90 GY - 2820929
Wire bridge, Color: gray

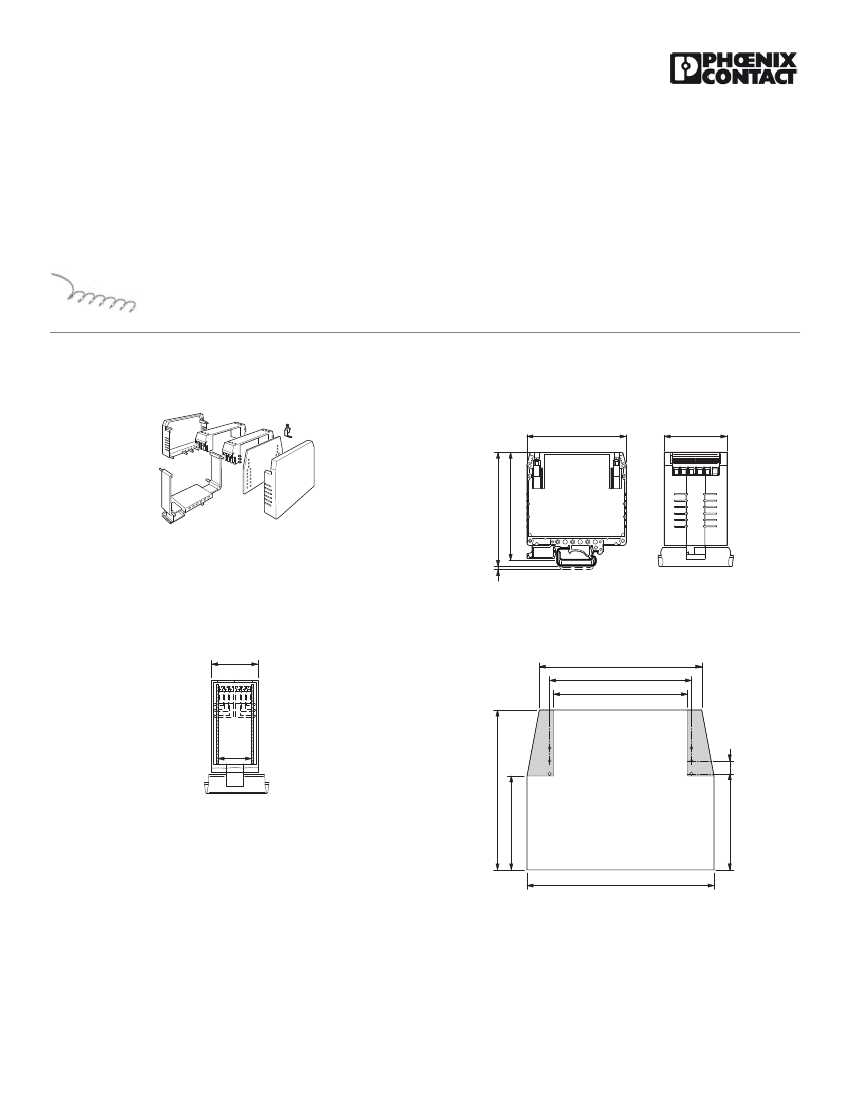

Drawings
Explosion drawing
Dimensional drawing
79
B
Dimensional drawing
40
2,5
90,5
85,5
Dimensional drawing
64
55,88
52,8
30
63
73,7
04/27/2016 Page 4 / 5
37,88
37
5,08
https://www.phoenixcontact.com/us/products/2792604
Electronic housing - UEGM 40/2 BU - 2792604
Schematic diagram
Phoenix Contact 2016 © - all rights reserved
http://www.phoenixcontact.com
04/27/2016 Page 5 / 5
